[Loris-dev] Import mri - scripts
Sotirios Nikoloutsopoulos
sotirisnik at gmail.com
Tue Sep 24 11:56:45 EDT 2019
Hi,
about the Dicoms i reported that didn't have a StudyID they actually do
[image: image.png]
[image: image.png]
I thought that this might be a permission because "w" was missing at the
group. After using chmod -R 775 only 102809579 passed, but with no mnic
files. Also now i have this error
(loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri/tools$ ./
delete_imaging_upload.pl -uploadID 34 -ignore
Cannot delete upload 34: the MRI pipeline is currently processing it.
How can solve this?
Thanks
Στις Τρί, 24 Σεπ 2019 στις 2:30 π.μ., ο/η Sotirios Nikoloutsopoulos <
sotirisnik at gmail.com> έγραψε:
> Hi,
>
> Here is our auto dicom uploading python script:
> https://github.com/aueb-wim/DataQualityControlTool/blob/loris1/mipqctool/dicom_uploader.py
>
> To give you a brief idea:
> Per folder it will:
> 1) Delete all the .bak files
> 2) Locate .dcm files and update the Patient header
> 3) Furthermore we are interesting in finding TR_min, TR_max, TE_min,
> TE_max parameters of T1 protocol and do an update at the mri_protocol table
> https://github.com/aueb-wim/DataQualityControlTool/blob/loris1/mipqctool/dicom_uploader.py#L205
> For some reason some files are missing SeriesDescription/ProtocolName
>

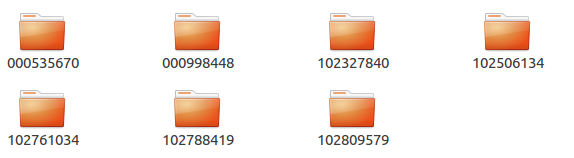

> In total i have 7 folders
>
> [image: image.png]
>
> 3/7 passed
>
> [image: image.png]
>
> Also about the first patient with DC0000 had a violation "T1 AXIAL SE
> GADO", but my script didn't output a TE of 17 nowhere and i find that weird
> since Loris detects the SeriesDescription.
> [image: image.png]
>
>
> Now about the 4/7 that didn't passed
>
> 102327840 and 102809579 outputs "The target directory does not contain a
> single DICOM file.", therefore they are missing their StudyUID
>
> 102506134 has 2 studyuid "You can't use it with data from multiple
> studies."
>
> and 102761034 "No data could be converted into valid MINC files.
> localizer, scout will not be considered!" What is this?
>
> If i wanted to force the insertion of 102327840, 102809579 and 102506134
> can i just pass a flag parameter to batch_uploads_imageuploader.pl? or
> modify imaging_upload_file.pl?
>
> Thank you,
>
> Sotirios
>
> PS
>
> To diagnose a folder search the name of the folder at dicom_output.txt.
>
> Στις Παρ, 20 Σεπ 2019 στις 4:54 μ.μ., ο/η Christine Rogers, Ms. <
> christine.rogers at mcgill.ca> έγραψε:
>
>> Hi Sotirios,
>> Glad to hear about your progress.
>>
>> Yes, the script you used to delete imaging data is fully documented here
>> <https://github.com/aces/Loris-MRI/blob/81bae73ea6e86c9498519dadf574468ee1d992ca/docs/scripts_md/delete_imaging_upload.md>
>> -- let us know if you didn't find the answers you were looking for there.
>> (Is it possible the null row in *mri_scanner* seen in your database
>> management software is a visual placeholder for you as the user? I'm not
>> sure why a scanner would ever be registered with ID='0' as your screenshot
>> showed.)
>>
>> Best,
>> Christine
>>
>> On Fri, Sep 20, 2019 at 9:45 AM Sotirios Nikoloutsopoulos <
>> sotirisnik at gmail.com> wrote:
>>
>>> I fixed it with this
>>>
>>> [image: image.png]
>>>
>>> Στις Παρ, 20 Σεπ 2019 στις 4:37 μ.μ., ο/η Sotirios Nikoloutsopoulos <
>>> sotirisnik at gmail.com> έγραψε:
>>>
>>>> Hi,
>>>>
>>>> I tried to create a new candidate using the API, is there something
>>>> wrong with the structure? why did i receive a 500 internal error? In the
>>>> loris-error log it state that there is something wrong with token, but i
>>>> verfied that the type of the token is a string.
>>>>
>>>> [Fri Sep 20 16:35:26.874732 2019] [php7:error] [pid 4535] [client
>>>> 127.0.0.1:59674] PHP Fatal error: Uncaught TypeError: Argument 1
>>>> passed to SinglePointLogin::JWTAuthenticate() must be of the type string,
>>>> null given, called in
>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc on line 169 and
>>>> defined in
>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc:192\nStack
>>>> trace:\n#0 /var/www/loris/php/libraries/SinglePointLogin.class.inc(169):
>>>> SinglePointLogin->JWTAuthenticate(NULL)\n#1
>>>> /var/www/loris/php/libraries/NDB_Client.class.inc(171):
>>>> SinglePointLogin->authenticate()\n#2
>>>> /var/www/loris/htdocs/api/v0.0.2/APIBase.php(73):
>>>> NDB_Client->initialize('/var/www/loris/...')\n#3
>>>> /var/www/loris/htdocs/api/v0.0.2/Candidates.php(44):
>>>> Loris\\API\\APIBase->__construct('POST')\n#4
>>>> /var/www/loris/htdocs/api/v0.0.2/Candidates.php(244):
>>>> Loris\\API\\Candidates->__construct('POST', Array)\n#5 {main}\n thrown in
>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc on line 192
>>>>
>>>> [image: image.png]
>>>>
>>>> Στις Παρ, 20 Σεπ 2019 στις 2:39 μ.μ., ο/η Sotirios Nikoloutsopoulos <
>>>> sotirisnik at gmail.com> έγραψε:
>>>>
>>>>> Hi,
>>>>>
>>>>> Is there a way also to delete candidates? Just to let you know what i
>>>>> did to clear candidates, because maybe i may have missed dependencies.
>>>>>
>>>>> First i deleted all their uploads
>>>>> ./delete_imaging_upload.pl -uploadID 13 etc ( is there a way to omit
>>>>> the backup file ? )
>>>>>
>>>>> Afterwards i had some scanner candidates, so i deleted all the entries
>>>>> from mri_scanner except that i couldn't delete this entry with the 0 ID.
>>>>>
>>>>> [image: image.png]
>>>>>
>>>>>
>>>>> Lastly i deleted the session and then the candidate table.
>>>>>
>>>>> Thanks
>>>>>
>>>>> Στις Πέμ, 19 Σεπ 2019 στις 7:57 μ.μ., ο/η Christine Rogers, Ms. <
>>>>> christine.rogers at mcgill.ca> έγραψε:
>>>>>
>>>>>> Hi Sotirios,
>>>>>>
>>>>>> We recommend that you use our existing tools for creating new
>>>>>> candidates - either the LORIS API or if you are using a PHP script, by
>>>>>> calling the Candidate class's createNew()
>>>>>> <https://github.com/aces/Loris/blob/master/php/libraries/Candidate.class.inc#L200>function.
>>>>>> These will create the necessary records for you. (It's not recommended to
>>>>>> make direct modifications to mysql database tables in your script, if I
>>>>>> understand you.)
>>>>>>
>>>>>> The CandID should be a randomized 6 digit randomized ID, and there
>>>>>> are multiple reasons for this.
>>>>>> You can use the PSCID for project-specific IDs and the External ID
>>>>>> field in the candidate table can also be used for any values you like.
>>>>>> Additionally, any number of custom IDs can be added in parallel -
>>>>>> these are entered/visible in the Candidate Information module and added in
>>>>>> the back-end as candidate parameters.
>>>>>>
>>>>>> Best,
>>>>>> Christine
>>>>>>
>>>>>>
>>>>>>
>>>>>> On Tue, Sep 17, 2019 at 7:31 PM Sotirios Nikoloutsopoulos <
>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>
>>>>>>> Hi,
>>>>>>>
>>>>>>> We are building a script that will auto insert the candidates based
>>>>>>> on their ExternalID. We would like to know whethere when we are creating a
>>>>>>> new profile in the candidate table, if we also have to insert a new record
>>>>>>> at another table? Furthermore is there a problem that in our case CandID
>>>>>>> won't be a 6digit? ( should we start it from 100000?)
>>>>>>>
>>>>>>> Thanks
>>>>>>>
>>>>>>> [image: image.png]
>>>>>>>
>>>>>>>
>>>>>>> Στις Παρ, 13 Σεπ 2019 στις 5:38 μ.μ., ο/η Melanie Legault, Mrs <
>>>>>>> melanie.legault2 at mcgill.ca> έγραψε:
>>>>>>>
>>>>>>>> That would normally be the case but the numeric part of the PSCID
>>>>>>>> get paded with 0 on the left.
>>>>>>>>
>>>>>>>> Ex. for sequential ID made of center ID of `ABC` plus 4 numerical
>>>>>>>> char with a min value of 1, the sequence would be:
>>>>>>>>
>>>>>>>> ABC0001
>>>>>>>> ABC0002
>>>>>>>> ...
>>>>>>>> ABC0010
>>>>>>>> ...
>>>>>>>>
>>>>>>>> thus sorting them ascending will always get the latest value
>>>>>>>> generated as the max value.
>>>>>>>>
>>>>>>>> Mélanie
>>>>>>>>
>>>>>>>> ------------------------------
>>>>>>>> *From:* Sotirios Nikoloutsopoulos <sotirisnik at gmail.com>
>>>>>>>> *Sent:* September 13, 2019 10:15
>>>>>>>> *To:* Melanie Legault, Mrs <melanie.legault2 at mcgill.ca>
>>>>>>>> *Cc:* Christine Rogers, Ms. <christine.rogers at mcgill.ca>;
>>>>>>>> loris-dev at bic.mni.mcgill.ca <loris-dev at bic.mni.mcgill.ca>
>>>>>>>> *Subject:* Re: [Loris-dev] Import mri - scripts
>>>>>>>>
>>>>>>>> I see, although the PSCID value is varchar(255), it must be stored
>>>>>>>> within a specific length of characters. Otherwise if we were to sort
>>>>>>>> strings with different lengths the result would not be sorted correctly (
>>>>>>>> e.x. 1,2,10,11 as strings would result to 1, 10, 11, 2 ).
>>>>>>>>
>>>>>>>> Thanks
>>>>>>>>
>>>>>>>> Στις Παρ, 13 Σεπ 2019 στις 4:52 μ.μ., ο/η Melanie Legault, Mrs <
>>>>>>>> melanie.legault2 at mcgill.ca> έγραψε:
>>>>>>>>
>>>>>>>> Hello Sotirios,
>>>>>>>>
>>>>>>>> There is no `last value` stored anywhere.
>>>>>>>> The code simply look for the PSCID with the max value and increase
>>>>>>>> that value by 1 in order to generate the next PSCID.
>>>>>>>>
>>>>>>>> Hope this info help.
>>>>>>>>
>>>>>>>> Mélanie Legault | Software developer | Faculty of Medicine | McGill
>>>>>>>> University
>>>>>>>> 3801 University, Montréal, QC H3A 2B4
>>>>>>>>
>>>>>>>> ------------------------------
>>>>>>>> *From:* loris-dev-bounces at bic.mni.mcgill.ca <
>>>>>>>> loris-dev-bounces at bic.mni.mcgill.ca> on behalf of Sotirios
>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com>
>>>>>>>> *Sent:* September 13, 2019 9:43
>>>>>>>> *To:* Christine Rogers, Ms. <christine.rogers at mcgill.ca>
>>>>>>>> *Cc:* loris-dev at bic.mni.mcgill.ca <loris-dev at bic.mni.mcgill.ca>
>>>>>>>> *Subject:* Re: [Loris-dev] Import mri - scripts
>>>>>>>>
>>>>>>>> Hi,
>>>>>>>>
>>>>>>>> how does Loris determine the next available PSCID value for a new
>>>>>>>> candidate?
>>>>>>>> https://github.com/aces/Loris/wiki/Project-Customization e.x in
>>>>>>>> the default case the PSCID is sequential, but where do we store the last
>>>>>>>> value for the sequential sequence?
>>>>>>>>
>>>>>>>> Thanks
>>>>>>>>
>>>>>>>> Στις Τρί, 10 Σεπ 2019 στις 4:00 π.μ., ο/η Sotirios Nikoloutsopoulos
>>>>>>>> <sotirisnik at gmail.com> έγραψε:
>>>>>>>>
>>>>>>>> Hi,
>>>>>>>>
>>>>>>>> the parameters in the mri_protocol you have assigned are global
>>>>>>>> standard? or were assigned after trial and error?
>>>>>>>>
>>>>>>>> Thanks
>>>>>>>>
>>>>>>>> Στις Κυρ, 8 Σεπ 2019 στις 10:11 μ.μ., ο/η Christine Rogers, Ms. <
>>>>>>>> christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>
>>>>>>>> Hi Sotirios,
>>>>>>>>
>>>>>>>> Given you have done the initial setup of your tables to match your
>>>>>>>> intended protocol/parameters according to instructions --
>>>>>>>> the Troubleshooting guide documentation recommends
>>>>>>>> <https://github.com/aces/Loris-MRI/blob/master/docs/AppendixA-Troubleshooting_guideline.md#a4-insertion-script-troubleshooting-notes>
>>>>>>>> re-running the pipeline (and first deleting prior uploads).
>>>>>>>>
>>>>>>>> Best,
>>>>>>>> Christine
>>>>>>>>
>>>>>>>> On Sun, Sep 8, 2019 at 10:22 AM Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>
>>>>>>>> *if i were to change their status to resolve what would happen?
>>>>>>>>
>>>>>>>> Στις Κυρ, 8 Σεπ 2019 στις 5:12 μ.μ., ο/η Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> έγραψε:
>>>>>>>>
>>>>>>>> I noticed that i can view the mnics at the brainbrowser from the
>>>>>>>> mri_violations page ( those mnics are stored at /data/loris/data/trashbin/
>>>>>>>> if i were to click their issue to resolve what would happend? would they
>>>>>>>> appear in the dicom_archive view too? ).
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> Στις Κυρ, 8 Σεπ 2019 στις 4:17 μ.μ., ο/η Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> έγραψε:
>>>>>>>>
>>>>>>>> Hi,
>>>>>>>>
>>>>>>>> The defaut values of the schema exists in my local database. If i
>>>>>>>> adjust the default values of TR_min and TE_min the mincs will be uploaded?
>>>>>>>>
>>>>>>>> [image: image.png]
>>>>>>>>
>>>>>>>>
>>>>>>>> [image: image.png]
>>>>>>>>
>>>>>>>> Thanks
>>>>>>>>
>>>>>>>> Στις Σάβ, 7 Σεπ 2019 στις 5:48 μ.μ., ο/η Christine Rogers, Ms. <
>>>>>>>> christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>
>>>>>>>> Hi Sotirios,
>>>>>>>>
>>>>>>>> Is it possible that you haven't set up your mri_protocol table ?
>>>>>>>> (and mri_scan_type table too, for additional types of scans)
>>>>>>>>
>>>>>>>> Like the psc table, this is a pre-requisite for the Imaging
>>>>>>>> insertion setup : See the install/setup documentation :
>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/02-Install.md
>>>>>>>>
>>>>>>>> To add new rows, just use MySQL insert statements. You can adapt
>>>>>>>> the insert statements which load the default table values --> e.g. Here on
>>>>>>>> GitHub :
>>>>>>>> https://github.com/aces/Loris/blob/master/SQL/0000-00-00-schema.sql#L718
>>>>>>>> (see also the mri_scan_type table)
>>>>>>>>
>>>>>>>> Best,
>>>>>>>> Christine
>>>>>>>>
>>>>>>>> On Fri, Sep 6, 2019 at 8:32 PM Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>
>>>>>>>> I see that i can edit the values but not how to insert new rows.
>>>>>>>>
>>>>>>>> [image: image.png]
>>>>>>>>
>>>>>>>> If i choose Inserted with flag then will the minc be inserted?
>>>>>>>>
>>>>>>>> [image: image.png]
>>>>>>>>
>>>>>>>> Στις Σάβ, 7 Σεπ 2019 στις 3:21 π.μ., ο/η Christine Rogers, Ms. <
>>>>>>>> christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>
>>>>>>>> Hi Sotirios,
>>>>>>>>
>>>>>>>> Glad to hear that *dcmodify* worked correctly.
>>>>>>>>
>>>>>>>> For the MRI Violations module, the screenshot is enough.
>>>>>>>>
>>>>>>>> It says "could not identify scan type", which we knew already. Did
>>>>>>>> you click on the link on those words?
>>>>>>>>
>>>>>>>> It will take you to the next page of the module, showing for each
>>>>>>>> scan what the scan parameters were, and will also show for comparison
>>>>>>>> what's stored in your *mri_protocol* table.
>>>>>>>> Compare these values to find which parameter was not correct
>>>>>>>> according to your *mri_protocol* table scan type definitions.
>>>>>>>>
>>>>>>>> You may end up broadening your mri_protocol value ranges (e.g. TR,
>>>>>>>> TE) for scans.
>>>>>>>> This can be done in the front-end, by editing the database table
>>>>>>>> directly in the same subpage of the MRI Violations module.
>>>>>>>>
>>>>>>>> The MRI Violations module features are explained in more detail in
>>>>>>>> the Help text for this module inside LORIS (click the ["?"] icon in the
>>>>>>>> menu bar.)
>>>>>>>>
>>>>>>>> See also: Loris-MRI troubleshooting guide
>>>>>>>> <https://github.com/aces/Loris-MRI/blob/master/docs/AppendixA-Troubleshooting_guideline.md>
>>>>>>>> : no MINCs inserted- violated scans
>>>>>>>>
>>>>>>>> Best,
>>>>>>>> Christine
>>>>>>>>
>>>>>>>> On Fri, Sep 6, 2019 at 8:11 PM Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>
>>>>>>>> Hi,
>>>>>>>>
>>>>>>>> looks like my previous email's attachment wasn't delivered due to
>>>>>>>> security reasons, i uploaded my file at google drive
>>>>>>>> https://drive.google.com/file/d/1U_TRbo_qGgfpQfs-SqeG9J3bMMqNfUU4/view?usp=sharing
>>>>>>>>
>>>>>>>> Στις Σάβ, 7 Σεπ 2019 στις 3:02 π.μ., ο/η Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> έγραψε:
>>>>>>>>
>>>>>>>> Hi,
>>>>>>>>
>>>>>>>> From Dicat's view seems that dcmodify worked in both cases
>>>>>>>>
>>>>>>>> [image: image.png]
>>>>>>>>
>>>>>>>> [image: image.png]
>>>>>>>>
>>>>>>>> For the mri_violations i attached the .html output from webbrowser,
>>>>>>>> so that you can check the filelds easier.
>>>>>>>>
>>>>>>>> [image: image.png]
>>>>>>>>
>>>>>>>> Thanks
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> Στις Παρ, 6 Σεπ 2019 στις 7:49 μ.μ., ο/η Christine Rogers, Ms. <
>>>>>>>> christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>
>>>>>>>> Hi Sotirios --
>>>>>>>> Great, sounds like more progress.
>>>>>>>>
>>>>>>>> About the dcmodify command -- I'm not sure why you're getting an
>>>>>>>> Endian warning. (it's a warning not an error, correct?)
>>>>>>>> To clarify -- Were the DICOM headers (PatientName) all successfully
>>>>>>>> relabelled, after the command ran?
>>>>>>>>
>>>>>>>> You can use also our DICAT tool (https://github.com/aces/DICAT) to
>>>>>>>> verify and/or update local DICOM headers -- though your dcmodify command is
>>>>>>>> a great and fast solution for bulk header updates.
>>>>>>>>
>>>>>>>> If you're concerned about fields being changed (e.g. "(2001,105f)"
>>>>>>>> from the warning message) - you can also dcmdump a DICOM slice before and
>>>>>>>> look at these fields specifically.
>>>>>>>> It's also not a bad "sanity check" to backup your DICOMS
>>>>>>>> before/after running dcmodify, and use dcmdump on each version to diff the
>>>>>>>> outputs -- this will pinpoint what changed.
>>>>>>>>
>>>>>>>> Re the protocol violation -- AcquisitionProtocol not recognized or
>>>>>>>> unknown : this means your scans did not match what is stored in your
>>>>>>>> mri_protocol table.
>>>>>>>> Check the MRI Violations front-end module -- can you see why they
>>>>>>>> didn't match?
>>>>>>>> Send us an example, in addition to the contents of the mri_protocol
>>>>>>>> table, if you can't find the source of the mismatch.
>>>>>>>>
>>>>>>>> Best,
>>>>>>>> Christine
>>>>>>>>
>>>>>>>>
>>>>>>>> On Fri, Sep 6, 2019 at 12:04 PM Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>
>>>>>>>> Here is the psc table
>>>>>>>> [image: image.png]
>>>>>>>>
>>>>>>>> I created 2 candidates profiles through the interface
>>>>>>>>
>>>>>>>> [image: image.png]
>>>>>>>>
>>>>>>>> then runned dcmodify command to a dicom file
>>>>>>>>
>>>>>>>> dcmodify -ma PatientName="DCC0000_258024_V1"
>>>>>>>> /home/lorisadmin/DICOMS/000535670/501/*.dcm
>>>>>>>>
>>>>>>>> and got those warning: is this okay?
>>>>>>>> W: Found element (2001,105f) with VR UN and undefined length,
>>>>>>>> reading a sequence with transfer syntax LittleEndianImplicit (CP-246)
>>>>>>>> W: Found element (2005,1083) with VR UN and undefined length,
>>>>>>>> reading a sequence with transfer syntax LittleEndianImplicit (CP-246)
>>>>>>>> W: Found element (2005,1402) with VR UN and undefined length,
>>>>>>>> reading a sequence with transfer syntax LittleEndianImplicit (CP-246)
>>>>>>>> W: Found element (2005,140f) with VR UN and undefined length,
>>>>>>>> reading a sequence with transfer syntax LittleEndianImplicit (CP-246)
>>>>>>>> W: Found element (2001,105f) with VR UN and undefined length,
>>>>>>>> reading a sequence with transfer syntax LittleEndianImplicit (CP-246)
>>>>>>>> W: Found element (2005,1083) with VR UN and undefined length,
>>>>>>>> reading a sequence with transfer syntax LittleEndianImplicit (CP-246)
>>>>>>>>
>>>>>>>> dcmodify at another Dicom didn't show warnings. Below you can see
>>>>>>>> the execution for the second dicom. Mnics could not be inserted due to
>>>>>>>> AcquisitionProtocol being unknown.
>>>>>>>>
>>>>>>>> Running now the following command:
>>>>>>>> /data/loris/bin/mri//uploadNeuroDB/imaging_upload_file.pl -profile
>>>>>>>> prod -upload_id 12 /data/incoming/DCC0001_602102_V1.tar.gz -verbose
>>>>>>>>
>>>>>>>> find -path \/tmp\/ImagingUpload\-18\-36\-mTrxXs -name '__MACOSX'
>>>>>>>> -delete
>>>>>>>>
>>>>>>>> dicomTar.pl \/tmp\/ImagingUpload\-18\-36\-mTrxXs
>>>>>>>> \/data\/loris\/data\/tarchive\/ -database -profile prod -verbose
>>>>>>>> Source: /tmp/ImagingUpload-18-36-mTrxXs
>>>>>>>> Target: /data/loris/data/tarchive
>>>>>>>>
>>>>>>>> Testing for database connectivity.
>>>>>>>> Database is available.
>>>>>>>>
>>>>>>>> You will archive the dir : ImagingUpload-18-36-mTrxXs
>>>>>>>>
>>>>>>>> You are creating a tar with the following command:
>>>>>>>>
>>>>>>>> tar -cf /data/loris/data/tarchive/ImagingUpload-18-36-mTrxXs.tar
>>>>>>>> ImagingUpload-18-36-mTrxXs
>>>>>>>>
>>>>>>>>
>>>>>>>> getting md5sums and gzipping!!
>>>>>>>>
>>>>>>>> * Taken from dir :
>>>>>>>> /tmp/ImagingUpload-18-36-mTrxXs
>>>>>>>> * Archive target location :
>>>>>>>> /data/loris/data/tarchive/DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>>>>>> * Name of creating host : 127.0.1.1
>>>>>>>> * Name of host OS : Linux
>>>>>>>> * Created by user : lorisadmin
>>>>>>>> * Archived on : 2019-09-06 18:36:50
>>>>>>>> * dicomSummary version : 1
>>>>>>>> * dicomTar version : 1
>>>>>>>> * md5sum for DICOM tarball :
>>>>>>>> b1dcdc8903dd2d9a5443227db2aa2814 ImagingUpload-18-36-mTrxXs.tar
>>>>>>>> * md5sum for DICOM tarball gzipped :
>>>>>>>> aeae87f20155a6805f7e0cfe5212ea5f ImagingUpload-18-36-mTrxXs.tar.gz
>>>>>>>> * md5sum for complete archive :
>>>>>>>> 1d9258d1f077ebc49111ab7ba22a8d6e
>>>>>>>> DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>
>>>>>>>> Adding archive info into database
>>>>>>>>
>>>>>>>> Removing temporary files from target location
>>>>>>>>
>>>>>>>>
>>>>>>>> Done adding archive info into database
>>>>>>>>
>>>>>>>> \/data\/loris\/bin\/mri\//uploadNeuroDB/tarchiveLoader.pl
>>>>>>>> -globLocation -profile prod
>>>>>>>> \/data\/loris\/data\/tarchive\/\/DCM_2016\-08\-22_ImagingUpload\-18\-36\-mTrxXs\.tar
>>>>>>>> -uploadID 12 -verbose
>>>>>>>> md5sum
>>>>>>>> /data/loris/data/tarchive/DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>>>>>> PSCID is: DCC0001
>>>>>>>> CandID id: 602102
>>>>>>>> visit_label is: V1
>>>>>>>> PSCID is: DCC0001
>>>>>>>> CandID id: 602102
>>>>>>>> visit_label is: V1
>>>>>>>> candidate id 602102
>>>>>>>> Set centerID = 1
>>>>>>>> PSCID is: DCC0001
>>>>>>>> CandID id: 602102
>>>>>>>> visit_label is: V1
>>>>>>>> PSCID is: DCC0001
>>>>>>>> CandID id: 602102
>>>>>>>> visit_label is: V1
>>>>>>>>
>>>>>>>> Number of MINC files that will be considered for inserting into the
>>>>>>>> database: 2
>>>>>>>>
>>>>>>>> log dir is /data/loris/data//logs and log file is
>>>>>>>> /data/loris/data//logs/TarLoad-18-37-31ajWx.log
>>>>>>>> PSCID is: DCC0001
>>>>>>>> CandID id: 602102
>>>>>>>> visit_label is: V1
>>>>>>>> PSCID is: DCC0001
>>>>>>>> CandID id: 602102
>>>>>>>> visit_label is: V1
>>>>>>>> candidate id 602102
>>>>>>>>
>>>>>>>> log dir is /data/loris/data//logs and log file is
>>>>>>>> /data/loris/data//logs/TarLoad-18-37-fanZFj.log
>>>>>>>> PSCID is: DCC0001
>>>>>>>> CandID id: 602102
>>>>>>>> visit_label is: V1
>>>>>>>> PSCID is: DCC0001
>>>>>>>> CandID id: 602102
>>>>>>>> visit_label is: V1
>>>>>>>> candidate id 602102
>>>>>>>>
>>>>>>>> Cleaning up temp files: rm -rf
>>>>>>>> /tmp/TarLoad-18-37-to5pYZ/ImagingUpload-18-36-mTrxXs*
>>>>>>>>
>>>>>>>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri$
>>>>>>>> cat /data/loris/data/logs/TarLoad-18-37-fanZFj.log
>>>>>>>>
>>>>>>>> ==> Loading file from disk
>>>>>>>> /tmp/TarLoad-18-37-to5pYZ/dcc0001_602102_v1_20160822_072406_205e1d1_mri.mnc
>>>>>>>>
>>>>>>>> --> mapping DICOM parameter for
>>>>>>>> /tmp/TarLoad-18-37-to5pYZ/dcc0001_602102_v1_20160822_072406_205e1d1_mri.mnc
>>>>>>>>
>>>>>>>> ==> computing md5 hash for MINC body.
>>>>>>>>
>>>>>>>> --> md5: 02022dda60d9de429340fec838f50cfe
>>>>>>>>
>>>>>>>> ==> verifying acquisition protocol
>>>>>>>>
>>>>>>>> Acquisition protocol is unknown
>>>>>>>>
>>>>>>>> --> The minc file cannot be registered since the
>>>>>>>> AcquisitionProtocol is unknown
>>>>>>>>
>>>>>>>> Στις Τετ, 4 Σεπ 2019 στις 10:46 μ.μ., ο/η Christine Rogers, Ms. <
>>>>>>>> christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>
>>>>>>>> Hi Sotirios:
>>>>>>>>
>>>>>>>> Sure -- you can delete imaging datasets with the
>>>>>>>> *delete_imaging_upload* script --
>>>>>>>> details here:
>>>>>>>> https://github.com/aces/Loris-MRI/blob/21.0-dev/docs/scripts_md/delete_imaging_upload.md
>>>>>>>>
>>>>>>>> What's in your *psc* table? (Is it properly populated? This is a
>>>>>>>> pre-requisite to loading imaging data.
>>>>>>>> <https://github.com/aces/Loris-MRI/blob/21.0-dev/docs/02-Install.md#221-database>
>>>>>>>> )
>>>>>>>> The foreign key constraint error on the candidate record is
>>>>>>>> curious.
>>>>>>>>
>>>>>>>> There are also a few options for creating candidates when inserting
>>>>>>>> imaging data:
>>>>>>>>
>>>>>>>> -- Method 1 : in 2 steps with the API then DICOM insertion pipeline
>>>>>>>>
>>>>>>>> a. via the LORIS API -- Create the candidates (and visits,
>>>>>>>> optionally I think)
>>>>>>>> How to:
>>>>>>>> https://github.com/aces/Loris/blob/master/docs/API/LorisRESTAPI.md#30-candidate-api
>>>>>>>> Ensure you get the DCCID/CandID assigned by LORIS.
>>>>>>>>
>>>>>>>> Then as a second step:
>>>>>>>> b. Use the imaging insertion pipeline
>>>>>>>> <https://github.com/aces/Loris-MRI/blob/minor/docs/05-PipelineLaunchOptions.md#51---pipeline-launch-options-for-dicom-datasets>
>>>>>>>> to load your DICOMs.
>>>>>>>> You will want to first ensure that the PatientName header in the
>>>>>>>> DICOMs as well as tar package are correctly labelled with
>>>>>>>> PSCID_DCCID_VisitLabel
>>>>>>>>
>>>>>>>> -- Method 2: for BIDS-format datasets:
>>>>>>>> How to :
>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/05-PipelineLaunchOptions.md#52---pipeline-launch-for-bids-datasets
>>>>>>>>
>>>>>>>> Be sure to use the *-c* and *-s* options when running the
>>>>>>>> bids_import script, to automatically create your candidates and
>>>>>>>> sessions.
>>>>>>>>
>>>>>>>> Best,
>>>>>>>> Christine
>>>>>>>>
>>>>>>>> On Wed, Sep 4, 2019 at 11:43 AM Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>
>>>>>>>> How do i delete a Study? And everytime do i have to create a new
>>>>>>>> candidate to get DCCID and a PSCID?
>>>>>>>>
>>>>>>>> *First execution:*
>>>>>>>>
>>>>>>>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri$
>>>>>>>> ./batch_uploads_imageuploader.pl -profile prod <
>>>>>>>> ~/Desktop/input.txt > log.txt
>>>>>>>> Use of uninitialized value $_ in pattern match (m//) at ./
>>>>>>>> batch_uploads_imageuploader.pl line 144.
>>>>>>>> DBD::mysql::db do failed: Cannot add or update a child row: a
>>>>>>>> foreign key constraint fails (`LORIS`.`candidate`, CONSTRAINT
>>>>>>>> `FK_candidate_1` FOREIGN KEY (`RegistrationCenterID`) REFERENCES `psc`
>>>>>>>> (`CenterID`)) at /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRI.pm line 1060.
>>>>>>>> ERROR: Failed to insert record in table mri_scanner:
>>>>>>>> The following database commands failed:
>>>>>>>> PREPARE s FROM 'INSERT INTO mri_scanner
>>>>>>>> (CandID,Model,Software,Serial_number,Manufacturer) VALUES (?,?,?,?,?)';
>>>>>>>> SET
>>>>>>>> @x1='242126', at x2='Achieva', at x3='3.2.2\3.2.2.0', at x4='34037', at x5='Philips
>>>>>>>> Medical Systems';
>>>>>>>> EXECUTE s USING @x1, at x2, at x3, at x4, at x5;
>>>>>>>> Error obtained:Cannot add or update a child row: a foreign key
>>>>>>>> constraint fails (`LORIS`.`mri_scanner`, CONSTRAINT `FK_mri_scanner_1`
>>>>>>>> FOREIGN KEY (`CandID`) REFERENCES `candidate` (`CandID`)) (error code 1452)
>>>>>>>>
>>>>>>>> ERROR: The validation has failed. Either re-run the validation
>>>>>>>> again and fix the problem. Or re-run tarchiveLoader.pl using -force to
>>>>>>>> force the execution.
>>>>>>>>
>>>>>>>>
>>>>>>>> The tarchiveLoader.pl insertion script has failed.
>>>>>>>> Can't exec "mail": No such file or directory at ./
>>>>>>>> batch_uploads_imageuploader.pl line 249.
>>>>>>>> print() on closed filehandle MAIL at ./
>>>>>>>> batch_uploads_imageuploader.pl line 250.
>>>>>>>> print() on closed filehandle MAIL at ./
>>>>>>>> batch_uploads_imageuploader.pl line 251.
>>>>>>>>
>>>>>>>>
>>>>>>>> *And second execution: *
>>>>>>>>
>>>>>>>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri$
>>>>>>>> ./batch_uploads_imageuploader.pl -profile prod <
>>>>>>>> ~/Desktop/input.txt > log.txt
>>>>>>>> Use of uninitialized value $_ in pattern match (m//) at ./
>>>>>>>> batch_uploads_imageuploader.pl line 144.
>>>>>>>>
>>>>>>>> PROBLEM:
>>>>>>>> The user 'lorisadmin' has already inserted this study.
>>>>>>>> The unique study ID is '1.3.51.0.1.1.10.49.10.222.1422753.1420953'.
>>>>>>>> This is the information retained from the first time the study was
>>>>>>>> inserted:
>>>>>>>>
>>>>>>>> * Taken from dir :
>>>>>>>> /tmp/ImagingUpload-18-33-Qq7HGy
>>>>>>>> * Archive target location :
>>>>>>>> /data/loris/data/tarchive/DCM_2012-12-05_ImagingUpload-18-33-Qq7HGy.tar
>>>>>>>> * Name of creating host : 127.0.1.1
>>>>>>>> * Name of host OS : Linux
>>>>>>>> * Created by user : lorisadmin
>>>>>>>> * Archived on : 2019-09-04 18:33:05
>>>>>>>> * dicomSummary version : 1
>>>>>>>> * dicomTar version : 1
>>>>>>>> * md5sum for DICOM tarball :
>>>>>>>> 4a301b0318178b09b91e63544282364d ImagingUpload-18-33-Qq7HGy.tar
>>>>>>>> * md5sum for DICOM tarball gzipped :
>>>>>>>> 9d95ea2b9111be236808bfd65d7e65ec ImagingUpload-18-33-Qq7HGy.tar.gz
>>>>>>>> * md5sum for complete archive :
>>>>>>>> ab19a86357f1d4053aa3b81c8a071053
>>>>>>>> DCM_2012-12-05_ImagingUpload-18-33-Qq7HGy.tar
>>>>>>>>
>>>>>>>>
>>>>>>>> Last update of record:
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> The dicomTar.pl execution has failed.
>>>>>>>> Can't exec "mail": No such file or directory at ./
>>>>>>>> batch_uploads_imageuploader.pl line 249.
>>>>>>>> print() on closed filehandle MAIL at ./
>>>>>>>> batch_uploads_imageuploader.pl line 250.
>>>>>>>> print() on closed filehandle MAIL at ./
>>>>>>>> batch_uploads_imageuploader.pl line 251.
>>>>>>>>
>>>>>>>> Στις Τετ, 4 Σεπ 2019 στις 5:35 μ.μ., ο/η Christine Rogers, Ms. <
>>>>>>>> christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>
>>>>>>>> Hi Sotirios,
>>>>>>>>
>>>>>>>> Ok, this sounds like good progress. Let us know when you next
>>>>>>>> encounter issues as you progress through the Imaging Install/Setup
>>>>>>>> docs
>>>>>>>> <https://github.com/aces/Loris-MRI/blob/minor/docs/02-Install.md>.
>>>>>>>> I'll look into how we can better handle the incoming/ directory
>>>>>>>> next time.
>>>>>>>> Best,
>>>>>>>> Christine
>>>>>>>>
>>>>>>>> On Wed, Sep 4, 2019 at 10:23 AM Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>
>>>>>>>> /data/loris/bin/mri/dicom-archive/.loris_mri/database_config.py is
>>>>>>>> populated correctly except its port is 'port' : ''. Also i have tested
>>>>>>>> that i can connect to MySQL with lorisuser.
>>>>>>>>
>>>>>>>> I executed the script again, because the only error i had
>>>>>>>> previously was that the /data/incoming folder didn't exist and there are no
>>>>>>>> errors reported back except of warnings <<mysql: [Warning] Using a password
>>>>>>>> on the command line interface can be insecure>>.
>>>>>>>>
>>>>>>>>
>>>>>>>> Στις Τετ, 4 Σεπ 2019 στις 4:53 μ.μ., ο/η Christine Rogers, Ms. <
>>>>>>>> christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>
>>>>>>>> Hi Sotirios,
>>>>>>>>
>>>>>>>> It's possible -- if the script was unable to connect to the
>>>>>>>> database during its execution (e.g. typo in the password), that would
>>>>>>>> explain the underpopulated Image path and Loris-MRI code path you saw in
>>>>>>>> the Config module.
>>>>>>>> It's hard to tell without seeing the output from your script run --
>>>>>>>> Did you see a sign of any such error?
>>>>>>>> The Config fields are populated by the imaging_install.sh script (starting
>>>>>>>> at line 222
>>>>>>>> <https://github.com/aces/Loris-MRI/blob/21.0-dev/imaging_install.sh#L222>
>>>>>>>> )
>>>>>>>>
>>>>>>>> For example, check if the database connection information was
>>>>>>>> populated accurately in $mridir
>>>>>>>> /dicom-archive/.loris_mri/database_config.py
>>>>>>>>
>>>>>>>> Best,
>>>>>>>> Christine
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> On Wed, Sep 4, 2019 at 9:34 AM Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>
>>>>>>>> Hi Christine,
>>>>>>>>
>>>>>>>> If you are referring to the imaging_install.sh here is an image
>>>>>>>> with the configurations i typed. Maybe the problem is somewhere at the last
>>>>>>>> part which asks to configure as much as possible automatically?
>>>>>>>>
>>>>>>>> Thanks
>>>>>>>>
>>>>>>>>
>>>>>>>> Στις Τετ, 4 Σεπ 2019 στις 4:16 μ.μ., ο/η Christine Rogers, Ms. <
>>>>>>>> christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>
>>>>>>>> Hi Sotirios,
>>>>>>>>
>>>>>>>> Glad to hear your LORIS core install is up and working and all the
>>>>>>>> front-end pages are loading.
>>>>>>>>
>>>>>>>> > lorisadmin at loris-VirtualBox:/var/www/loris$ chmod 775 project
>>>>>>>> > and the web interface worked.
>>>>>>>>
>>>>>>>> Yes, it's important that project/ have 775 permissions and that
>>>>>>>> lorisadmin be part of the sudoers group, per step 1 in the install
>>>>>>>> Readme <https://github.com/aces/Loris#install-steps>.
>>>>>>>>
>>>>>>>> > As for the Paths, LORIS-MRI code and Image should change LORIS to
>>>>>>>> loris, right?
>>>>>>>>
>>>>>>>> These imaging paths will be updated during your imaging
>>>>>>>> installation <https://github.com/aces/Loris/wiki/Setup> by an
>>>>>>>> automated script -- you do not need to set them manually via the Config
>>>>>>>> module.
>>>>>>>> Please continue to follow the Setup Guide
>>>>>>>> <https://github.com/aces/Loris/wiki/Setup> for detailed steps to
>>>>>>>> follow.
>>>>>>>>
>>>>>>>> Best,
>>>>>>>> Christine
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> On Wed, Sep 4, 2019 at 8:05 AM Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>
>>>>>>>> As for the Paths, LORIS-MRI code and Image should change LORIS to
>>>>>>>> loris, right?
>>>>>>>>
>>>>>>>> [image: image.png]
>>>>>>>>
>>>>>>>>
>>>>>>>> Στις Τετ, 4 Σεπ 2019 στις 2:28 μ.μ., ο/η Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> έγραψε:
>>>>>>>>
>>>>>>>> Hi,
>>>>>>>>
>>>>>>>> i used
>>>>>>>>
>>>>>>>> curl -sL https://deb.nodesource.com/setup_8.x | sudo -E bash -
>>>>>>>> sudo apt-get install -y nodejs
>>>>>>>>
>>>>>>>>
>>>>>>>> you had suggested in the past, make worked and now i can see all
>>>>>>>> the contents in the web-interface, but i don't need make install?
>>>>>>>>
>>>>>>>> Thanks
>>>>>>>>
>>>>>>>> _______________________________________________
>>>>>>>> Loris-dev mailing list
>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> --
>>>>>>>>
>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>> Montreal Neurological Institute
>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>
>>>>>>>> _______________________________________________
>>>>>>>> Loris-dev mailing list
>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> --
>>>>>>>>
>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>> Montreal Neurological Institute
>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>
>>>>>>>> _______________________________________________
>>>>>>>> Loris-dev mailing list
>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> --
>>>>>>>>
>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>> Montreal Neurological Institute
>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> --
>>>>>>>>
>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>> Montreal Neurological Institute
>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>
>>>>>>>> _______________________________________________
>>>>>>>> Loris-dev mailing list
>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> --
>>>>>>>>
>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>> Montreal Neurological Institute
>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>
>>>>>>>> _______________________________________________
>>>>>>>> Loris-dev mailing list
>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> --
>>>>>>>>
>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>> Montreal Neurological Institute
>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>
>>>>>>>> _______________________________________________
>>>>>>>> Loris-dev mailing list
>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> --
>>>>>>>>
>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>> Montreal Neurological Institute
>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>
>>>>>>>> _______________________________________________
>>>>>>>> Loris-dev mailing list
>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> --
>>>>>>>>
>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>> Montreal Neurological Institute
>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>
>>>>>>>> _______________________________________________
>>>>>>> Loris-dev mailing list
>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>
>>>>>>
>>>>>>
>>>>>> --
>>>>>>
>>>>>> christine.rogers at mcgill.ca
>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>> Montreal Neurological Institute
>>>>>> McGill University | Montreal | Canada
>>>>>>
>>>>> _______________________________________________
>>> Loris-dev mailing list
>>> Loris-dev at bic.mni.mcgill.ca
>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>
>>
>>
>> --
>>
>> christine.rogers at mcgill.ca
>> McGill Centre for Integrative Neuroscience | MCIN.ca
>> Montreal Neurological Institute
>> McGill University | Montreal | Canada
>>
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 61107 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0019.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 42220 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0020.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 29279 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0021.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 78077 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0022.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 5647 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0023.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 5819 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0024.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 135445 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0025.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 16405 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0026.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 44301 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0027.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 84052 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0028.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 44901 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0029.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 24658 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0030.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 95725 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0031.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 5062 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0032.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 14615 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0033.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 78106 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0034.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 51135 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0035.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 23443 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0036.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 10443 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190924/4cf29dc4/attachment-0037.png>
More information about the Loris-dev
mailing list
