[Loris-dev] Import mri - scripts
Sotirios Nikoloutsopoulos
sotirisnik at gmail.com
Fri Jan 31 10:25:30 EST 2020
Hi Cecile,
Indeed 'file' was missing and now it worked. I also wanted to ask about the
installdb.php if it is possible to automate the execution. I tried thse
commands with curl to execute the http queries for the forms. Although I
don't have the error1.html and error2.html files at the moment, their html
code showed that the execution was successful and the config.xml is being
created, but when I login it's like the css is not loading.
#first query
curl --data "formname=validaterootaccount" --data "dbhost=172.28.1.2"
--data "dbadminuser=root" --data "dbadminpassword=neopass" --data
"dbname=LORIS" http://localhost/installdb.php > error1.html
#second query
curl --data "formname=createmysqlaccount" --data "dbhost=172.28.1.2" --data
"dbadminuser=root" --data "dbadminpassword=neopass" --data "dbname=LORIS"
--data "lorismysqluser=lorisuser" --data "lorismysqlpassword=neopass"
--data "frontenduser=lorisuser" --data "frontendpassword=1234"
http://localhost/installdb.php > error2.html
If i normally execute installdb.php on the browser, there is no problem.
Thanks
Στις Παρ, 31 Ιαν 2020 στις 4:39 μ.μ., ο/η Cecile Madjar <
cecile.madjar at mcin.ca> έγραψε:
> Hi Sotirios,
>
> Actually, is it possible that 'file' is not installed on your VM. I
> misread the error in my earlier email and it might be crashing in MRI.pm at
> line 1523 of your code. In that line, 'file' is used to determine if the
> file is a DICOM, if not, it will show a warning and not count the file as a
> DICOM. So in the end, none of your files are considered DICOM files and
> when it comes to convert the list of DICOMs, there is nothing to convert,
> hence the number of MINC file = 0.
>
> Anyway, I have a feeling this might be the issue you are having.
>
> Let me know how it goes,
>
> Cécile
>
> On Fri, Jan 31, 2020 at 9:23 AM Sotirios Nikoloutsopoulos <
> sotirisnik at gmail.com> wrote:
>
>> Hi Ling,
>>
>> Yes it's Loris-mri 21.0. One thought i had is that maybe i should define
>> root as linux user?
>> https://github.com/aueb-wim/LORIS-for-MIP/blob/master/docs/pics/loris_docker_imaging_install.png.
>> But i see no difference either when i execute it as lorisadmin.
>>
>> Also here are the files we use
>> https://github.com/aueb-wim/LORIS-for-MIP/tree/master/mri_loris
>>
>> And here is the complete output of the batch execution.
>>
>> Use of uninitialized value $_ in pattern match (m//) at
>> /data/loris/bin/mri/batch_uploads_imageuploader.pl line 144.
>> Running now the following command: /data/loris/data//uploadNeuroDB/
>> imaging_upload_file.pl -profile prod -upload_id 35
>> /data/incoming/DCC0000_956912_V1.tar.gz -verbose
>>
>> find -path \/data\/tmp\/ImagingUpload\-14\-15\-z2B0N3 -name '__MACOSX'
>> -delete
>> xargs: file: No such file or directory
>>
>> dicomTar.pl \/data\/tmp\/ImagingUpload\-14\-15\-z2B0N3
>> \/data\/loris\/data\/tarchive\/ -database -profile prod -verbose
>> Source: /data/tmp/ImagingUpload-14-15-z2B0N3
>> Target: /data/loris/data/tarchive
>>
>> Testing for database connectivity.
>> Database is available.
>>
>> You will archive the dir : ImagingUpload-14-15-z2B0N3
>>
>> You are creating a tar with the following command:
>>
>> tar -cf /data/loris/data/tarchive/ImagingUpload-14-15-z2B0N3.tar
>> ImagingUpload-14-15-z2B0N3
>>
>>
>> getting md5sums and gzipping!!
>>
>> * Taken from dir :
>> /data/tmp/ImagingUpload-14-15-z2B0N3
>> * Archive target location :
>> /data/loris/data/tarchive/DCM_2015-09-07_ImagingUpload-14-15-z2B0N3.tar
>> * Name of creating host : 172.28.1.1
>> * Name of host OS : Linux
>> * Created by user : lorisadmin
>> * Archived on : 2020-01-31 14:15:04
>> * dicomSummary version : 1
>> * dicomTar version : 1
>> * md5sum for DICOM tarball : fcaf54e9078705799b10e08c4d34bf70
>> ImagingUpload-14-15-z2B0N3.tar
>> * md5sum for DICOM tarball gzipped : 52c96cd08d168e659b5c73cb77b4621b
>> ImagingUpload-14-15-z2B0N3.tar.gz
>> * md5sum for complete archive : f5103ec688a5921a37d3c95cba8598e0
>> DCM_2015-09-07_ImagingUpload-14-15-z2B0N3.tar
>>
>> Adding archive info into database
>>
>>
>> Removing temporary files from target location
>>
>>
>> Done adding archive info into database
>>
>> \/data\/loris\/data\//uploadNeuroDB/tarchiveLoader.pl -globLocation
>> -profile prod
>> \/data\/loris\/data\/tarchive\/\/DCM_2015\-09\-07_ImagingUpload\-14\-15\-z2B0N3\.tar
>> -uploadID 35 -verbose
>> md5sum
>> /data/loris/data/tarchive/DCM_2015-09-07_ImagingUpload-14-15-z2B0N3.tar
>> PSCID is: DCC0000
>> CandID id: 956912
>> visit_label is: V1
>> PSCID is: DCC0000
>> CandID id: 956912
>> visit_label is: V1
>> candidate id 956912
>> Set centerID = 1
>> PSCID is: DCC0000
>> CandID id: 956912
>> visit_label is: V1
>> PSCID is: DCC0000
>> CandID id: 956912
>> visit_label is: V1
>> xargs: file: No such file or directory
>>
>> Number of MINC files that will be considered for inserting into the
>> database: 0
>>
>> No data could be converted into valid MINC files.
>>
>> The tarchiveLoader.pl insertion script has failed.
>> Use of uninitialized value $mail_user in concatenation (.) or string at
>> /data/loris/bin/mri/batch_uploads_imageuploader.pl line 249.
>> Can't exec "mail": No such file or directory at /data/loris/bin/mri/
>> batch_uploads_imageuploader.pl line 249.
>> print() on closed filehandle MAIL at /data/loris/bin/mri/
>> batch_uploads_imageuploader.pl line 250.
>> print() on closed filehandle MAIL at /data/loris/bin/mri/
>> batch_uploads_imageuploader.pl line 251.
>>
>> Στις Πέμ, 30 Ιαν 2020 στις 6:22 μ.μ., ο/η Ling Ma <lingyun.ma at mcin.ca>
>> έγραψε:
>>
>>> Oh, I just found that you are using Loris-mri 21.0, as I stated in the
>>> previous email, the "$_" could not find any matches, so your command might
>>> not be correctly entered.
>>>
>>> On Thu, Jan 30, 2020 at 10:35 AM Ling Ma <lingyun.ma at mcin.ca> wrote:
>>>
>>>> Hi Sotirios,
>>>>
>>>> By curiosity, I just looked at the error message, "Use of
>>>> uninitialized value $_ in pattern match (m//) at /data/loris/bin/mri/
>>>> batch_uploads_imageuploader.pl line 144." clearly means that there is
>>>> no match, but 144 line has no such code related with $_ in recent versions
>>>> of the batch_uploads_imageuploader.pl. There is something in the line
>>>> 165 for a few recent versions.
>>>>
>>>> As to "xargs: file: No such file or directory", it could be due to a
>>>> command unable to find anything using the directory provided as the message
>>>> suggested.
>>>>
>>>> In both cases, I feel that it could be helpful if you provide more
>>>> details such as which Loris_MRI version you are running, what is the exact
>>>> command line you are using to help supporters to understand.
>>>>
>>>> Thanks.
>>>>
>>>> Best regards,
>>>> Ling Ma
>>>> Consultant
>>>>
>>>> On Wed, Jan 29, 2020 at 6:57 PM Sotirios Nikoloutsopoulos <
>>>> sotirisnik at gmail.com> wrote:
>>>>
>>>>> Hi Cecile,
>>>>>
>>>>> it seems that xargs is already installed in our docker container.
>>>>>
>>>>> [image: image.png]
>>>>>
>>>>>
>>>>> Στις Τετ, 29 Ιαν 2020 στις 7:59 μ.μ., ο/η Cecile Madjar <
>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>
>>>>>> Hi Sotirios,
>>>>>>
>>>>>> It looks like xargs is not installed in your docker environment.
>>>>>>
>>>>>> This is being used by the following command in dicomTar.pl (and a few
>>>>>> other places but that is the one causing the error at the moment):
>>>>>>
>>>>>> $cmd = "cd " . $dcm_source . "; find -type f -name '.*' | *xargs* rm
>>>>>> -f";
>>>>>>
>>>>>> So you need to install xargs in your docker for the command to run.
>>>>>>
>>>>>> Hope this helps,
>>>>>>
>>>>>> Cécile
>>>>>> On Wed, Jan 29, 2020 at 10:35 AM Sotirios Nikoloutsopoulos <
>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>
>>>>>>> Hello,
>>>>>>>
>>>>>>> We are making a dockerized version of Loris 21 and when we execute
>>>>>>> the batch_uploads_imageuploader.pl we get an error about xargs.
>>>>>>> What could be the casue?
>>>>>>>
>>>>>>> Use of uninitialized value $_ in pattern match (m//) at
>>>>>>> /data/loris/bin/mri/batch_uploads_imageuploader.pl line 144.
>>>>>>> Running now the following command: /data/loris/data//uploadNeuroDB/
>>>>>>> imaging_upload_file.pl -profile prod -upload_id 13
>>>>>>> /data/incoming/DCC0007_854380_V1.tar.gz -verbose
>>>>>>>
>>>>>>> find -path \/data\/tmp\/ImagingUpload\-15\-31\-U_O5ml -name
>>>>>>> '__MACOSX' -delete
>>>>>>> xargs: file: No such file or directory
>>>>>>>
>>>>>>> dicomTar.pl \/data\/tmp\/ImagingUpload\-15\-31\-U_O5ml
>>>>>>> \/data\/loris\/data\/tarchive\/ -database -profile prod -verbose
>>>>>>> Source: /data/tmp/ImagingUpload-15-31-U_O5ml
>>>>>>> Target: /data/loris/data/tarchive
>>>>>>>
>>>>>>> Thanks
>>>>>>>
>>>>>>> Στις Τρί, 10 Δεκ 2019 στις 7:21 μ.μ., ο/η Sotirios Nikoloutsopoulos <
>>>>>>> sotirisnik at gmail.com> έγραψε:
>>>>>>>
>>>>>>>> Hi,
>>>>>>>>
>>>>>>>> i opened an issue and looked up for the values of Volume they
>>>>>>>> suggested https://github.com/BIC-MNI/minc-toolkit-v2/issues/95.
>>>>>>>> The only attributes associated with it i saw are [0x00089206] and
>>>>>>>> [0x00089207]
>>>>>>>>
>>>>>>>> [image: image.png]
>>>>>>>>
>>>>>>>> I looked up for the file that was being viewed fine in the
>>>>>>>> BrainBrowser and saw that it had that attribute empty so i used this
>>>>>>>> command because i couldn't find a way to modify the attribute via pydicom
>>>>>>>>

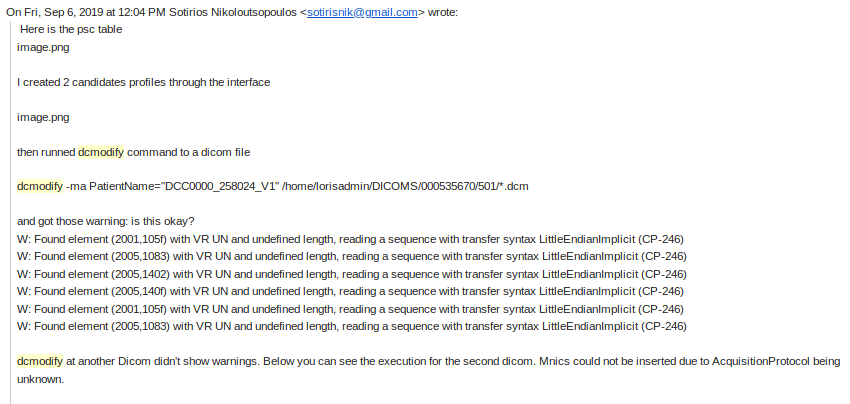

>>>>>>>> dcmodify -ma "(0008,9206)=" *.dcm
>>>>>>>>
>>>>>>>> and that command reported the warning about the Endian Syntax. I
>>>>>>>> also used the corresponding command for 9207 and got the message "Tag not
>>>>>>>> found'
>>>>>>>>
>>>>>>>> Lastly I tried to upload some dicoms and now i am getting the SNR
>>>>>>>> and i can view them fine. I believe now that all of them will pass
>>>>>>>> successfully, i will report back later.
>>>>>>>>
>>>>>>>> Thanks,
>>>>>>>>
>>>>>>>> Sotirios
>>>>>>>>
>>>>>>>> Στις Δευ, 9 Δεκ 2019 στις 8:10 μ.μ., ο/η Cecile Madjar <
>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>
>>>>>>>>> Hi Sotirios,
>>>>>>>>>
>>>>>>>>> The issue you are having is a indeed a dcm2mnc issue. The
>>>>>>>>> converter does not seem to work on your dataset for some reason.
>>>>>>>>> Unfortunately, there is not much we can do on our front to fix this...
>>>>>>>>>
>>>>>>>>> I would recommend creating an issue on the MINC tools repository
>>>>>>>>> <https://github.com/BIC-MNI/minc-toolkit-v2/issues> so they can
>>>>>>>>> fix your problem.
>>>>>>>>>
>>>>>>>>> Very sorry that you are having that problem.
>>>>>>>>>
>>>>>>>>> Best,
>>>>>>>>>
>>>>>>>>> Cécile
>>>>>>>>>
>>>>>>>>> On Wed, Dec 4, 2019 at 8:59 AM Cecile Madjar <
>>>>>>>>> cecile.madjar at mcin.ca> wrote:
>>>>>>>>>
>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>
>>>>>>>>>> Could you please share a dataset with us that produces the error
>>>>>>>>>> you get and the weird display in BrainBrowser? You could use the same SFTP
>>>>>>>>>> credential that Nicolas gave you.
>>>>>>>>>>
>>>>>>>>>> The message errors you got from imaging_install.sh are probably
>>>>>>>>>> due to the fact that you reran the install script and it tried to reinstall
>>>>>>>>>> something that was already there. I would not worry about it. FYI, the only
>>>>>>>>>> thing you needed to do was to update the MINC tools path in the environment
>>>>>>>>>> file as you did after re-running imaging_install.sh and source the
>>>>>>>>>> environment file.
>>>>>>>>>>
>>>>>>>>>> Best,
>>>>>>>>>>
>>>>>>>>>> Cécile
>>>>>>>>>>
>>>>>>>>>> On Wed, Dec 4, 2019 at 8:03 AM Sotirios Nikoloutsopoulos <
>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>
>>>>>>>>>>> Hi Cecile,
>>>>>>>>>>>
>>>>>>>>>>> We used minctool 1.9.7 and we still get this error
>>>>>>>>>>>
>>>>>>>>>>> <<Restructuring...
>>>>>>>>>>> gsl: bessel_I0.c:216: ERROR: overflow
>>>>>>>>>>> Default GSL error handler invoked.
>>>>>>>>>>> noise_estimate --snr /data/loris/data>>
>>>>>>>>>>>
>>>>>>>>>>
>>>>>>>>>>> One dicom folder hadn't that error and is being viewed fine in
>>>>>>>>>>> the BrainBrowser of Loris.
>>>>>>>>>>>
>>>>>>>>>>
>>>>>>>>>>> When i used dpkg to the 1.9.17 the installation reported fine
>>>>>>>>>>> <<Unpacking minc-toolkit-v2 (1.9.17) over (1.9.16) ...>>
>>>>>>>>>>>
>>>>>>>>>>> and then i used source /opt/minc/1.9.17/minc-toolkit-config.sh
>>>>>>>>>>>
>>>>>>>>>>> and aftewards runned bash ./imaging_install.sh just to be sure.
>>>>>>>>>>>
>>>>>>>>>>> We also had to modify /data/loris/bin/mri/environment because it
>>>>>>>>>>> still pointed to the old version.
>>>>>>>>>>>
>>>>>>>>>>> What i found strange is this during the run of imaging_install.sh
>>>>>>>>>>>
>>>>>>>>>>> <<already using interpreter
>>>>>>>>>>> /data/loris/bin/mri/python_virtualenvs/loris-mri-python/bin/python3
>>>>>>>>>>> Please use the *system* python to run this script
>>>>>>>>>>> Traceback (most recent call last):
>>>>>>>>>>> File "/usr/local/lib/python3.5/dist-packages/virtualenv.py",
>>>>>>>>>>> line 2632, in <module>
>>>>>>>>>>> main()
>>>>>>>>>>> File "/usr/local/lib/python3.5/dist-packages/virtualenv.py",
>>>>>>>>>>> line 870, in main
>>>>>>>>>>> symlink=options.symlink,
>>>>>>>>>>> File "/usr/local/lib/python3.5/dist-packages/virtualenv.py",
>>>>>>>>>>> line 1156, in create_environment
>>>>>>>>>>> install_python(home_dir, lib_dir, inc_dir, bin_dir,
>>>>>>>>>>> site_packages=site_packages, clear=clear, symlink=symlink)
>>>>>>>>>>> File
>>>>>>>>>>> "/data/loris/bin/mri/python_virtualenvs/loris-mri-python/lib/python3.5/posixpath.py",
>>>>>>>>>>> line 357, in abspath
>>>>>>>>>>> if not isabs(path):
>>>>>>>>>>> File
>>>>>>>>>>> "/data/loris/bin/mri/python_virtualenvs/loris-mri-python/lib/python3.5/posixpath.py",
>>>>>>>>>>> line 64, in isabs
>>>>>>>>>>> return s.startswith(sep)
>>>>>>>>>>> AttributeError: 'NoneType' object has no attribute 'startswith'
>>>>>>>>>>> Installing the Python libraries into the loris-mri virtualenv...
>>>>>>>>>>> Requirement already satisfied: mysqlclient in
>>>>>>>>>>> ./python_virtualenvs/loris-mri-python/lib/python3.5/site-packages (1.4.4)
>>>>>>>>>>> Requirement already satisfied: mysql-connector in
>>>>>>>>>>> ./python_virtualenvs/loris-mri-python/lib/python3.5/site-packages (2.2.9)
>>>>>>>>>>> Requirement already satisfied: pybids in
>>>>>>>>>>> ./python_virtualenvs/loris-mri-python/lib/python3.5/site-packages (0.9.4)
>>>>>>>>>>> Requirement already satisfied: nibabel>=2.1 in ./python_virtua>>
>>>>>>>>>>>
>>>>>>>>>>> So should i open an issue for that error? or is there something
>>>>>>>>>>> else to try?
>>>>>>>>>>>
>>>>>>>>>>> Thanks
>>>>>>>>>>>
>>>>>>>>>>> Sotirios
>>>>>>>>>>>
>>>>>>>>>>>
>>>>>>>>>>>
>>>>>>>>>>>
>>>>>>>>>>>
>>>>>>>>>>> Στις Τρί, 3 Δεκ 2019 στις 10:39 μ.μ., ο/η Cecile Madjar <
>>>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>
>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>
>>>>>>>>>>>> Does the pic screenshot in the imaging browser module also
>>>>>>>>>>>> shows 1 slice? If so, that would mean there was an issue with the dcm2mnc
>>>>>>>>>>>> conversion. Once again, installing the latest version of the MINC tools
>>>>>>>>>>>> should help but if this issue persists I would recommend creating an issue
>>>>>>>>>>>> for that too on their repository
>>>>>>>>>>>> <https://github.com/BIC-MNI/minc-toolkit-v2/issues> (if not
>>>>>>>>>>>> already reported there, there are a few known issue reported).
>>>>>>>>>>>>
>>>>>>>>>>>> Other viewer for MINCs are register and Display (both part of
>>>>>>>>>>>> the MINC tools). For NIfTI, you have FSLeye, MRICron and probably many
>>>>>>>>>>>> other viewers that exists.
>>>>>>>>>>>>
>>>>>>>>>>>> Hope this helps,
>>>>>>>>>>>>
>>>>>>>>>>>> Cécile
>>>>>>>>>>>>
>>>>>>>>>>>> On Tue, Dec 3, 2019 at 3:26 PM Sotirios Nikoloutsopoulos <
>>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>
>>>>>>>>>>>>> Hi Cecile,
>>>>>>>>>>>>>
>>>>>>>>>>>>> Yes, Nifti files are mandatory for our work. From what we saw
>>>>>>>>>>>>> at a 3rd vm we setted up, the nifti files are being created ( i haven't
>>>>>>>>>>>>> verified if that is the case at the 2nd vm ). I will install the latest
>>>>>>>>>>>>> version and will report back, but do you know any nifti/minc viewer?
>>>>>>>>>>>>> because the Brainbrowser of Loris does not output them well, it's like it
>>>>>>>>>>>>> is loading only 1 slice and we would like to verify it with another tool
>>>>>>>>>>>>> too. We verified that the dcmconv command didn't affect the
>>>>>>>>>>>>> quality of the .dcm files.
>>>>>>>>>>>>>
>>>>>>>>>>>>> Thanks,
>>>>>>>>>>>>>
>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>
>>>>>>>>>>>>> Στις Δευ, 2 Δεκ 2019 στις 6:59 μ.μ., ο/η Cecile Madjar <
>>>>>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>
>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> It looks like for some reason your binary mnc2nii is not
>>>>>>>>>>>>>> working and reports that error. Do you want to create NIfTI files or are
>>>>>>>>>>>>>> you happy with just the MINC files?
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> If you don't need the NIfTI files, then maybe you can set the
>>>>>>>>>>>>>> Config setting "NIfTI file creation" to No instead of Yes
>>>>>>>>>>>>>> and this error will not appear anymore.
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> If you need the NIfTI files to be created, then I would
>>>>>>>>>>>>>> recommend installing the latest version of the MINC tools (1.9.17). They
>>>>>>>>>>>>>> can be found there:
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> - pre-built packages:
>>>>>>>>>>>>>> https://packages.bic.mni.mcgill.ca/minc-toolkit/
>>>>>>>>>>>>>> - from the source code with installation instructions in
>>>>>>>>>>>>>> the README: https://github.com/BIC-MNI/minc-toolkit-v2
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> If the problem persists by using the latest release of MINC
>>>>>>>>>>>>>> tools, then create an issue on Github for the MINC developers
>>>>>>>>>>>>>> here <https://github.com/BIC-MNI/minc-toolkit-v2/issues>.
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Hope this helps,
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> On Fri, Nov 29, 2019 at 8:06 PM Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Hi Cecile,
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Thanks to Nicholas i was able to create all the mincs
>>>>>>>>>>>>>>> images. The problem was that the files were in Little-Endian-Implicit
>>>>>>>>>>>>>>> transfer syntax and i had to convert them Little-Endian-Explicit transfer
>>>>>>>>>>>>>>> syntax with this command
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> find <root_of_my_DICOM_files_directory> -type f | xargs -i
>>>>>>>>>>>>>>> dcmconv --write-xfer-little {} {}
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Looking back at our mails i saw that Little-Endian error had
>>>>>>>>>>>>>>> occurred when i used dcmodify, but i switcthed to using pydicom instead.
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> In the output i see an error sometimes about "gsl:
>>>>>>>>>>>>>>> bessel_I0.c:216: ERROR: overflow". Is this okay?
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Restructuring...
>>>>>>>>>>>>>>> gsl: bessel_I0.c:216: ERROR: overflow
>>>>>>>>>>>>>>> Default GSL error handler invoked.
>>>>>>>>>>>>>>> noise_estimate --snr
>>>>>>>>>>>>>>> /data/loris/data//assembly/959679/V1/mri/native/loris_959679_V1_t1_001.mnc
>>>>>>>>>>>>>>> SNR is:
>>>>>>>>>>>>>>> gsl: bessel_I0.c:216: ERROR: overflow
>>>>>>>>>>>>>>> Default GSL error handler invoked.
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Thanks,
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Στις Τετ, 27 Νοε 2019 στις 4:29 μ.μ., ο/η Cecile Madjar <
>>>>>>>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Thank you for the details!
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> A few things to try:
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> - modify the TMPDIR to be on your /data directory where
>>>>>>>>>>>>>>>> there might be more space to do processing (could create a /data/tmp where
>>>>>>>>>>>>>>>> the temporary files would be created)
>>>>>>>>>>>>>>>> - how many files are there for that upload in
>>>>>>>>>>>>>>>> tarchive_files? Are they different from the ones showing the warning
>>>>>>>>>>>>>>>> message?
>>>>>>>>>>>>>>>> - FYI: query to get that: SELECT tf.* FROM
>>>>>>>>>>>>>>>> tarchive_files tf JOIN mri_upload USING (TarchiveID) WHERE UploadID=<your
>>>>>>>>>>>>>>>> uploadID> (the output of that query would be very
>>>>>>>>>>>>>>>> useful if you can provide it)
>>>>>>>>>>>>>>>> - how many series are there for that upload in
>>>>>>>>>>>>>>>> tarchive_series?
>>>>>>>>>>>>>>>> - FYI: query to get that: SELECT ts.* FROM
>>>>>>>>>>>>>>>> tarchive_series ts JOIN mri_upload USING (TarchiveID) WHERE UploadID=<your
>>>>>>>>>>>>>>>> uploadID> (the output of that query would be very
>>>>>>>>>>>>>>>> useful if you can provide it)
>>>>>>>>>>>>>>>> - things are failing when the scripts try running the
>>>>>>>>>>>>>>>> following command: find
>>>>>>>>>>>>>>>> /tmp/TarLoad-23-43-ccugaa/ImagingUpload-23-43-6JCOTO -type f |
>>>>>>>>>>>>>>>> /data/loris/bin/mri/dicom-archive/get_dicom_info.pl
>>>>>>>>>>>>>>>> -studyuid -series -echo -image -file -attvalue 0018 0024 -series_descr
>>>>>>>>>>>>>>>> -stdin | sort -n -k1 -k2 -k7 -k3 -k6 -k4 | cut -f 5 | dcm2mnc -dname ''
>>>>>>>>>>>>>>>> -stdin -clobber -usecoordinates /tmp/TarLoad-23-43-ccugaa
>>>>>>>>>>>>>>>> - clearly the problems come from get_dicom_info.pl
>>>>>>>>>>>>>>>> but I cannot pinpoint the error yet. I will ask around and get back to you
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> If I cannot figure it out remotely, is there a way to have
>>>>>>>>>>>>>>>> a call using zoom? This way you could share your screen with me and run the
>>>>>>>>>>>>>>>> debugger on that script and hopefully we can figure out what is going on
>>>>>>>>>>>>>>>> with those datasets?
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Thanks!
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> On Tue, Nov 26, 2019 at 5:17 PM Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Hi Cecile,
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> In both my virtual machines
>>>>>>>>>>>>>>>>> export TMPDIR=/tmp
>>>>>>>>>>>>>>>>>

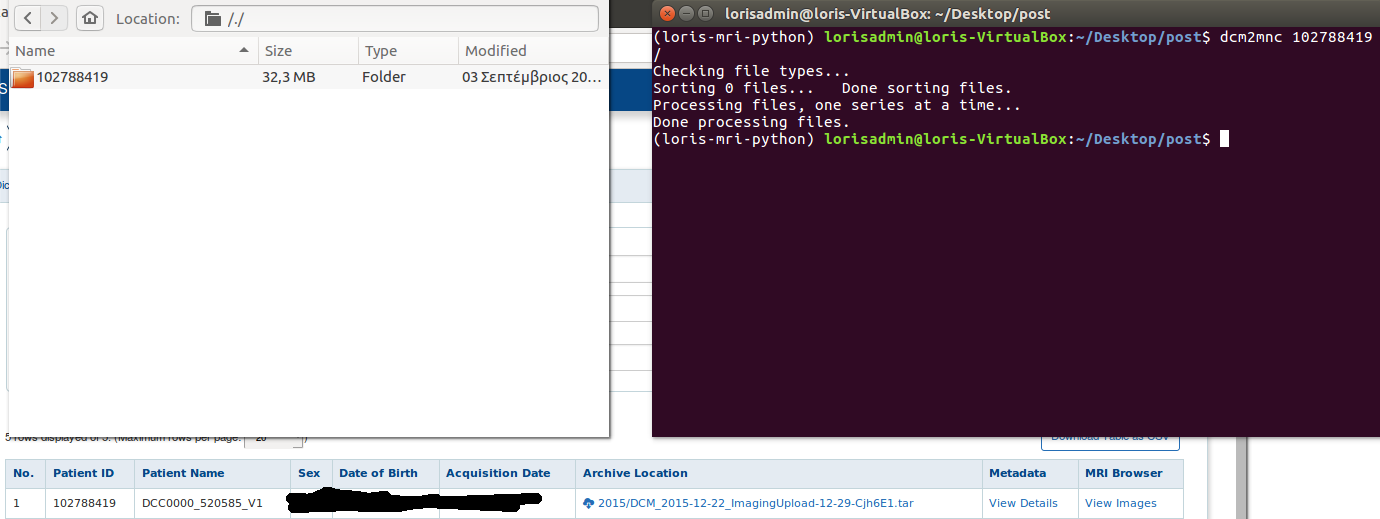

>>>>>>>>>>>>>>>>> In both vm also with dcm2mnc i get this output. Just to
>>>>>>>>>>>>>>>>> verify that this passed in my 1st vm and produced mincs.
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> I attached the spool as a csv.
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>>

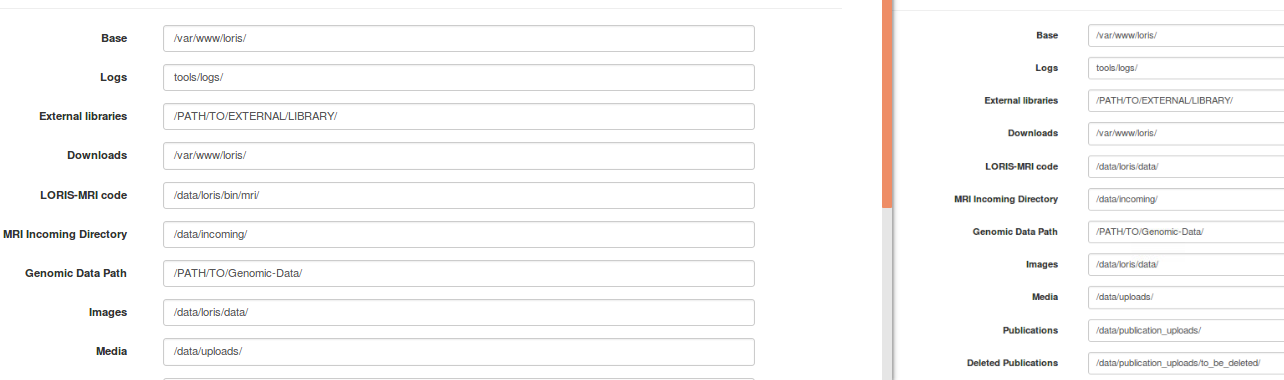

>>>>>>>>>>>>>>>>> And also one difference i found was this in the Loris-mri
>>>>>>>>>>>>>>>>> code ( left 1st workable vm, right 2nd vm that has to be fixed, although i
>>>>>>>>>>>>>>>>> changed it seems to be independent of the uninitialized value $_ )
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Thanks,
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Στις Τρί, 26 Νοε 2019 στις 11:34 μ.μ., ο/η Cecile Madjar <
>>>>>>>>>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> that is puzzling... A few additional questions:
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> - what is the bash variable TMPDIR set to on the
>>>>>>>>>>>>>>>>>> environment file?
>>>>>>>>>>>>>>>>>> - could you try running separately dcm2mnc on the
>>>>>>>>>>>>>>>>>> DICOM folder to see if that works?
>>>>>>>>>>>>>>>>>> - could you send us the detailed log from the
>>>>>>>>>>>>>>>>>> notification spool table (SELECT * FROM notification_spool WHERE
>>>>>>>>>>>>>>>>>> UploadID=<your uploadID>) and send it back to us? Maybe there are some
>>>>>>>>>>>>>>>>>> additional clues that could help figuring out what is going on.
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Thank you!
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> On Tue, Nov 26, 2019 at 10:12 AM Sotirios
>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi Cecile,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> I checked for the StudyInstacueUID at the files with
>>>>>>>>>>>>>>>>>>> "The target directory does not contain a single DICOM file"" and their
>>>>>>>>>>>>>>>>>>> attribute has a value.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Regarding the scouter and localizer, i modified the
>>>>>>>>>>>>>>>>>>> settings in the imaging pipeline and now i don't get that error message,
>>>>>>>>>>>>>>>>>>> but still it doesn't create the mnics.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> The errors i am getting are ( uninitialized value $_ is
>>>>>>>>>>>>>>>>>>> not important? because i haven't got comments about that )
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Use of uninitialized value $_ in pattern match (m//) at
>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/batch_uploads_imageuploader.pl line
>>>>>>>>>>>>>>>>>>> 144.
>>>>>>>>>>>>>>>>>>> Running now the following command:
>>>>>>>>>>>>>>>>>>> /data/loris/data//uploadNeuroDB/imaging_upload_file.pl
>>>>>>>>>>>>>>>>>>> -profile prod -upload_id 134 /data/incoming/DCC0025_118008_V1.tar.gz
>>>>>>>>>>>>>>>>>>> -verbose
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> and
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Number of MINC files that will be considered for
>>>>>>>>>>>>>>>>>>> inserting into the database: 0
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> No data could be converted into valid MINC files.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> The tarchiveLoader.pl insertion script has failed.
>>>>>>>>>>>>>>>>>>> Use of uninitialized value $mail_user in concatenation
>>>>>>>>>>>>>>>>>>> (.) or string at /data/loris/bin/mri/
>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl line 249.
>>>>>>>>>>>>>>>>>>> Can't exec "mail": No such file or directory at
>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/batch_uploads_imageuploader.pl line
>>>>>>>>>>>>>>>>>>> 249.
>>>>>>>>>>>>>>>>>>> print() on closed filehandle MAIL at /data/loris/bin/mri/
>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl line 250.
>>>>>>>>>>>>>>>>>>> print() on closed filehandle MAIL at /data/loris/bin/mri/
>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl line 251.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Δευ, 25 Νοε 2019 στις 5:22 μ.μ., ο/η Cecile Madjar <
>>>>>>>>>>>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> OK. So the issue I mentioned should not be a problem
>>>>>>>>>>>>>>>>>>>> for you.
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Is the StudyInstanceUID DICOM header set in your
>>>>>>>>>>>>>>>>>>>> images? If it is not set, then you would end up with the error message "The
>>>>>>>>>>>>>>>>>>>> target directory does not contain a single DICOM file". So maybe this is
>>>>>>>>>>>>>>>>>>>> the issue you are having with those datasets?
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Regarding not excluding series descriptions, you can
>>>>>>>>>>>>>>>>>>>> configure that in the Config module under the Imaging Pipeline section.
>>>>>>>>>>>>>>>>>>>> Simply remove all entries for the "Series description to exclude from
>>>>>>>>>>>>>>>>>>>> imaging insertion" setting.
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> On Mon, Nov 25, 2019 at 9:58 AM Sotirios
>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> Hi Cecile,
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> We are using this version
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/archive/v21.0.0.zip. Is
>>>>>>>>>>>>>>>>>>>>> it possible to insert low resolution now?
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> On Mon, 25 Nov 2019, 16:53 Cecile Madjar, <
>>>>>>>>>>>>>>>>>>>>> cecile.madjar at mcin.ca> wrote:
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> Which version of LORIS-MRI are you using?
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> There was a bug that got resolved in 20.2 in
>>>>>>>>>>>>>>>>>>>>>> get_dicom_info.pl. Basically, if a DICOM did not
>>>>>>>>>>>>>>>>>>>>>> have the (0020,0032) header, get_dicom_info.pl
>>>>>>>>>>>>>>>>>>>>>> considered that the file was not a DICOM, which was a mistake. This got
>>>>>>>>>>>>>>>>>>>>>> fixed in version 20.2 of LORIS-MRI. Hopefully this is the issue you are
>>>>>>>>>>>>>>>>>>>>>> encountering.
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> About scout and localizer, they are a type of short
>>>>>>>>>>>>>>>>>>>>>> and low resolution sequence that is used by the tech but is of no interest
>>>>>>>>>>>>>>>>>>>>>> scientifically, which is why we tend to no insert them.
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> Hope this helps,
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> On Sat, Nov 23, 2019 at 7:28 PM Sotirios
>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> Hi Cecile,
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> i executed the find command and the output i got per
>>>>>>>>>>>>>>>>>>>>>>> folder was "DICOM medical imaging data. Maybe there is something wrong with
>>>>>>>>>>>>>>>>>>>>>>> the find command in the warning that it is unable to check if the file is a
>>>>>>>>>>>>>>>>>>>>>>> dicom file? Also when i use get_dicom_info.pl i
>>>>>>>>>>>>>>>>>>>>>>> don't get any output data. Finally i don't understand what scout or
>>>>>>>>>>>>>>>>>>>>>>> localizer is ( something like if and only if a file fails then the whole
>>>>>>>>>>>>>>>>>>>>>>> session is invalid? ).
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> Στις Τρί, 19 Νοε 2019 στις 9:40 μ.μ., ο/η Cecile
>>>>>>>>>>>>>>>>>>>>>>> Madjar <cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> I took a closer look to the
>>>>>>>>>>>>>>>>>>>>>>>> batch_uploader_multiple_output.txt file you sent. It looks like there are
>>>>>>>>>>>>>>>>>>>>>>>> different reasons for failure depending on the DICOM folder uploaded.
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> - For 465466 DCC0000 V1; 727195 DCC0004 V1 and
>>>>>>>>>>>>>>>>>>>>>>>> 684908 DCC0007 V1: it looks like there is no file of type DICOM in the
>>>>>>>>>>>>>>>>>>>>>>>> folder. Have you checked to see if that is indeed the case? Maybe you can
>>>>>>>>>>>>>>>>>>>>>>>> try running the following command on that folder to see what are the types
>>>>>>>>>>>>>>>>>>>>>>>> of the files? If it does not return at least one DICOM medical imaging data
>>>>>>>>>>>>>>>>>>>>>>>> file, then that is why you get the error message from the pipeline:
>>>>>>>>>>>>>>>>>>>>>>>> -
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> find <my_dicom_archive_root_folder> -type f | xargs -i file {}|cut -d: -f2|sort|uniq
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> - For 864173 DCC0001 V1: it looks like there
>>>>>>>>>>>>>>>>>>>>>>>> are two different DICOM studies within the same folder. You will need to
>>>>>>>>>>>>>>>>>>>>>>>> split that study in two based on the StudyUID field as the insertion
>>>>>>>>>>>>>>>>>>>>>>>> pipeline does not allow for more than one StudyUID per upload.
>>>>>>>>>>>>>>>>>>>>>>>> - For 890807 DCC0002 V1; 637025 DCC0005 V1 and
>>>>>>>>>>>>>>>>>>>>>>>> 239975 DCC0006 V1: it looks like the dcm2mnc command did not produce any
>>>>>>>>>>>>>>>>>>>>>>>> MINC files. Can you check in the DICOM archive what are the series present
>>>>>>>>>>>>>>>>>>>>>>>> in the tarchive for that visit? Maybe only a scout or localizer was
>>>>>>>>>>>>>>>>>>>>>>>> acquired for that session, hence the no valid MINC files (scout and
>>>>>>>>>>>>>>>>>>>>>>>> localizer being skipped for the conversion)
>>>>>>>>>>>>>>>>>>>>>>>> - For 397410 DCC0003 V1: it looks like
>>>>>>>>>>>>>>>>>>>>>>>> everything went well for this one.
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> One script that is called by our pipeline is called
>>>>>>>>>>>>>>>>>>>>>>>> get_dicom_info.pl and this does all kind of checks
>>>>>>>>>>>>>>>>>>>>>>>> on the DICOM files (it is being called when running the dcm2mnc
>>>>>>>>>>>>>>>>>>>>>>>> conversion). You could run it independently on your folder if needed.
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> Since one of the study got in, it does not look
>>>>>>>>>>>>>>>>>>>>>>>> like you are having a problem with the setup. It seems more likely to be a
>>>>>>>>>>>>>>>>>>>>>>>> problem with the data themselves.
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> Hope this helps.
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> On Wed, Nov 13, 2019 at 5:56 PM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>> Hi Christine,
>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>> In my first vm i am able to create the minc files
>>>>>>>>>>>>>>>>>>>>>>>>> and view them at the mri browser (except of candidate 102761034 ),
>>>>>>>>>>>>>>>>>>>>>>>>> meanwhile the same files gives warnings at the 2nd vm. The output of the
>>>>>>>>>>>>>>>>>>>>>>>>> batch upload can be seen in the file attached.
>>>>>>>>>>>>>>>>>>>>>>>>> Also a colleague of us has built a pre-validation
>>>>>>>>>>>>>>>>>>>>>>>>> tool for dicom
>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aueb-wim/DataQualityControlTool/
>>>>>>>>>>>>>>>>>>>>>>>>> which had found all the files that Loris gave as warning . Basically I
>>>>>>>>>>>>>>>>>>>>>>>>> confirmed that the total amount of files per dicom was the same amount as
>>>>>>>>>>>>>>>>>>>>>>>>> stated in Loris and checked some filenames given from warning to confirm
>>>>>>>>>>>>>>>>>>>>>>>>> that they match with our tool. But that was months ago and my colleague had
>>>>>>>>>>>>>>>>>>>>>>>>> changed some parameters for MIP and now our tool doesn't find all the
>>>>>>>>>>>>>>>>>>>>>>>>> invalid files, that's why i asked for the dicom header specification of
>>>>>>>>>>>>>>>>>>>>>>>>> Loris. In a discussion we had he mentioned that he doesn't check for some
>>>>>>>>>>>>>>>>>>>>>>>>> tags e.x. orientation. Lastly to mention that in my first vm i didn't use
>>>>>>>>>>>>>>>>>>>>>>>>> our tool to remove invalid dcm files.
>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>> Στις Τετ, 13 Νοε 2019 στις 11:45 μ.μ., ο/η
>>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <christine.rogers at mcgill.ca>
>>>>>>>>>>>>>>>>>>>>>>>>> έγραψε:
>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>> Can you provide us with some fresh particulars of
>>>>>>>>>>>>>>>>>>>>>>>>>> the current issue and we'll take it from there?
>>>>>>>>>>>>>>>>>>>>>>>>>> Yang's team has built these scripts which can
>>>>>>>>>>>>>>>>>>>>>>>>>> definitely serve as a model for your pre-validation of your DICOM
>>>>>>>>>>>>>>>>>>>>>>>>>> collections.
>>>>>>>>>>>>>>>>>>>>>>>>>> cheers,
>>>>>>>>>>>>>>>>>>>>>>>>>> Christine
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> On Wed, Nov 13, 2019 at 4:23 PM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>> HI Yang,
>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>> We make use of pydicom library too. Now about
>>>>>>>>>>>>>>>>>>>>>>>>>>> the validate.py i see that you check if some attributes are missing such as
>>>>>>>>>>>>>>>>>>>>>>>>>>> PatientID, PatientName which all of our files contains that info. Maybe i
>>>>>>>>>>>>>>>>>>>>>>>>>>> have missed something on the setup of my other virtual machine ( although
>>>>>>>>>>>>>>>>>>>>>>>>>>> one dicom passed on the new vm successfully, the others that were inserted
>>>>>>>>>>>>>>>>>>>>>>>>>>> correctly on my old vm fails on the new one ), i think that i had asked
>>>>>>>>>>>>>>>>>>>>>>>>>>> about this error "Use of uninitialized value $_ in pattern match (m//) at
>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/
>>>>>>>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl line 144." but i
>>>>>>>>>>>>>>>>>>>>>>>>>>> don't remember the solution.
>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>> Στις Τετ, 13 Νοε 2019 στις 5:45 π.μ., ο/η Yang
>>>>>>>>>>>>>>>>>>>>>>>>>>> Ding <it at cnbp.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> Hey, Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> Christine from the LORIS team mentioned you had
>>>>>>>>>>>>>>>>>>>>>>>>>>>> some issue with DICOM. I am a fellow developer for an external project
>>>>>>>>>>>>>>>>>>>>>>>>>>>> using LORIS, kind of just like you. We had to implement DICOM upload as
>>>>>>>>>>>>>>>>>>>>>>>>>>>> well but more as a fully automated pipeline actually.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> While we were building CNBP, we had coded up
>>>>>>>>>>>>>>>>>>>>>>>>>>>> some minor Python functions to check DICOM integrity (and simple
>>>>>>>>>>>>>>>>>>>>>>>>>>>> validations) and you might be able to gain some inspiration from it and
>>>>>>>>>>>>>>>>>>>>>>>>>>>> help you with your cause. For more comprehensive solution, PyDICOM (
>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://pydicom.github.io/pydicom/stable/getting_started.html#) seems
>>>>>>>>>>>>>>>>>>>>>>>>>>>> like a descent python package to help out with a lot of DICOM data checks
>>>>>>>>>>>>>>>>>>>>>>>>>>>> (I was essentially just building customized wrapper calls to them). You can
>>>>>>>>>>>>>>>>>>>>>>>>>>>> see some example scripts here as part of our DICOM submodule. It is pretty
>>>>>>>>>>>>>>>>>>>>>>>>>>>> rough around the edges but hopefully point you in the right direcitons
>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/CNBP/DICOMTransit/blob/Dev/DICOMTransit/DICOM/validate.py
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> Cheers,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> Yang Ding, PhD.
>>>>>>>>>>>>>>>>>>>>>>>>>>>> Canadian Neonatal Brain Platform Architect
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> On Tue, Nov 12, 2019 at 8:29 AM <
>>>>>>>>>>>>>>>>>>>>>>>>>>>> loris-dev-request at bic.mni.mcgill.ca> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Send Loris-dev mailing list submissions to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> To subscribe or unsubscribe via the World Wide
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Web, visit
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> or, via email, send a message with subject or
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> body 'help' to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> loris-dev-request at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> You can reach the person managing the list at
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> loris-dev-owner at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> When replying, please edit your Subject line
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> so it is more specific
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> than "Re: Contents of Loris-dev digest..."
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Today's Topics:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 1. Re: Import mri - scripts (Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> ----------------------------------------------------------------------
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Message: 1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Date: Tue, 12 Nov 2019 15:28:26 +0200
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> From: Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> sotirisnik at gmail.com>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> To: Cecile Madjar <cecile.madjar at mcin.ca>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Cc: loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Subject: Re: [Loris-dev] Import mri - scripts
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Message-ID:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> <CAKHj7uST=
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 92717of_4Npd6pt-gxnhoYAWMUnG8s8D2066kPsLQ at mail.gmail.com
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Content-Type: text/plain; charset="utf-8"
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Could we send you a link with 10 anonymized
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> dicom files to diagnose the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> warnings we get?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> ???? ???, 9 ??? 2019 ???? 12:38 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> > Hi Cecile,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> > We were wondering whether Loris has a tool
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> to check if there are problems
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> > with the dcm files, before trying to upload
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> them. Something that could
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> > provide the same results provided in the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> warning_output, this is the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> > summary from the mri_upload at the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> front-page. Also which attributes of the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> > dcm header would trigger a warning? is there
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> a dcm file header
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> > specification for Loris?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> > Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> > Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> > ???? ???, 2 ??? 2019 ???? 12:07 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> > sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >> Yes, by parsing now() into unix_timestamp
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> function it worked,but i
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >> thought that something else was causing the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 2nd issue.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >> On Tue, 1 Oct 2019, 18:36 Xavier Lecours
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Boucher, Mr, <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >> xavier.lecoursboucher at mcgill.ca> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> The first error occurs because the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> QCFirstChangeTime and columns are of
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> type `unsigned integer` and not
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> `datatime`. You should be using
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> UNIX_TIMESTAMP() instead of NOW().
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> The second error occurs because the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> trigger triggers a rollback of the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> insert statement in the files table.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> See mysql documentation for trigger error
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> handling.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> An error during either a BEFORE or AFTER
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> trigger results in failure of
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> the entire statement that caused trigger
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> invocation.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thank you for sharing that. I hope it
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> helps.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> -- Xavier
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ------------------------------
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *From:*
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> loris-dev-bounces at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> loris-dev-bounces at bic.mni.mcgill.ca> on
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> behalf of Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Nikoloutsopoulos <sotirisnik at gmail.com>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *Sent:* October 1, 2019 8:33 AM
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *To:* Cecile Madjar <cecile.madjar at mcin.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *Cc:* loris-dev at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> loris-dev at bic.mni.mcgill.ca>;
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *Subject:* Re: [Loris-dev] Import mri -
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> scripts
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> When mincs are inserted their
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> corresponding rows at the file table are
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> inserted too
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> i would like to insert their rows at
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> file_qcstatus as well, because i
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> don't want manually to label them as
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> passed throught the interface
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> That is the trigger i wrote
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> CREATE DEFINER = CURRENT_USER TRIGGER
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> `LORIS`.`files_AFTER_INSERT` AFTER
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> INSERT ON `files` FOR EACH ROW
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> BEGIN
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> INSERT INTO files_qcstatus
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> SET FileID = NEW.FileID,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> SeriesUID = NEW.SeriesUID,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> EchoTime = NEW.EchoTime,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> QCStatus = "Pass",
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> QCFirstChangeTime = NOW(),
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> QCLastChangeTime = NOW();
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> END
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> although it contains some errors
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> DBD::mysql::db do failed: Out of range
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> value for column
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> 'QCFirstChangeTime' at row 1 at
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRI.pm line 823.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> DBD::mysql::db do failed: Cannot add or
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> update a child row: a foreign
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> key constraint fails
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> (`LORIS`.`parameter_file`, CONSTRAINT
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> `FK_parameter_file_1` FOREIGN KEY
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> (`FileID`) REFERENCES `files` (`FileID`))
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> at
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRI.pm line 848.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 1 ??? 2019 ???? 4:21 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Cecile Madjar <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> cecile.madjar at mcin.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> In the mri_upload table, there is a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> TarchiveID column associated with
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> the MRI upload you inserted. When this
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> value is NULL, it means no DICOMs
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> were inserted into the tarchive tables. At
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> the end of the insertion of the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> DICOMs in the tarchive tables, this value
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> is updated with the correct
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> TarchiveID associated with the upload.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Could this correspond to what you want to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> do?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Regarding the files_qcstatus, this table
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> is only linked to the files
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> table (hence, the MINC files). You could
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> always create a new table for
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> dicom_qcstatus and link it to the tarchive
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> table?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> C?cile
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> On Tue, Oct 1, 2019 at 6:56 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> i would like whenever a dicom is imported
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> to mark all their
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> coressponding qc_status to "pass". I was
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> thinking of creating a trigger for
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> that, but which tables do i need to add
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> entries to? So far from what i see
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> i need to add entres at the table "files"
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> whenever an insertion happens to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> files_qcstatus.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 30 ??? 2019 ???? 4:04 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Oh, sorry i should have asked for StudyID,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> at the beginning of my email
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> i sent 3 hours ago (not StudyUID).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 30 ??? 2019 ???? 3:55 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> that's the Study Instance UID, not the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> StudyID. So the StudyID i am
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> looking for is not stored in the database?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 30 ??? 2019 ???? 3:38 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Cecile Madjar <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> cecile.madjar at mcin.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> The StudyUID is stored in the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> DicomArchiveID field of the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> tarchive table. It can also be found in
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> the metadata field but it is mixed
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> with many other information.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hope this helps,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> C?cile
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> On Mon, Sep 30, 2019 at 6:00 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Is StudyUID stored somewhere at the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> tables? At the tarchive table,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> specifically at the AcquisitonMetadata
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> column i found something called
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> 'Unique Study ID" in its context, but that
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> must be the Study Instance UID.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 27 ??? 2019 ???? 4:22 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Cecile Madjar <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> cecile.madjar at mcin.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Your observation is correct. A little
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> explanation below.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> MINC files get inserted into the MRI
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> violation tables if:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> - the scan type could not be identified
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> (not matching an entry in
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> the mri_protocol table)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> - one parameter of the scan type is out
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> of the expected range
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> present in the mri_protocol_checks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> (extra filtering in case you need to be
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> stricker on some parameters not present
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> in the mri_protocol table)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> - if the CandID and PSCID do not match
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> The following cases do not get in the MRI
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> violation tables as it happens
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> before the conversion of the DICOM to MINC
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> files and only MINC files
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> violations are logged there:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> - "No single DICOM" (since no valid
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> DICOM could be found to convert
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> to MINC)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> - "Study already inserted" (duplicate
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> StudyUID) since this error
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> happens at the dicomTar.pl level (way
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> before conversion into MINC files)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Glad everything is working out!!
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> C?cile
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> On Fri, Sep 27, 2019 at 6:17 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> the mri passed, for some reason it
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> consumed 5.12GB of ram. Now about the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> mri_violations, dicoms are triggered to be
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> inserted there only if there is
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> a violation for Tr_min, Tr_max, in general
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> for its header parameter?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Because i don't see the cases of 'No
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> single dicom" or with the 2 studyiuid
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> to be there.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 26 ??? 2019 ???? 5:07 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Cecile Madjar <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> cecile.madjar at mcin.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Sorry to hear you are having issues with
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> the memory. I think most of our
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> VMs are set up with 4GB of RAM so with 4GB
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> you should be fine.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hope this helps!
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> C?cile
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> On Thu, Sep 26, 2019 at 9:48 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> about that dicom that had that insertion
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> error it's about 30mb and when
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> it is being processed the ram is being
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> drastically increased from 2gb to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> 3.28 and then the whole virtual machine is
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> frozen. What is the recommended
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> size of ram for using Loris?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 24 ??? 2019 ???? 11:24 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Cecile Madjar <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> cecile.madjar at mcin.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Glad to see that the StudyUID problem was
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> fixed!
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> For the delete script issue, if you are
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> absolutely certain that no
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> processes are run for that uploadID, you
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> can update the mri_upload table
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> and set the column Inserting to 0 instead
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> of 1 for that uploadID. It
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> looks like for some reason the scripts did
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> not update this field when it
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> stopped the insertion. Not sure why that
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> would be the case though.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Note: only do that update if you are
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> certain that there is no processing
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> happening.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hope this helps!
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> On Tue, Sep 24, 2019 at 11:57 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> about the Dicoms i reported that didn't
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> have a StudyID they actually do
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> I thought that this might be a permission
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> because "w" was missing at the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> group. After using chmod -R 775 only
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 102809579 passed, but with no mnic
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> files. Also now i have this error
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> (loris-mri-python)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> lorisadmin at loris-VirtualBox
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> :/data/loris/bin/mri/tools$
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ./delete_imaging_upload.pl -uploadID 34
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> -ignore
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Cannot delete upload 34: the MRI pipeline
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> is currently processing it.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> How can solve this?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 24 ??? 2019 ???? 2:30 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Here is our auto dicom uploading python
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> script:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aueb-wim/DataQualityControlTool/blob/loris1/mipqctool/dicom_uploader.py
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> To give you a brief idea:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Per folder it will:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> 1) Delete all the .bak files
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> 2) Locate .dcm files and update the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Patient header
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> 3) Furthermore we are interesting in
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> finding TR_min, TR_max, TE_min,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> TE_max parameters of T1 protocol and do an
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> update at the mri_protocol table
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aueb-wim/DataQualityControlTool/blob/loris1/mipqctool/dicom_uploader.py#L205
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> For some reason some files are missing
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> SeriesDescription/ProtocolName
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> In total i have 7 folders
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> 3/7 passed
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Also about the first patient with DC0000
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> had a violation "T1 AXIAL SE
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> GADO", but my script didn't output a TE of
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 17 nowhere and i find that weird
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> since Loris detects the SeriesDescription.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Now about the 4/7 that didn't passed
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> 102327840 and 102809579 outputs "The
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> target directory does not contain a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> single DICOM file.", therefore they are
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> missing their StudyUID
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> 102506134 has 2 studyuid "You can't use it
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> with data from multiple
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> studies."
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> and 102761034 "No data could be converted
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> into valid MINC files.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> localizer, scout will not be considered!"
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> What is this?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> If i wanted to force the insertion of
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 102327840, 102809579 and 102506134
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> can i just pass a flag parameter to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl? or
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> modify imaging_upload_file.pl?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thank you,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> PS
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> To diagnose a folder search the name of
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> the folder at dicom_output.txt.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 20 ??? 2019 ???? 4:54 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Glad to hear about your progress.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Yes, the script you used to delete imaging
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> data is fully documented here
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/81bae73ea6e86c9498519dadf574468ee1d992ca/docs/scripts_md/delete_imaging_upload.md
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> -- let us know if you didn't find the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> answers you were looking for there.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> (Is it possible the null row in
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> *mri_scanner* seen in your database
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> management software is a visual
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> placeholder for you as the user? I'm not
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sure why a scanner would ever be
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> registered with ID='0' as your screenshot
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> showed.)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> On Fri, Sep 20, 2019 at 9:45 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> I fixed it with this
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 20 ??? 2019 ???? 4:37 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> I tried to create a new candidate using
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> the API, is there something
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> wrong with the structure? why did i
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> receive a 500 internal error? In the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> loris-error log it state that there is
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> something wrong with token, but i
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> verfied that the type of the token is a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> string.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [Fri Sep 20 16:35:26.874732 2019]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> [php7:error] [pid 4535] [client
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> 127.0.0.1:59674] PHP Fatal error:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Uncaught TypeError: Argument 1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> passed to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> SinglePointLogin::JWTAuthenticate() must be of the type string,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> null given, called in
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc on line 169 and
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> defined in
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc:192\nStack
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> trace:\n#0
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc(169):
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> SinglePointLogin->JWTAuthenticate(NULL)\n#1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/php/libraries/NDB_Client.class.inc(171):
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> SinglePointLogin->authenticate()\n#2
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/htdocs/api/v0.0.2/APIBase.php(73):
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> NDB_Client->initialize('/var/www/loris/...')\n#3
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/htdocs/api/v0.0.2/Candidates.php(44):
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Loris\\API\\APIBase->__construct('POST')\n#4
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/htdocs/api/v0.0.2/Candidates.php(244):
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Loris\\API\\Candidates->__construct('POST', Array)\n#5 {main}\n thrown in
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc on line 192
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 20 ??? 2019 ???? 2:39 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Is there a way also to delete candidates?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Just to let you know what i
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> did to clear candidates, because maybe i
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> may have missed dependencies.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> First i deleted all their uploads
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ./delete_imaging_upload.pl -uploadID 13
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> etc ( is there a way to omit
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> the backup file ? )
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Afterwards i had some scanner candidates,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> so i deleted all the entries
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> from mri_scanner except that i couldn't
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> delete this entry with the 0 ID.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Lastly i deleted the session and then the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> candidate table.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 19 ??? 2019 ???? 7:57 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> We recommend that you use our existing
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> tools for creating new candidates
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> - either the LORIS API or if you are using
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> a PHP script, by calling the Candidate
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> class's createNew()
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/blob/master/php/libraries/Candidate.class.inc#L200
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >function.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> These will create the necessary records
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> for you. (It's not recommended to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> make direct modifications to mysql
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> database tables in your script, if I
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> understand you.)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> The CandID should be a randomized 6 digit
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> randomized ID, and there are
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> multiple reasons for this.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> You can use the PSCID for project-specific
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> IDs and the External ID field
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> in the candidate table can also be used
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> for any values you like.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Additionally, any number of custom IDs can
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> be added in parallel - these
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> are entered/visible in the Candidate
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Information module and added in the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> back-end as candidate parameters.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> On Tue, Sep 17, 2019 at 7:31 PM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> We are building a script that will auto
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> insert the candidates based on
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> their ExternalID. We would like to know
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> whethere when we are creating a new
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> profile in the candidate table, if we also
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> have to insert a new record at
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> another table? Furthermore is there a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> problem that in our case CandID won't
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> be a 6digit? ( should we start it from
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 100000?)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 13 ??? 2019 ???? 5:38 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Melanie Legault, Mrs <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> melanie.legault2 at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> That would normally be the case but the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> numeric part of the PSCID get
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> paded with 0 on the left.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Ex. for sequential ID made of center ID of
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> `ABC` plus 4 numerical char
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> with a min value of 1, the sequence would
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> be:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ABC0001
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ABC0002
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ...
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ABC0010
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ...
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> thus sorting them ascending will always
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> get the latest value generated
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> as the max value.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> M?lanie
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ------------------------------
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *From:* Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> sotirisnik at gmail.com>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *Sent:* September 13, 2019 10:15
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *To:* Melanie Legault, Mrs <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> melanie.legault2 at mcgill.ca>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *Cc:* Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca>;
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> loris-dev at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> loris-dev at bic.mni.mcgill.ca>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *Subject:* Re: [Loris-dev] Import mri -
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> scripts
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> I see, although the PSCID value is
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> varchar(255), it must be stored
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> within a specific length of characters.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Otherwise if we were to sort
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> strings with different lengths the result
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> would not be sorted correctly (
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> e.x. 1,2,10,11 as strings would result to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 1, 10, 11, 2 ).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 13 ??? 2019 ???? 4:52 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Melanie Legault, Mrs <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> melanie.legault2 at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hello Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> There is no `last value` stored anywhere.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> The code simply look for the PSCID with
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> the max value and increase that
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> value by 1 in order to generate the next
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> PSCID.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hope this info help.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> M?lanie Legault | Software developer |
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Faculty of Medicine | McGill
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> University
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> 3801 University, Montr?al, QC H3A 2B4
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ------------------------------
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *From:*
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> loris-dev-bounces at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> loris-dev-bounces at bic.mni.mcgill.ca> on
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> behalf of Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Nikoloutsopoulos <sotirisnik at gmail.com>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *Sent:* September 13, 2019 9:43
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *To:* Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *Cc:* loris-dev at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> loris-dev at bic.mni.mcgill.ca>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *Subject:* Re: [Loris-dev] Import mri -
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> scripts
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> how does Loris determine the next
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> available PSCID value for a new
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> candidate?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/wiki/Project-Customization
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> e.x in the default case the PSCID is
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> sequential, but where do we store the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> last value for the sequential sequence?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 10 ??? 2019 ???? 4:00 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> the parameters in the mri_protocol you
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> have assigned are global
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> standard? or were assigned after trial and
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> error?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 8 ??? 2019 ???? 10:11 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Given you have done the initial setup of
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> your tables to match your
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> intended protocol/parameters according to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> instructions --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> the Troubleshooting guide documentation
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> recommends
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/AppendixA-Troubleshooting_guideline.md#a4-insertion-script-troubleshooting-notes
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> re-running the pipeline (and first
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> deleting prior uploads).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> On Sun, Sep 8, 2019 at 10:22 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *if i were to change their status to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> resolve what would happen?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 8 ??? 2019 ???? 5:12 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> I noticed that i can view the mnics at the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> brainbrowser from the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> mri_violations page ( those mnics are
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> stored at /data/loris/data/trashbin/
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> if i were to click their issue to resolve
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> what would happend? would they
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> appear in the dicom_archive view too? ).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 8 ??? 2019 ???? 4:17 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> The defaut values of the schema exists in
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> my local database. If i adjust
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> the default values of TR_min and TE_min
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> the mincs will be uploaded?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 7 ??? 2019 ???? 5:48 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Is it possible that you haven't set up
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> your mri_protocol table ? (and
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> mri_scan_type table too, for additional
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> types of scans)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Like the psc table, this is a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> pre-requisite for the Imaging insertion
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> setup : See the install/setup
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> documentation :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/02-Install.md
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> To add new rows, just use MySQL insert
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> statements. You can adapt the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> insert statements which load the default
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> table values --> e.g. Here on
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> GitHub :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/blob/master/SQL/0000-00-00-schema.sql#L718
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> (see also the mri_scan_type table)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> On Fri, Sep 6, 2019 at 8:32 PM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> I see that i can edit the values but not
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> how to insert new rows.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> If i choose Inserted with flag then will
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> the minc be inserted?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 7 ??? 2019 ???? 3:21 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Glad to hear that *dcmodify* worked
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> correctly.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> For the MRI Violations module, the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> screenshot is enough.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> It says "could not identify scan type",
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> which we knew already. Did you
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> click on the link on those words?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> It will take you to the next page of the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> module, showing for each scan
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> what the scan parameters were, and will
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> also show for comparison what's
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> stored in your *mri_protocol* table.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Compare these values to find which
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> parameter was not correct according
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> to your *mri_protocol* table scan type
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> definitions.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> You may end up broadening your
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> mri_protocol value ranges (e.g. TR, TE)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> for scans.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> This can be done in the front-end, by
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> editing the database table
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> directly in the same subpage of the MRI
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Violations module.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> The MRI Violations module features are
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> explained in more detail in the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Help text for this module inside LORIS
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> (click the ["?"] icon in the menu
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> bar.)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> See also: Loris-MRI troubleshooting guide
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/AppendixA-Troubleshooting_guideline.md
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> : no MINCs inserted- violated scans
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> On Fri, Sep 6, 2019 at 8:11 PM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> looks like my previous email's attachment
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> wasn't delivered due to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> security reasons, i uploaded my file at
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> google drive
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://drive.google.com/file/d/1U_TRbo_qGgfpQfs-SqeG9J3bMMqNfUU4/view?usp=sharing
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 7 ??? 2019 ???? 3:02 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> From Dicat's view seems that dcmodify
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> worked in both cases
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> For the mri_violations i attached the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> .html output from webbrowser, so
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> that you can check the filelds easier.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 6 ??? 2019 ???? 7:49 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Great, sounds like more progress.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> About the dcmodify command -- I'm not sure
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> why you're getting an Endian
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> warning. (it's a warning not an error,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> correct?)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> To clarify -- Were the DICOM headers
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> (PatientName) all successfully
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> relabelled, after the command ran?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> You can use also our DICAT tool (
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/DICAT) to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> verify and/or update local DICOM headers
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> -- though your dcmodify command is
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> a great and fast solution for bulk header
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> updates.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> If you're concerned about fields being
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> changed (e.g. "(2001,105f)" from
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> the warning message) - you can also
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> dcmdump a DICOM slice before and look
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> at these fields specifically.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> It's also not a bad "sanity check" to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> backup your DICOMS before/after
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> running dcmodify, and use dcmdump on each
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> version to diff the outputs --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> this will pinpoint what changed.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Re the protocol violation --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> AcquisitionProtocol not recognized or
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> unknown : this means your scans did not
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> match what is stored in your
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> mri_protocol table.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Check the MRI Violations front-end module
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> -- can you see why they didn't
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> match?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Send us an example, in addition to the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> contents of the mri_protocol
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> table, if you can't find the source of the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> mismatch.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> On Fri, Sep 6, 2019 at 12:04 PM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Here is the psc table
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> I created 2 candidates profiles through
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> the interface
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> then runned dcmodify command to a dicom
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> file
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> dcmodify -ma
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> PatientName="DCC0000_258024_V1"
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> /home/lorisadmin/DICOMS/000535670/501/*.dcm
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> and got those warning: is this okay?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2001,105f) with VR UN
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> and undefined length, reading a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> LittleEndianImplicit (CP-246)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2005,1083) with VR UN
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> and undefined length, reading a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> LittleEndianImplicit (CP-246)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2005,1402) with VR UN
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> and undefined length, reading a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> LittleEndianImplicit (CP-246)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2005,140f) with VR UN
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> and undefined length, reading a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> LittleEndianImplicit (CP-246)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2001,105f) with VR UN
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> and undefined length, reading a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> LittleEndianImplicit (CP-246)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2005,1083) with VR UN
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> and undefined length, reading a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> LittleEndianImplicit (CP-246)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> dcmodify at another Dicom didn't show
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> warnings. Below you can see the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> execution for the second dicom. Mnics
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> could not be inserted due to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> AcquisitionProtocol being unknown.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Running now the following command:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri//uploadNeuroDB/
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> imaging_upload_file.pl -profile prod
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> -upload_id 12
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> /data/incoming/DCC0001_602102_V1.tar.gz
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> -verbose
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> find -path
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> \/tmp\/ImagingUpload\-18\-36\-mTrxXs -name '__MACOSX'
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> -delete
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> dicomTar.pl
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> \/tmp\/ImagingUpload\-18\-36\-mTrxXs
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> \/data\/loris\/data\/tarchive\/ -database
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> -profile prod -verbose
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Source: /tmp/ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Target: /data/loris/data/tarchive
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Testing for database connectivity.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Database is available.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> You will archive the dir :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> You are creating a tar with the following
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> command:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> tar -cf
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> getting md5sums and gzipping!!
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * Taken from dir :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /tmp/ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * Archive target location :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * Name of creating host :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 127.0.1.1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * Name of host OS :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Linux
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * Created by user :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> lorisadmin
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * Archived on :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 2019-09-06 18:36:50
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * dicomSummary version : 1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * dicomTar version : 1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for DICOM tarball :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> b1dcdc8903dd2d9a5443227db2aa2814
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for DICOM tarball gzipped :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> aeae87f20155a6805f7e0cfe5212ea5f
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ImagingUpload-18-36-mTrxXs.tar.gz
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for complete archive :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 1d9258d1f077ebc49111ab7ba22a8d6e
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Adding archive info into database
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Removing temporary files from target
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> location
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Done adding archive info into database
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> \/data\/loris\/bin\/mri\//uploadNeuroDB/tarchiveLoader.pl -globLocation
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> -profile prod
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> \/data\/loris\/data\/tarchive\/\/DCM_2016\-08\-22_ImagingUpload\-18\-36\-mTrxXs\.tar
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> -uploadID 12 -verbose
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> md5sum
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> candidate id 602102
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Set centerID = 1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Number of MINC files that will be
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> considered for inserting into the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> database: 2
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> log dir is /data/loris/data//logs and log
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> file is
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data//logs/TarLoad-18-37-31ajWx.log
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> candidate id 602102
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> log dir is /data/loris/data//logs and log
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> file is
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data//logs/TarLoad-18-37-fanZFj.log
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> candidate id 602102
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Cleaning up temp files: rm -rf
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /tmp/TarLoad-18-37-to5pYZ/ImagingUpload-18-36-mTrxXs*
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> (loris-mri-python)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> lorisadmin at loris-VirtualBox:/data/loris/bin/mri$
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> cat
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/logs/TarLoad-18-37-fanZFj.log
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ==> Loading file from disk
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /tmp/TarLoad-18-37-to5pYZ/dcc0001_602102_v1_20160822_072406_205e1d1_mri.mnc
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> --> mapping DICOM parameter for
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /tmp/TarLoad-18-37-to5pYZ/dcc0001_602102_v1_20160822_072406_205e1d1_mri.mnc
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ==> computing md5 hash for MINC body.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> --> md5: 02022dda60d9de429340fec838f50cfe
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ==> verifying acquisition protocol
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Acquisition protocol is unknown
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> --> The minc file cannot be registered
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> since the AcquisitionProtocol
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> is unknown
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 4 ??? 2019 ???? 10:46 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Sure -- you can delete imaging datasets
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> with the *delete_imaging_upload*
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> script --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> details here:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/21.0-dev/docs/scripts_md/delete_imaging_upload.md
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> What's in your *psc* table? (Is it
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> properly populated? This is a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> pre-requisite to loading imaging data.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/21.0-dev/docs/02-Install.md#221-database
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> )
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> The foreign key constraint error on the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> candidate record is curious.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> There are also a few options for creating
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> candidates when inserting
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> imaging data:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> -- Method 1 : in 2 steps with the API then
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> DICOM insertion pipeline
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> a. via the LORIS API -- Create the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> candidates (and visits, optionally I
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> think)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> How to:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/blob/master/docs/API/LorisRESTAPI.md#30-candidate-api
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Ensure you get the DCCID/CandID assigned
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> by LORIS.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Then as a second step:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> b. Use the imaging insertion pipeline
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/minor/docs/05-PipelineLaunchOptions.md#51---pipeline-launch-options-for-dicom-datasets
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> to load your DICOMs.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> You will want to first ensure that the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> PatientName header in the DICOMs
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> as well as tar package are correctly
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> labelled with PSCID_DCCID_VisitLabel
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> -- Method 2: for BIDS-format datasets:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> How to :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/05-PipelineLaunchOptions.md#52---pipeline-launch-for-bids-datasets
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Be sure to use the *-c* and *-s* options
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> when running the bids_import script,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> to automatically create your candidates
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> and sessions.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> On Wed, Sep 4, 2019 at 11:43 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> How do i delete a Study? And everytime do
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> i have to create a new
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> candidate to get DCCID and a PSCID?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *First execution:*
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> (loris-mri-python)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> lorisadmin at loris-VirtualBox:/data/loris/bin/mri$
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> ./
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl -profile
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> prod < ~/Desktop/input.txt >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> log.txt
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Use of uninitialized value $_ in pattern
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> match (m//) at ./
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl line 144.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> DBD::mysql::db do failed: Cannot add or
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> update a child row: a foreign
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> key constraint fails (`LORIS`.`candidate`,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CONSTRAINT `FK_candidate_1`
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> FOREIGN KEY (`RegistrationCenterID`)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> REFERENCES `psc` (`CenterID`)) at
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRI.pm line 1060.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ERROR: Failed to insert record in table
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> mri_scanner:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> The following database commands failed:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> PREPARE s FROM 'INSERT INTO mri_scanner
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> (CandID,Model,Software,Serial_number,Manufacturer) VALUES (?,?,?,?,?)';
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> SET
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> @x1='242126', at x2='Achieva', at x3='3.2.2\3.2.2.0', at x4='34037', at x5='Philips
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Medical Systems';
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> EXECUTE s USING @x1, at x2, at x3, at x4, at x5;
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Error obtained:Cannot add or update a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> child row: a foreign key
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> constraint fails (`LORIS`.`mri_scanner`,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CONSTRAINT `FK_mri_scanner_1`
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> FOREIGN KEY (`CandID`) REFERENCES
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> `candidate` (`CandID`)) (error code 1452)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ERROR: The validation has failed. Either
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> re-run the validation again
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> and fix the problem. Or re-run
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> tarchiveLoader.pl using -force to force the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> execution.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> The tarchiveLoader.pl insertion script has
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> failed.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Can't exec "mail": No such file or
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> directory at ./
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl line 249.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> line 250.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> line 251.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> *And second execution: *
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> (loris-mri-python)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> lorisadmin at loris-VirtualBox:/data/loris/bin/mri$
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> ./
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl -profile
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> prod < ~/Desktop/input.txt >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> log.txt
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Use of uninitialized value $_ in pattern
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> match (m//) at ./
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl line 144.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> PROBLEM:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> The user 'lorisadmin' has already inserted
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> this study.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> The unique study ID is
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> '1.3.51.0.1.1.10.49.10.222.1422753.1420953'.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> This is the information retained from the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> first time the study was
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> inserted:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * Taken from dir :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /tmp/ImagingUpload-18-33-Qq7HGy
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * Archive target location :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/DCM_2012-12-05_ImagingUpload-18-33-Qq7HGy.tar
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * Name of creating host :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 127.0.1.1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * Name of host OS :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Linux
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * Created by user :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> lorisadmin
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * Archived on :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 2019-09-04 18:33:05
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * dicomSummary version : 1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * dicomTar version : 1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for DICOM tarball :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 4a301b0318178b09b91e63544282364d
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ImagingUpload-18-33-Qq7HGy.tar
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for DICOM tarball gzipped :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 9d95ea2b9111be236808bfd65d7e65ec
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ImagingUpload-18-33-Qq7HGy.tar.gz
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for complete archive :
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> ab19a86357f1d4053aa3b81c8a071053
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> DCM_2012-12-05_ImagingUpload-18-33-Qq7HGy.tar
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Last update of record:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> The dicomTar.pl execution has failed.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Can't exec "mail": No such file or
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> directory at ./
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl line 249.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> line 250.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> line 251.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 4 ??? 2019 ???? 5:35 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Ok, this sounds like good progress. Let
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> us know when you next encounter
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> issues as you progress through the Imaging
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Install/Setup docs
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/minor/docs/02-Install.md
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> I'll look into how we can better handle
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> the incoming/ directory next
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> time.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> On Wed, Sep 4, 2019 at 10:23 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/dicom-archive/.loris_mri/database_config.py is
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> populated correctly except its port is
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 'port' : ''. Also i have tested
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> that i can connect to MySQL with lorisuser.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> I executed the script again, because the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> only error i had previously was
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> that the /data/incoming folder didn't
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> exist and there are no errors
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> reported back except of warnings <<mysql:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> [Warning] Using a password on the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> command line interface can be insecure>>.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 4 ??? 2019 ???? 4:53 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> It's possible -- if the script was unable
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> to connect to the database
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> during its execution (e.g. typo in the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> password), that would explain the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> underpopulated Image path and Loris-MRI
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> code path you saw in the Config
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> module.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> It's hard to tell without seeing the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> output from your script run -- Did
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> you see a sign of any such error?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> The Config fields are populated by the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> imaging_install.sh script (starting
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> at line 222
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/21.0-dev/imaging_install.sh#L222
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> )
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> For example, check if the database
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> connection information was populated
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> accurately in
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> $mridir/dicom-archive/.loris_mri/database_config.py
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> On Wed, Sep 4, 2019 at 9:34 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Christine,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> If you are referring to the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> imaging_install.sh here is an image with the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> configurations i typed. Maybe the problem
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> is somewhere at the last part
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> which asks to configure as much as
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> possible automatically?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 4 ??? 2019 ???? 4:16 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Glad to hear your LORIS core install is up
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> and working and all the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> front-end pages are loading.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> > lorisadmin at loris-VirtualBox:/var/www/loris$
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> chmod 775 project
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> > and the web interface worked.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Yes, it's important that project/ have 775
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> permissions and that
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> lorisadmin be part of the sudoers group,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> per step 1 in the install
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Readme <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris#install-steps>.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> > As for the Paths, LORIS-MRI code and
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Image should change LORIS to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> loris, right?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> These imaging paths will be updated during
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> your imaging installation
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> <https://github.com/aces/Loris/wiki/Setup>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> by an automated script --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> you do not need to set them manually via
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> the Config module.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Please continue to follow the Setup Guide
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> <https://github.com/aces/Loris/wiki/Setup>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> for detailed steps to follow.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> On Wed, Sep 4, 2019 at 8:05 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> As for the Paths, LORIS-MRI code and Image
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> should change LORIS to loris,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> right?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 4 ??? 2019 ???? 2:28 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> i used
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> curl -sL
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://deb.nodesource.com/setup_8.x | sudo
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> -E bash -
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> sudo apt-get install -y nodejs
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /0/#inbox/FMfcgxwGBmlrdRDRSFqvSfhPwxLQTrhM>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> you had suggested in the past, make worked
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> and now i can see all the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> contents in the web-interface, but i don't
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> need make install?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> | MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> | MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> | MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> | MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> | MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> | MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> | MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> | MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> | MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> | MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> -------------- next part --------------
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> An HTML attachment was scrubbed...
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> URL: <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191112/edc06953/attachment.html
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> ------------------------------
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> End of Loris-dev Digest, Vol 64, Issue 16
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> *****************************************
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> --
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>> Loris-dev mailing list
>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>
>>>>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20200131/12b6b50b/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 37207 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20200131/12b6b50b/attachment-0006.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 92124 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20200131/12b6b50b/attachment-0007.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 62956 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20200131/12b6b50b/attachment-0008.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 65585 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20200131/12b6b50b/attachment-0009.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 13729 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20200131/12b6b50b/attachment-0010.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 29486 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20200131/12b6b50b/attachment-0011.png>
More information about the Loris-dev
mailing list
