[Loris-dev] Import mri - scripts
Sotirios Nikoloutsopoulos
sotirisnik at gmail.com
Wed Jan 29 18:57:02 EST 2020
Hi Cecile,
it seems that xargs is already installed in our docker container.
[image: image.png]
Στις Τετ, 29 Ιαν 2020 στις 7:59 μ.μ., ο/η Cecile Madjar <
cecile.madjar at mcin.ca> έγραψε:
> Hi Sotirios,
>
> It looks like xargs is not installed in your docker environment.
>
> This is being used by the following command in dicomTar.pl (and a few
> other places but that is the one causing the error at the moment):
>
> $cmd = "cd " . $dcm_source . "; find -type f -name '.*' | *xargs* rm -f";
>
> So you need to install xargs in your docker for the command to run.
>
> Hope this helps,
>
> Cécile
> On Wed, Jan 29, 2020 at 10:35 AM Sotirios Nikoloutsopoulos <
> sotirisnik at gmail.com> wrote:
>
>> Hello,
>>
>> We are making a dockerized version of Loris 21 and when we execute the
>> batch_uploads_imageuploader.pl we get an error about xargs. What could
>> be the casue?
>>
>> Use of uninitialized value $_ in pattern match (m//) at
>> /data/loris/bin/mri/batch_uploads_imageuploader.pl line 144.
>> Running now the following command: /data/loris/data//uploadNeuroDB/
>> imaging_upload_file.pl -profile prod -upload_id 13
>> /data/incoming/DCC0007_854380_V1.tar.gz -verbose
>>
>> find -path \/data\/tmp\/ImagingUpload\-15\-31\-U_O5ml -name '__MACOSX'
>> -delete
>> xargs: file: No such file or directory
>>
>> dicomTar.pl \/data\/tmp\/ImagingUpload\-15\-31\-U_O5ml
>> \/data\/loris\/data\/tarchive\/ -database -profile prod -verbose
>> Source: /data/tmp/ImagingUpload-15-31-U_O5ml
>> Target: /data/loris/data/tarchive
>>
>> Thanks
>>
>> Στις Τρί, 10 Δεκ 2019 στις 7:21 μ.μ., ο/η Sotirios Nikoloutsopoulos <
>> sotirisnik at gmail.com> έγραψε:
>>
>>> Hi,
>>>
>>> i opened an issue and looked up for the values of Volume they suggested
>>> https://github.com/BIC-MNI/minc-toolkit-v2/issues/95. The only
>>> attributes associated with it i saw are [0x00089206] and [0x00089207]
>>>
>>> [image: image.png]
>>>
>>> I looked up for the file that was being viewed fine in the BrainBrowser
>>> and saw that it had that attribute empty so i used this command because i
>>> couldn't find a way to modify the attribute via pydicom
>>>
>>> dcmodify -ma "(0008,9206)=" *.dcm
>>>
>>> and that command reported the warning about the Endian Syntax. I also
>>> used the corresponding command for 9207 and got the message "Tag not found'
>>>
>>> Lastly I tried to upload some dicoms and now i am getting the SNR and i
>>> can view them fine. I believe now that all of them will pass successfully,
>>> i will report back later.
>>>
>>> Thanks,
>>>
>>> Sotirios
>>>
>>> Στις Δευ, 9 Δεκ 2019 στις 8:10 μ.μ., ο/η Cecile Madjar <
>>> cecile.madjar at mcin.ca> έγραψε:
>>>
>>>> Hi Sotirios,
>>>>
>>>> The issue you are having is a indeed a dcm2mnc issue. The converter
>>>> does not seem to work on your dataset for some reason. Unfortunately, there
>>>> is not much we can do on our front to fix this...
>>>>
>>>> I would recommend creating an issue on the MINC tools repository
>>>> <https://github.com/BIC-MNI/minc-toolkit-v2/issues> so they can fix
>>>> your problem.
>>>>
>>>> Very sorry that you are having that problem.
>>>>
>>>> Best,
>>>>
>>>> Cécile
>>>>
>>>> On Wed, Dec 4, 2019 at 8:59 AM Cecile Madjar <cecile.madjar at mcin.ca>
>>>> wrote:
>>>>
>>>>> Hi Sotirios,
>>>>>
>>>>> Could you please share a dataset with us that produces the error you
>>>>> get and the weird display in BrainBrowser? You could use the same SFTP
>>>>> credential that Nicolas gave you.
>>>>>
>>>>> The message errors you got from imaging_install.sh are probably due to
>>>>> the fact that you reran the install script and it tried to reinstall
>>>>> something that was already there. I would not worry about it. FYI, the only
>>>>> thing you needed to do was to update the MINC tools path in the environment
>>>>> file as you did after re-running imaging_install.sh and source the
>>>>> environment file.
>>>>>
>>>>> Best,
>>>>>
>>>>> Cécile
>>>>>
>>>>> On Wed, Dec 4, 2019 at 8:03 AM Sotirios Nikoloutsopoulos <
>>>>> sotirisnik at gmail.com> wrote:
>>>>>
>>>>>> Hi Cecile,
>>>>>>
>>>>>> We used minctool 1.9.7 and we still get this error
>>>>>>
>>>>>> <<Restructuring...
>>>>>> gsl: bessel_I0.c:216: ERROR: overflow
>>>>>> Default GSL error handler invoked.
>>>>>> noise_estimate --snr /data/loris/data>>
>>>>>>
>>>>>
>>>>>> One dicom folder hadn't that error and is being viewed fine in the
>>>>>> BrainBrowser of Loris.
>>>>>>
>>>>>
>>>>>> When i used dpkg to the 1.9.17 the installation reported fine
>>>>>> <<Unpacking minc-toolkit-v2 (1.9.17) over (1.9.16) ...>>
>>>>>>
>>>>>> and then i used source /opt/minc/1.9.17/minc-toolkit-config.sh
>>>>>>
>>>>>> and aftewards runned bash ./imaging_install.sh just to be sure.
>>>>>>
>>>>>> We also had to modify /data/loris/bin/mri/environment because it
>>>>>> still pointed to the old version.
>>>>>>
>>>>>> What i found strange is this during the run of imaging_install.sh
>>>>>>
>>>>>> <<already using interpreter
>>>>>> /data/loris/bin/mri/python_virtualenvs/loris-mri-python/bin/python3
>>>>>> Please use the *system* python to run this script
>>>>>> Traceback (most recent call last):
>>>>>> File "/usr/local/lib/python3.5/dist-packages/virtualenv.py", line
>>>>>> 2632, in <module>
>>>>>> main()
>>>>>> File "/usr/local/lib/python3.5/dist-packages/virtualenv.py", line
>>>>>> 870, in main
>>>>>> symlink=options.symlink,
>>>>>> File "/usr/local/lib/python3.5/dist-packages/virtualenv.py", line
>>>>>> 1156, in create_environment
>>>>>> install_python(home_dir, lib_dir, inc_dir, bin_dir,
>>>>>> site_packages=site_packages, clear=clear, symlink=symlink)
>>>>>> File
>>>>>> "/data/loris/bin/mri/python_virtualenvs/loris-mri-python/lib/python3.5/posixpath.py",
>>>>>> line 357, in abspath
>>>>>> if not isabs(path):
>>>>>> File
>>>>>> "/data/loris/bin/mri/python_virtualenvs/loris-mri-python/lib/python3.5/posixpath.py",
>>>>>> line 64, in isabs
>>>>>> return s.startswith(sep)
>>>>>> AttributeError: 'NoneType' object has no attribute 'startswith'
>>>>>> Installing the Python libraries into the loris-mri virtualenv...
>>>>>> Requirement already satisfied: mysqlclient in
>>>>>> ./python_virtualenvs/loris-mri-python/lib/python3.5/site-packages (1.4.4)
>>>>>> Requirement already satisfied: mysql-connector in
>>>>>> ./python_virtualenvs/loris-mri-python/lib/python3.5/site-packages (2.2.9)
>>>>>> Requirement already satisfied: pybids in
>>>>>> ./python_virtualenvs/loris-mri-python/lib/python3.5/site-packages (0.9.4)
>>>>>> Requirement already satisfied: nibabel>=2.1 in ./python_virtua>>
>>>>>>
>>>>>> So should i open an issue for that error? or is there something else
>>>>>> to try?
>>>>>>
>>>>>> Thanks
>>>>>>
>>>>>> Sotirios
>>>>>>
>>>>>>
>>>>>>
>>>>>>
>>>>>>
>>>>>> Στις Τρί, 3 Δεκ 2019 στις 10:39 μ.μ., ο/η Cecile Madjar <
>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>
>>>>>>> Hi Sotirios,
>>>>>>>
>>>>>>> Does the pic screenshot in the imaging browser module also shows 1
>>>>>>> slice? If so, that would mean there was an issue with the dcm2mnc
>>>>>>> conversion. Once again, installing the latest version of the MINC tools
>>>>>>> should help but if this issue persists I would recommend creating an issue
>>>>>>> for that too on their repository
>>>>>>> <https://github.com/BIC-MNI/minc-toolkit-v2/issues> (if not already
>>>>>>> reported there, there are a few known issue reported).
>>>>>>>
>>>>>>> Other viewer for MINCs are register and Display (both part of the
>>>>>>> MINC tools). For NIfTI, you have FSLeye, MRICron and probably many other
>>>>>>> viewers that exists.
>>>>>>>
>>>>>>> Hope this helps,
>>>>>>>
>>>>>>> Cécile
>>>>>>>
>>>>>>> On Tue, Dec 3, 2019 at 3:26 PM Sotirios Nikoloutsopoulos <
>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>
>>>>>>>> Hi Cecile,
>>>>>>>>
>>>>>>>> Yes, Nifti files are mandatory for our work. From what we saw at a
>>>>>>>> 3rd vm we setted up, the nifti files are being created ( i haven't verified
>>>>>>>> if that is the case at the 2nd vm ). I will install the latest version and
>>>>>>>> will report back, but do you know any nifti/minc viewer? because the
>>>>>>>> Brainbrowser of Loris does not output them well, it's like it is loading
>>>>>>>> only 1 slice and we would like to verify it with another tool too. We
>>>>>>>> verified that the dcmconv command didn't affect the quality of the
>>>>>>>> .dcm files.
>>>>>>>>
>>>>>>>> Thanks,
>>>>>>>>
>>>>>>>> Sotirios
>>>>>>>>
>>>>>>>> Στις Δευ, 2 Δεκ 2019 στις 6:59 μ.μ., ο/η Cecile Madjar <
>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>
>>>>>>>>> Hi Sotirios,
>>>>>>>>>
>>>>>>>>> It looks like for some reason your binary mnc2nii is not working
>>>>>>>>> and reports that error. Do you want to create NIfTI files or are you happy
>>>>>>>>> with just the MINC files?
>>>>>>>>>
>>>>>>>>> If you don't need the NIfTI files, then maybe you can set the
>>>>>>>>> Config setting "NIfTI file creation" to No instead of Yes and
>>>>>>>>> this error will not appear anymore.
>>>>>>>>>
>>>>>>>>> If you need the NIfTI files to be created, then I would
>>>>>>>>> recommend installing the latest version of the MINC tools (1.9.17). They
>>>>>>>>> can be found there:
>>>>>>>>>
>>>>>>>>> - pre-built packages:
>>>>>>>>> https://packages.bic.mni.mcgill.ca/minc-toolkit/
>>>>>>>>> - from the source code with installation instructions in the
>>>>>>>>> README: https://github.com/BIC-MNI/minc-toolkit-v2
>>>>>>>>>
>>>>>>>>> If the problem persists by using the latest release of MINC tools,
>>>>>>>>> then create an issue on Github for the MINC developers here
>>>>>>>>> <https://github.com/BIC-MNI/minc-toolkit-v2/issues>.
>>>>>>>>>
>>>>>>>>> Hope this helps,
>>>>>>>>>
>>>>>>>>> Cécile
>>>>>>>>>
>>>>>>>>> On Fri, Nov 29, 2019 at 8:06 PM Sotirios Nikoloutsopoulos <
>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>
>>>>>>>>>> Hi Cecile,
>>>>>>>>>>
>>>>>>>>>> Thanks to Nicholas i was able to create all the mincs images. The
>>>>>>>>>> problem was that the files were in Little-Endian-Implicit transfer syntax
>>>>>>>>>> and i had to convert them Little-Endian-Explicit transfer syntax with this
>>>>>>>>>> command
>>>>>>>>>>
>>>>>>>>>> find <root_of_my_DICOM_files_directory> -type f | xargs -i
>>>>>>>>>> dcmconv --write-xfer-little {} {}
>>>>>>>>>>
>>>>>>>>>>

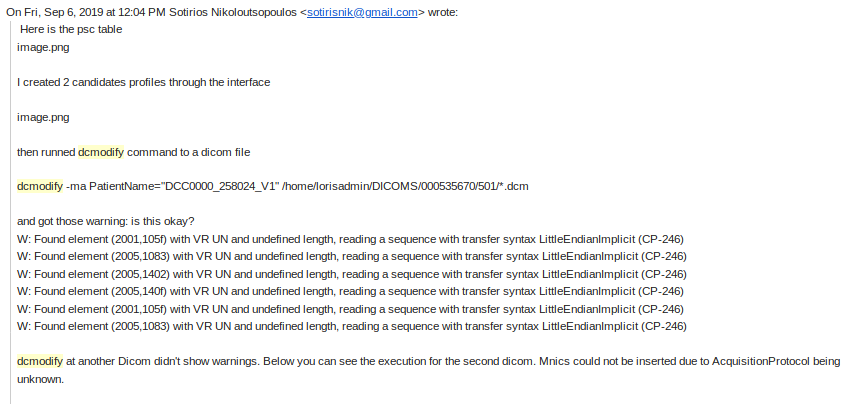

>>>>>>>>>> Looking back at our mails i saw that Little-Endian error had
>>>>>>>>>> occurred when i used dcmodify, but i switcthed to using pydicom instead.
>>>>>>>>>>
>>>>>>>>>>
>>>>>>>>>> [image: image.png]
>>>>>>>>>>
>>>>>>>>>>
>>>>>>>>>> In the output i see an error sometimes about "gsl:
>>>>>>>>>> bessel_I0.c:216: ERROR: overflow". Is this okay?
>>>>>>>>>>
>>>>>>>>>> Restructuring...
>>>>>>>>>> gsl: bessel_I0.c:216: ERROR: overflow
>>>>>>>>>> Default GSL error handler invoked.
>>>>>>>>>> noise_estimate --snr
>>>>>>>>>> /data/loris/data//assembly/959679/V1/mri/native/loris_959679_V1_t1_001.mnc
>>>>>>>>>> SNR is:
>>>>>>>>>> gsl: bessel_I0.c:216: ERROR: overflow
>>>>>>>>>> Default GSL error handler invoked.
>>>>>>>>>>
>>>>>>>>>> Thanks,
>>>>>>>>>>
>>>>>>>>>> Sotirios
>>>>>>>>>>
>>>>>>>>>>
>>>>>>>>>> Στις Τετ, 27 Νοε 2019 στις 4:29 μ.μ., ο/η Cecile Madjar <
>>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>
>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>
>>>>>>>>>>> Thank you for the details!
>>>>>>>>>>>
>>>>>>>>>>> A few things to try:
>>>>>>>>>>>
>>>>>>>>>>> - modify the TMPDIR to be on your /data directory where
>>>>>>>>>>> there might be more space to do processing (could create a /data/tmp where
>>>>>>>>>>> the temporary files would be created)
>>>>>>>>>>> - how many files are there for that upload in
>>>>>>>>>>> tarchive_files? Are they different from the ones showing the warning
>>>>>>>>>>> message?
>>>>>>>>>>> - FYI: query to get that: SELECT tf.* FROM tarchive_files
>>>>>>>>>>> tf JOIN mri_upload USING (TarchiveID) WHERE UploadID=<your uploadID> (the
>>>>>>>>>>> output of that query would be very useful if you can provide it)
>>>>>>>>>>> - how many series are there for that upload in
>>>>>>>>>>> tarchive_series?
>>>>>>>>>>> - FYI: query to get that: SELECT ts.* FROM tarchive_series
>>>>>>>>>>> ts JOIN mri_upload USING (TarchiveID) WHERE UploadID=<your uploadID> (the
>>>>>>>>>>> output of that query would be very useful if you can provide it)
>>>>>>>>>>> - things are failing when the scripts try running the
>>>>>>>>>>> following command: find
>>>>>>>>>>> /tmp/TarLoad-23-43-ccugaa/ImagingUpload-23-43-6JCOTO -type f |
>>>>>>>>>>> /data/loris/bin/mri/dicom-archive/get_dicom_info.pl
>>>>>>>>>>> -studyuid -series -echo -image -file -attvalue 0018 0024 -series_descr
>>>>>>>>>>> -stdin | sort -n -k1 -k2 -k7 -k3 -k6 -k4 | cut -f 5 | dcm2mnc -dname ''
>>>>>>>>>>> -stdin -clobber -usecoordinates /tmp/TarLoad-23-43-ccugaa
>>>>>>>>>>> - clearly the problems come from get_dicom_info.pl but I
>>>>>>>>>>> cannot pinpoint the error yet. I will ask around and get back to you
>>>>>>>>>>>
>>>>>>>>>>> If I cannot figure it out remotely, is there a way to have a
>>>>>>>>>>> call using zoom? This way you could share your screen with me and run the
>>>>>>>>>>> debugger on that script and hopefully we can figure out what is going on
>>>>>>>>>>> with those datasets?
>>>>>>>>>>>
>>>>>>>>>>> Thanks!
>>>>>>>>>>>
>>>>>>>>>>> Cécile
>>>>>>>>>>>
>>>>>>>>>>> On Tue, Nov 26, 2019 at 5:17 PM Sotirios Nikoloutsopoulos <
>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>
>>>>>>>>>>>> Hi Cecile,
>>>>>>>>>>>>
>>>>>>>>>>>> In both my virtual machines
>>>>>>>>>>>> export TMPDIR=/tmp
>>>>>>>>>>>>
>>>>>>>>>>>> In both vm also with dcm2mnc i get this output. Just to verify
>>>>>>>>>>>> that this passed in my 1st vm and produced mincs.
>>>>>>>>>>>>
>>>>>>>>>>>> I attached the spool as a csv.
>>>>>>>>>>>>
>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>

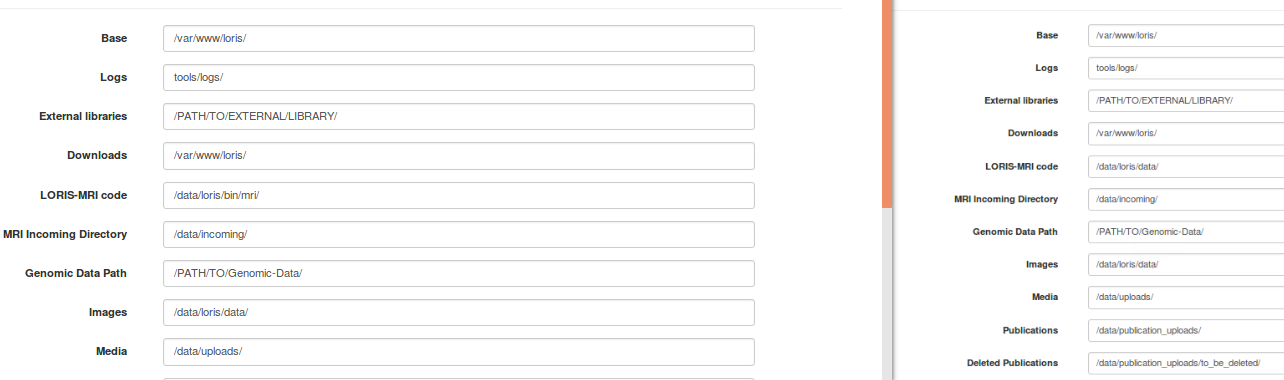

>>>>>>>>>>>> And also one difference i found was this in the Loris-mri code
>>>>>>>>>>>> ( left 1st workable vm, right 2nd vm that has to be fixed, although i
>>>>>>>>>>>> changed it seems to be independent of the uninitialized value $_ )
>>>>>>>>>>>>
>>>>>>>>>>>>
>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>
>>>>>>>>>>>> Thanks,
>>>>>>>>>>>>
>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>
>>>>>>>>>>>>
>>>>>>>>>>>>
>>>>>>>>>>>>
>>>>>>>>>>>> Στις Τρί, 26 Νοε 2019 στις 11:34 μ.μ., ο/η Cecile Madjar <
>>>>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>
>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>
>>>>>>>>>>>>> that is puzzling... A few additional questions:
>>>>>>>>>>>>>
>>>>>>>>>>>>> - what is the bash variable TMPDIR set to on the
>>>>>>>>>>>>> environment file?
>>>>>>>>>>>>> - could you try running separately dcm2mnc on the DICOM
>>>>>>>>>>>>> folder to see if that works?
>>>>>>>>>>>>> - could you send us the detailed log from the notification
>>>>>>>>>>>>> spool table (SELECT * FROM notification_spool WHERE UploadID=<your
>>>>>>>>>>>>> uploadID>) and send it back to us? Maybe there are some additional clues
>>>>>>>>>>>>> that could help figuring out what is going on.
>>>>>>>>>>>>>
>>>>>>>>>>>>> Thank you!
>>>>>>>>>>>>>
>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>
>>>>>>>>>>>>> On Tue, Nov 26, 2019 at 10:12 AM Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>
>>>>>>>>>>>>>> Hi Cecile,
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> I checked for the StudyInstacueUID at the files with "The
>>>>>>>>>>>>>> target directory does not contain a single DICOM file"" and their attribute
>>>>>>>>>>>>>> has a value.
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Regarding the scouter and localizer, i modified the settings
>>>>>>>>>>>>>> in the imaging pipeline and now i don't get that error message, but still
>>>>>>>>>>>>>> it doesn't create the mnics.
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> The errors i am getting are ( uninitialized value $_ is not
>>>>>>>>>>>>>> important? because i haven't got comments about that )
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Use of uninitialized value $_ in pattern match (m//) at
>>>>>>>>>>>>>> /data/loris/bin/mri/batch_uploads_imageuploader.pl line 144.
>>>>>>>>>>>>>> Running now the following command:
>>>>>>>>>>>>>> /data/loris/data//uploadNeuroDB/imaging_upload_file.pl
>>>>>>>>>>>>>> -profile prod -upload_id 134 /data/incoming/DCC0025_118008_V1.tar.gz
>>>>>>>>>>>>>> -verbose
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> and
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Number of MINC files that will be considered for inserting
>>>>>>>>>>>>>> into the database: 0
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> No data could be converted into valid MINC files.
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> The tarchiveLoader.pl insertion script has failed.
>>>>>>>>>>>>>> Use of uninitialized value $mail_user in concatenation (.) or
>>>>>>>>>>>>>> string at /data/loris/bin/mri/batch_uploads_imageuploader.pl
>>>>>>>>>>>>>> line 249.
>>>>>>>>>>>>>> Can't exec "mail": No such file or directory at
>>>>>>>>>>>>>> /data/loris/bin/mri/batch_uploads_imageuploader.pl line 249.
>>>>>>>>>>>>>> print() on closed filehandle MAIL at /data/loris/bin/mri/
>>>>>>>>>>>>>> batch_uploads_imageuploader.pl line 250.
>>>>>>>>>>>>>> print() on closed filehandle MAIL at /data/loris/bin/mri/
>>>>>>>>>>>>>> batch_uploads_imageuploader.pl line 251.
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Στις Δευ, 25 Νοε 2019 στις 5:22 μ.μ., ο/η Cecile Madjar <
>>>>>>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> OK. So the issue I mentioned should not be a problem for you.
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Is the StudyInstanceUID DICOM header set in your images? If
>>>>>>>>>>>>>>> it is not set, then you would end up with the error message "The target
>>>>>>>>>>>>>>> directory does not contain a single DICOM file". So maybe this is the issue
>>>>>>>>>>>>>>> you are having with those datasets?
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Regarding not excluding series descriptions, you can
>>>>>>>>>>>>>>> configure that in the Config module under the Imaging Pipeline section.
>>>>>>>>>>>>>>> Simply remove all entries for the "Series description to exclude from
>>>>>>>>>>>>>>> imaging insertion" setting.
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> On Mon, Nov 25, 2019 at 9:58 AM Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Hi Cecile,
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> We are using this version
>>>>>>>>>>>>>>>> https://github.com/aces/Loris/archive/v21.0.0.zip. Is it
>>>>>>>>>>>>>>>> possible to insert low resolution now?
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> On Mon, 25 Nov 2019, 16:53 Cecile Madjar, <
>>>>>>>>>>>>>>>> cecile.madjar at mcin.ca> wrote:
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Which version of LORIS-MRI are you using?
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> There was a bug that got resolved in 20.2 in
>>>>>>>>>>>>>>>>> get_dicom_info.pl. Basically, if a DICOM did not have the
>>>>>>>>>>>>>>>>> (0020,0032) header, get_dicom_info.pl considered that the
>>>>>>>>>>>>>>>>> file was not a DICOM, which was a mistake. This got fixed in version 20.2
>>>>>>>>>>>>>>>>> of LORIS-MRI. Hopefully this is the issue you are encountering.
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> About scout and localizer, they are a type of short and
>>>>>>>>>>>>>>>>> low resolution sequence that is used by the tech but is of no interest
>>>>>>>>>>>>>>>>> scientifically, which is why we tend to no insert them.
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Hope this helps,
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> On Sat, Nov 23, 2019 at 7:28 PM Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Hi Cecile,
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> i executed the find command and the output i got per
>>>>>>>>>>>>>>>>>> folder was "DICOM medical imaging data. Maybe there is something wrong with
>>>>>>>>>>>>>>>>>> the find command in the warning that it is unable to check if the file is a
>>>>>>>>>>>>>>>>>> dicom file? Also when i use get_dicom_info.pl i don't
>>>>>>>>>>>>>>>>>> get any output data. Finally i don't understand what scout or localizer is
>>>>>>>>>>>>>>>>>> ( something like if and only if a file fails then the whole session is
>>>>>>>>>>>>>>>>>> invalid? ).
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Στις Τρί, 19 Νοε 2019 στις 9:40 μ.μ., ο/η Cecile Madjar <
>>>>>>>>>>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> I took a closer look to the
>>>>>>>>>>>>>>>>>>> batch_uploader_multiple_output.txt file you sent. It looks like there are
>>>>>>>>>>>>>>>>>>> different reasons for failure depending on the DICOM folder uploaded.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> - For 465466 DCC0000 V1; 727195 DCC0004 V1 and
>>>>>>>>>>>>>>>>>>> 684908 DCC0007 V1: it looks like there is no file of type DICOM in the
>>>>>>>>>>>>>>>>>>> folder. Have you checked to see if that is indeed the case? Maybe you can
>>>>>>>>>>>>>>>>>>> try running the following command on that folder to see what are the types
>>>>>>>>>>>>>>>>>>> of the files? If it does not return at least one DICOM medical imaging data
>>>>>>>>>>>>>>>>>>> file, then that is why you get the error message from the pipeline:
>>>>>>>>>>>>>>>>>>> -
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> find <my_dicom_archive_root_folder> -type f | xargs -i file {}|cut -d: -f2|sort|uniq
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> - For 864173 DCC0001 V1: it looks like there are
>>>>>>>>>>>>>>>>>>> two different DICOM studies within the same folder. You will need to split
>>>>>>>>>>>>>>>>>>> that study in two based on the StudyUID field as the insertion pipeline
>>>>>>>>>>>>>>>>>>> does not allow for more than one StudyUID per upload.
>>>>>>>>>>>>>>>>>>> - For 890807 DCC0002 V1; 637025 DCC0005 V1 and
>>>>>>>>>>>>>>>>>>> 239975 DCC0006 V1: it looks like the dcm2mnc command did not produce any
>>>>>>>>>>>>>>>>>>> MINC files. Can you check in the DICOM archive what are the series present
>>>>>>>>>>>>>>>>>>> in the tarchive for that visit? Maybe only a scout or localizer was
>>>>>>>>>>>>>>>>>>> acquired for that session, hence the no valid MINC files (scout and
>>>>>>>>>>>>>>>>>>> localizer being skipped for the conversion)
>>>>>>>>>>>>>>>>>>> - For 397410 DCC0003 V1: it looks like everything
>>>>>>>>>>>>>>>>>>> went well for this one.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> One script that is called by our pipeline is called
>>>>>>>>>>>>>>>>>>> get_dicom_info.pl and this does all kind of checks on
>>>>>>>>>>>>>>>>>>> the DICOM files (it is being called when running the dcm2mnc conversion).
>>>>>>>>>>>>>>>>>>> You could run it independently on your folder if needed.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Since one of the study got in, it does not look like you
>>>>>>>>>>>>>>>>>>> are having a problem with the setup. It seems more likely to be a problem
>>>>>>>>>>>>>>>>>>> with the data themselves.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hope this helps.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> On Wed, Nov 13, 2019 at 5:56 PM Sotirios
>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Hi Christine,
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> In my first vm i am able to create the minc files and
>>>>>>>>>>>>>>>>>>>> view them at the mri browser (except of candidate 102761034 ), meanwhile
>>>>>>>>>>>>>>>>>>>> the same files gives warnings at the 2nd vm. The output of the batch
>>>>>>>>>>>>>>>>>>>> upload can be seen in the file attached.
>>>>>>>>>>>>>>>>>>>> Also a colleague of us has built a pre-validation tool
>>>>>>>>>>>>>>>>>>>> for dicom
>>>>>>>>>>>>>>>>>>>> https://github.com/aueb-wim/DataQualityControlTool/
>>>>>>>>>>>>>>>>>>>> which had found all the files that Loris gave as warning . Basically I
>>>>>>>>>>>>>>>>>>>> confirmed that the total amount of files per dicom was the same amount as
>>>>>>>>>>>>>>>>>>>> stated in Loris and checked some filenames given from warning to confirm
>>>>>>>>>>>>>>>>>>>> that they match with our tool. But that was months ago and my colleague had
>>>>>>>>>>>>>>>>>>>> changed some parameters for MIP and now our tool doesn't find all the
>>>>>>>>>>>>>>>>>>>> invalid files, that's why i asked for the dicom header specification of
>>>>>>>>>>>>>>>>>>>> Loris. In a discussion we had he mentioned that he doesn't check for some
>>>>>>>>>>>>>>>>>>>> tags e.x. orientation. Lastly to mention that in my first vm i didn't use
>>>>>>>>>>>>>>>>>>>> our tool to remove invalid dcm files.
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Στις Τετ, 13 Νοε 2019 στις 11:45 μ.μ., ο/η Christine
>>>>>>>>>>>>>>>>>>>> Rogers, Ms. <christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>> Can you provide us with some fresh particulars of the
>>>>>>>>>>>>>>>>>>>>> current issue and we'll take it from there?
>>>>>>>>>>>>>>>>>>>>> Yang's team has built these scripts which can
>>>>>>>>>>>>>>>>>>>>> definitely serve as a model for your pre-validation of your DICOM
>>>>>>>>>>>>>>>>>>>>> collections.
>>>>>>>>>>>>>>>>>>>>> cheers,
>>>>>>>>>>>>>>>>>>>>> Christine
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> On Wed, Nov 13, 2019 at 4:23 PM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> HI Yang,
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> We make use of pydicom library too. Now about the
>>>>>>>>>>>>>>>>>>>>>> validate.py i see that you check if some attributes are missing such as
>>>>>>>>>>>>>>>>>>>>>> PatientID, PatientName which all of our files contains that info. Maybe i
>>>>>>>>>>>>>>>>>>>>>> have missed something on the setup of my other virtual machine ( although
>>>>>>>>>>>>>>>>>>>>>> one dicom passed on the new vm successfully, the others that were inserted
>>>>>>>>>>>>>>>>>>>>>> correctly on my old vm fails on the new one ), i think that i had asked
>>>>>>>>>>>>>>>>>>>>>> about this error "Use of uninitialized value $_ in pattern match (m//) at
>>>>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/batch_uploads_imageuploader.pl
>>>>>>>>>>>>>>>>>>>>>> line 144." but i don't remember the solution.
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> Στις Τετ, 13 Νοε 2019 στις 5:45 π.μ., ο/η Yang Ding <
>>>>>>>>>>>>>>>>>>>>>> it at cnbp.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> Hey, Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> Christine from the LORIS team mentioned you had some
>>>>>>>>>>>>>>>>>>>>>>> issue with DICOM. I am a fellow developer for an external project using
>>>>>>>>>>>>>>>>>>>>>>> LORIS, kind of just like you. We had to implement DICOM upload as well but
>>>>>>>>>>>>>>>>>>>>>>> more as a fully automated pipeline actually.
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> While we were building CNBP, we had coded up some
>>>>>>>>>>>>>>>>>>>>>>> minor Python functions to check DICOM integrity (and simple validations)
>>>>>>>>>>>>>>>>>>>>>>> and you might be able to gain some inspiration from it and help you with
>>>>>>>>>>>>>>>>>>>>>>> your cause. For more comprehensive solution, PyDICOM (
>>>>>>>>>>>>>>>>>>>>>>> https://pydicom.github.io/pydicom/stable/getting_started.html#) seems
>>>>>>>>>>>>>>>>>>>>>>> like a descent python package to help out with a lot of DICOM data checks
>>>>>>>>>>>>>>>>>>>>>>> (I was essentially just building customized wrapper calls to them). You can
>>>>>>>>>>>>>>>>>>>>>>> see some example scripts here as part of our DICOM submodule. It is pretty
>>>>>>>>>>>>>>>>>>>>>>> rough around the edges but hopefully point you in the right direcitons
>>>>>>>>>>>>>>>>>>>>>>> https://github.com/CNBP/DICOMTransit/blob/Dev/DICOMTransit/DICOM/validate.py
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> Cheers,
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> Yang Ding, PhD.
>>>>>>>>>>>>>>>>>>>>>>> Canadian Neonatal Brain Platform Architect
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> On Tue, Nov 12, 2019 at 8:29 AM <
>>>>>>>>>>>>>>>>>>>>>>> loris-dev-request at bic.mni.mcgill.ca> wrote:
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> Send Loris-dev mailing list submissions to
>>>>>>>>>>>>>>>>>>>>>>>> loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> To subscribe or unsubscribe via the World Wide Web,
>>>>>>>>>>>>>>>>>>>>>>>> visit
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>> or, via email, send a message with subject or body
>>>>>>>>>>>>>>>>>>>>>>>> 'help' to
>>>>>>>>>>>>>>>>>>>>>>>> loris-dev-request at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> You can reach the person managing the list at
>>>>>>>>>>>>>>>>>>>>>>>> loris-dev-owner at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> When replying, please edit your Subject line so it
>>>>>>>>>>>>>>>>>>>>>>>> is more specific
>>>>>>>>>>>>>>>>>>>>>>>> than "Re: Contents of Loris-dev digest..."
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> Today's Topics:
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> 1. Re: Import mri - scripts (Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos)
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> ----------------------------------------------------------------------
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> Message: 1
>>>>>>>>>>>>>>>>>>>>>>>> Date: Tue, 12 Nov 2019 15:28:26 +0200
>>>>>>>>>>>>>>>>>>>>>>>> From: Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> sotirisnik at gmail.com>
>>>>>>>>>>>>>>>>>>>>>>>> To: Cecile Madjar <cecile.madjar at mcin.ca>
>>>>>>>>>>>>>>>>>>>>>>>> Cc: loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> Subject: Re: [Loris-dev] Import mri - scripts
>>>>>>>>>>>>>>>>>>>>>>>> Message-ID:
>>>>>>>>>>>>>>>>>>>>>>>> <CAKHj7uST=
>>>>>>>>>>>>>>>>>>>>>>>> 92717of_4Npd6pt-gxnhoYAWMUnG8s8D2066kPsLQ at mail.gmail.com
>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>> Content-Type: text/plain; charset="utf-8"
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> Could we send you a link with 10 anonymized dicom
>>>>>>>>>>>>>>>>>>>>>>>> files to diagnose the
>>>>>>>>>>>>>>>>>>>>>>>> warnings we get?
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> ???? ???, 9 ??? 2019 ???? 12:38 ?.?., ?/? Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> > Hi Cecile,
>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>> > We were wondering whether Loris has a tool to
>>>>>>>>>>>>>>>>>>>>>>>> check if there are problems
>>>>>>>>>>>>>>>>>>>>>>>> > with the dcm files, before trying to upload them.
>>>>>>>>>>>>>>>>>>>>>>>> Something that could
>>>>>>>>>>>>>>>>>>>>>>>> > provide the same results provided in the
>>>>>>>>>>>>>>>>>>>>>>>> warning_output, this is the
>>>>>>>>>>>>>>>>>>>>>>>> > summary from the mri_upload at the front-page.
>>>>>>>>>>>>>>>>>>>>>>>> Also which attributes of the
>>>>>>>>>>>>>>>>>>>>>>>> > dcm header would trigger a warning? is there a
>>>>>>>>>>>>>>>>>>>>>>>> dcm file header
>>>>>>>>>>>>>>>>>>>>>>>> > specification for Loris?
>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>> > Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>> > Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>> > ???? ???, 2 ??? 2019 ???? 12:07 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> > sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>> >> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>
>>>>>>>>>>>>>>>>>>>>>>>> >> Yes, by parsing now() into unix_timestamp
>>>>>>>>>>>>>>>>>>>>>>>> function it worked,but i
>>>>>>>>>>>>>>>>>>>>>>>> >> thought that something else was causing the 2nd
>>>>>>>>>>>>>>>>>>>>>>>> issue.
>>>>>>>>>>>>>>>>>>>>>>>> >> Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >>
>>>>>>>>>>>>>>>>>>>>>>>> >> On Tue, 1 Oct 2019, 18:36 Xavier Lecours
>>>>>>>>>>>>>>>>>>>>>>>> Boucher, Mr, <
>>>>>>>>>>>>>>>>>>>>>>>> >> xavier.lecoursboucher at mcgill.ca> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> The first error occurs because the
>>>>>>>>>>>>>>>>>>>>>>>> QCFirstChangeTime and columns are of
>>>>>>>>>>>>>>>>>>>>>>>> >>> type `unsigned integer` and not `datatime`. You
>>>>>>>>>>>>>>>>>>>>>>>> should be using
>>>>>>>>>>>>>>>>>>>>>>>> >>> UNIX_TIMESTAMP() instead of NOW().
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> The second error occurs because the trigger
>>>>>>>>>>>>>>>>>>>>>>>> triggers a rollback of the
>>>>>>>>>>>>>>>>>>>>>>>> >>> insert statement in the files table.
>>>>>>>>>>>>>>>>>>>>>>>> >>> See mysql documentation for trigger error
>>>>>>>>>>>>>>>>>>>>>>>> handling.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> An error during either a BEFORE or AFTER
>>>>>>>>>>>>>>>>>>>>>>>> trigger results in failure of
>>>>>>>>>>>>>>>>>>>>>>>> >>> the entire statement that caused trigger
>>>>>>>>>>>>>>>>>>>>>>>> invocation.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thank you for sharing that. I hope it helps.
>>>>>>>>>>>>>>>>>>>>>>>> >>> -- Xavier
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ------------------------------
>>>>>>>>>>>>>>>>>>>>>>>> >>> *From:* loris-dev-bounces at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>>>>>>> >>> loris-dev-bounces at bic.mni.mcgill.ca> on behalf
>>>>>>>>>>>>>>>>>>>>>>>> of Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> >>> Nikoloutsopoulos <sotirisnik at gmail.com>
>>>>>>>>>>>>>>>>>>>>>>>> >>> *Sent:* October 1, 2019 8:33 AM
>>>>>>>>>>>>>>>>>>>>>>>> >>> *To:* Cecile Madjar <cecile.madjar at mcin.ca>
>>>>>>>>>>>>>>>>>>>>>>>> >>> *Cc:* loris-dev at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>>>>>>> loris-dev at bic.mni.mcgill.ca>;
>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca>
>>>>>>>>>>>>>>>>>>>>>>>> >>> *Subject:* Re: [Loris-dev] Import mri - scripts
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> When mincs are inserted their corresponding
>>>>>>>>>>>>>>>>>>>>>>>> rows at the file table are
>>>>>>>>>>>>>>>>>>>>>>>> >>> inserted too
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> i would like to insert their rows at
>>>>>>>>>>>>>>>>>>>>>>>> file_qcstatus as well, because i
>>>>>>>>>>>>>>>>>>>>>>>> >>> don't want manually to label them as passed
>>>>>>>>>>>>>>>>>>>>>>>> throught the interface
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> That is the trigger i wrote
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> CREATE DEFINER = CURRENT_USER TRIGGER
>>>>>>>>>>>>>>>>>>>>>>>> `LORIS`.`files_AFTER_INSERT` AFTER
>>>>>>>>>>>>>>>>>>>>>>>> >>> INSERT ON `files` FOR EACH ROW
>>>>>>>>>>>>>>>>>>>>>>>> >>> BEGIN
>>>>>>>>>>>>>>>>>>>>>>>> >>> INSERT INTO files_qcstatus
>>>>>>>>>>>>>>>>>>>>>>>> >>> SET FileID = NEW.FileID,
>>>>>>>>>>>>>>>>>>>>>>>> >>> SeriesUID = NEW.SeriesUID,
>>>>>>>>>>>>>>>>>>>>>>>> >>> EchoTime = NEW.EchoTime,
>>>>>>>>>>>>>>>>>>>>>>>> >>> QCStatus = "Pass",
>>>>>>>>>>>>>>>>>>>>>>>> >>> QCFirstChangeTime = NOW(),
>>>>>>>>>>>>>>>>>>>>>>>> >>> QCLastChangeTime = NOW();
>>>>>>>>>>>>>>>>>>>>>>>> >>> END
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> although it contains some errors
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> DBD::mysql::db do failed: Out of range value
>>>>>>>>>>>>>>>>>>>>>>>> for column
>>>>>>>>>>>>>>>>>>>>>>>> >>> 'QCFirstChangeTime' at row 1 at
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRI.pm line 823.
>>>>>>>>>>>>>>>>>>>>>>>> >>> DBD::mysql::db do failed: Cannot add or update
>>>>>>>>>>>>>>>>>>>>>>>> a child row: a foreign
>>>>>>>>>>>>>>>>>>>>>>>> >>> key constraint fails (`LORIS`.`parameter_file`,
>>>>>>>>>>>>>>>>>>>>>>>> CONSTRAINT
>>>>>>>>>>>>>>>>>>>>>>>> >>> `FK_parameter_file_1` FOREIGN KEY (`FileID`)
>>>>>>>>>>>>>>>>>>>>>>>> REFERENCES `files` (`FileID`))
>>>>>>>>>>>>>>>>>>>>>>>> >>> at
>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRI.pm line 848.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 1 ??? 2019 ???? 4:21 ?.?., ?/? Cecile
>>>>>>>>>>>>>>>>>>>>>>>> Madjar <
>>>>>>>>>>>>>>>>>>>>>>>> >>> cecile.madjar at mcin.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> In the mri_upload table, there is a TarchiveID
>>>>>>>>>>>>>>>>>>>>>>>> column associated with
>>>>>>>>>>>>>>>>>>>>>>>> >>> the MRI upload you inserted. When this value is
>>>>>>>>>>>>>>>>>>>>>>>> NULL, it means no DICOMs
>>>>>>>>>>>>>>>>>>>>>>>> >>> were inserted into the tarchive tables. At the
>>>>>>>>>>>>>>>>>>>>>>>> end of the insertion of the
>>>>>>>>>>>>>>>>>>>>>>>> >>> DICOMs in the tarchive tables, this value is
>>>>>>>>>>>>>>>>>>>>>>>> updated with the correct
>>>>>>>>>>>>>>>>>>>>>>>> >>> TarchiveID associated with the upload.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Could this correspond to what you want to do?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Regarding the files_qcstatus, this table is
>>>>>>>>>>>>>>>>>>>>>>>> only linked to the files
>>>>>>>>>>>>>>>>>>>>>>>> >>> table (hence, the MINC files). You could always
>>>>>>>>>>>>>>>>>>>>>>>> create a new table for
>>>>>>>>>>>>>>>>>>>>>>>> >>> dicom_qcstatus and link it to the tarchive
>>>>>>>>>>>>>>>>>>>>>>>> table?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> C?cile
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> On Tue, Oct 1, 2019 at 6:56 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> i would like whenever a dicom is imported to
>>>>>>>>>>>>>>>>>>>>>>>> mark all their
>>>>>>>>>>>>>>>>>>>>>>>> >>> coressponding qc_status to "pass". I was
>>>>>>>>>>>>>>>>>>>>>>>> thinking of creating a trigger for
>>>>>>>>>>>>>>>>>>>>>>>> >>> that, but which tables do i need to add entries
>>>>>>>>>>>>>>>>>>>>>>>> to? So far from what i see
>>>>>>>>>>>>>>>>>>>>>>>> >>> i need to add entres at the table "files"
>>>>>>>>>>>>>>>>>>>>>>>> whenever an insertion happens to
>>>>>>>>>>>>>>>>>>>>>>>> >>> files_qcstatus.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 30 ??? 2019 ???? 4:04 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Oh, sorry i should have asked for StudyID, at
>>>>>>>>>>>>>>>>>>>>>>>> the beginning of my email
>>>>>>>>>>>>>>>>>>>>>>>> >>> i sent 3 hours ago (not StudyUID).
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 30 ??? 2019 ???? 3:55 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> that's the Study Instance UID, not the StudyID.
>>>>>>>>>>>>>>>>>>>>>>>> So the StudyID i am
>>>>>>>>>>>>>>>>>>>>>>>> >>> looking for is not stored in the database?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 30 ??? 2019 ???? 3:38 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Cecile Madjar <
>>>>>>>>>>>>>>>>>>>>>>>> >>> cecile.madjar at mcin.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> The StudyUID is stored in the DicomArchiveID
>>>>>>>>>>>>>>>>>>>>>>>> field of the
>>>>>>>>>>>>>>>>>>>>>>>> >>> tarchive table. It can also be found in the
>>>>>>>>>>>>>>>>>>>>>>>> metadata field but it is mixed
>>>>>>>>>>>>>>>>>>>>>>>> >>> with many other information.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hope this helps,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> C?cile
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> On Mon, Sep 30, 2019 at 6:00 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Is StudyUID stored somewhere at the tables? At
>>>>>>>>>>>>>>>>>>>>>>>> the tarchive table,
>>>>>>>>>>>>>>>>>>>>>>>> >>> specifically at the AcquisitonMetadata column i
>>>>>>>>>>>>>>>>>>>>>>>> found something called
>>>>>>>>>>>>>>>>>>>>>>>> >>> 'Unique Study ID" in its context, but that must
>>>>>>>>>>>>>>>>>>>>>>>> be the Study Instance UID.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 27 ??? 2019 ???? 4:22 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Cecile Madjar <
>>>>>>>>>>>>>>>>>>>>>>>> >>> cecile.madjar at mcin.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Your observation is correct. A little
>>>>>>>>>>>>>>>>>>>>>>>> explanation below.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> MINC files get inserted into the MRI violation
>>>>>>>>>>>>>>>>>>>>>>>> tables if:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> - the scan type could not be identified (not
>>>>>>>>>>>>>>>>>>>>>>>> matching an entry in
>>>>>>>>>>>>>>>>>>>>>>>> >>> the mri_protocol table)
>>>>>>>>>>>>>>>>>>>>>>>> >>> - one parameter of the scan type is out of
>>>>>>>>>>>>>>>>>>>>>>>> the expected range
>>>>>>>>>>>>>>>>>>>>>>>> >>> present in the mri_protocol_checks (extra
>>>>>>>>>>>>>>>>>>>>>>>> filtering in case you need to be
>>>>>>>>>>>>>>>>>>>>>>>> >>> stricker on some parameters not present in
>>>>>>>>>>>>>>>>>>>>>>>> the mri_protocol table)
>>>>>>>>>>>>>>>>>>>>>>>> >>> - if the CandID and PSCID do not match
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> The following cases do not get in the MRI
>>>>>>>>>>>>>>>>>>>>>>>> violation tables as it happens
>>>>>>>>>>>>>>>>>>>>>>>> >>> before the conversion of the DICOM to MINC
>>>>>>>>>>>>>>>>>>>>>>>> files and only MINC files
>>>>>>>>>>>>>>>>>>>>>>>> >>> violations are logged there:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> - "No single DICOM" (since no valid DICOM
>>>>>>>>>>>>>>>>>>>>>>>> could be found to convert
>>>>>>>>>>>>>>>>>>>>>>>> >>> to MINC)
>>>>>>>>>>>>>>>>>>>>>>>> >>> - "Study already inserted" (duplicate
>>>>>>>>>>>>>>>>>>>>>>>> StudyUID) since this error
>>>>>>>>>>>>>>>>>>>>>>>> >>> happens at the dicomTar.pl level (way before
>>>>>>>>>>>>>>>>>>>>>>>> conversion into MINC files)
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Glad everything is working out!!
>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> C?cile
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> On Fri, Sep 27, 2019 at 6:17 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> the mri passed, for some reason it consumed
>>>>>>>>>>>>>>>>>>>>>>>> 5.12GB of ram. Now about the
>>>>>>>>>>>>>>>>>>>>>>>> >>> mri_violations, dicoms are triggered to be
>>>>>>>>>>>>>>>>>>>>>>>> inserted there only if there is
>>>>>>>>>>>>>>>>>>>>>>>> >>> a violation for Tr_min, Tr_max, in general for
>>>>>>>>>>>>>>>>>>>>>>>> its header parameter?
>>>>>>>>>>>>>>>>>>>>>>>> >>> Because i don't see the cases of 'No single
>>>>>>>>>>>>>>>>>>>>>>>> dicom" or with the 2 studyiuid
>>>>>>>>>>>>>>>>>>>>>>>> >>> to be there.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 26 ??? 2019 ???? 5:07 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Cecile Madjar <
>>>>>>>>>>>>>>>>>>>>>>>> >>> cecile.madjar at mcin.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Sorry to hear you are having issues with the
>>>>>>>>>>>>>>>>>>>>>>>> memory. I think most of our
>>>>>>>>>>>>>>>>>>>>>>>> >>> VMs are set up with 4GB of RAM so with 4GB you
>>>>>>>>>>>>>>>>>>>>>>>> should be fine.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hope this helps!
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> C?cile
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> On Thu, Sep 26, 2019 at 9:48 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> about that dicom that had that insertion error
>>>>>>>>>>>>>>>>>>>>>>>> it's about 30mb and when
>>>>>>>>>>>>>>>>>>>>>>>> >>> it is being processed the ram is being
>>>>>>>>>>>>>>>>>>>>>>>> drastically increased from 2gb to
>>>>>>>>>>>>>>>>>>>>>>>> >>> 3.28 and then the whole virtual machine is
>>>>>>>>>>>>>>>>>>>>>>>> frozen. What is the recommended
>>>>>>>>>>>>>>>>>>>>>>>> >>> size of ram for using Loris?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 24 ??? 2019 ???? 11:24 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Cecile Madjar <
>>>>>>>>>>>>>>>>>>>>>>>> >>> cecile.madjar at mcin.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Glad to see that the StudyUID problem was fixed!
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> For the delete script issue, if you are
>>>>>>>>>>>>>>>>>>>>>>>> absolutely certain that no
>>>>>>>>>>>>>>>>>>>>>>>> >>> processes are run for that uploadID, you can
>>>>>>>>>>>>>>>>>>>>>>>> update the mri_upload table
>>>>>>>>>>>>>>>>>>>>>>>> >>> and set the column Inserting to 0 instead of 1
>>>>>>>>>>>>>>>>>>>>>>>> for that uploadID. It
>>>>>>>>>>>>>>>>>>>>>>>> >>> looks like for some reason the scripts did not
>>>>>>>>>>>>>>>>>>>>>>>> update this field when it
>>>>>>>>>>>>>>>>>>>>>>>> >>> stopped the insertion. Not sure why that would
>>>>>>>>>>>>>>>>>>>>>>>> be the case though.
>>>>>>>>>>>>>>>>>>>>>>>> >>> Note: only do that update if you are certain
>>>>>>>>>>>>>>>>>>>>>>>> that there is no processing
>>>>>>>>>>>>>>>>>>>>>>>> >>> happening.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hope this helps!
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> On Tue, Sep 24, 2019 at 11:57 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> about the Dicoms i reported that didn't have a
>>>>>>>>>>>>>>>>>>>>>>>> StudyID they actually do
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> I thought that this might be a permission
>>>>>>>>>>>>>>>>>>>>>>>> because "w" was missing at the
>>>>>>>>>>>>>>>>>>>>>>>> >>> group. After using chmod -R 775 only 102809579
>>>>>>>>>>>>>>>>>>>>>>>> passed, but with no mnic
>>>>>>>>>>>>>>>>>>>>>>>> >>> files. Also now i have this error
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> (loris-mri-python) lorisadmin at loris-VirtualBox
>>>>>>>>>>>>>>>>>>>>>>>> :/data/loris/bin/mri/tools$
>>>>>>>>>>>>>>>>>>>>>>>> >>> ./delete_imaging_upload.pl -uploadID 34 -ignore
>>>>>>>>>>>>>>>>>>>>>>>> >>> Cannot delete upload 34: the MRI pipeline is
>>>>>>>>>>>>>>>>>>>>>>>> currently processing it.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> How can solve this?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 24 ??? 2019 ???? 2:30 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Here is our auto dicom uploading python script:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aueb-wim/DataQualityControlTool/blob/loris1/mipqctool/dicom_uploader.py
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> To give you a brief idea:
>>>>>>>>>>>>>>>>>>>>>>>> >>> Per folder it will:
>>>>>>>>>>>>>>>>>>>>>>>> >>> 1) Delete all the .bak files
>>>>>>>>>>>>>>>>>>>>>>>> >>> 2) Locate .dcm files and update the Patient
>>>>>>>>>>>>>>>>>>>>>>>> header
>>>>>>>>>>>>>>>>>>>>>>>> >>> 3) Furthermore we are interesting in finding
>>>>>>>>>>>>>>>>>>>>>>>> TR_min, TR_max, TE_min,
>>>>>>>>>>>>>>>>>>>>>>>> >>> TE_max parameters of T1 protocol and do an
>>>>>>>>>>>>>>>>>>>>>>>> update at the mri_protocol table
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aueb-wim/DataQualityControlTool/blob/loris1/mipqctool/dicom_uploader.py#L205
>>>>>>>>>>>>>>>>>>>>>>>> >>> For some reason some files are missing
>>>>>>>>>>>>>>>>>>>>>>>> SeriesDescription/ProtocolName
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> In total i have 7 folders
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> 3/7 passed
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Also about the first patient with DC0000 had a
>>>>>>>>>>>>>>>>>>>>>>>> violation "T1 AXIAL SE
>>>>>>>>>>>>>>>>>>>>>>>> >>> GADO", but my script didn't output a TE of 17
>>>>>>>>>>>>>>>>>>>>>>>> nowhere and i find that weird
>>>>>>>>>>>>>>>>>>>>>>>> >>> since Loris detects the SeriesDescription.
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Now about the 4/7 that didn't passed
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> 102327840 and 102809579 outputs "The target
>>>>>>>>>>>>>>>>>>>>>>>> directory does not contain a
>>>>>>>>>>>>>>>>>>>>>>>> >>> single DICOM file.", therefore they are missing
>>>>>>>>>>>>>>>>>>>>>>>> their StudyUID
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> 102506134 has 2 studyuid "You can't use it with
>>>>>>>>>>>>>>>>>>>>>>>> data from multiple
>>>>>>>>>>>>>>>>>>>>>>>> >>> studies."
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> and 102761034 "No data could be converted into
>>>>>>>>>>>>>>>>>>>>>>>> valid MINC files.
>>>>>>>>>>>>>>>>>>>>>>>> >>> localizer, scout will not be considered!" What
>>>>>>>>>>>>>>>>>>>>>>>> is this?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> If i wanted to force the insertion of
>>>>>>>>>>>>>>>>>>>>>>>> 102327840, 102809579 and 102506134
>>>>>>>>>>>>>>>>>>>>>>>> >>> can i just pass a flag parameter to
>>>>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl? or
>>>>>>>>>>>>>>>>>>>>>>>> >>> modify imaging_upload_file.pl?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thank you,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> PS
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> To diagnose a folder search the name of the
>>>>>>>>>>>>>>>>>>>>>>>> folder at dicom_output.txt.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 20 ??? 2019 ???? 4:54 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>> >>> Glad to hear about your progress.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Yes, the script you used to delete imaging data
>>>>>>>>>>>>>>>>>>>>>>>> is fully documented here
>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/81bae73ea6e86c9498519dadf574468ee1d992ca/docs/scripts_md/delete_imaging_upload.md
>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>> >>> -- let us know if you didn't find the answers
>>>>>>>>>>>>>>>>>>>>>>>> you were looking for there.
>>>>>>>>>>>>>>>>>>>>>>>> >>> (Is it possible the null row in *mri_scanner*
>>>>>>>>>>>>>>>>>>>>>>>> seen in your database
>>>>>>>>>>>>>>>>>>>>>>>> >>> management software is a visual placeholder for
>>>>>>>>>>>>>>>>>>>>>>>> you as the user? I'm not
>>>>>>>>>>>>>>>>>>>>>>>> >>> sure why a scanner would ever be registered
>>>>>>>>>>>>>>>>>>>>>>>> with ID='0' as your screenshot
>>>>>>>>>>>>>>>>>>>>>>>> >>> showed.)
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> On Fri, Sep 20, 2019 at 9:45 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> I fixed it with this
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 20 ??? 2019 ???? 4:37 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> I tried to create a new candidate using the
>>>>>>>>>>>>>>>>>>>>>>>> API, is there something
>>>>>>>>>>>>>>>>>>>>>>>> >>> wrong with the structure? why did i receive a
>>>>>>>>>>>>>>>>>>>>>>>> 500 internal error? In the
>>>>>>>>>>>>>>>>>>>>>>>> >>> loris-error log it state that there is
>>>>>>>>>>>>>>>>>>>>>>>> something wrong with token, but i
>>>>>>>>>>>>>>>>>>>>>>>> >>> verfied that the type of the token is a string.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [Fri Sep 20 16:35:26.874732 2019] [php7:error]
>>>>>>>>>>>>>>>>>>>>>>>> [pid 4535] [client
>>>>>>>>>>>>>>>>>>>>>>>> >>> 127.0.0.1:59674] PHP Fatal error: Uncaught
>>>>>>>>>>>>>>>>>>>>>>>> TypeError: Argument 1
>>>>>>>>>>>>>>>>>>>>>>>> >>> passed to SinglePointLogin::JWTAuthenticate()
>>>>>>>>>>>>>>>>>>>>>>>> must be of the type string,
>>>>>>>>>>>>>>>>>>>>>>>> >>> null given, called in
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc on line 169 and
>>>>>>>>>>>>>>>>>>>>>>>> >>> defined in
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc:192\nStack
>>>>>>>>>>>>>>>>>>>>>>>> >>> trace:\n#0
>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc(169):
>>>>>>>>>>>>>>>>>>>>>>>> >>> SinglePointLogin->JWTAuthenticate(NULL)\n#1
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/php/libraries/NDB_Client.class.inc(171):
>>>>>>>>>>>>>>>>>>>>>>>> >>> SinglePointLogin->authenticate()\n#2
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/htdocs/api/v0.0.2/APIBase.php(73):
>>>>>>>>>>>>>>>>>>>>>>>> >>> NDB_Client->initialize('/var/www/loris/...')\n#3
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/htdocs/api/v0.0.2/Candidates.php(44):
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris\\API\\APIBase->__construct('POST')\n#4
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/htdocs/api/v0.0.2/Candidates.php(244):
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris\\API\\Candidates->__construct('POST',
>>>>>>>>>>>>>>>>>>>>>>>> Array)\n#5 {main}\n thrown in
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc on line 192
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 20 ??? 2019 ???? 2:39 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Is there a way also to delete candidates? Just
>>>>>>>>>>>>>>>>>>>>>>>> to let you know what i
>>>>>>>>>>>>>>>>>>>>>>>> >>> did to clear candidates, because maybe i may
>>>>>>>>>>>>>>>>>>>>>>>> have missed dependencies.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> First i deleted all their uploads
>>>>>>>>>>>>>>>>>>>>>>>> >>> ./delete_imaging_upload.pl -uploadID 13 etc (
>>>>>>>>>>>>>>>>>>>>>>>> is there a way to omit
>>>>>>>>>>>>>>>>>>>>>>>> >>> the backup file ? )
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Afterwards i had some scanner candidates, so i
>>>>>>>>>>>>>>>>>>>>>>>> deleted all the entries
>>>>>>>>>>>>>>>>>>>>>>>> >>> from mri_scanner except that i couldn't delete
>>>>>>>>>>>>>>>>>>>>>>>> this entry with the 0 ID.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Lastly i deleted the session and then the
>>>>>>>>>>>>>>>>>>>>>>>> candidate table.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 19 ??? 2019 ???? 7:57 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> We recommend that you use our existing tools
>>>>>>>>>>>>>>>>>>>>>>>> for creating new candidates
>>>>>>>>>>>>>>>>>>>>>>>> >>> - either the LORIS API or if you are using a
>>>>>>>>>>>>>>>>>>>>>>>> PHP script, by calling the Candidate
>>>>>>>>>>>>>>>>>>>>>>>> >>> class's createNew()
>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/blob/master/php/libraries/Candidate.class.inc#L200
>>>>>>>>>>>>>>>>>>>>>>>> >function.
>>>>>>>>>>>>>>>>>>>>>>>> >>> These will create the necessary records for
>>>>>>>>>>>>>>>>>>>>>>>> you. (It's not recommended to
>>>>>>>>>>>>>>>>>>>>>>>> >>> make direct modifications to mysql database
>>>>>>>>>>>>>>>>>>>>>>>> tables in your script, if I
>>>>>>>>>>>>>>>>>>>>>>>> >>> understand you.)
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> The CandID should be a randomized 6 digit
>>>>>>>>>>>>>>>>>>>>>>>> randomized ID, and there are
>>>>>>>>>>>>>>>>>>>>>>>> >>> multiple reasons for this.
>>>>>>>>>>>>>>>>>>>>>>>> >>> You can use the PSCID for project-specific IDs
>>>>>>>>>>>>>>>>>>>>>>>> and the External ID field
>>>>>>>>>>>>>>>>>>>>>>>> >>> in the candidate table can also be used for any
>>>>>>>>>>>>>>>>>>>>>>>> values you like.
>>>>>>>>>>>>>>>>>>>>>>>> >>> Additionally, any number of custom IDs can be
>>>>>>>>>>>>>>>>>>>>>>>> added in parallel - these
>>>>>>>>>>>>>>>>>>>>>>>> >>> are entered/visible in the Candidate
>>>>>>>>>>>>>>>>>>>>>>>> Information module and added in the
>>>>>>>>>>>>>>>>>>>>>>>> >>> back-end as candidate parameters.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> On Tue, Sep 17, 2019 at 7:31 PM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> We are building a script that will auto insert
>>>>>>>>>>>>>>>>>>>>>>>> the candidates based on
>>>>>>>>>>>>>>>>>>>>>>>> >>> their ExternalID. We would like to know
>>>>>>>>>>>>>>>>>>>>>>>> whethere when we are creating a new
>>>>>>>>>>>>>>>>>>>>>>>> >>> profile in the candidate table, if we also have
>>>>>>>>>>>>>>>>>>>>>>>> to insert a new record at
>>>>>>>>>>>>>>>>>>>>>>>> >>> another table? Furthermore is there a problem
>>>>>>>>>>>>>>>>>>>>>>>> that in our case CandID won't
>>>>>>>>>>>>>>>>>>>>>>>> >>> be a 6digit? ( should we start it from 100000?)
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 13 ??? 2019 ???? 5:38 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Melanie Legault, Mrs <
>>>>>>>>>>>>>>>>>>>>>>>> >>> melanie.legault2 at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> That would normally be the case but the numeric
>>>>>>>>>>>>>>>>>>>>>>>> part of the PSCID get
>>>>>>>>>>>>>>>>>>>>>>>> >>> paded with 0 on the left.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Ex. for sequential ID made of center ID of
>>>>>>>>>>>>>>>>>>>>>>>> `ABC` plus 4 numerical char
>>>>>>>>>>>>>>>>>>>>>>>> >>> with a min value of 1, the sequence would be:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ABC0001
>>>>>>>>>>>>>>>>>>>>>>>> >>> ABC0002
>>>>>>>>>>>>>>>>>>>>>>>> >>> ...
>>>>>>>>>>>>>>>>>>>>>>>> >>> ABC0010
>>>>>>>>>>>>>>>>>>>>>>>> >>> ...
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> thus sorting them ascending will always get the
>>>>>>>>>>>>>>>>>>>>>>>> latest value generated
>>>>>>>>>>>>>>>>>>>>>>>> >>> as the max value.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> M?lanie
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ------------------------------
>>>>>>>>>>>>>>>>>>>>>>>> >>> *From:* Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> sotirisnik at gmail.com>
>>>>>>>>>>>>>>>>>>>>>>>> >>> *Sent:* September 13, 2019 10:15
>>>>>>>>>>>>>>>>>>>>>>>> >>> *To:* Melanie Legault, Mrs <
>>>>>>>>>>>>>>>>>>>>>>>> melanie.legault2 at mcgill.ca>
>>>>>>>>>>>>>>>>>>>>>>>> >>> *Cc:* Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca>;
>>>>>>>>>>>>>>>>>>>>>>>> >>> loris-dev at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>>>>>>> loris-dev at bic.mni.mcgill.ca>
>>>>>>>>>>>>>>>>>>>>>>>> >>> *Subject:* Re: [Loris-dev] Import mri - scripts
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> I see, although the PSCID value is
>>>>>>>>>>>>>>>>>>>>>>>> varchar(255), it must be stored
>>>>>>>>>>>>>>>>>>>>>>>> >>> within a specific length of characters.
>>>>>>>>>>>>>>>>>>>>>>>> Otherwise if we were to sort
>>>>>>>>>>>>>>>>>>>>>>>> >>> strings with different lengths the result would
>>>>>>>>>>>>>>>>>>>>>>>> not be sorted correctly (
>>>>>>>>>>>>>>>>>>>>>>>> >>> e.x. 1,2,10,11 as strings would result to 1,
>>>>>>>>>>>>>>>>>>>>>>>> 10, 11, 2 ).
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 13 ??? 2019 ???? 4:52 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Melanie Legault, Mrs <
>>>>>>>>>>>>>>>>>>>>>>>> >>> melanie.legault2 at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hello Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> There is no `last value` stored anywhere.
>>>>>>>>>>>>>>>>>>>>>>>> >>> The code simply look for the PSCID with the max
>>>>>>>>>>>>>>>>>>>>>>>> value and increase that
>>>>>>>>>>>>>>>>>>>>>>>> >>> value by 1 in order to generate the next PSCID.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hope this info help.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> M?lanie Legault | Software developer | Faculty
>>>>>>>>>>>>>>>>>>>>>>>> of Medicine | McGill
>>>>>>>>>>>>>>>>>>>>>>>> >>> University
>>>>>>>>>>>>>>>>>>>>>>>> >>> 3801 University, Montr?al, QC H3A 2B4
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ------------------------------
>>>>>>>>>>>>>>>>>>>>>>>> >>> *From:* loris-dev-bounces at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>>>>>>> >>> loris-dev-bounces at bic.mni.mcgill.ca> on behalf
>>>>>>>>>>>>>>>>>>>>>>>> of Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> >>> Nikoloutsopoulos <sotirisnik at gmail.com>
>>>>>>>>>>>>>>>>>>>>>>>> >>> *Sent:* September 13, 2019 9:43
>>>>>>>>>>>>>>>>>>>>>>>> >>> *To:* Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca>
>>>>>>>>>>>>>>>>>>>>>>>> >>> *Cc:* loris-dev at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>>>>>>> loris-dev at bic.mni.mcgill.ca>
>>>>>>>>>>>>>>>>>>>>>>>> >>> *Subject:* Re: [Loris-dev] Import mri - scripts
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> how does Loris determine the next available
>>>>>>>>>>>>>>>>>>>>>>>> PSCID value for a new
>>>>>>>>>>>>>>>>>>>>>>>> >>> candidate?
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/wiki/Project-Customization
>>>>>>>>>>>>>>>>>>>>>>>> >>> e.x in the default case the PSCID is
>>>>>>>>>>>>>>>>>>>>>>>> sequential, but where do we store the
>>>>>>>>>>>>>>>>>>>>>>>> >>> last value for the sequential sequence?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 10 ??? 2019 ???? 4:00 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> the parameters in the mri_protocol you have
>>>>>>>>>>>>>>>>>>>>>>>> assigned are global
>>>>>>>>>>>>>>>>>>>>>>>> >>> standard? or were assigned after trial and
>>>>>>>>>>>>>>>>>>>>>>>> error?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 8 ??? 2019 ???? 10:11 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Given you have done the initial setup of your
>>>>>>>>>>>>>>>>>>>>>>>> tables to match your
>>>>>>>>>>>>>>>>>>>>>>>> >>> intended protocol/parameters according to
>>>>>>>>>>>>>>>>>>>>>>>> instructions --
>>>>>>>>>>>>>>>>>>>>>>>> >>> the Troubleshooting guide documentation
>>>>>>>>>>>>>>>>>>>>>>>> recommends
>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/AppendixA-Troubleshooting_guideline.md#a4-insertion-script-troubleshooting-notes
>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>> >>> re-running the pipeline (and first deleting
>>>>>>>>>>>>>>>>>>>>>>>> prior uploads).
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> On Sun, Sep 8, 2019 at 10:22 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> *if i were to change their status to resolve
>>>>>>>>>>>>>>>>>>>>>>>> what would happen?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 8 ??? 2019 ???? 5:12 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> I noticed that i can view the mnics at the
>>>>>>>>>>>>>>>>>>>>>>>> brainbrowser from the
>>>>>>>>>>>>>>>>>>>>>>>> >>> mri_violations page ( those mnics are stored at
>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/trashbin/
>>>>>>>>>>>>>>>>>>>>>>>> >>> if i were to click their issue to resolve what
>>>>>>>>>>>>>>>>>>>>>>>> would happend? would they
>>>>>>>>>>>>>>>>>>>>>>>> >>> appear in the dicom_archive view too? ).
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 8 ??? 2019 ???? 4:17 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> The defaut values of the schema exists in my
>>>>>>>>>>>>>>>>>>>>>>>> local database. If i adjust
>>>>>>>>>>>>>>>>>>>>>>>> >>> the default values of TR_min and TE_min the
>>>>>>>>>>>>>>>>>>>>>>>> mincs will be uploaded?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 7 ??? 2019 ???? 5:48 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Is it possible that you haven't set up your
>>>>>>>>>>>>>>>>>>>>>>>> mri_protocol table ? (and
>>>>>>>>>>>>>>>>>>>>>>>> >>> mri_scan_type table too, for additional types
>>>>>>>>>>>>>>>>>>>>>>>> of scans)
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Like the psc table, this is a pre-requisite for
>>>>>>>>>>>>>>>>>>>>>>>> the Imaging insertion
>>>>>>>>>>>>>>>>>>>>>>>> >>> setup : See the install/setup documentation :
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/02-Install.md
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> To add new rows, just use MySQL insert
>>>>>>>>>>>>>>>>>>>>>>>> statements. You can adapt the
>>>>>>>>>>>>>>>>>>>>>>>> >>> insert statements which load the default table
>>>>>>>>>>>>>>>>>>>>>>>> values --> e.g. Here on
>>>>>>>>>>>>>>>>>>>>>>>> >>> GitHub :
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/blob/master/SQL/0000-00-00-schema.sql#L718
>>>>>>>>>>>>>>>>>>>>>>>> >>> (see also the mri_scan_type table)
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> On Fri, Sep 6, 2019 at 8:32 PM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> I see that i can edit the values but not how to
>>>>>>>>>>>>>>>>>>>>>>>> insert new rows.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> If i choose Inserted with flag then will the
>>>>>>>>>>>>>>>>>>>>>>>> minc be inserted?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 7 ??? 2019 ???? 3:21 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Glad to hear that *dcmodify* worked correctly.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> For the MRI Violations module, the screenshot
>>>>>>>>>>>>>>>>>>>>>>>> is enough.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> It says "could not identify scan type", which
>>>>>>>>>>>>>>>>>>>>>>>> we knew already. Did you
>>>>>>>>>>>>>>>>>>>>>>>> >>> click on the link on those words?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> It will take you to the next page of the
>>>>>>>>>>>>>>>>>>>>>>>> module, showing for each scan
>>>>>>>>>>>>>>>>>>>>>>>> >>> what the scan parameters were, and will also
>>>>>>>>>>>>>>>>>>>>>>>> show for comparison what's
>>>>>>>>>>>>>>>>>>>>>>>> >>> stored in your *mri_protocol* table.
>>>>>>>>>>>>>>>>>>>>>>>> >>> Compare these values to find which parameter
>>>>>>>>>>>>>>>>>>>>>>>> was not correct according
>>>>>>>>>>>>>>>>>>>>>>>> >>> to your *mri_protocol* table scan type
>>>>>>>>>>>>>>>>>>>>>>>> definitions.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> You may end up broadening your mri_protocol
>>>>>>>>>>>>>>>>>>>>>>>> value ranges (e.g. TR, TE)
>>>>>>>>>>>>>>>>>>>>>>>> >>> for scans.
>>>>>>>>>>>>>>>>>>>>>>>> >>> This can be done in the front-end, by editing
>>>>>>>>>>>>>>>>>>>>>>>> the database table
>>>>>>>>>>>>>>>>>>>>>>>> >>> directly in the same subpage of the MRI
>>>>>>>>>>>>>>>>>>>>>>>> Violations module.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> The MRI Violations module features are
>>>>>>>>>>>>>>>>>>>>>>>> explained in more detail in the
>>>>>>>>>>>>>>>>>>>>>>>> >>> Help text for this module inside LORIS (click
>>>>>>>>>>>>>>>>>>>>>>>> the ["?"] icon in the menu
>>>>>>>>>>>>>>>>>>>>>>>> >>> bar.)
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> See also: Loris-MRI troubleshooting guide
>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/AppendixA-Troubleshooting_guideline.md
>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>> >>> : no MINCs inserted- violated scans
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> On Fri, Sep 6, 2019 at 8:11 PM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> looks like my previous email's attachment
>>>>>>>>>>>>>>>>>>>>>>>> wasn't delivered due to
>>>>>>>>>>>>>>>>>>>>>>>> >>> security reasons, i uploaded my file at google
>>>>>>>>>>>>>>>>>>>>>>>> drive
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://drive.google.com/file/d/1U_TRbo_qGgfpQfs-SqeG9J3bMMqNfUU4/view?usp=sharing
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 7 ??? 2019 ???? 3:02 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> From Dicat's view seems that dcmodify worked in
>>>>>>>>>>>>>>>>>>>>>>>> both cases
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> For the mri_violations i attached the .html
>>>>>>>>>>>>>>>>>>>>>>>> output from webbrowser, so
>>>>>>>>>>>>>>>>>>>>>>>> >>> that you can check the filelds easier.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 6 ??? 2019 ???? 7:49 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios --
>>>>>>>>>>>>>>>>>>>>>>>> >>> Great, sounds like more progress.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> About the dcmodify command -- I'm not sure why
>>>>>>>>>>>>>>>>>>>>>>>> you're getting an Endian
>>>>>>>>>>>>>>>>>>>>>>>> >>> warning. (it's a warning not an error,
>>>>>>>>>>>>>>>>>>>>>>>> correct?)
>>>>>>>>>>>>>>>>>>>>>>>> >>> To clarify -- Were the DICOM headers
>>>>>>>>>>>>>>>>>>>>>>>> (PatientName) all successfully
>>>>>>>>>>>>>>>>>>>>>>>> >>> relabelled, after the command ran?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> You can use also our DICAT tool (
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/DICAT) to
>>>>>>>>>>>>>>>>>>>>>>>> >>> verify and/or update local DICOM headers --
>>>>>>>>>>>>>>>>>>>>>>>> though your dcmodify command is
>>>>>>>>>>>>>>>>>>>>>>>> >>> a great and fast solution for bulk header
>>>>>>>>>>>>>>>>>>>>>>>> updates.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> If you're concerned about fields being changed
>>>>>>>>>>>>>>>>>>>>>>>> (e.g. "(2001,105f)" from
>>>>>>>>>>>>>>>>>>>>>>>> >>> the warning message) - you can also dcmdump a
>>>>>>>>>>>>>>>>>>>>>>>> DICOM slice before and look
>>>>>>>>>>>>>>>>>>>>>>>> >>> at these fields specifically.
>>>>>>>>>>>>>>>>>>>>>>>> >>> It's also not a bad "sanity check" to backup
>>>>>>>>>>>>>>>>>>>>>>>> your DICOMS before/after
>>>>>>>>>>>>>>>>>>>>>>>> >>> running dcmodify, and use dcmdump on each
>>>>>>>>>>>>>>>>>>>>>>>> version to diff the outputs --
>>>>>>>>>>>>>>>>>>>>>>>> >>> this will pinpoint what changed.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Re the protocol violation --
>>>>>>>>>>>>>>>>>>>>>>>> AcquisitionProtocol not recognized or
>>>>>>>>>>>>>>>>>>>>>>>> >>> unknown : this means your scans did not match
>>>>>>>>>>>>>>>>>>>>>>>> what is stored in your
>>>>>>>>>>>>>>>>>>>>>>>> >>> mri_protocol table.
>>>>>>>>>>>>>>>>>>>>>>>> >>> Check the MRI Violations front-end module --
>>>>>>>>>>>>>>>>>>>>>>>> can you see why they didn't
>>>>>>>>>>>>>>>>>>>>>>>> >>> match?
>>>>>>>>>>>>>>>>>>>>>>>> >>> Send us an example, in addition to the contents
>>>>>>>>>>>>>>>>>>>>>>>> of the mri_protocol
>>>>>>>>>>>>>>>>>>>>>>>> >>> table, if you can't find the source of the
>>>>>>>>>>>>>>>>>>>>>>>> mismatch.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> On Fri, Sep 6, 2019 at 12:04 PM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Here is the psc table
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> I created 2 candidates profiles through the
>>>>>>>>>>>>>>>>>>>>>>>> interface
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> then runned dcmodify command to a dicom file
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> dcmodify -ma PatientName="DCC0000_258024_V1"
>>>>>>>>>>>>>>>>>>>>>>>> >>> /home/lorisadmin/DICOMS/000535670/501/*.dcm
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> and got those warning: is this okay?
>>>>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2001,105f) with VR UN and
>>>>>>>>>>>>>>>>>>>>>>>> undefined length, reading a
>>>>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax
>>>>>>>>>>>>>>>>>>>>>>>> LittleEndianImplicit (CP-246)
>>>>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2005,1083) with VR UN and
>>>>>>>>>>>>>>>>>>>>>>>> undefined length, reading a
>>>>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax
>>>>>>>>>>>>>>>>>>>>>>>> LittleEndianImplicit (CP-246)
>>>>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2005,1402) with VR UN and
>>>>>>>>>>>>>>>>>>>>>>>> undefined length, reading a
>>>>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax
>>>>>>>>>>>>>>>>>>>>>>>> LittleEndianImplicit (CP-246)
>>>>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2005,140f) with VR UN and
>>>>>>>>>>>>>>>>>>>>>>>> undefined length, reading a
>>>>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax
>>>>>>>>>>>>>>>>>>>>>>>> LittleEndianImplicit (CP-246)
>>>>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2001,105f) with VR UN and
>>>>>>>>>>>>>>>>>>>>>>>> undefined length, reading a
>>>>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax
>>>>>>>>>>>>>>>>>>>>>>>> LittleEndianImplicit (CP-246)
>>>>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2005,1083) with VR UN and
>>>>>>>>>>>>>>>>>>>>>>>> undefined length, reading a
>>>>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax
>>>>>>>>>>>>>>>>>>>>>>>> LittleEndianImplicit (CP-246)
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> dcmodify at another Dicom didn't show warnings.
>>>>>>>>>>>>>>>>>>>>>>>> Below you can see the
>>>>>>>>>>>>>>>>>>>>>>>> >>> execution for the second dicom. Mnics could not
>>>>>>>>>>>>>>>>>>>>>>>> be inserted due to
>>>>>>>>>>>>>>>>>>>>>>>> >>> AcquisitionProtocol being unknown.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Running now the following command:
>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri//uploadNeuroDB/
>>>>>>>>>>>>>>>>>>>>>>>> >>> imaging_upload_file.pl -profile prod
>>>>>>>>>>>>>>>>>>>>>>>> -upload_id 12
>>>>>>>>>>>>>>>>>>>>>>>> >>> /data/incoming/DCC0001_602102_V1.tar.gz -verbose
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> find -path
>>>>>>>>>>>>>>>>>>>>>>>> \/tmp\/ImagingUpload\-18\-36\-mTrxXs -name '__MACOSX'
>>>>>>>>>>>>>>>>>>>>>>>> >>> -delete
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> dicomTar.pl \/tmp\/ImagingUpload\-18\-36\-mTrxXs
>>>>>>>>>>>>>>>>>>>>>>>> >>> \/data\/loris\/data\/tarchive\/ -database
>>>>>>>>>>>>>>>>>>>>>>>> -profile prod -verbose
>>>>>>>>>>>>>>>>>>>>>>>> >>> Source: /tmp/ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>>>>>>> >>> Target: /data/loris/data/tarchive
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Testing for database connectivity.
>>>>>>>>>>>>>>>>>>>>>>>> >>> Database is available.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> You will archive the dir :
>>>>>>>>>>>>>>>>>>>>>>>> ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> You are creating a tar with the following
>>>>>>>>>>>>>>>>>>>>>>>> command:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> tar -cf
>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>>>>>> >>> ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> getting md5sums and gzipping!!
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> * Taken from dir :
>>>>>>>>>>>>>>>>>>>>>>>> /tmp/ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>>>>>>> >>> * Archive target location :
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>>>>>> >>> * Name of creating host :
>>>>>>>>>>>>>>>>>>>>>>>> 127.0.1.1
>>>>>>>>>>>>>>>>>>>>>>>> >>> * Name of host OS : Linux
>>>>>>>>>>>>>>>>>>>>>>>> >>> * Created by user :
>>>>>>>>>>>>>>>>>>>>>>>> lorisadmin
>>>>>>>>>>>>>>>>>>>>>>>> >>> * Archived on :
>>>>>>>>>>>>>>>>>>>>>>>> 2019-09-06 18:36:50
>>>>>>>>>>>>>>>>>>>>>>>> >>> * dicomSummary version : 1
>>>>>>>>>>>>>>>>>>>>>>>> >>> * dicomTar version : 1
>>>>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for DICOM tarball :
>>>>>>>>>>>>>>>>>>>>>>>> b1dcdc8903dd2d9a5443227db2aa2814
>>>>>>>>>>>>>>>>>>>>>>>> >>> ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for DICOM tarball gzipped :
>>>>>>>>>>>>>>>>>>>>>>>> aeae87f20155a6805f7e0cfe5212ea5f
>>>>>>>>>>>>>>>>>>>>>>>> >>> ImagingUpload-18-36-mTrxXs.tar.gz
>>>>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for complete archive :
>>>>>>>>>>>>>>>>>>>>>>>> 1d9258d1f077ebc49111ab7ba22a8d6e
>>>>>>>>>>>>>>>>>>>>>>>> >>> DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Adding archive info into database
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Removing temporary files from target location
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Done adding archive info into database
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> \/data\/loris\/bin\/mri\//uploadNeuroDB/tarchiveLoader.pl -globLocation
>>>>>>>>>>>>>>>>>>>>>>>> >>> -profile prod
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> \/data\/loris\/data\/tarchive\/\/DCM_2016\-08\-22_ImagingUpload\-18\-36\-mTrxXs\.tar
>>>>>>>>>>>>>>>>>>>>>>>> >>> -uploadID 12 -verbose
>>>>>>>>>>>>>>>>>>>>>>>> >>> md5sum
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>> >>> candidate id 602102
>>>>>>>>>>>>>>>>>>>>>>>> >>> Set centerID = 1
>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Number of MINC files that will be considered
>>>>>>>>>>>>>>>>>>>>>>>> for inserting into the
>>>>>>>>>>>>>>>>>>>>>>>> >>> database: 2
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> log dir is /data/loris/data//logs and log file
>>>>>>>>>>>>>>>>>>>>>>>> is
>>>>>>>>>>>>>>>>>>>>>>>> >>> /data/loris/data//logs/TarLoad-18-37-31ajWx.log
>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>> >>> candidate id 602102
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> log dir is /data/loris/data//logs and log file
>>>>>>>>>>>>>>>>>>>>>>>> is
>>>>>>>>>>>>>>>>>>>>>>>> >>> /data/loris/data//logs/TarLoad-18-37-fanZFj.log
>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>> >>> candidate id 602102
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Cleaning up temp files: rm -rf
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /tmp/TarLoad-18-37-to5pYZ/ImagingUpload-18-36-mTrxXs*
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri$
>>>>>>>>>>>>>>>>>>>>>>>> cat
>>>>>>>>>>>>>>>>>>>>>>>> >>> /data/loris/data/logs/TarLoad-18-37-fanZFj.log
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ==> Loading file from disk
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /tmp/TarLoad-18-37-to5pYZ/dcc0001_602102_v1_20160822_072406_205e1d1_mri.mnc
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> --> mapping DICOM parameter for
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /tmp/TarLoad-18-37-to5pYZ/dcc0001_602102_v1_20160822_072406_205e1d1_mri.mnc
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ==> computing md5 hash for MINC body.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> --> md5: 02022dda60d9de429340fec838f50cfe
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ==> verifying acquisition protocol
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Acquisition protocol is unknown
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> --> The minc file cannot be registered since
>>>>>>>>>>>>>>>>>>>>>>>> the AcquisitionProtocol
>>>>>>>>>>>>>>>>>>>>>>>> >>> is unknown
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 4 ??? 2019 ???? 10:46 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Sure -- you can delete imaging datasets with
>>>>>>>>>>>>>>>>>>>>>>>> the *delete_imaging_upload*
>>>>>>>>>>>>>>>>>>>>>>>> >>> script --
>>>>>>>>>>>>>>>>>>>>>>>> >>> details here:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/21.0-dev/docs/scripts_md/delete_imaging_upload.md
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> What's in your *psc* table? (Is it properly
>>>>>>>>>>>>>>>>>>>>>>>> populated? This is a
>>>>>>>>>>>>>>>>>>>>>>>> >>> pre-requisite to loading imaging data.
>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/21.0-dev/docs/02-Install.md#221-database
>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>> >>> )
>>>>>>>>>>>>>>>>>>>>>>>> >>> The foreign key constraint error on the
>>>>>>>>>>>>>>>>>>>>>>>> candidate record is curious.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> There are also a few options for creating
>>>>>>>>>>>>>>>>>>>>>>>> candidates when inserting
>>>>>>>>>>>>>>>>>>>>>>>> >>> imaging data:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> -- Method 1 : in 2 steps with the API then
>>>>>>>>>>>>>>>>>>>>>>>> DICOM insertion pipeline
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> a. via the LORIS API -- Create the candidates
>>>>>>>>>>>>>>>>>>>>>>>> (and visits, optionally I
>>>>>>>>>>>>>>>>>>>>>>>> >>> think)
>>>>>>>>>>>>>>>>>>>>>>>> >>> How to:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/blob/master/docs/API/LorisRESTAPI.md#30-candidate-api
>>>>>>>>>>>>>>>>>>>>>>>> >>> Ensure you get the DCCID/CandID assigned by
>>>>>>>>>>>>>>>>>>>>>>>> LORIS.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Then as a second step:
>>>>>>>>>>>>>>>>>>>>>>>> >>> b. Use the imaging insertion pipeline
>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/minor/docs/05-PipelineLaunchOptions.md#51---pipeline-launch-options-for-dicom-datasets
>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>> >>> to load your DICOMs.
>>>>>>>>>>>>>>>>>>>>>>>> >>> You will want to first ensure that the
>>>>>>>>>>>>>>>>>>>>>>>> PatientName header in the DICOMs
>>>>>>>>>>>>>>>>>>>>>>>> >>> as well as tar package are correctly labelled
>>>>>>>>>>>>>>>>>>>>>>>> with PSCID_DCCID_VisitLabel
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> -- Method 2: for BIDS-format datasets:
>>>>>>>>>>>>>>>>>>>>>>>> >>> How to :
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/05-PipelineLaunchOptions.md#52---pipeline-launch-for-bids-datasets
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Be sure to use the *-c* and *-s* options when
>>>>>>>>>>>>>>>>>>>>>>>> running the bids_import script,
>>>>>>>>>>>>>>>>>>>>>>>> >>> to automatically create your candidates and
>>>>>>>>>>>>>>>>>>>>>>>> sessions.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> On Wed, Sep 4, 2019 at 11:43 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> How do i delete a Study? And everytime do i
>>>>>>>>>>>>>>>>>>>>>>>> have to create a new
>>>>>>>>>>>>>>>>>>>>>>>> >>> candidate to get DCCID and a PSCID?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> *First execution:*
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri$
>>>>>>>>>>>>>>>>>>>>>>>> ./
>>>>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl -profile prod <
>>>>>>>>>>>>>>>>>>>>>>>> ~/Desktop/input.txt >
>>>>>>>>>>>>>>>>>>>>>>>> >>> log.txt
>>>>>>>>>>>>>>>>>>>>>>>> >>> Use of uninitialized value $_ in pattern match
>>>>>>>>>>>>>>>>>>>>>>>> (m//) at ./
>>>>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl line 144.
>>>>>>>>>>>>>>>>>>>>>>>> >>> DBD::mysql::db do failed: Cannot add or update
>>>>>>>>>>>>>>>>>>>>>>>> a child row: a foreign
>>>>>>>>>>>>>>>>>>>>>>>> >>> key constraint fails (`LORIS`.`candidate`,
>>>>>>>>>>>>>>>>>>>>>>>> CONSTRAINT `FK_candidate_1`
>>>>>>>>>>>>>>>>>>>>>>>> >>> FOREIGN KEY (`RegistrationCenterID`) REFERENCES
>>>>>>>>>>>>>>>>>>>>>>>> `psc` (`CenterID`)) at
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRI.pm line 1060.
>>>>>>>>>>>>>>>>>>>>>>>> >>> ERROR: Failed to insert record in table
>>>>>>>>>>>>>>>>>>>>>>>> mri_scanner:
>>>>>>>>>>>>>>>>>>>>>>>> >>> The following database commands failed:
>>>>>>>>>>>>>>>>>>>>>>>> >>> PREPARE s FROM 'INSERT INTO mri_scanner
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> (CandID,Model,Software,Serial_number,Manufacturer) VALUES (?,?,?,?,?)';
>>>>>>>>>>>>>>>>>>>>>>>> >>> SET
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> @x1='242126', at x2='Achieva', at x3='3.2.2\3.2.2.0', at x4='34037', at x5='Philips
>>>>>>>>>>>>>>>>>>>>>>>> >>> Medical Systems';
>>>>>>>>>>>>>>>>>>>>>>>> >>> EXECUTE s USING @x1, at x2, at x3, at x4, at x5;
>>>>>>>>>>>>>>>>>>>>>>>> >>> Error obtained:Cannot add or update a child
>>>>>>>>>>>>>>>>>>>>>>>> row: a foreign key
>>>>>>>>>>>>>>>>>>>>>>>> >>> constraint fails (`LORIS`.`mri_scanner`,
>>>>>>>>>>>>>>>>>>>>>>>> CONSTRAINT `FK_mri_scanner_1`
>>>>>>>>>>>>>>>>>>>>>>>> >>> FOREIGN KEY (`CandID`) REFERENCES `candidate`
>>>>>>>>>>>>>>>>>>>>>>>> (`CandID`)) (error code 1452)
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ERROR: The validation has failed. Either
>>>>>>>>>>>>>>>>>>>>>>>> re-run the validation again
>>>>>>>>>>>>>>>>>>>>>>>> >>> and fix the problem. Or re-run
>>>>>>>>>>>>>>>>>>>>>>>> tarchiveLoader.pl using -force to force the
>>>>>>>>>>>>>>>>>>>>>>>> >>> execution.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> The tarchiveLoader.pl insertion script has
>>>>>>>>>>>>>>>>>>>>>>>> failed.
>>>>>>>>>>>>>>>>>>>>>>>> >>> Can't exec "mail": No such file or directory at
>>>>>>>>>>>>>>>>>>>>>>>> ./
>>>>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl line 249.
>>>>>>>>>>>>>>>>>>>>>>>> >>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl
>>>>>>>>>>>>>>>>>>>>>>>> >>> line 250.
>>>>>>>>>>>>>>>>>>>>>>>> >>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl
>>>>>>>>>>>>>>>>>>>>>>>> >>> line 251.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> *And second execution: *
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri$
>>>>>>>>>>>>>>>>>>>>>>>> ./
>>>>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl -profile prod <
>>>>>>>>>>>>>>>>>>>>>>>> ~/Desktop/input.txt >
>>>>>>>>>>>>>>>>>>>>>>>> >>> log.txt
>>>>>>>>>>>>>>>>>>>>>>>> >>> Use of uninitialized value $_ in pattern match
>>>>>>>>>>>>>>>>>>>>>>>> (m//) at ./
>>>>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl line 144.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> PROBLEM:
>>>>>>>>>>>>>>>>>>>>>>>> >>> The user 'lorisadmin' has already inserted this
>>>>>>>>>>>>>>>>>>>>>>>> study.
>>>>>>>>>>>>>>>>>>>>>>>> >>> The unique study ID is
>>>>>>>>>>>>>>>>>>>>>>>> '1.3.51.0.1.1.10.49.10.222.1422753.1420953'.
>>>>>>>>>>>>>>>>>>>>>>>> >>> This is the information retained from the first
>>>>>>>>>>>>>>>>>>>>>>>> time the study was
>>>>>>>>>>>>>>>>>>>>>>>> >>> inserted:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> * Taken from dir :
>>>>>>>>>>>>>>>>>>>>>>>> /tmp/ImagingUpload-18-33-Qq7HGy
>>>>>>>>>>>>>>>>>>>>>>>> >>> * Archive target location :
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/DCM_2012-12-05_ImagingUpload-18-33-Qq7HGy.tar
>>>>>>>>>>>>>>>>>>>>>>>> >>> * Name of creating host :
>>>>>>>>>>>>>>>>>>>>>>>> 127.0.1.1
>>>>>>>>>>>>>>>>>>>>>>>> >>> * Name of host OS : Linux
>>>>>>>>>>>>>>>>>>>>>>>> >>> * Created by user :
>>>>>>>>>>>>>>>>>>>>>>>> lorisadmin
>>>>>>>>>>>>>>>>>>>>>>>> >>> * Archived on :
>>>>>>>>>>>>>>>>>>>>>>>> 2019-09-04 18:33:05
>>>>>>>>>>>>>>>>>>>>>>>> >>> * dicomSummary version : 1
>>>>>>>>>>>>>>>>>>>>>>>> >>> * dicomTar version : 1
>>>>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for DICOM tarball :
>>>>>>>>>>>>>>>>>>>>>>>> 4a301b0318178b09b91e63544282364d
>>>>>>>>>>>>>>>>>>>>>>>> >>> ImagingUpload-18-33-Qq7HGy.tar
>>>>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for DICOM tarball gzipped :
>>>>>>>>>>>>>>>>>>>>>>>> 9d95ea2b9111be236808bfd65d7e65ec
>>>>>>>>>>>>>>>>>>>>>>>> >>> ImagingUpload-18-33-Qq7HGy.tar.gz
>>>>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for complete archive :
>>>>>>>>>>>>>>>>>>>>>>>> ab19a86357f1d4053aa3b81c8a071053
>>>>>>>>>>>>>>>>>>>>>>>> >>> DCM_2012-12-05_ImagingUpload-18-33-Qq7HGy.tar
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Last update of record:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> The dicomTar.pl execution has failed.
>>>>>>>>>>>>>>>>>>>>>>>> >>> Can't exec "mail": No such file or directory at
>>>>>>>>>>>>>>>>>>>>>>>> ./
>>>>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl line 249.
>>>>>>>>>>>>>>>>>>>>>>>> >>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl
>>>>>>>>>>>>>>>>>>>>>>>> >>> line 250.
>>>>>>>>>>>>>>>>>>>>>>>> >>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl
>>>>>>>>>>>>>>>>>>>>>>>> >>> line 251.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 4 ??? 2019 ???? 5:35 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Ok, this sounds like good progress. Let us
>>>>>>>>>>>>>>>>>>>>>>>> know when you next encounter
>>>>>>>>>>>>>>>>>>>>>>>> >>> issues as you progress through the Imaging
>>>>>>>>>>>>>>>>>>>>>>>> Install/Setup docs
>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/minor/docs/02-Install.md
>>>>>>>>>>>>>>>>>>>>>>>> >.
>>>>>>>>>>>>>>>>>>>>>>>> >>> I'll look into how we can better handle the
>>>>>>>>>>>>>>>>>>>>>>>> incoming/ directory next
>>>>>>>>>>>>>>>>>>>>>>>> >>> time.
>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> On Wed, Sep 4, 2019 at 10:23 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/dicom-archive/.loris_mri/database_config.py is
>>>>>>>>>>>>>>>>>>>>>>>> >>> populated correctly except its port is 'port'
>>>>>>>>>>>>>>>>>>>>>>>> : ''. Also i have tested
>>>>>>>>>>>>>>>>>>>>>>>> >>> that i can connect to MySQL with lorisuser.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> I executed the script again, because the only
>>>>>>>>>>>>>>>>>>>>>>>> error i had previously was
>>>>>>>>>>>>>>>>>>>>>>>> >>> that the /data/incoming folder didn't exist and
>>>>>>>>>>>>>>>>>>>>>>>> there are no errors
>>>>>>>>>>>>>>>>>>>>>>>> >>> reported back except of warnings <<mysql:
>>>>>>>>>>>>>>>>>>>>>>>> [Warning] Using a password on the
>>>>>>>>>>>>>>>>>>>>>>>> >>> command line interface can be insecure>>.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 4 ??? 2019 ???? 4:53 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> It's possible -- if the script was unable to
>>>>>>>>>>>>>>>>>>>>>>>> connect to the database
>>>>>>>>>>>>>>>>>>>>>>>> >>> during its execution (e.g. typo in the
>>>>>>>>>>>>>>>>>>>>>>>> password), that would explain the
>>>>>>>>>>>>>>>>>>>>>>>> >>> underpopulated Image path and Loris-MRI code
>>>>>>>>>>>>>>>>>>>>>>>> path you saw in the Config
>>>>>>>>>>>>>>>>>>>>>>>> >>> module.
>>>>>>>>>>>>>>>>>>>>>>>> >>> It's hard to tell without seeing the output
>>>>>>>>>>>>>>>>>>>>>>>> from your script run -- Did
>>>>>>>>>>>>>>>>>>>>>>>> >>> you see a sign of any such error?
>>>>>>>>>>>>>>>>>>>>>>>> >>> The Config fields are populated by the
>>>>>>>>>>>>>>>>>>>>>>>> imaging_install.sh script (starting
>>>>>>>>>>>>>>>>>>>>>>>> >>> at line 222
>>>>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/21.0-dev/imaging_install.sh#L222
>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>> >>> )
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> For example, check if the database connection
>>>>>>>>>>>>>>>>>>>>>>>> information was populated
>>>>>>>>>>>>>>>>>>>>>>>> >>> accurately in
>>>>>>>>>>>>>>>>>>>>>>>> $mridir/dicom-archive/.loris_mri/database_config.py
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> On Wed, Sep 4, 2019 at 9:34 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Christine,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> If you are referring to the imaging_install.sh
>>>>>>>>>>>>>>>>>>>>>>>> here is an image with the
>>>>>>>>>>>>>>>>>>>>>>>> >>> configurations i typed. Maybe the problem is
>>>>>>>>>>>>>>>>>>>>>>>> somewhere at the last part
>>>>>>>>>>>>>>>>>>>>>>>> >>> which asks to configure as much as possible
>>>>>>>>>>>>>>>>>>>>>>>> automatically?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 4 ??? 2019 ???? 4:16 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Glad to hear your LORIS core install is up and
>>>>>>>>>>>>>>>>>>>>>>>> working and all the
>>>>>>>>>>>>>>>>>>>>>>>> >>> front-end pages are loading.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> > lorisadmin at loris-VirtualBox:/var/www/loris$
>>>>>>>>>>>>>>>>>>>>>>>> chmod 775 project
>>>>>>>>>>>>>>>>>>>>>>>> >>> > and the web interface worked.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Yes, it's important that project/ have 775
>>>>>>>>>>>>>>>>>>>>>>>> permissions and that
>>>>>>>>>>>>>>>>>>>>>>>> >>> lorisadmin be part of the sudoers group, per
>>>>>>>>>>>>>>>>>>>>>>>> step 1 in the install
>>>>>>>>>>>>>>>>>>>>>>>> >>> Readme <
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris#install-steps>.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> > As for the Paths, LORIS-MRI code and Image
>>>>>>>>>>>>>>>>>>>>>>>> should change LORIS to
>>>>>>>>>>>>>>>>>>>>>>>> >>> loris, right?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> These imaging paths will be updated during your
>>>>>>>>>>>>>>>>>>>>>>>> imaging installation
>>>>>>>>>>>>>>>>>>>>>>>> >>> <https://github.com/aces/Loris/wiki/Setup> by
>>>>>>>>>>>>>>>>>>>>>>>> an automated script --
>>>>>>>>>>>>>>>>>>>>>>>> >>> you do not need to set them manually via the
>>>>>>>>>>>>>>>>>>>>>>>> Config module.
>>>>>>>>>>>>>>>>>>>>>>>> >>> Please continue to follow the Setup Guide
>>>>>>>>>>>>>>>>>>>>>>>> >>> <https://github.com/aces/Loris/wiki/Setup> for
>>>>>>>>>>>>>>>>>>>>>>>> detailed steps to follow.
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> On Wed, Sep 4, 2019 at 8:05 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> As for the Paths, LORIS-MRI code and Image
>>>>>>>>>>>>>>>>>>>>>>>> should change LORIS to loris,
>>>>>>>>>>>>>>>>>>>>>>>> >>> right?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 4 ??? 2019 ???? 2:28 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> i used
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> curl -sL https://deb.nodesource.com/setup_8.x
>>>>>>>>>>>>>>>>>>>>>>>> | sudo -E bash -
>>>>>>>>>>>>>>>>>>>>>>>> >>> sudo apt-get install -y nodejs
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> you had suggested in the past, make worked and
>>>>>>>>>>>>>>>>>>>>>>>> now i can see all the
>>>>>>>>>>>>>>>>>>>>>>>> >>> contents in the web-interface, but i don't need
>>>>>>>>>>>>>>>>>>>>>>>> make install?
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>>>>> -------------- next part --------------
>>>>>>>>>>>>>>>>>>>>>>>> An HTML attachment was scrubbed...
>>>>>>>>>>>>>>>>>>>>>>>> URL: <
>>>>>>>>>>>>>>>>>>>>>>>> http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191112/edc06953/attachment.html
>>>>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> ------------------------------
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> End of Loris-dev Digest, Vol 64, Issue 16
>>>>>>>>>>>>>>>>>>>>>>>> *****************************************
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> --
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>>>>>>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20200130/663b304e/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 37207 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20200130/663b304e/attachment-0006.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 92124 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20200130/663b304e/attachment-0007.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 62956 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20200130/663b304e/attachment-0008.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 65585 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20200130/663b304e/attachment-0009.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 13729 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20200130/663b304e/attachment-0010.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 29486 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20200130/663b304e/attachment-0011.png>
More information about the Loris-dev
mailing list
