[Loris-dev] Import mri - scripts
Sotirios Nikoloutsopoulos
sotirisnik at gmail.com
Fri Sep 6 20:10:54 EDT 2019
Hi,
looks like my previous email's attachment wasn't delivered due to security
reasons, i uploaded my file at google drive
https://drive.google.com/file/d/1U_TRbo_qGgfpQfs-SqeG9J3bMMqNfUU4/view?usp=sharing
Στις Σάβ, 7 Σεπ 2019 στις 3:02 π.μ., ο/η Sotirios Nikoloutsopoulos <
sotirisnik at gmail.com> έγραψε:
> Hi,
>
> From Dicat's view seems that dcmodify worked in both cases
>
> [image: image.png]
>
> [image: image.png]
>

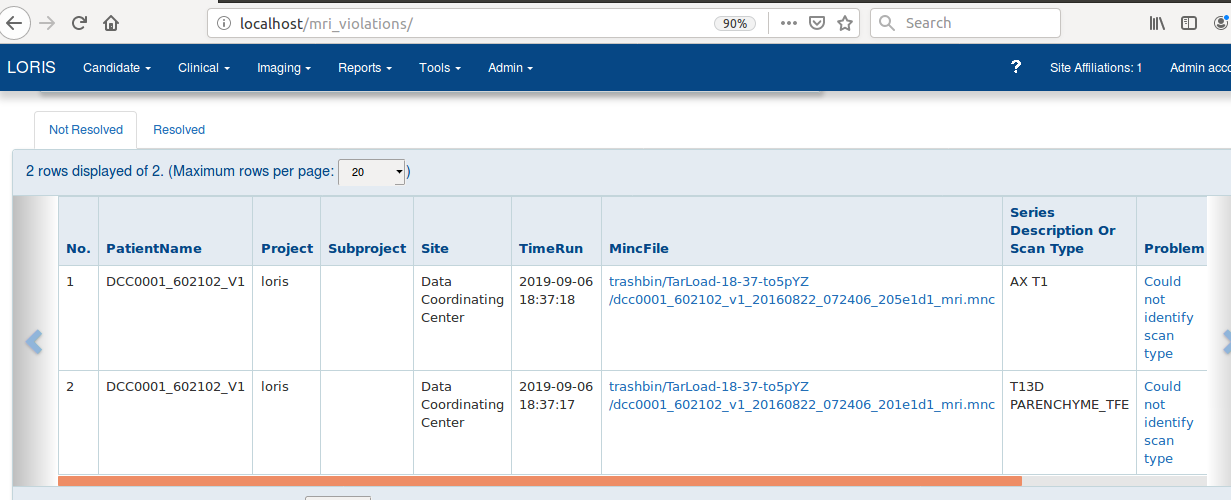

> For the mri_violations i attached the .html output from webbrowser, so
> that you can check the filelds easier.
>
> [image: image.png]
>
> Thanks
>
>
>
> Στις Παρ, 6 Σεπ 2019 στις 7:49 μ.μ., ο/η Christine Rogers, Ms. <
> christine.rogers at mcgill.ca> έγραψε:
>
>> Hi Sotirios --
>> Great, sounds like more progress.
>>
>> About the dcmodify command -- I'm not sure why you're getting an Endian
>> warning. (it's a warning not an error, correct?)
>> To clarify -- Were the DICOM headers (PatientName) all successfully
>> relabelled, after the command ran?
>>
>> You can use also our DICAT tool (https://github.com/aces/DICAT) to
>> verify and/or update local DICOM headers -- though your dcmodify command is
>> a great and fast solution for bulk header updates.
>>
>> If you're concerned about fields being changed (e.g. "(2001,105f)" from
>> the warning message) - you can also dcmdump a DICOM slice before and look
>> at these fields specifically.
>> It's also not a bad "sanity check" to backup your DICOMS before/after
>> running dcmodify, and use dcmdump on each version to diff the outputs --
>> this will pinpoint what changed.
>>
>> Re the protocol violation -- AcquisitionProtocol not recognized or
>> unknown : this means your scans did not match what is stored in your
>> mri_protocol table.
>> Check the MRI Violations front-end module -- can you see why they didn't
>> match?
>> Send us an example, in addition to the contents of the mri_protocol
>> table, if you can't find the source of the mismatch.
>>
>> Best,
>> Christine
>>
>>
>> On Fri, Sep 6, 2019 at 12:04 PM Sotirios Nikoloutsopoulos <
>> sotirisnik at gmail.com> wrote:
>>

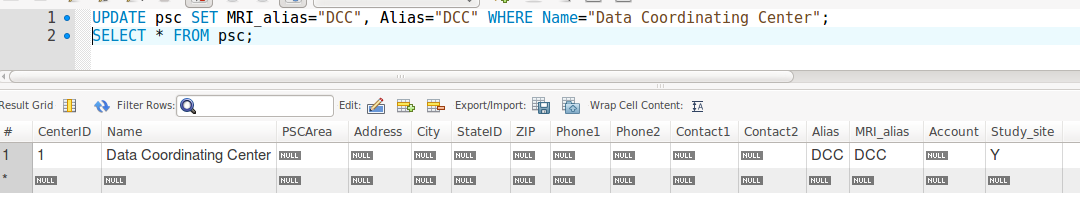

>>> Here is the psc table
>>> [image: image.png]
>>>
>>> I created 2 candidates profiles through the interface
>>>
>>> [image: image.png]
>>>
>>> then runned dcmodify command to a dicom file
>>>
>>> dcmodify -ma PatientName="DCC0000_258024_V1"
>>> /home/lorisadmin/DICOMS/000535670/501/*.dcm
>>>
>>> and got those warning: is this okay?
>>> W: Found element (2001,105f) with VR UN and undefined length, reading a
>>> sequence with transfer syntax LittleEndianImplicit (CP-246)
>>> W: Found element (2005,1083) with VR UN and undefined length, reading a
>>> sequence with transfer syntax LittleEndianImplicit (CP-246)
>>> W: Found element (2005,1402) with VR UN and undefined length, reading a
>>> sequence with transfer syntax LittleEndianImplicit (CP-246)
>>> W: Found element (2005,140f) with VR UN and undefined length, reading a
>>> sequence with transfer syntax LittleEndianImplicit (CP-246)
>>> W: Found element (2001,105f) with VR UN and undefined length, reading a
>>> sequence with transfer syntax LittleEndianImplicit (CP-246)
>>> W: Found element (2005,1083) with VR UN and undefined length, reading a
>>> sequence with transfer syntax LittleEndianImplicit (CP-246)
>>>
>>> dcmodify at another Dicom didn't show warnings. Below you can see the
>>> execution for the second dicom. Mnics could not be inserted due to
>>> AcquisitionProtocol being unknown.
>>>
>>> Running now the following command: /data/loris/bin/mri//uploadNeuroDB/
>>> imaging_upload_file.pl -profile prod -upload_id 12
>>> /data/incoming/DCC0001_602102_V1.tar.gz -verbose
>>>
>>> find -path \/tmp\/ImagingUpload\-18\-36\-mTrxXs -name '__MACOSX'
>>> -delete
>>>
>>> dicomTar.pl \/tmp\/ImagingUpload\-18\-36\-mTrxXs
>>> \/data\/loris\/data\/tarchive\/ -database -profile prod -verbose
>>> Source: /tmp/ImagingUpload-18-36-mTrxXs
>>> Target: /data/loris/data/tarchive
>>>
>>> Testing for database connectivity.
>>> Database is available.
>>>
>>> You will archive the dir : ImagingUpload-18-36-mTrxXs
>>>
>>> You are creating a tar with the following command:
>>>
>>> tar -cf /data/loris/data/tarchive/ImagingUpload-18-36-mTrxXs.tar
>>> ImagingUpload-18-36-mTrxXs
>>>
>>>
>>> getting md5sums and gzipping!!
>>>
>>> * Taken from dir : /tmp/ImagingUpload-18-36-mTrxXs
>>> * Archive target location :
>>> /data/loris/data/tarchive/DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>> * Name of creating host : 127.0.1.1
>>> * Name of host OS : Linux
>>> * Created by user : lorisadmin
>>> * Archived on : 2019-09-06 18:36:50
>>> * dicomSummary version : 1
>>> * dicomTar version : 1
>>> * md5sum for DICOM tarball : b1dcdc8903dd2d9a5443227db2aa2814
>>> ImagingUpload-18-36-mTrxXs.tar
>>> * md5sum for DICOM tarball gzipped : aeae87f20155a6805f7e0cfe5212ea5f
>>> ImagingUpload-18-36-mTrxXs.tar.gz
>>> * md5sum for complete archive : 1d9258d1f077ebc49111ab7ba22a8d6e
>>> DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>
>>> Adding archive info into database
>>>
>>> Removing temporary files from target location
>>>
>>>
>>> Done adding archive info into database
>>>
>>> \/data\/loris\/bin\/mri\//uploadNeuroDB/tarchiveLoader.pl -globLocation
>>> -profile prod
>>> \/data\/loris\/data\/tarchive\/\/DCM_2016\-08\-22_ImagingUpload\-18\-36\-mTrxXs\.tar
>>> -uploadID 12 -verbose
>>> md5sum
>>> /data/loris/data/tarchive/DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>> PSCID is: DCC0001
>>> CandID id: 602102
>>> visit_label is: V1
>>> PSCID is: DCC0001
>>> CandID id: 602102
>>> visit_label is: V1
>>> candidate id 602102
>>> Set centerID = 1
>>> PSCID is: DCC0001
>>> CandID id: 602102
>>> visit_label is: V1
>>> PSCID is: DCC0001
>>> CandID id: 602102
>>> visit_label is: V1
>>>
>>> Number of MINC files that will be considered for inserting into the
>>> database: 2
>>>
>>> log dir is /data/loris/data//logs and log file is
>>> /data/loris/data//logs/TarLoad-18-37-31ajWx.log
>>> PSCID is: DCC0001
>>> CandID id: 602102
>>> visit_label is: V1
>>> PSCID is: DCC0001
>>> CandID id: 602102
>>> visit_label is: V1
>>> candidate id 602102
>>>
>>> log dir is /data/loris/data//logs and log file is
>>> /data/loris/data//logs/TarLoad-18-37-fanZFj.log
>>> PSCID is: DCC0001
>>> CandID id: 602102
>>> visit_label is: V1
>>> PSCID is: DCC0001
>>> CandID id: 602102
>>> visit_label is: V1
>>> candidate id 602102
>>>
>>> Cleaning up temp files: rm -rf
>>> /tmp/TarLoad-18-37-to5pYZ/ImagingUpload-18-36-mTrxXs*
>>>
>>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri$ cat
>>> /data/loris/data/logs/TarLoad-18-37-fanZFj.log
>>>
>>> ==> Loading file from disk
>>> /tmp/TarLoad-18-37-to5pYZ/dcc0001_602102_v1_20160822_072406_205e1d1_mri.mnc
>>>
>>> --> mapping DICOM parameter for
>>> /tmp/TarLoad-18-37-to5pYZ/dcc0001_602102_v1_20160822_072406_205e1d1_mri.mnc
>>>
>>> ==> computing md5 hash for MINC body.
>>>
>>> --> md5: 02022dda60d9de429340fec838f50cfe
>>>
>>> ==> verifying acquisition protocol
>>>
>>> Acquisition protocol is unknown
>>>
>>> --> The minc file cannot be registered since the AcquisitionProtocol
>>> is unknown
>>>
>>> Στις Τετ, 4 Σεπ 2019 στις 10:46 μ.μ., ο/η Christine Rogers, Ms. <
>>> christine.rogers at mcgill.ca> έγραψε:
>>>
>>>> Hi Sotirios:
>>>>
>>>> Sure -- you can delete imaging datasets with the
>>>> *delete_imaging_upload* script --
>>>> details here:
>>>> https://github.com/aces/Loris-MRI/blob/21.0-dev/docs/scripts_md/delete_imaging_upload.md
>>>>
>>>> What's in your *psc* table? (Is it properly populated? This is a
>>>> pre-requisite to loading imaging data.
>>>> <https://github.com/aces/Loris-MRI/blob/21.0-dev/docs/02-Install.md#221-database>
>>>> )
>>>> The foreign key constraint error on the candidate record is curious.
>>>>
>>>> There are also a few options for creating candidates when inserting
>>>> imaging data:
>>>>
>>>> -- Method 1 : in 2 steps with the API then DICOM insertion pipeline
>>>>
>>>> a. via the LORIS API -- Create the candidates (and visits, optionally I
>>>> think)
>>>> How to:
>>>> https://github.com/aces/Loris/blob/master/docs/API/LorisRESTAPI.md#30-candidate-api
>>>> Ensure you get the DCCID/CandID assigned by LORIS.
>>>>
>>>> Then as a second step:
>>>> b. Use the imaging insertion pipeline
>>>> <https://github.com/aces/Loris-MRI/blob/minor/docs/05-PipelineLaunchOptions.md#51---pipeline-launch-options-for-dicom-datasets>
>>>> to load your DICOMs.
>>>> You will want to first ensure that the PatientName header in the DICOMs
>>>> as well as tar package are correctly labelled with PSCID_DCCID_VisitLabel
>>>>
>>>> -- Method 2: for BIDS-format datasets:
>>>> How to :
>>>> https://github.com/aces/Loris-MRI/blob/master/docs/05-PipelineLaunchOptions.md#52---pipeline-launch-for-bids-datasets
>>>>
>>>> Be sure to use the *-c* and *-s* options when running the bids_import script,
>>>> to automatically create your candidates and sessions.
>>>>
>>>> Best,
>>>> Christine
>>>>
>>>> On Wed, Sep 4, 2019 at 11:43 AM Sotirios Nikoloutsopoulos <
>>>> sotirisnik at gmail.com> wrote:
>>>>
>>>>> How do i delete a Study? And everytime do i have to create a new
>>>>> candidate to get DCCID and a PSCID?
>>>>>
>>>>> *First execution:*
>>>>>
>>>>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri$ ./
>>>>> batch_uploads_imageuploader.pl -profile prod < ~/Desktop/input.txt >
>>>>> log.txt
>>>>> Use of uninitialized value $_ in pattern match (m//) at ./
>>>>> batch_uploads_imageuploader.pl line 144.
>>>>> DBD::mysql::db do failed: Cannot add or update a child row: a foreign
>>>>> key constraint fails (`LORIS`.`candidate`, CONSTRAINT `FK_candidate_1`
>>>>> FOREIGN KEY (`RegistrationCenterID`) REFERENCES `psc` (`CenterID`)) at
>>>>> /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRI.pm line 1060.
>>>>> ERROR: Failed to insert record in table mri_scanner:
>>>>> The following database commands failed:
>>>>> PREPARE s FROM 'INSERT INTO mri_scanner
>>>>> (CandID,Model,Software,Serial_number,Manufacturer) VALUES (?,?,?,?,?)';
>>>>> SET
>>>>> @x1='242126', at x2='Achieva', at x3='3.2.2\3.2.2.0', at x4='34037', at x5='Philips
>>>>> Medical Systems';
>>>>> EXECUTE s USING @x1, at x2, at x3, at x4, at x5;
>>>>> Error obtained:Cannot add or update a child row: a foreign key
>>>>> constraint fails (`LORIS`.`mri_scanner`, CONSTRAINT `FK_mri_scanner_1`
>>>>> FOREIGN KEY (`CandID`) REFERENCES `candidate` (`CandID`)) (error code 1452)
>>>>>
>>>>> ERROR: The validation has failed. Either re-run the validation again
>>>>> and fix the problem. Or re-run tarchiveLoader.pl using -force to force the
>>>>> execution.
>>>>>
>>>>>
>>>>> The tarchiveLoader.pl insertion script has failed.
>>>>> Can't exec "mail": No such file or directory at ./
>>>>> batch_uploads_imageuploader.pl line 249.
>>>>> print() on closed filehandle MAIL at ./batch_uploads_imageuploader.pl
>>>>> line 250.
>>>>> print() on closed filehandle MAIL at ./batch_uploads_imageuploader.pl
>>>>> line 251.
>>>>>
>>>>>
>>>>> *And second execution: *
>>>>>
>>>>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri$ ./
>>>>> batch_uploads_imageuploader.pl -profile prod < ~/Desktop/input.txt >
>>>>> log.txt
>>>>> Use of uninitialized value $_ in pattern match (m//) at ./
>>>>> batch_uploads_imageuploader.pl line 144.
>>>>>
>>>>> PROBLEM:
>>>>> The user 'lorisadmin' has already inserted this study.
>>>>> The unique study ID is '1.3.51.0.1.1.10.49.10.222.1422753.1420953'.
>>>>> This is the information retained from the first time the study was
>>>>> inserted:
>>>>>
>>>>> * Taken from dir : /tmp/ImagingUpload-18-33-Qq7HGy
>>>>> * Archive target location :
>>>>> /data/loris/data/tarchive/DCM_2012-12-05_ImagingUpload-18-33-Qq7HGy.tar
>>>>> * Name of creating host : 127.0.1.1
>>>>> * Name of host OS : Linux
>>>>> * Created by user : lorisadmin
>>>>> * Archived on : 2019-09-04 18:33:05
>>>>> * dicomSummary version : 1
>>>>> * dicomTar version : 1
>>>>> * md5sum for DICOM tarball :
>>>>> 4a301b0318178b09b91e63544282364d ImagingUpload-18-33-Qq7HGy.tar
>>>>> * md5sum for DICOM tarball gzipped :
>>>>> 9d95ea2b9111be236808bfd65d7e65ec ImagingUpload-18-33-Qq7HGy.tar.gz
>>>>> * md5sum for complete archive :
>>>>> ab19a86357f1d4053aa3b81c8a071053
>>>>> DCM_2012-12-05_ImagingUpload-18-33-Qq7HGy.tar
>>>>>
>>>>>
>>>>> Last update of record:
>>>>>
>>>>>
>>>>>
>>>>> The dicomTar.pl execution has failed.
>>>>> Can't exec "mail": No such file or directory at ./
>>>>> batch_uploads_imageuploader.pl line 249.
>>>>> print() on closed filehandle MAIL at ./batch_uploads_imageuploader.pl
>>>>> line 250.
>>>>> print() on closed filehandle MAIL at ./batch_uploads_imageuploader.pl
>>>>> line 251.
>>>>>
>>>>> Στις Τετ, 4 Σεπ 2019 στις 5:35 μ.μ., ο/η Christine Rogers, Ms. <
>>>>> christine.rogers at mcgill.ca> έγραψε:
>>>>>
>>>>>> Hi Sotirios,
>>>>>>
>>>>>> Ok, this sounds like good progress. Let us know when you next
>>>>>> encounter issues as you progress through the Imaging Install/Setup
>>>>>> docs
>>>>>> <https://github.com/aces/Loris-MRI/blob/minor/docs/02-Install.md>.
>>>>>> I'll look into how we can better handle the incoming/ directory next
>>>>>> time.
>>>>>> Best,
>>>>>> Christine
>>>>>>
>>>>>> On Wed, Sep 4, 2019 at 10:23 AM Sotirios Nikoloutsopoulos <
>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>
>>>>>>> /data/loris/bin/mri/dicom-archive/.loris_mri/database_config.py is
>>>>>>> populated correctly except its port is 'port' : ''. Also i have tested
>>>>>>> that i can connect to MySQL with lorisuser.
>>>>>>>
>>>>>>> I executed the script again, because the only error i had previously
>>>>>>> was that the /data/incoming folder didn't exist and there are no errors
>>>>>>> reported back except of warnings <<mysql: [Warning] Using a password on the
>>>>>>> command line interface can be insecure>>.
>>>>>>>
>>>>>>>
>>>>>>> Στις Τετ, 4 Σεπ 2019 στις 4:53 μ.μ., ο/η Christine Rogers, Ms. <
>>>>>>> christine.rogers at mcgill.ca> έγραψε:
>>>>>>>
>>>>>>>> Hi Sotirios,
>>>>>>>>
>>>>>>>> It's possible -- if the script was unable to connect to the
>>>>>>>> database during its execution (e.g. typo in the password), that would
>>>>>>>> explain the underpopulated Image path and Loris-MRI code path you saw in
>>>>>>>> the Config module.
>>>>>>>> It's hard to tell without seeing the output from your script run --
>>>>>>>> Did you see a sign of any such error?
>>>>>>>> The Config fields are populated by the imaging_install.sh script (starting
>>>>>>>> at line 222
>>>>>>>> <https://github.com/aces/Loris-MRI/blob/21.0-dev/imaging_install.sh#L222>
>>>>>>>> )
>>>>>>>>
>>>>>>>> For example, check if the database connection information was
>>>>>>>> populated accurately in $mridir
>>>>>>>> /dicom-archive/.loris_mri/database_config.py
>>>>>>>>
>>>>>>>> Best,
>>>>>>>> Christine
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> On Wed, Sep 4, 2019 at 9:34 AM Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>
>>>>>>>>> Hi Christine,
>>>>>>>>>
>>>>>>>>> If you are referring to the imaging_install.sh here is an image
>>>>>>>>> with the configurations i typed. Maybe the problem is somewhere at the last
>>>>>>>>> part which asks to configure as much as possible automatically?
>>>>>>>>>
>>>>>>>>> Thanks
>>>>>>>>>
>>>>>>>>>
>>>>>>>>> Στις Τετ, 4 Σεπ 2019 στις 4:16 μ.μ., ο/η Christine Rogers, Ms. <
>>>>>>>>> christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>>
>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>
>>>>>>>>>> Glad to hear your LORIS core install is up and working and all
>>>>>>>>>> the front-end pages are loading.
>>>>>>>>>>
>>>>>>>>>> > lorisadmin at loris-VirtualBox:/var/www/loris$ chmod 775 project
>>>>>>>>>> > and the web interface worked.
>>>>>>>>>>
>>>>>>>>>> Yes, it's important that project/ have 775 permissions and that
>>>>>>>>>> lorisadmin be part of the sudoers group, per step 1 in the
>>>>>>>>>> install Readme <https://github.com/aces/Loris#install-steps>.
>>>>>>>>>>
>>>>>>>>>> > As for the Paths, LORIS-MRI code and Image should change LORIS
>>>>>>>>>> to loris, right?
>>>>>>>>>>
>>>>>>>>>> These imaging paths will be updated during your imaging
>>>>>>>>>> installation <https://github.com/aces/Loris/wiki/Setup> by an
>>>>>>>>>> automated script -- you do not need to set them manually via the Config
>>>>>>>>>> module.
>>>>>>>>>> Please continue to follow the Setup Guide
>>>>>>>>>> <https://github.com/aces/Loris/wiki/Setup> for detailed steps to
>>>>>>>>>> follow.
>>>>>>>>>>
>>>>>>>>>> Best,
>>>>>>>>>> Christine
>>>>>>>>>>
>>>>>>>>>>
>>>>>>>>>>
>>>>>>>>>>
>>>>>>>>>> On Wed, Sep 4, 2019 at 8:05 AM Sotirios Nikoloutsopoulos <
>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>

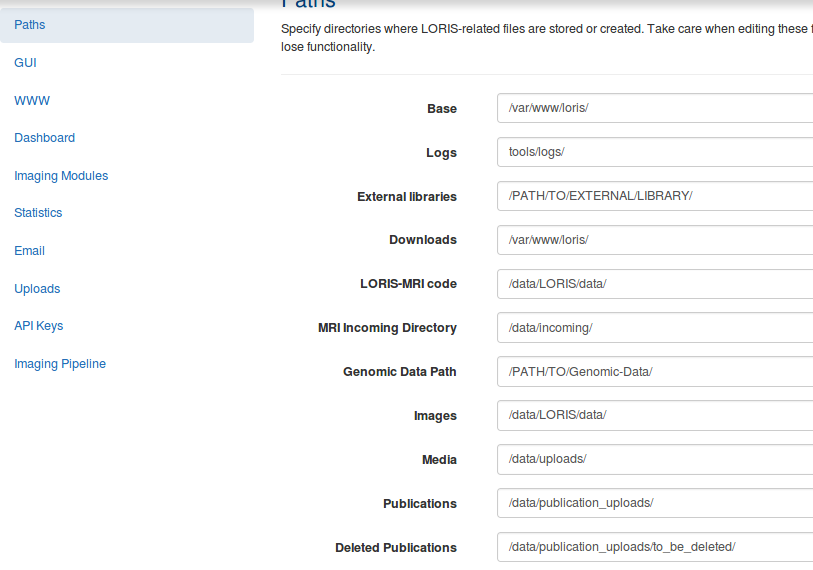

>>>>>>>>>>> As for the Paths, LORIS-MRI code and Image should change LORIS
>>>>>>>>>>> to loris, right?
>>>>>>>>>>>
>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>
>>>>>>>>>>>
>>>>>>>>>>> Στις Τετ, 4 Σεπ 2019 στις 2:28 μ.μ., ο/η Sotirios
>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>>>
>>>>>>>>>>>> Hi,
>>>>>>>>>>>>
>>>>>>>>>>>> i used
>>>>>>>>>>>>
>>>>>>>>>>>> curl -sL https://deb.nodesource.com/setup_8.x | sudo -E bash -
>>>>>>>>>>>> sudo apt-get install -y nodejs
>>>>>>>>>>>>
>>>>>>>>>>>>
>>>>>>>>>>>> you had suggested in the past, make worked and now i can see
>>>>>>>>>>>> all the contents in the web-interface, but i don't need make install?
>>>>>>>>>>>>
>>>>>>>>>>>> Thanks
>>>>>>>>>>>>
>>>>>>>>>>> _______________________________________________
>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>
>>>>>>>>>>
>>>>>>>>>>
>>>>>>>>>> --
>>>>>>>>>>
>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>
>>>>>>>>> _______________________________________________
>>>>>>>>> Loris-dev mailing list
>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> --
>>>>>>>>
>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>> Montreal Neurological Institute
>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>
>>>>>>> _______________________________________________
>>>>>>> Loris-dev mailing list
>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>
>>>>>>
>>>>>>
>>>>>> --
>>>>>>
>>>>>> christine.rogers at mcgill.ca
>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>> Montreal Neurological Institute
>>>>>> McGill University | Montreal | Canada
>>>>>>
>>>>>
>>>>
>>>> --
>>>>
>>>> christine.rogers at mcgill.ca
>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>> Montreal Neurological Institute
>>>> McGill University | Montreal | Canada
>>>>
>>> _______________________________________________
>>> Loris-dev mailing list
>>> Loris-dev at bic.mni.mcgill.ca
>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>
>>
>>
>> --
>>
>> christine.rogers at mcgill.ca
>> McGill Centre for Integrative Neuroscience | MCIN.ca
>> Montreal Neurological Institute
>> McGill University | Montreal | Canada
>>
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190907/9320aabc/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 61107 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190907/9320aabc/attachment-0006.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 42220 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190907/9320aabc/attachment-0007.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 29279 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190907/9320aabc/attachment-0008.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 78077 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190907/9320aabc/attachment-0009.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 5647 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190907/9320aabc/attachment-0010.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 5819 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190907/9320aabc/attachment-0011.png>
More information about the Loris-dev
mailing list
