[Loris-dev] Import mri - scripts
Cecile Madjar
cecile.madjar at mcin.ca
Tue Oct 1 09:21:16 EDT 2019
Hi Sotirios,
In the mri_upload table, there is a TarchiveID column associated with the
MRI upload you inserted. When this value is NULL, it means no DICOMs were
inserted into the tarchive tables. At the end of the insertion of the
DICOMs in the tarchive tables, this value is updated with the correct
TarchiveID associated with the upload.
Could this correspond to what you want to do?
Regarding the files_qcstatus, this table is only linked to the files table
(hence, the MINC files). You could always create a new table for
dicom_qcstatus and link it to the tarchive table?
Cécile
On Tue, Oct 1, 2019 at 6:56 AM Sotirios Nikoloutsopoulos <
sotirisnik at gmail.com> wrote:
> Hi,
>
> i would like whenever a dicom is imported to mark all their coressponding
> qc_status to "pass". I was thinking of creating a trigger for that, but
> which tables do i need to add entries to? So far from what i see i need to
> add entres at the table "files" whenever an insertion happens to
> files_qcstatus.
>
> Thanks
>
> Στις Δευ, 30 Σεπ 2019 στις 4:04 μ.μ., ο/η Sotirios Nikoloutsopoulos <
> sotirisnik at gmail.com> έγραψε:
>
>> Oh, sorry i should have asked for StudyID, at the beginning of my email i
>> sent 3 hours ago (not StudyUID).
>>
>> Στις Δευ, 30 Σεπ 2019 στις 3:55 μ.μ., ο/η Sotirios Nikoloutsopoulos <
>> sotirisnik at gmail.com> έγραψε:
>>
>>> Hi,
>>>

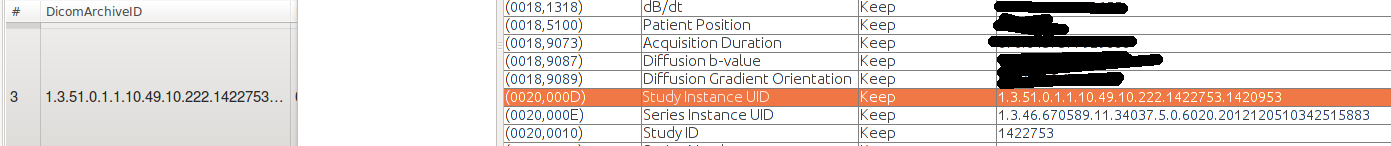

>>> that's the Study Instance UID, not the StudyID. So the StudyID i am
>>> looking for is not stored in the database?
>>>
>>> [image: image.png]
>>>
>>> Thanks.
>>>
>>> Στις Δευ, 30 Σεπ 2019 στις 3:38 μ.μ., ο/η Cecile Madjar <
>>> cecile.madjar at mcin.ca> έγραψε:
>>>
>>>> Hi Sotirios,
>>>>
>>>> The StudyUID is stored in the DicomArchiveID field of the
>>>> tarchive table. It can also be found in the metadata field but it is mixed
>>>> with many other information.
>>>>
>>>> Hope this helps,
>>>>
>>>> Cécile
>>>>
>>>> On Mon, Sep 30, 2019 at 6:00 AM Sotirios Nikoloutsopoulos <
>>>> sotirisnik at gmail.com> wrote:
>>>>
>>>>> Hi,
>>>>>
>>>>> Is StudyUID stored somewhere at the tables? At the tarchive table,
>>>>> specifically at the AcquisitonMetadata column i found something called
>>>>> 'Unique Study ID" in its context, but that must be the Study Instance UID.
>>>>>
>>>>> Thanks
>>>>>
>>>>> Στις Παρ, 27 Σεπ 2019 στις 4:22 μ.μ., ο/η Cecile Madjar <
>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>
>>>>>> Hi Sotirios,
>>>>>>
>>>>>> Your observation is correct. A little explanation below.
>>>>>>
>>>>>> MINC files get inserted into the MRI violation tables if:
>>>>>>
>>>>>> - the scan type could not be identified (not matching an entry in
>>>>>> the mri_protocol table)
>>>>>> - one parameter of the scan type is out of the expected range
>>>>>> present in the mri_protocol_checks (extra filtering in case you need to be
>>>>>> stricker on some parameters not present in the mri_protocol table)
>>>>>> - if the CandID and PSCID do not match
>>>>>>
>>>>>> The following cases do not get in the MRI violation tables as it
>>>>>> happens before the conversion of the DICOM to MINC files and only MINC
>>>>>> files violations are logged there:
>>>>>>
>>>>>> - "No single DICOM" (since no valid DICOM could be found to
>>>>>> convert to MINC)
>>>>>> - "Study already inserted" (duplicate StudyUID) since this error
>>>>>> happens at the dicomTar.pl level (way before conversion into MINC files)
>>>>>>
>>>>>> Glad everything is working out!!
>>>>>> Best,
>>>>>>
>>>>>> Cécile
>>>>>>
>>>>>> On Fri, Sep 27, 2019 at 6:17 AM Sotirios Nikoloutsopoulos <
>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>
>>>>>>> Hi,
>>>>>>>
>>>>>>> the mri passed, for some reason it consumed 5.12GB of ram. Now about
>>>>>>> the mri_violations, dicoms are triggered to be inserted there only if there
>>>>>>> is a violation for Tr_min, Tr_max, in general for its header parameter?
>>>>>>> Because i don't see the cases of 'No single dicom" or with the 2 studyiuid
>>>>>>> to be there.
>>>>>>>
>>>>>>> Thanks
>>>>>>>
>>>>>>> Στις Πέμ, 26 Σεπ 2019 στις 5:07 μ.μ., ο/η Cecile Madjar <
>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>
>>>>>>>> Hi Sotirios,
>>>>>>>>
>>>>>>>> Sorry to hear you are having issues with the memory. I think most
>>>>>>>> of our VMs are set up with 4GB of RAM so with 4GB you should be fine.
>>>>>>>>
>>>>>>>> Hope this helps!
>>>>>>>>
>>>>>>>> Cécile
>>>>>>>>
>>>>>>>> On Thu, Sep 26, 2019 at 9:48 AM Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>
>>>>>>>>> Hi,
>>>>>>>>>

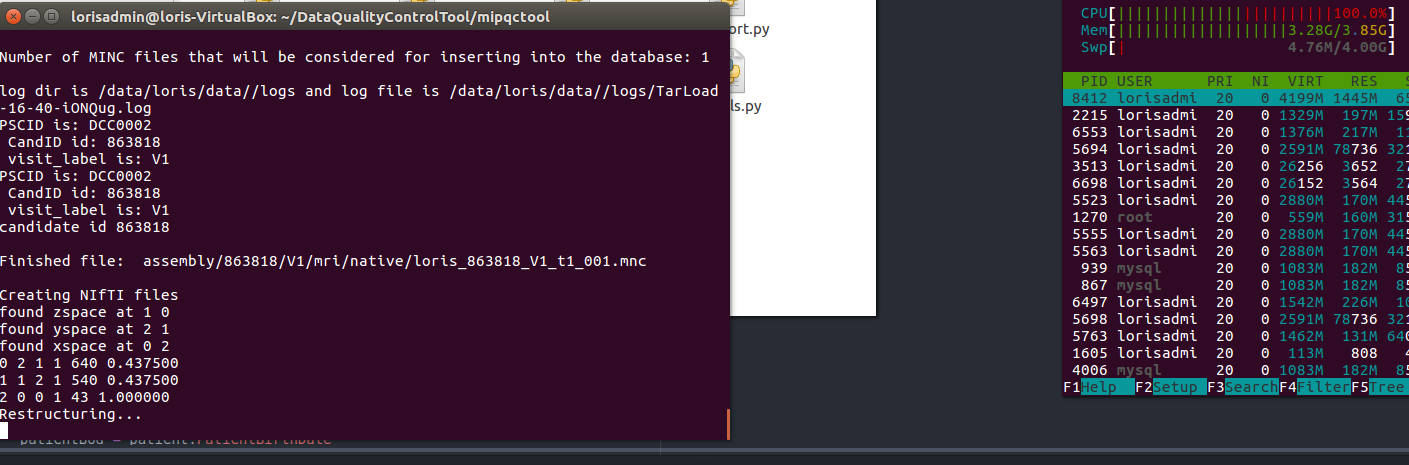

>>>>>>>>> about that dicom that had that insertion error it's about 30mb and
>>>>>>>>> when it is being processed the ram is being drastically increased from 2gb
>>>>>>>>> to 3.28 and then the whole virtual machine is frozen. What is the
>>>>>>>>> recommended size of ram for using Loris?
>>>>>>>>>
>>>>>>>>> Thanks
>>>>>>>>>
>>>>>>>>> [image: image.png]
>>>>>>>>>
>>>>>>>>>
>>>>>>>>> Στις Τρί, 24 Σεπ 2019 στις 11:24 μ.μ., ο/η Cecile Madjar <
>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>
>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>
>>>>>>>>>> Glad to see that the StudyUID problem was fixed!
>>>>>>>>>>
>>>>>>>>>> For the delete script issue, if you are absolutely certain that
>>>>>>>>>> no processes are run for that uploadID, you can update the mri_upload table
>>>>>>>>>> and set the column Inserting to 0 instead of 1 for that
>>>>>>>>>> uploadID. It looks like for some reason the scripts did not update this
>>>>>>>>>> field when it stopped the insertion. Not sure why that would be the case
>>>>>>>>>> though.
>>>>>>>>>> Note: only do that update if you are certain that there is no
>>>>>>>>>> processing happening.
>>>>>>>>>>
>>>>>>>>>> Hope this helps!
>>>>>>>>>>
>>>>>>>>>>
>>>>>>>>>> On Tue, Sep 24, 2019 at 11:57 AM Sotirios Nikoloutsopoulos <
>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>
>>>>>>>>>>> Hi,
>>>>>>>>>>>

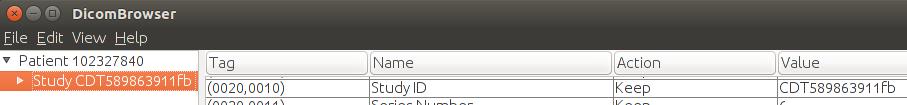

>>>>>>>>>>> about the Dicoms i reported that didn't have a StudyID they
>>>>>>>>>>> actually do
>>>>>>>>>>>
>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>
>>>>>>>>>>>
>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>
>>>>>>>>>>> I thought that this might be a permission because "w" was
>>>>>>>>>>> missing at the group. After using chmod -R 775 only 102809579 passed, but
>>>>>>>>>>> with no mnic files. Also now i have this error
>>>>>>>>>>>
>>>>>>>>>>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri/tools$
>>>>>>>>>>> ./delete_imaging_upload.pl -uploadID 34 -ignore
>>>>>>>>>>> Cannot delete upload 34: the MRI pipeline is currently
>>>>>>>>>>> processing it.
>>>>>>>>>>>
>>>>>>>>>>> How can solve this?
>>>>>>>>>>>
>>>>>>>>>>> Thanks
>>>>>>>>>>>
>>>>>>>>>>>
>>>>>>>>>>> Στις Τρί, 24 Σεπ 2019 στις 2:30 π.μ., ο/η Sotirios
>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>>>
>>>>>>>>>>>> Hi,
>>>>>>>>>>>>
>>>>>>>>>>>> Here is our auto dicom uploading python script:
>>>>>>>>>>>> https://github.com/aueb-wim/DataQualityControlTool/blob/loris1/mipqctool/dicom_uploader.py
>>>>>>>>>>>>
>>>>>>>>>>>> To give you a brief idea:
>>>>>>>>>>>> Per folder it will:
>>>>>>>>>>>> 1) Delete all the .bak files
>>>>>>>>>>>> 2) Locate .dcm files and update the Patient header
>>>>>>>>>>>> 3) Furthermore we are interesting in finding TR_min, TR_max,
>>>>>>>>>>>> TE_min, TE_max parameters of T1 protocol and do an update at the
>>>>>>>>>>>> mri_protocol table
>>>>>>>>>>>> https://github.com/aueb-wim/DataQualityControlTool/blob/loris1/mipqctool/dicom_uploader.py#L205
>>>>>>>>>>>> For some reason some files are missing
>>>>>>>>>>>> SeriesDescription/ProtocolName
>>>>>>>>>>>>

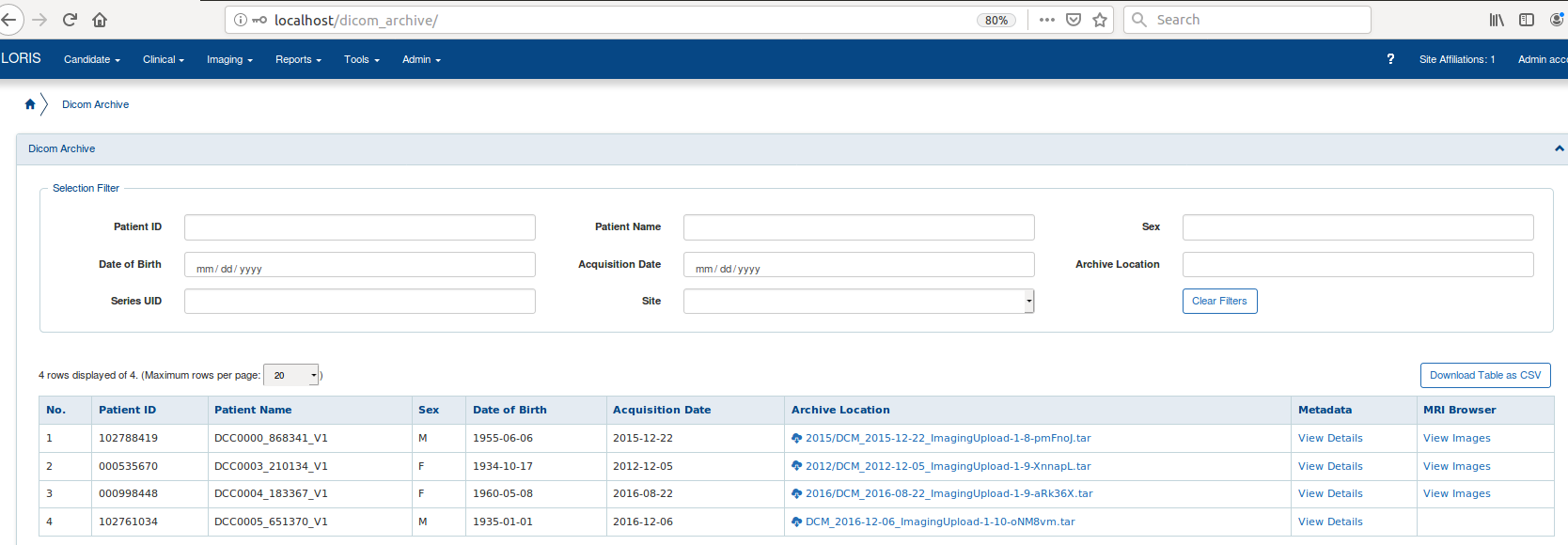

>>>>>>>>>>>> In total i have 7 folders
>>>>>>>>>>>>
>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>
>>>>>>>>>>>> 3/7 passed
>>>>>>>>>>>>
>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>
>>>>>>>>>>>> Also about the first patient with DC0000 had a violation "T1
>>>>>>>>>>>> AXIAL SE GADO", but my script didn't output a TE of 17 nowhere and i find
>>>>>>>>>>>> that weird since Loris detects the SeriesDescription.
>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>
>>>>>>>>>>>>
>>>>>>>>>>>> Now about the 4/7 that didn't passed
>>>>>>>>>>>>
>>>>>>>>>>>> 102327840 and 102809579 outputs "The target directory does not
>>>>>>>>>>>> contain a single DICOM file.", therefore they are missing their StudyUID
>>>>>>>>>>>>
>>>>>>>>>>>> 102506134 has 2 studyuid "You can't use it with data from
>>>>>>>>>>>> multiple studies."
>>>>>>>>>>>>
>>>>>>>>>>>> and 102761034 "No data could be converted into valid MINC
>>>>>>>>>>>> files. localizer, scout will not be considered!" What is this?
>>>>>>>>>>>>
>>>>>>>>>>>> If i wanted to force the insertion of 102327840, 102809579 and
>>>>>>>>>>>> 102506134 can i just pass a flag parameter to
>>>>>>>>>>>> batch_uploads_imageuploader.pl? or modify
>>>>>>>>>>>> imaging_upload_file.pl?
>>>>>>>>>>>>
>>>>>>>>>>>> Thank you,
>>>>>>>>>>>>
>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>
>>>>>>>>>>>> PS
>>>>>>>>>>>>
>>>>>>>>>>>> To diagnose a folder search the name of the folder at
>>>>>>>>>>>> dicom_output.txt.
>>>>>>>>>>>>
>>>>>>>>>>>> Στις Παρ, 20 Σεπ 2019 στις 4:54 μ.μ., ο/η Christine Rogers, Ms.
>>>>>>>>>>>> <christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>>>>>
>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>> Glad to hear about your progress.
>>>>>>>>>>>>>
>>>>>>>>>>>>> Yes, the script you used to delete imaging data is fully
>>>>>>>>>>>>> documented here
>>>>>>>>>>>>> <https://github.com/aces/Loris-MRI/blob/81bae73ea6e86c9498519dadf574468ee1d992ca/docs/scripts_md/delete_imaging_upload.md>
>>>>>>>>>>>>> -- let us know if you didn't find the answers you were looking for there.
>>>>>>>>>>>>> (Is it possible the null row in *mri_scanner* seen in your
>>>>>>>>>>>>> database management software is a visual placeholder for you as the user?
>>>>>>>>>>>>> I'm not sure why a scanner would ever be registered with ID='0' as your
>>>>>>>>>>>>> screenshot showed.)
>>>>>>>>>>>>>
>>>>>>>>>>>>> Best,
>>>>>>>>>>>>> Christine
>>>>>>>>>>>>>
>>>>>>>>>>>>> On Fri, Sep 20, 2019 at 9:45 AM Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>
>>>>>>>>>>>>>> I fixed it with this
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Στις Παρ, 20 Σεπ 2019 στις 4:37 μ.μ., ο/η Sotirios
>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> I tried to create a new candidate using the API, is there
>>>>>>>>>>>>>>> something wrong with the structure? why did i receive a 500 internal error?
>>>>>>>>>>>>>>> In the loris-error log it state that there is something wrong with token,
>>>>>>>>>>>>>>> but i verfied that the type of the token is a string.
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> [Fri Sep 20 16:35:26.874732 2019] [php7:error] [pid 4535]
>>>>>>>>>>>>>>> [client 127.0.0.1:59674] PHP Fatal error: Uncaught
>>>>>>>>>>>>>>> TypeError: Argument 1 passed to SinglePointLogin::JWTAuthenticate() must be
>>>>>>>>>>>>>>> of the type string, null given, called in
>>>>>>>>>>>>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc on line 169 and
>>>>>>>>>>>>>>> defined in
>>>>>>>>>>>>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc:192\nStack
>>>>>>>>>>>>>>> trace:\n#0 /var/www/loris/php/libraries/SinglePointLogin.class.inc(169):
>>>>>>>>>>>>>>> SinglePointLogin->JWTAuthenticate(NULL)\n#1
>>>>>>>>>>>>>>> /var/www/loris/php/libraries/NDB_Client.class.inc(171):
>>>>>>>>>>>>>>> SinglePointLogin->authenticate()\n#2
>>>>>>>>>>>>>>> /var/www/loris/htdocs/api/v0.0.2/APIBase.php(73):
>>>>>>>>>>>>>>> NDB_Client->initialize('/var/www/loris/...')\n#3
>>>>>>>>>>>>>>> /var/www/loris/htdocs/api/v0.0.2/Candidates.php(44):
>>>>>>>>>>>>>>> Loris\\API\\APIBase->__construct('POST')\n#4
>>>>>>>>>>>>>>> /var/www/loris/htdocs/api/v0.0.2/Candidates.php(244):
>>>>>>>>>>>>>>> Loris\\API\\Candidates->__construct('POST', Array)\n#5 {main}\n thrown in
>>>>>>>>>>>>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc on line 192
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Στις Παρ, 20 Σεπ 2019 στις 2:39 μ.μ., ο/η Sotirios
>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Is there a way also to delete candidates? Just to let you
>>>>>>>>>>>>>>>> know what i did to clear candidates, because maybe i may have missed
>>>>>>>>>>>>>>>> dependencies.
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> First i deleted all their uploads
>>>>>>>>>>>>>>>> ./delete_imaging_upload.pl -uploadID 13 etc ( is there a
>>>>>>>>>>>>>>>> way to omit the backup file ? )
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Afterwards i had some scanner candidates, so i deleted all
>>>>>>>>>>>>>>>> the entries from mri_scanner except that i couldn't delete this entry with
>>>>>>>>>>>>>>>> the 0 ID.
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Lastly i deleted the session and then the candidate table.
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Στις Πέμ, 19 Σεπ 2019 στις 7:57 μ.μ., ο/η Christine Rogers,
>>>>>>>>>>>>>>>> Ms. <christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> We recommend that you use our existing tools for creating
>>>>>>>>>>>>>>>>> new candidates - either the LORIS API or if you are using a PHP script, by
>>>>>>>>>>>>>>>>> calling the Candidate class's createNew()
>>>>>>>>>>>>>>>>> <https://github.com/aces/Loris/blob/master/php/libraries/Candidate.class.inc#L200>function.
>>>>>>>>>>>>>>>>> These will create the necessary records for you. (It's not recommended to
>>>>>>>>>>>>>>>>> make direct modifications to mysql database tables in your script, if I
>>>>>>>>>>>>>>>>> understand you.)
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> The CandID should be a randomized 6 digit randomized ID,
>>>>>>>>>>>>>>>>> and there are multiple reasons for this.
>>>>>>>>>>>>>>>>> You can use the PSCID for project-specific IDs and the
>>>>>>>>>>>>>>>>> External ID field in the candidate table can also be used for any values
>>>>>>>>>>>>>>>>> you like.
>>>>>>>>>>>>>>>>> Additionally, any number of custom IDs can be added in
>>>>>>>>>>>>>>>>> parallel - these are entered/visible in the Candidate Information module
>>>>>>>>>>>>>>>>> and added in the back-end as candidate parameters.
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>> Christine
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> On Tue, Sep 17, 2019 at 7:31 PM Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> We are building a script that will auto insert the
>>>>>>>>>>>>>>>>>> candidates based on their ExternalID. We would like to know whethere when
>>>>>>>>>>>>>>>>>> we are creating a new profile in the candidate table, if we also have to
>>>>>>>>>>>>>>>>>> insert a new record at another table? Furthermore is there a problem that
>>>>>>>>>>>>>>>>>> in our case CandID won't be a 6digit? ( should we start it from 100000?)
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Στις Παρ, 13 Σεπ 2019 στις 5:38 μ.μ., ο/η Melanie
>>>>>>>>>>>>>>>>>> Legault, Mrs <melanie.legault2 at mcgill.ca> έγραψε:
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> That would normally be the case but the numeric part of
>>>>>>>>>>>>>>>>>>> the PSCID get paded with 0 on the left.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Ex. for sequential ID made of center ID of `ABC` plus 4
>>>>>>>>>>>>>>>>>>> numerical char with a min value of 1, the sequence would be:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> ABC0001
>>>>>>>>>>>>>>>>>>> ABC0002
>>>>>>>>>>>>>>>>>>> ...
>>>>>>>>>>>>>>>>>>> ABC0010
>>>>>>>>>>>>>>>>>>> ...
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> thus sorting them ascending will always get the latest
>>>>>>>>>>>>>>>>>>> value generated as the max value.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Mélanie
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> ------------------------------
>>>>>>>>>>>>>>>>>>> *From:* Sotirios Nikoloutsopoulos <sotirisnik at gmail.com>
>>>>>>>>>>>>>>>>>>> *Sent:* September 13, 2019 10:15
>>>>>>>>>>>>>>>>>>> *To:* Melanie Legault, Mrs <melanie.legault2 at mcgill.ca>
>>>>>>>>>>>>>>>>>>> *Cc:* Christine Rogers, Ms. <christine.rogers at mcgill.ca>;
>>>>>>>>>>>>>>>>>>> loris-dev at bic.mni.mcgill.ca <loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>> *Subject:* Re: [Loris-dev] Import mri - scripts
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> I see, although the PSCID value is varchar(255), it must
>>>>>>>>>>>>>>>>>>> be stored within a specific length of characters. Otherwise if we were to
>>>>>>>>>>>>>>>>>>> sort strings with different lengths the result would not be sorted
>>>>>>>>>>>>>>>>>>> correctly ( e.x. 1,2,10,11 as strings would result to 1, 10, 11, 2 ).
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Παρ, 13 Σεπ 2019 στις 4:52 μ.μ., ο/η Melanie
>>>>>>>>>>>>>>>>>>> Legault, Mrs <melanie.legault2 at mcgill.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hello Sotirios,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> There is no `last value` stored anywhere.
>>>>>>>>>>>>>>>>>>> The code simply look for the PSCID with the max value
>>>>>>>>>>>>>>>>>>> and increase that value by 1 in order to generate the next PSCID.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hope this info help.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Mélanie Legault | Software developer | Faculty of
>>>>>>>>>>>>>>>>>>> Medicine | McGill University
>>>>>>>>>>>>>>>>>>> 3801 University, Montréal, QC H3A 2B4
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> ------------------------------
>>>>>>>>>>>>>>>>>>> *From:* loris-dev-bounces at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>> loris-dev-bounces at bic.mni.mcgill.ca> on behalf of
>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <sotirisnik at gmail.com>
>>>>>>>>>>>>>>>>>>> *Sent:* September 13, 2019 9:43
>>>>>>>>>>>>>>>>>>> *To:* Christine Rogers, Ms. <christine.rogers at mcgill.ca>
>>>>>>>>>>>>>>>>>>> *Cc:* loris-dev at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>> loris-dev at bic.mni.mcgill.ca>
>>>>>>>>>>>>>>>>>>> *Subject:* Re: [Loris-dev] Import mri - scripts
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> how does Loris determine the next available PSCID value
>>>>>>>>>>>>>>>>>>> for a new candidate?
>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/wiki/Project-Customization
>>>>>>>>>>>>>>>>>>> e.x in the default case the PSCID is sequential, but where do we store the
>>>>>>>>>>>>>>>>>>> last value for the sequential sequence?
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Τρί, 10 Σεπ 2019 στις 4:00 π.μ., ο/η Sotirios
>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> the parameters in the mri_protocol you have assigned are
>>>>>>>>>>>>>>>>>>> global standard? or were assigned after trial and error?
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Κυρ, 8 Σεπ 2019 στις 10:11 μ.μ., ο/η Christine
>>>>>>>>>>>>>>>>>>> Rogers, Ms. <christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Given you have done the initial setup of your tables to
>>>>>>>>>>>>>>>>>>> match your intended protocol/parameters according to instructions --
>>>>>>>>>>>>>>>>>>> the Troubleshooting guide documentation recommends
>>>>>>>>>>>>>>>>>>> <https://github.com/aces/Loris-MRI/blob/master/docs/AppendixA-Troubleshooting_guideline.md#a4-insertion-script-troubleshooting-notes>
>>>>>>>>>>>>>>>>>>> re-running the pipeline (and first deleting prior uploads).
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>>>> Christine
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> On Sun, Sep 8, 2019 at 10:22 AM Sotirios
>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> *if i were to change their status to resolve what would
>>>>>>>>>>>>>>>>>>> happen?
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Κυρ, 8 Σεπ 2019 στις 5:12 μ.μ., ο/η Sotirios
>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> I noticed that i can view the mnics at the brainbrowser
>>>>>>>>>>>>>>>>>>> from the mri_violations page ( those mnics are stored at
>>>>>>>>>>>>>>>>>>> /data/loris/data/trashbin/ if i were to click their issue to resolve what
>>>>>>>>>>>>>>>>>>> would happend? would they appear in the dicom_archive view too? ).
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Κυρ, 8 Σεπ 2019 στις 4:17 μ.μ., ο/η Sotirios
>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> The defaut values of the schema exists in my local
>>>>>>>>>>>>>>>>>>> database. If i adjust the default values of TR_min and TE_min the mincs
>>>>>>>>>>>>>>>>>>> will be uploaded?
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Σάβ, 7 Σεπ 2019 στις 5:48 μ.μ., ο/η Christine
>>>>>>>>>>>>>>>>>>> Rogers, Ms. <christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Is it possible that you haven't set up your mri_protocol
>>>>>>>>>>>>>>>>>>> table ? (and mri_scan_type table too, for additional types of scans)
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Like the psc table, this is a pre-requisite for the
>>>>>>>>>>>>>>>>>>> Imaging insertion setup : See the install/setup documentation :
>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/02-Install.md
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> To add new rows, just use MySQL insert statements. You
>>>>>>>>>>>>>>>>>>> can adapt the insert statements which load the default table values -->
>>>>>>>>>>>>>>>>>>> e.g. Here on GitHub :
>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/blob/master/SQL/0000-00-00-schema.sql#L718
>>>>>>>>>>>>>>>>>>> (see also the mri_scan_type table)
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>>>> Christine
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> On Fri, Sep 6, 2019 at 8:32 PM Sotirios Nikoloutsopoulos
>>>>>>>>>>>>>>>>>>> <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> I see that i can edit the values but not how to insert
>>>>>>>>>>>>>>>>>>> new rows.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> If i choose Inserted with flag then will the minc be
>>>>>>>>>>>>>>>>>>> inserted?
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Σάβ, 7 Σεπ 2019 στις 3:21 π.μ., ο/η Christine
>>>>>>>>>>>>>>>>>>> Rogers, Ms. <christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Glad to hear that *dcmodify* worked correctly.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> For the MRI Violations module, the screenshot is
>>>>>>>>>>>>>>>>>>> enough.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> It says "could not identify scan type", which we knew
>>>>>>>>>>>>>>>>>>> already. Did you click on the link on those words?
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> It will take you to the next page of the module, showing
>>>>>>>>>>>>>>>>>>> for each scan what the scan parameters were, and will also show for
>>>>>>>>>>>>>>>>>>> comparison what's stored in your *mri_protocol* table.
>>>>>>>>>>>>>>>>>>> Compare these values to find which parameter was not
>>>>>>>>>>>>>>>>>>> correct according to your *mri_protocol* table scan
>>>>>>>>>>>>>>>>>>> type definitions.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> You may end up broadening your mri_protocol value ranges
>>>>>>>>>>>>>>>>>>> (e.g. TR, TE) for scans.
>>>>>>>>>>>>>>>>>>> This can be done in the front-end, by editing the
>>>>>>>>>>>>>>>>>>> database table directly in the same subpage of the MRI Violations module.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> The MRI Violations module features are explained in more
>>>>>>>>>>>>>>>>>>> detail in the Help text for this module inside LORIS (click the ["?"] icon
>>>>>>>>>>>>>>>>>>> in the menu bar.)
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> See also: Loris-MRI troubleshooting guide
>>>>>>>>>>>>>>>>>>> <https://github.com/aces/Loris-MRI/blob/master/docs/AppendixA-Troubleshooting_guideline.md>
>>>>>>>>>>>>>>>>>>> : no MINCs inserted- violated scans
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>>>> Christine
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> On Fri, Sep 6, 2019 at 8:11 PM Sotirios Nikoloutsopoulos
>>>>>>>>>>>>>>>>>>> <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> looks like my previous email's attachment wasn't
>>>>>>>>>>>>>>>>>>> delivered due to security reasons, i uploaded my file at google drive
>>>>>>>>>>>>>>>>>>> https://drive.google.com/file/d/1U_TRbo_qGgfpQfs-SqeG9J3bMMqNfUU4/view?usp=sharing
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Σάβ, 7 Σεπ 2019 στις 3:02 π.μ., ο/η Sotirios
>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> From Dicat's view seems that dcmodify worked in both
>>>>>>>>>>>>>>>>>>> cases
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> For the mri_violations i attached the .html output from
>>>>>>>>>>>>>>>>>>> webbrowser, so that you can check the filelds easier.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Παρ, 6 Σεπ 2019 στις 7:49 μ.μ., ο/η Christine
>>>>>>>>>>>>>>>>>>> Rogers, Ms. <christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi Sotirios --
>>>>>>>>>>>>>>>>>>> Great, sounds like more progress.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> About the dcmodify command -- I'm not sure why you're
>>>>>>>>>>>>>>>>>>> getting an Endian warning. (it's a warning not an error, correct?)
>>>>>>>>>>>>>>>>>>> To clarify -- Were the DICOM headers (PatientName) all
>>>>>>>>>>>>>>>>>>> successfully relabelled, after the command ran?
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> You can use also our DICAT tool (
>>>>>>>>>>>>>>>>>>> https://github.com/aces/DICAT) to verify and/or update
>>>>>>>>>>>>>>>>>>> local DICOM headers -- though your dcmodify command is a great and fast
>>>>>>>>>>>>>>>>>>> solution for bulk header updates.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> If you're concerned about fields being changed (e.g.
>>>>>>>>>>>>>>>>>>> "(2001,105f)" from the warning message) - you can also dcmdump a DICOM
>>>>>>>>>>>>>>>>>>> slice before and look at these fields specifically.
>>>>>>>>>>>>>>>>>>> It's also not a bad "sanity check" to backup your DICOMS
>>>>>>>>>>>>>>>>>>> before/after running dcmodify, and use dcmdump on each version to diff the
>>>>>>>>>>>>>>>>>>> outputs -- this will pinpoint what changed.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Re the protocol violation -- AcquisitionProtocol not
>>>>>>>>>>>>>>>>>>> recognized or unknown : this means your scans did not match what is
>>>>>>>>>>>>>>>>>>> stored in your mri_protocol table.
>>>>>>>>>>>>>>>>>>> Check the MRI Violations front-end module -- can you see
>>>>>>>>>>>>>>>>>>> why they didn't match?
>>>>>>>>>>>>>>>>>>> Send us an example, in addition to the contents of the
>>>>>>>>>>>>>>>>>>> mri_protocol table, if you can't find the source of the mismatch.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>>>> Christine
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> On Fri, Sep 6, 2019 at 12:04 PM Sotirios
>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Here is the psc table
>>>>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> I created 2 candidates profiles through the interface
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> then runned dcmodify command to a dicom file
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> dcmodify -ma PatientName="DCC0000_258024_V1"
>>>>>>>>>>>>>>>>>>> /home/lorisadmin/DICOMS/000535670/501/*.dcm
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> and got those warning: is this okay?
>>>>>>>>>>>>>>>>>>> W: Found element (2001,105f) with VR UN and undefined
>>>>>>>>>>>>>>>>>>> length, reading a sequence with transfer syntax LittleEndianImplicit
>>>>>>>>>>>>>>>>>>> (CP-246)
>>>>>>>>>>>>>>>>>>> W: Found element (2005,1083) with VR UN and undefined
>>>>>>>>>>>>>>>>>>> length, reading a sequence with transfer syntax LittleEndianImplicit
>>>>>>>>>>>>>>>>>>> (CP-246)
>>>>>>>>>>>>>>>>>>> W: Found element (2005,1402) with VR UN and undefined
>>>>>>>>>>>>>>>>>>> length, reading a sequence with transfer syntax LittleEndianImplicit
>>>>>>>>>>>>>>>>>>> (CP-246)
>>>>>>>>>>>>>>>>>>> W: Found element (2005,140f) with VR UN and undefined
>>>>>>>>>>>>>>>>>>> length, reading a sequence with transfer syntax LittleEndianImplicit
>>>>>>>>>>>>>>>>>>> (CP-246)
>>>>>>>>>>>>>>>>>>> W: Found element (2001,105f) with VR UN and undefined
>>>>>>>>>>>>>>>>>>> length, reading a sequence with transfer syntax LittleEndianImplicit
>>>>>>>>>>>>>>>>>>> (CP-246)
>>>>>>>>>>>>>>>>>>> W: Found element (2005,1083) with VR UN and undefined
>>>>>>>>>>>>>>>>>>> length, reading a sequence with transfer syntax LittleEndianImplicit
>>>>>>>>>>>>>>>>>>> (CP-246)
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> dcmodify at another Dicom didn't show warnings. Below
>>>>>>>>>>>>>>>>>>> you can see the execution for the second dicom. Mnics could not be inserted
>>>>>>>>>>>>>>>>>>> due to AcquisitionProtocol being unknown.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Running now the following command:
>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri//uploadNeuroDB/
>>>>>>>>>>>>>>>>>>> imaging_upload_file.pl -profile prod -upload_id 12
>>>>>>>>>>>>>>>>>>> /data/incoming/DCC0001_602102_V1.tar.gz -verbose
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> find -path \/tmp\/ImagingUpload\-18\-36\-mTrxXs -name
>>>>>>>>>>>>>>>>>>> '__MACOSX' -delete
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> dicomTar.pl \/tmp\/ImagingUpload\-18\-36\-mTrxXs
>>>>>>>>>>>>>>>>>>> \/data\/loris\/data\/tarchive\/ -database -profile prod -verbose
>>>>>>>>>>>>>>>>>>> Source: /tmp/ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>> Target: /data/loris/data/tarchive
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Testing for database connectivity.
>>>>>>>>>>>>>>>>>>> Database is available.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> You will archive the dir : ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> You are creating a tar with the following command:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> tar -cf
>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>> ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> getting md5sums and gzipping!!
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> * Taken from dir :
>>>>>>>>>>>>>>>>>>> /tmp/ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>> * Archive target location :
>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>> * Name of creating host : 127.0.1.1
>>>>>>>>>>>>>>>>>>> * Name of host OS : Linux
>>>>>>>>>>>>>>>>>>> * Created by user : lorisadmin
>>>>>>>>>>>>>>>>>>> * Archived on : 2019-09-06
>>>>>>>>>>>>>>>>>>> 18:36:50
>>>>>>>>>>>>>>>>>>> * dicomSummary version : 1
>>>>>>>>>>>>>>>>>>> * dicomTar version : 1
>>>>>>>>>>>>>>>>>>> * md5sum for DICOM tarball :
>>>>>>>>>>>>>>>>>>> b1dcdc8903dd2d9a5443227db2aa2814 ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>> * md5sum for DICOM tarball gzipped :
>>>>>>>>>>>>>>>>>>> aeae87f20155a6805f7e0cfe5212ea5f ImagingUpload-18-36-mTrxXs.tar.gz
>>>>>>>>>>>>>>>>>>> * md5sum for complete archive :
>>>>>>>>>>>>>>>>>>> 1d9258d1f077ebc49111ab7ba22a8d6e
>>>>>>>>>>>>>>>>>>> DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Adding archive info into database
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Removing temporary files from target location
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Done adding archive info into database
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> \/data\/loris\/bin\/mri\//uploadNeuroDB/tarchiveLoader.pl
>>>>>>>>>>>>>>>>>>> -globLocation -profile prod
>>>>>>>>>>>>>>>>>>> \/data\/loris\/data\/tarchive\/\/DCM_2016\-08\-22_ImagingUpload\-18\-36\-mTrxXs\.tar
>>>>>>>>>>>>>>>>>>> -uploadID 12 -verbose
>>>>>>>>>>>>>>>>>>> md5sum
>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>> CandID id: 602102
>>>>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>>>>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>> CandID id: 602102
>>>>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>>>>> candidate id 602102
>>>>>>>>>>>>>>>>>>> Set centerID = 1
>>>>>>>>>>>>>>>>>>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>> CandID id: 602102
>>>>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>>>>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>> CandID id: 602102
>>>>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Number of MINC files that will be considered for
>>>>>>>>>>>>>>>>>>> inserting into the database: 2
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> log dir is /data/loris/data//logs and log file is
>>>>>>>>>>>>>>>>>>> /data/loris/data//logs/TarLoad-18-37-31ajWx.log
>>>>>>>>>>>>>>>>>>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>> CandID id: 602102
>>>>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>>>>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>> CandID id: 602102
>>>>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>>>>> candidate id 602102
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> log dir is /data/loris/data//logs and log file is
>>>>>>>>>>>>>>>>>>> /data/loris/data//logs/TarLoad-18-37-fanZFj.log
>>>>>>>>>>>>>>>>>>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>> CandID id: 602102
>>>>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>>>>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>> CandID id: 602102
>>>>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>>>>> candidate id 602102
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Cleaning up temp files: rm -rf
>>>>>>>>>>>>>>>>>>> /tmp/TarLoad-18-37-to5pYZ/ImagingUpload-18-36-mTrxXs*
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri$
>>>>>>>>>>>>>>>>>>> cat /data/loris/data/logs/TarLoad-18-37-fanZFj.log
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> ==> Loading file from disk
>>>>>>>>>>>>>>>>>>> /tmp/TarLoad-18-37-to5pYZ/dcc0001_602102_v1_20160822_072406_205e1d1_mri.mnc
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> --> mapping DICOM parameter for
>>>>>>>>>>>>>>>>>>> /tmp/TarLoad-18-37-to5pYZ/dcc0001_602102_v1_20160822_072406_205e1d1_mri.mnc
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> ==> computing md5 hash for MINC body.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> --> md5: 02022dda60d9de429340fec838f50cfe
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> ==> verifying acquisition protocol
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Acquisition protocol is unknown
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> --> The minc file cannot be registered since the
>>>>>>>>>>>>>>>>>>> AcquisitionProtocol is unknown
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Τετ, 4 Σεπ 2019 στις 10:46 μ.μ., ο/η Christine
>>>>>>>>>>>>>>>>>>> Rogers, Ms. <christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi Sotirios:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Sure -- you can delete imaging datasets with the
>>>>>>>>>>>>>>>>>>> *delete_imaging_upload* script --
>>>>>>>>>>>>>>>>>>> details here:
>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/21.0-dev/docs/scripts_md/delete_imaging_upload.md
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> What's in your *psc* table? (Is it properly populated? This
>>>>>>>>>>>>>>>>>>> is a pre-requisite to loading imaging data.
>>>>>>>>>>>>>>>>>>> <https://github.com/aces/Loris-MRI/blob/21.0-dev/docs/02-Install.md#221-database>
>>>>>>>>>>>>>>>>>>> )
>>>>>>>>>>>>>>>>>>> The foreign key constraint error on the candidate record
>>>>>>>>>>>>>>>>>>> is curious.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> There are also a few options for creating candidates
>>>>>>>>>>>>>>>>>>> when inserting imaging data:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> -- Method 1 : in 2 steps with the API then DICOM
>>>>>>>>>>>>>>>>>>> insertion pipeline
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> a. via the LORIS API -- Create the candidates (and
>>>>>>>>>>>>>>>>>>> visits, optionally I think)
>>>>>>>>>>>>>>>>>>> How to:
>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/blob/master/docs/API/LorisRESTAPI.md#30-candidate-api
>>>>>>>>>>>>>>>>>>> Ensure you get the DCCID/CandID assigned by LORIS.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Then as a second step:
>>>>>>>>>>>>>>>>>>> b. Use the imaging insertion pipeline
>>>>>>>>>>>>>>>>>>> <https://github.com/aces/Loris-MRI/blob/minor/docs/05-PipelineLaunchOptions.md#51---pipeline-launch-options-for-dicom-datasets>
>>>>>>>>>>>>>>>>>>> to load your DICOMs.
>>>>>>>>>>>>>>>>>>> You will want to first ensure that the PatientName
>>>>>>>>>>>>>>>>>>> header in the DICOMs as well as tar package are correctly labelled with
>>>>>>>>>>>>>>>>>>> PSCID_DCCID_VisitLabel
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> -- Method 2: for BIDS-format datasets:
>>>>>>>>>>>>>>>>>>> How to :
>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/05-PipelineLaunchOptions.md#52---pipeline-launch-for-bids-datasets
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Be sure to use the *-c* and *-s* options when running
>>>>>>>>>>>>>>>>>>> the bids_import script, to automatically create your
>>>>>>>>>>>>>>>>>>> candidates and sessions.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>>>> Christine
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> On Wed, Sep 4, 2019 at 11:43 AM Sotirios
>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> How do i delete a Study? And everytime do i have to
>>>>>>>>>>>>>>>>>>> create a new candidate to get DCCID and a PSCID?
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> *First execution:*
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri$
>>>>>>>>>>>>>>>>>>> ./batch_uploads_imageuploader.pl -profile prod <
>>>>>>>>>>>>>>>>>>> ~/Desktop/input.txt > log.txt
>>>>>>>>>>>>>>>>>>> Use of uninitialized value $_ in pattern match (m//) at
>>>>>>>>>>>>>>>>>>> ./batch_uploads_imageuploader.pl line 144.
>>>>>>>>>>>>>>>>>>> DBD::mysql::db do failed: Cannot add or update a child
>>>>>>>>>>>>>>>>>>> row: a foreign key constraint fails (`LORIS`.`candidate`, CONSTRAINT
>>>>>>>>>>>>>>>>>>> `FK_candidate_1` FOREIGN KEY (`RegistrationCenterID`) REFERENCES `psc`
>>>>>>>>>>>>>>>>>>> (`CenterID`)) at /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRI.pm line 1060.
>>>>>>>>>>>>>>>>>>> ERROR: Failed to insert record in table mri_scanner:
>>>>>>>>>>>>>>>>>>> The following database commands failed:
>>>>>>>>>>>>>>>>>>> PREPARE s FROM 'INSERT INTO mri_scanner
>>>>>>>>>>>>>>>>>>> (CandID,Model,Software,Serial_number,Manufacturer) VALUES (?,?,?,?,?)';
>>>>>>>>>>>>>>>>>>> SET
>>>>>>>>>>>>>>>>>>> @x1='242126', at x2='Achieva', at x3='3.2.2\3.2.2.0', at x4='34037', at x5='Philips
>>>>>>>>>>>>>>>>>>> Medical Systems';
>>>>>>>>>>>>>>>>>>> EXECUTE s USING @x1, at x2, at x3, at x4, at x5;
>>>>>>>>>>>>>>>>>>> Error obtained:Cannot add or update a child row: a
>>>>>>>>>>>>>>>>>>> foreign key constraint fails (`LORIS`.`mri_scanner`, CONSTRAINT
>>>>>>>>>>>>>>>>>>> `FK_mri_scanner_1` FOREIGN KEY (`CandID`) REFERENCES `candidate`
>>>>>>>>>>>>>>>>>>> (`CandID`)) (error code 1452)
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> ERROR: The validation has failed. Either re-run the
>>>>>>>>>>>>>>>>>>> validation again and fix the problem. Or re-run tarchiveLoader.pl using
>>>>>>>>>>>>>>>>>>> -force to force the execution.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> The tarchiveLoader.pl insertion script has failed.
>>>>>>>>>>>>>>>>>>> Can't exec "mail": No such file or directory at ./
>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl line 249.
>>>>>>>>>>>>>>>>>>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl line 250.
>>>>>>>>>>>>>>>>>>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl line 251.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> *And second execution: *
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri$
>>>>>>>>>>>>>>>>>>> ./batch_uploads_imageuploader.pl -profile prod <
>>>>>>>>>>>>>>>>>>> ~/Desktop/input.txt > log.txt
>>>>>>>>>>>>>>>>>>> Use of uninitialized value $_ in pattern match (m//) at
>>>>>>>>>>>>>>>>>>> ./batch_uploads_imageuploader.pl line 144.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> PROBLEM:
>>>>>>>>>>>>>>>>>>> The user 'lorisadmin' has already inserted this study.
>>>>>>>>>>>>>>>>>>> The unique study ID is
>>>>>>>>>>>>>>>>>>> '1.3.51.0.1.1.10.49.10.222.1422753.1420953'.
>>>>>>>>>>>>>>>>>>> This is the information retained from the first time the
>>>>>>>>>>>>>>>>>>> study was inserted:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> * Taken from dir :
>>>>>>>>>>>>>>>>>>> /tmp/ImagingUpload-18-33-Qq7HGy
>>>>>>>>>>>>>>>>>>> * Archive target location :
>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/DCM_2012-12-05_ImagingUpload-18-33-Qq7HGy.tar
>>>>>>>>>>>>>>>>>>> * Name of creating host : 127.0.1.1
>>>>>>>>>>>>>>>>>>> * Name of host OS : Linux
>>>>>>>>>>>>>>>>>>> * Created by user : lorisadmin
>>>>>>>>>>>>>>>>>>> * Archived on : 2019-09-04
>>>>>>>>>>>>>>>>>>> 18:33:05
>>>>>>>>>>>>>>>>>>> * dicomSummary version : 1
>>>>>>>>>>>>>>>>>>> * dicomTar version : 1
>>>>>>>>>>>>>>>>>>> * md5sum for DICOM tarball :
>>>>>>>>>>>>>>>>>>> 4a301b0318178b09b91e63544282364d ImagingUpload-18-33-Qq7HGy.tar
>>>>>>>>>>>>>>>>>>> * md5sum for DICOM tarball gzipped :
>>>>>>>>>>>>>>>>>>> 9d95ea2b9111be236808bfd65d7e65ec ImagingUpload-18-33-Qq7HGy.tar.gz
>>>>>>>>>>>>>>>>>>> * md5sum for complete archive :
>>>>>>>>>>>>>>>>>>> ab19a86357f1d4053aa3b81c8a071053
>>>>>>>>>>>>>>>>>>> DCM_2012-12-05_ImagingUpload-18-33-Qq7HGy.tar
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Last update of record:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> The dicomTar.pl execution has failed.
>>>>>>>>>>>>>>>>>>> Can't exec "mail": No such file or directory at ./
>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl line 249.
>>>>>>>>>>>>>>>>>>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl line 250.
>>>>>>>>>>>>>>>>>>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl line 251.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Τετ, 4 Σεπ 2019 στις 5:35 μ.μ., ο/η Christine
>>>>>>>>>>>>>>>>>>> Rogers, Ms. <christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Ok, this sounds like good progress. Let us know when
>>>>>>>>>>>>>>>>>>> you next encounter issues as you progress through the Imaging
>>>>>>>>>>>>>>>>>>> Install/Setup docs
>>>>>>>>>>>>>>>>>>> <https://github.com/aces/Loris-MRI/blob/minor/docs/02-Install.md>
>>>>>>>>>>>>>>>>>>> .
>>>>>>>>>>>>>>>>>>> I'll look into how we can better handle the incoming/
>>>>>>>>>>>>>>>>>>> directory next time.
>>>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>>>> Christine
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> On Wed, Sep 4, 2019 at 10:23 AM Sotirios
>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/dicom-archive/.loris_mri/database_config.py
>>>>>>>>>>>>>>>>>>> is populated correctly except its port is 'port' : ''. Also i have
>>>>>>>>>>>>>>>>>>> tested that i can connect to MySQL with lorisuser.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> I executed the script again, because the only error i
>>>>>>>>>>>>>>>>>>> had previously was that the /data/incoming folder didn't exist and there
>>>>>>>>>>>>>>>>>>> are no errors reported back except of warnings <<mysql: [Warning] Using a
>>>>>>>>>>>>>>>>>>> password on the command line interface can be insecure>>.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Τετ, 4 Σεπ 2019 στις 4:53 μ.μ., ο/η Christine
>>>>>>>>>>>>>>>>>>> Rogers, Ms. <christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> It's possible -- if the script was unable to connect to
>>>>>>>>>>>>>>>>>>> the database during its execution (e.g. typo in the password), that would
>>>>>>>>>>>>>>>>>>> explain the underpopulated Image path and Loris-MRI code path you saw in
>>>>>>>>>>>>>>>>>>> the Config module.
>>>>>>>>>>>>>>>>>>> It's hard to tell without seeing the output from your
>>>>>>>>>>>>>>>>>>> script run -- Did you see a sign of any such error?
>>>>>>>>>>>>>>>>>>> The Config fields are populated by the
>>>>>>>>>>>>>>>>>>> imaging_install.sh script (starting at line 222
>>>>>>>>>>>>>>>>>>> <https://github.com/aces/Loris-MRI/blob/21.0-dev/imaging_install.sh#L222>
>>>>>>>>>>>>>>>>>>> )
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> For example, check if the database connection
>>>>>>>>>>>>>>>>>>> information was populated accurately in $mridir
>>>>>>>>>>>>>>>>>>> /dicom-archive/.loris_mri/database_config.py
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>>>> Christine
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> On Wed, Sep 4, 2019 at 9:34 AM Sotirios Nikoloutsopoulos
>>>>>>>>>>>>>>>>>>> <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi Christine,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> If you are referring to the imaging_install.sh here is
>>>>>>>>>>>>>>>>>>> an image with the configurations i typed. Maybe the problem is somewhere at
>>>>>>>>>>>>>>>>>>> the last part which asks to configure as much as possible automatically?
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Τετ, 4 Σεπ 2019 στις 4:16 μ.μ., ο/η Christine
>>>>>>>>>>>>>>>>>>> Rogers, Ms. <christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Glad to hear your LORIS core install is up and working
>>>>>>>>>>>>>>>>>>> and all the front-end pages are loading.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> > lorisadmin at loris-VirtualBox:/var/www/loris$ chmod 775
>>>>>>>>>>>>>>>>>>> project
>>>>>>>>>>>>>>>>>>> > and the web interface worked.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Yes, it's important that project/ have 775 permissions
>>>>>>>>>>>>>>>>>>> and that lorisadmin be part of the sudoers group, per step
>>>>>>>>>>>>>>>>>>> 1 in the install Readme
>>>>>>>>>>>>>>>>>>> <https://github.com/aces/Loris#install-steps>.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> > As for the Paths, LORIS-MRI code and Image should
>>>>>>>>>>>>>>>>>>> change LORIS to loris, right?
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> These imaging paths will be updated during your imaging
>>>>>>>>>>>>>>>>>>> installation <https://github.com/aces/Loris/wiki/Setup> by
>>>>>>>>>>>>>>>>>>> an automated script -- you do not need to set them manually via the Config
>>>>>>>>>>>>>>>>>>> module.
>>>>>>>>>>>>>>>>>>> Please continue to follow the Setup Guide
>>>>>>>>>>>>>>>>>>> <https://github.com/aces/Loris/wiki/Setup> for detailed
>>>>>>>>>>>>>>>>>>> steps to follow.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>>>> Christine
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> On Wed, Sep 4, 2019 at 8:05 AM Sotirios Nikoloutsopoulos
>>>>>>>>>>>>>>>>>>> <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> As for the Paths, LORIS-MRI code and Image should change
>>>>>>>>>>>>>>>>>>> LORIS to loris, right?
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Τετ, 4 Σεπ 2019 στις 2:28 μ.μ., ο/η Sotirios
>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> i used
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> curl -sL https://deb.nodesource.com/setup_8.x | sudo -E bash -
>>>>>>>>>>>>>>>>>>> sudo apt-get install -y nodejs
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> you had suggested in the past, make worked and now i can
>>>>>>>>>>>>>>>>>>> see all the contents in the web-interface, but i don't need make install?
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> --
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>>>>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> --
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>>>>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> --
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>>>>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> --
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>>>>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> --
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>>>>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> --
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>>>>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> --
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>>>>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> --
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>>>>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> --
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>
>>>>>>>>>>>>>
>>>>>>>>>>>>>
>>>>>>>>>>>>> --
>>>>>>>>>>>>>
>>>>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>>>>
>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>
>>>>>>>>>>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191001/2a680888/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 14615 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191001/2a680888/attachment-0007.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 78106 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191001/2a680888/attachment-0008.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 51135 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191001/2a680888/attachment-0009.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 23443 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191001/2a680888/attachment-0010.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 10443 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191001/2a680888/attachment-0011.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 175139 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191001/2a680888/attachment-0012.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 42208 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191001/2a680888/attachment-0013.png>
More information about the Loris-dev
mailing list
