[Loris-dev] Import mri - scripts
Sotirios Nikoloutsopoulos
sotirisnik at gmail.com
Tue Dec 10 12:21:28 EST 2019
Hi,
i opened an issue and looked up for the values of Volume they suggested
https://github.com/BIC-MNI/minc-toolkit-v2/issues/95. The only attributes
associated with it i saw are [0x00089206] and [0x00089207]
[image: image.png]
I looked up for the file that was being viewed fine in the BrainBrowser and
saw that it had that attribute empty so i used this command because i
couldn't find a way to modify the attribute via pydicom
dcmodify -ma "(0008,9206)=" *.dcm
and that command reported the warning about the Endian Syntax. I also used
the corresponding command for 9207 and got the message "Tag not found'
Lastly I tried to upload some dicoms and now i am getting the SNR and i can
view them fine. I believe now that all of them will pass successfully, i
will report back later.
Thanks,
Sotirios
Στις Δευ, 9 Δεκ 2019 στις 8:10 μ.μ., ο/η Cecile Madjar <
cecile.madjar at mcin.ca> έγραψε:
> Hi Sotirios,
>
> The issue you are having is a indeed a dcm2mnc issue. The converter does
> not seem to work on your dataset for some reason. Unfortunately, there is
> not much we can do on our front to fix this...
>
> I would recommend creating an issue on the MINC tools repository
> <https://github.com/BIC-MNI/minc-toolkit-v2/issues> so they can fix your
> problem.
>
> Very sorry that you are having that problem.
>
> Best,
>
> Cécile
>
> On Wed, Dec 4, 2019 at 8:59 AM Cecile Madjar <cecile.madjar at mcin.ca>
> wrote:
>
>> Hi Sotirios,
>>
>> Could you please share a dataset with us that produces the error you get
>> and the weird display in BrainBrowser? You could use the same SFTP
>> credential that Nicolas gave you.
>>
>> The message errors you got from imaging_install.sh are probably due to
>> the fact that you reran the install script and it tried to reinstall
>> something that was already there. I would not worry about it. FYI, the only
>> thing you needed to do was to update the MINC tools path in the environment
>> file as you did after re-running imaging_install.sh and source the
>> environment file.
>>
>> Best,
>>
>> Cécile
>>
>> On Wed, Dec 4, 2019 at 8:03 AM Sotirios Nikoloutsopoulos <
>> sotirisnik at gmail.com> wrote:
>>
>>> Hi Cecile,
>>>
>>> We used minctool 1.9.7 and we still get this error
>>>
>>> <<Restructuring...
>>> gsl: bessel_I0.c:216: ERROR: overflow
>>> Default GSL error handler invoked.
>>> noise_estimate --snr /data/loris/data>>
>>>
>>
>>> One dicom folder hadn't that error and is being viewed fine in the
>>> BrainBrowser of Loris.
>>>
>>
>>> When i used dpkg to the 1.9.17 the installation reported fine
>>> <<Unpacking minc-toolkit-v2 (1.9.17) over (1.9.16) ...>>
>>>
>>> and then i used source /opt/minc/1.9.17/minc-toolkit-config.sh
>>>
>>> and aftewards runned bash ./imaging_install.sh just to be sure.
>>>
>>> We also had to modify /data/loris/bin/mri/environment because it still
>>> pointed to the old version.
>>>
>>> What i found strange is this during the run of imaging_install.sh
>>>
>>> <<already using interpreter
>>> /data/loris/bin/mri/python_virtualenvs/loris-mri-python/bin/python3
>>> Please use the *system* python to run this script
>>> Traceback (most recent call last):
>>> File "/usr/local/lib/python3.5/dist-packages/virtualenv.py", line
>>> 2632, in <module>
>>> main()
>>> File "/usr/local/lib/python3.5/dist-packages/virtualenv.py", line 870,
>>> in main
>>> symlink=options.symlink,
>>> File "/usr/local/lib/python3.5/dist-packages/virtualenv.py", line
>>> 1156, in create_environment
>>> install_python(home_dir, lib_dir, inc_dir, bin_dir,
>>> site_packages=site_packages, clear=clear, symlink=symlink)
>>> File
>>> "/data/loris/bin/mri/python_virtualenvs/loris-mri-python/lib/python3.5/posixpath.py",
>>> line 357, in abspath
>>> if not isabs(path):
>>> File
>>> "/data/loris/bin/mri/python_virtualenvs/loris-mri-python/lib/python3.5/posixpath.py",
>>> line 64, in isabs
>>> return s.startswith(sep)
>>> AttributeError: 'NoneType' object has no attribute 'startswith'
>>> Installing the Python libraries into the loris-mri virtualenv...
>>> Requirement already satisfied: mysqlclient in
>>> ./python_virtualenvs/loris-mri-python/lib/python3.5/site-packages (1.4.4)
>>> Requirement already satisfied: mysql-connector in
>>> ./python_virtualenvs/loris-mri-python/lib/python3.5/site-packages (2.2.9)
>>> Requirement already satisfied: pybids in
>>> ./python_virtualenvs/loris-mri-python/lib/python3.5/site-packages (0.9.4)
>>> Requirement already satisfied: nibabel>=2.1 in ./python_virtua>>
>>>
>>> So should i open an issue for that error? or is there something else to
>>> try?
>>>
>>> Thanks
>>>
>>> Sotirios
>>>
>>>
>>>
>>>
>>>
>>> Στις Τρί, 3 Δεκ 2019 στις 10:39 μ.μ., ο/η Cecile Madjar <
>>> cecile.madjar at mcin.ca> έγραψε:
>>>
>>>> Hi Sotirios,
>>>>
>>>> Does the pic screenshot in the imaging browser module also shows 1
>>>> slice? If so, that would mean there was an issue with the dcm2mnc
>>>> conversion. Once again, installing the latest version of the MINC tools
>>>> should help but if this issue persists I would recommend creating an issue
>>>> for that too on their repository
>>>> <https://github.com/BIC-MNI/minc-toolkit-v2/issues> (if not already
>>>> reported there, there are a few known issue reported).
>>>>
>>>> Other viewer for MINCs are register and Display (both part of the MINC
>>>> tools). For NIfTI, you have FSLeye, MRICron and probably many other viewers
>>>> that exists.
>>>>
>>>> Hope this helps,
>>>>
>>>> Cécile
>>>>
>>>> On Tue, Dec 3, 2019 at 3:26 PM Sotirios Nikoloutsopoulos <
>>>> sotirisnik at gmail.com> wrote:
>>>>
>>>>> Hi Cecile,
>>>>>
>>>>> Yes, Nifti files are mandatory for our work. From what we saw at a 3rd
>>>>> vm we setted up, the nifti files are being created ( i haven't verified if
>>>>> that is the case at the 2nd vm ). I will install the latest version and
>>>>> will report back, but do you know any nifti/minc viewer? because the
>>>>> Brainbrowser of Loris does not output them well, it's like it is loading
>>>>> only 1 slice and we would like to verify it with another tool too. We
>>>>> verified that the dcmconv command didn't affect the quality of the
>>>>> .dcm files.
>>>>>
>>>>> Thanks,
>>>>>
>>>>> Sotirios
>>>>>
>>>>> Στις Δευ, 2 Δεκ 2019 στις 6:59 μ.μ., ο/η Cecile Madjar <
>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>
>>>>>> Hi Sotirios,
>>>>>>
>>>>>> It looks like for some reason your binary mnc2nii is not working and
>>>>>> reports that error. Do you want to create NIfTI files or are you happy with
>>>>>> just the MINC files?
>>>>>>
>>>>>> If you don't need the NIfTI files, then maybe you can set the Config
>>>>>> setting "NIfTI file creation" to No instead of Yes and this error
>>>>>> will not appear anymore.
>>>>>>
>>>>>> If you need the NIfTI files to be created, then I would
>>>>>> recommend installing the latest version of the MINC tools (1.9.17). They
>>>>>> can be found there:
>>>>>>
>>>>>> - pre-built packages:
>>>>>> https://packages.bic.mni.mcgill.ca/minc-toolkit/
>>>>>> - from the source code with installation instructions in the
>>>>>> README: https://github.com/BIC-MNI/minc-toolkit-v2
>>>>>>
>>>>>> If the problem persists by using the latest release of MINC tools,
>>>>>> then create an issue on Github for the MINC developers here
>>>>>> <https://github.com/BIC-MNI/minc-toolkit-v2/issues>.
>>>>>>
>>>>>> Hope this helps,
>>>>>>
>>>>>> Cécile
>>>>>>
>>>>>> On Fri, Nov 29, 2019 at 8:06 PM Sotirios Nikoloutsopoulos <
>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>
>>>>>>> Hi Cecile,
>>>>>>>
>>>>>>> Thanks to Nicholas i was able to create all the mincs images. The
>>>>>>> problem was that the files were in Little-Endian-Implicit transfer syntax
>>>>>>> and i had to convert them Little-Endian-Explicit transfer syntax with this
>>>>>>> command
>>>>>>>
>>>>>>> find <root_of_my_DICOM_files_directory> -type f | xargs -i
>>>>>>> dcmconv --write-xfer-little {} {}
>>>>>>>
>>>>>>>
>>>>>>> Looking back at our mails i saw that Little-Endian error had
>>>>>>> occurred when i used dcmodify, but i switcthed to using pydicom instead.
>>>>>>>
>>>>>>>
>>>>>>> [image: image.png]
>>>>>>>
>>>>>>>
>>>>>>> In the output i see an error sometimes about "gsl: bessel_I0.c:216:
>>>>>>> ERROR: overflow". Is this okay?
>>>>>>>
>>>>>>> Restructuring...
>>>>>>> gsl: bessel_I0.c:216: ERROR: overflow
>>>>>>> Default GSL error handler invoked.
>>>>>>> noise_estimate --snr
>>>>>>> /data/loris/data//assembly/959679/V1/mri/native/loris_959679_V1_t1_001.mnc
>>>>>>> SNR is:
>>>>>>> gsl: bessel_I0.c:216: ERROR: overflow
>>>>>>> Default GSL error handler invoked.
>>>>>>>
>>>>>>> Thanks,
>>>>>>>
>>>>>>> Sotirios
>>>>>>>
>>>>>>>
>>>>>>> Στις Τετ, 27 Νοε 2019 στις 4:29 μ.μ., ο/η Cecile Madjar <
>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>
>>>>>>>> Hi Sotirios,
>>>>>>>>
>>>>>>>> Thank you for the details!
>>>>>>>>
>>>>>>>> A few things to try:
>>>>>>>>
>>>>>>>> - modify the TMPDIR to be on your /data directory where there
>>>>>>>> might be more space to do processing (could create a /data/tmp where the
>>>>>>>> temporary files would be created)
>>>>>>>> - how many files are there for that upload in tarchive_files?
>>>>>>>> Are they different from the ones showing the warning message?
>>>>>>>> - FYI: query to get that: SELECT tf.* FROM tarchive_files tf
>>>>>>>> JOIN mri_upload USING (TarchiveID) WHERE UploadID=<your uploadID> (the
>>>>>>>> output of that query would be very useful if you can provide it)
>>>>>>>> - how many series are there for that upload in
>>>>>>>> tarchive_series?
>>>>>>>> - FYI: query to get that: SELECT ts.* FROM tarchive_series ts
>>>>>>>> JOIN mri_upload USING (TarchiveID) WHERE UploadID=<your uploadID> (the
>>>>>>>> output of that query would be very useful if you can provide it)
>>>>>>>> - things are failing when the scripts try running the following
>>>>>>>> command: find
>>>>>>>> /tmp/TarLoad-23-43-ccugaa/ImagingUpload-23-43-6JCOTO -type f |
>>>>>>>> /data/loris/bin/mri/dicom-archive/get_dicom_info.pl -studyuid
>>>>>>>> -series -echo -image -file -attvalue 0018 0024 -series_descr -stdin | sort
>>>>>>>> -n -k1 -k2 -k7 -k3 -k6 -k4 | cut -f 5 | dcm2mnc -dname '' -stdin -clobber
>>>>>>>> -usecoordinates /tmp/TarLoad-23-43-ccugaa
>>>>>>>> - clearly the problems come from get_dicom_info.pl but I
>>>>>>>> cannot pinpoint the error yet. I will ask around and get back to you
>>>>>>>>
>>>>>>>> If I cannot figure it out remotely, is there a way to have a call
>>>>>>>> using zoom? This way you could share your screen with me and run the
>>>>>>>> debugger on that script and hopefully we can figure out what is going on
>>>>>>>> with those datasets?
>>>>>>>>
>>>>>>>> Thanks!
>>>>>>>>
>>>>>>>> Cécile
>>>>>>>>
>>>>>>>> On Tue, Nov 26, 2019 at 5:17 PM Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>
>>>>>>>>> Hi Cecile,
>>>>>>>>>
>>>>>>>>> In both my virtual machines
>>>>>>>>> export TMPDIR=/tmp
>>>>>>>>>

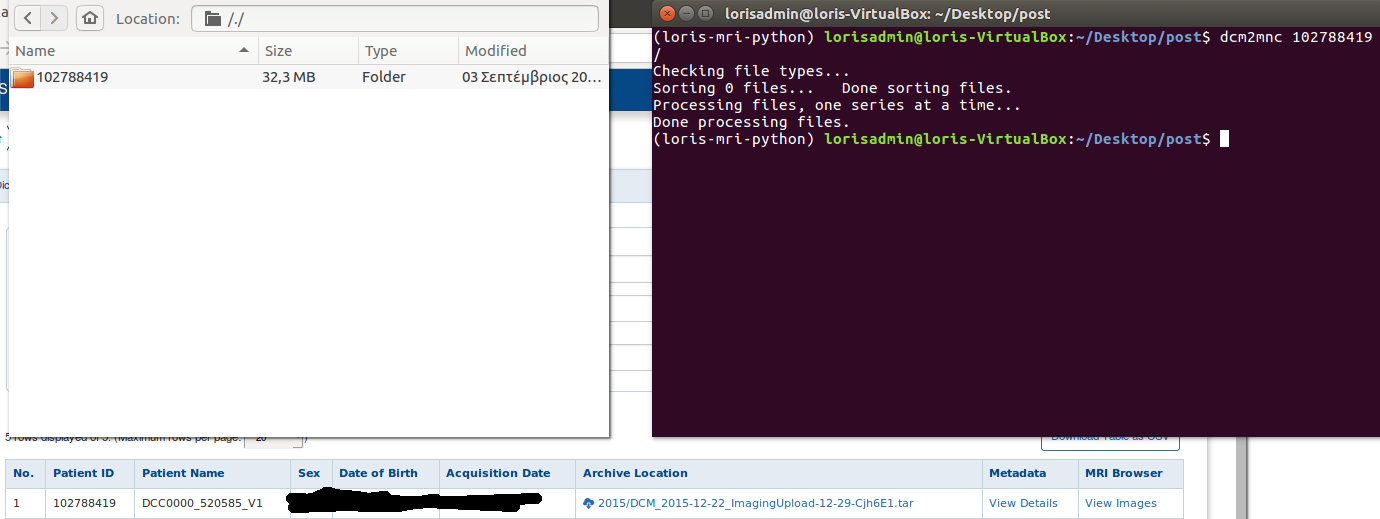

>>>>>>>>> In both vm also with dcm2mnc i get this output. Just to verify
>>>>>>>>> that this passed in my 1st vm and produced mincs.
>>>>>>>>>
>>>>>>>>> I attached the spool as a csv.
>>>>>>>>>
>>>>>>>>> [image: image.png]
>>>>>>>>>
>>>>>>>>> And also one difference i found was this in the Loris-mri code (
>>>>>>>>> left 1st workable vm, right 2nd vm that has to be fixed, although i changed
>>>>>>>>> it seems to be independent of the uninitialized value $_ )
>>>>>>>>>
>>>>>>>>>
>>>>>>>>> [image: image.png]
>>>>>>>>>
>>>>>>>>> Thanks,
>>>>>>>>>
>>>>>>>>> Sotirios
>>>>>>>>>
>>>>>>>>>
>>>>>>>>>
>>>>>>>>>
>>>>>>>>> Στις Τρί, 26 Νοε 2019 στις 11:34 μ.μ., ο/η Cecile Madjar <
>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>
>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>
>>>>>>>>>> that is puzzling... A few additional questions:
>>>>>>>>>>
>>>>>>>>>> - what is the bash variable TMPDIR set to on the environment
>>>>>>>>>> file?
>>>>>>>>>> - could you try running separately dcm2mnc on the DICOM
>>>>>>>>>> folder to see if that works?
>>>>>>>>>> - could you send us the detailed log from the notification
>>>>>>>>>> spool table (SELECT * FROM notification_spool WHERE UploadID=<your
>>>>>>>>>> uploadID>) and send it back to us? Maybe there are some additional clues
>>>>>>>>>> that could help figuring out what is going on.
>>>>>>>>>>
>>>>>>>>>> Thank you!
>>>>>>>>>>
>>>>>>>>>> Cécile
>>>>>>>>>>
>>>>>>>>>> On Tue, Nov 26, 2019 at 10:12 AM Sotirios Nikoloutsopoulos <
>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>
>>>>>>>>>>> Hi Cecile,
>>>>>>>>>>>
>>>>>>>>>>> I checked for the StudyInstacueUID at the files with "The target
>>>>>>>>>>> directory does not contain a single DICOM file"" and their attribute has a
>>>>>>>>>>> value.
>>>>>>>>>>>
>>>>>>>>>>> Regarding the scouter and localizer, i modified the settings in
>>>>>>>>>>> the imaging pipeline and now i don't get that error message, but still it
>>>>>>>>>>> doesn't create the mnics.
>>>>>>>>>>>
>>>>>>>>>>> The errors i am getting are ( uninitialized value $_ is not
>>>>>>>>>>> important? because i haven't got comments about that )
>>>>>>>>>>>
>>>>>>>>>>> Use of uninitialized value $_ in pattern match (m//) at
>>>>>>>>>>> /data/loris/bin/mri/batch_uploads_imageuploader.pl line 144.
>>>>>>>>>>> Running now the following command:
>>>>>>>>>>> /data/loris/data//uploadNeuroDB/imaging_upload_file.pl -profile
>>>>>>>>>>> prod -upload_id 134 /data/incoming/DCC0025_118008_V1.tar.gz -verbose
>>>>>>>>>>>
>>>>>>>>>>> and
>>>>>>>>>>>
>>>>>>>>>>> Number of MINC files that will be considered for inserting into
>>>>>>>>>>> the database: 0
>>>>>>>>>>>
>>>>>>>>>>> No data could be converted into valid MINC files.
>>>>>>>>>>>
>>>>>>>>>>> The tarchiveLoader.pl insertion script has failed.
>>>>>>>>>>> Use of uninitialized value $mail_user in concatenation (.) or
>>>>>>>>>>> string at /data/loris/bin/mri/batch_uploads_imageuploader.pl
>>>>>>>>>>> line 249.
>>>>>>>>>>> Can't exec "mail": No such file or directory at
>>>>>>>>>>> /data/loris/bin/mri/batch_uploads_imageuploader.pl line 249.
>>>>>>>>>>> print() on closed filehandle MAIL at /data/loris/bin/mri/
>>>>>>>>>>> batch_uploads_imageuploader.pl line 250.
>>>>>>>>>>> print() on closed filehandle MAIL at /data/loris/bin/mri/
>>>>>>>>>>> batch_uploads_imageuploader.pl line 251.
>>>>>>>>>>>
>>>>>>>>>>> Thanks
>>>>>>>>>>>
>>>>>>>>>>> Sotirios
>>>>>>>>>>>
>>>>>>>>>>> Στις Δευ, 25 Νοε 2019 στις 5:22 μ.μ., ο/η Cecile Madjar <
>>>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>
>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>
>>>>>>>>>>>> OK. So the issue I mentioned should not be a problem for you.
>>>>>>>>>>>>
>>>>>>>>>>>> Is the StudyInstanceUID DICOM header set in your images? If it
>>>>>>>>>>>> is not set, then you would end up with the error message "The target
>>>>>>>>>>>> directory does not contain a single DICOM file". So maybe this is the issue
>>>>>>>>>>>> you are having with those datasets?
>>>>>>>>>>>>
>>>>>>>>>>>> Regarding not excluding series descriptions, you can configure
>>>>>>>>>>>> that in the Config module under the Imaging Pipeline section. Simply remove
>>>>>>>>>>>> all entries for the "Series description to exclude from imaging insertion"
>>>>>>>>>>>> setting.
>>>>>>>>>>>>
>>>>>>>>>>>> Cécile
>>>>>>>>>>>>
>>>>>>>>>>>> On Mon, Nov 25, 2019 at 9:58 AM Sotirios Nikoloutsopoulos <
>>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>
>>>>>>>>>>>>> Hi Cecile,
>>>>>>>>>>>>>
>>>>>>>>>>>>> We are using this version
>>>>>>>>>>>>> https://github.com/aces/Loris/archive/v21.0.0.zip. Is it
>>>>>>>>>>>>> possible to insert low resolution now?
>>>>>>>>>>>>>
>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>
>>>>>>>>>>>>> On Mon, 25 Nov 2019, 16:53 Cecile Madjar, <
>>>>>>>>>>>>> cecile.madjar at mcin.ca> wrote:
>>>>>>>>>>>>>
>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Which version of LORIS-MRI are you using?
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> There was a bug that got resolved in 20.2 in
>>>>>>>>>>>>>> get_dicom_info.pl. Basically, if a DICOM did not have the
>>>>>>>>>>>>>> (0020,0032) header, get_dicom_info.pl considered that the
>>>>>>>>>>>>>> file was not a DICOM, which was a mistake. This got fixed in version 20.2
>>>>>>>>>>>>>> of LORIS-MRI. Hopefully this is the issue you are encountering.
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> About scout and localizer, they are a type of short and low
>>>>>>>>>>>>>> resolution sequence that is used by the tech but is of no interest
>>>>>>>>>>>>>> scientifically, which is why we tend to no insert them.
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Hope this helps,
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> On Sat, Nov 23, 2019 at 7:28 PM Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Hi Cecile,
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> i executed the find command and the output i got per folder
>>>>>>>>>>>>>>> was "DICOM medical imaging data. Maybe there is something wrong with the
>>>>>>>>>>>>>>> find command in the warning that it is unable to check if the file is a
>>>>>>>>>>>>>>> dicom file? Also when i use get_dicom_info.pl i don't get
>>>>>>>>>>>>>>> any output data. Finally i don't understand what scout or localizer is (
>>>>>>>>>>>>>>> something like if and only if a file fails then the whole session is
>>>>>>>>>>>>>>> invalid? ).
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Στις Τρί, 19 Νοε 2019 στις 9:40 μ.μ., ο/η Cecile Madjar <
>>>>>>>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> I took a closer look to the
>>>>>>>>>>>>>>>> batch_uploader_multiple_output.txt file you sent. It looks like there are
>>>>>>>>>>>>>>>> different reasons for failure depending on the DICOM folder uploaded.
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> - For 465466 DCC0000 V1; 727195 DCC0004 V1 and 684908
>>>>>>>>>>>>>>>> DCC0007 V1: it looks like there is no file of type DICOM in the folder.
>>>>>>>>>>>>>>>> Have you checked to see if that is indeed the case? Maybe you can try
>>>>>>>>>>>>>>>> running the following command on that folder to see what are the types of
>>>>>>>>>>>>>>>> the files? If it does not return at least one DICOM medical imaging data
>>>>>>>>>>>>>>>> file, then that is why you get the error message from the pipeline:
>>>>>>>>>>>>>>>> -
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> find <my_dicom_archive_root_folder> -type f | xargs -i file {}|cut -d: -f2|sort|uniq
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> - For 864173 DCC0001 V1: it looks like there are two
>>>>>>>>>>>>>>>> different DICOM studies within the same folder. You will need to split that
>>>>>>>>>>>>>>>> study in two based on the StudyUID field as the insertion pipeline does not
>>>>>>>>>>>>>>>> allow for more than one StudyUID per upload.
>>>>>>>>>>>>>>>> - For 890807 DCC0002 V1; 637025 DCC0005 V1 and 239975
>>>>>>>>>>>>>>>> DCC0006 V1: it looks like the dcm2mnc command did not produce any MINC
>>>>>>>>>>>>>>>> files. Can you check in the DICOM archive what are the series present in
>>>>>>>>>>>>>>>> the tarchive for that visit? Maybe only a scout or localizer was acquired
>>>>>>>>>>>>>>>> for that session, hence the no valid MINC files (scout and localizer being
>>>>>>>>>>>>>>>> skipped for the conversion)
>>>>>>>>>>>>>>>> - For 397410 DCC0003 V1: it looks like everything went
>>>>>>>>>>>>>>>> well for this one.
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> One script that is called by our pipeline is called
>>>>>>>>>>>>>>>> get_dicom_info.pl and this does all kind of checks on the
>>>>>>>>>>>>>>>> DICOM files (it is being called when running the dcm2mnc conversion). You
>>>>>>>>>>>>>>>> could run it independently on your folder if needed.
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Since one of the study got in, it does not look like you
>>>>>>>>>>>>>>>> are having a problem with the setup. It seems more likely to be a problem
>>>>>>>>>>>>>>>> with the data themselves.
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Hope this helps.
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> On Wed, Nov 13, 2019 at 5:56 PM Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Hi Christine,
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> In my first vm i am able to create the minc files and view
>>>>>>>>>>>>>>>>> them at the mri browser (except of candidate 102761034 ), meanwhile the
>>>>>>>>>>>>>>>>> same files gives warnings at the 2nd vm. The output of the batch upload
>>>>>>>>>>>>>>>>> can be seen in the file attached.
>>>>>>>>>>>>>>>>> Also a colleague of us has built a pre-validation tool for
>>>>>>>>>>>>>>>>> dicom https://github.com/aueb-wim/DataQualityControlTool/
>>>>>>>>>>>>>>>>> which had found all the files that Loris gave as warning . Basically I
>>>>>>>>>>>>>>>>> confirmed that the total amount of files per dicom was the same amount as
>>>>>>>>>>>>>>>>> stated in Loris and checked some filenames given from warning to confirm
>>>>>>>>>>>>>>>>> that they match with our tool. But that was months ago and my colleague had
>>>>>>>>>>>>>>>>> changed some parameters for MIP and now our tool doesn't find all the
>>>>>>>>>>>>>>>>> invalid files, that's why i asked for the dicom header specification of
>>>>>>>>>>>>>>>>> Loris. In a discussion we had he mentioned that he doesn't check for some
>>>>>>>>>>>>>>>>> tags e.x. orientation. Lastly to mention that in my first vm i didn't use
>>>>>>>>>>>>>>>>> our tool to remove invalid dcm files.
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Στις Τετ, 13 Νοε 2019 στις 11:45 μ.μ., ο/η Christine
>>>>>>>>>>>>>>>>> Rogers, Ms. <christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>> Can you provide us with some fresh particulars of the
>>>>>>>>>>>>>>>>>> current issue and we'll take it from there?
>>>>>>>>>>>>>>>>>> Yang's team has built these scripts which can definitely
>>>>>>>>>>>>>>>>>> serve as a model for your pre-validation of your DICOM collections.
>>>>>>>>>>>>>>>>>> cheers,
>>>>>>>>>>>>>>>>>> Christine
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> On Wed, Nov 13, 2019 at 4:23 PM Sotirios Nikoloutsopoulos
>>>>>>>>>>>>>>>>>> <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> HI Yang,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> We make use of pydicom library too. Now about the
>>>>>>>>>>>>>>>>>>> validate.py i see that you check if some attributes are missing such as
>>>>>>>>>>>>>>>>>>> PatientID, PatientName which all of our files contains that info. Maybe i
>>>>>>>>>>>>>>>>>>> have missed something on the setup of my other virtual machine ( although
>>>>>>>>>>>>>>>>>>> one dicom passed on the new vm successfully, the others that were inserted
>>>>>>>>>>>>>>>>>>> correctly on my old vm fails on the new one ), i think that i had asked
>>>>>>>>>>>>>>>>>>> about this error "Use of uninitialized value $_ in pattern match (m//) at
>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/batch_uploads_imageuploader.pl line
>>>>>>>>>>>>>>>>>>> 144." but i don't remember the solution.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Τετ, 13 Νοε 2019 στις 5:45 π.μ., ο/η Yang Ding <
>>>>>>>>>>>>>>>>>>> it at cnbp.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Hey, Sotirios,
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Christine from the LORIS team mentioned you had some
>>>>>>>>>>>>>>>>>>>> issue with DICOM. I am a fellow developer for an external project using
>>>>>>>>>>>>>>>>>>>> LORIS, kind of just like you. We had to implement DICOM upload as well but
>>>>>>>>>>>>>>>>>>>> more as a fully automated pipeline actually.
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> While we were building CNBP, we had coded up some minor
>>>>>>>>>>>>>>>>>>>> Python functions to check DICOM integrity (and simple validations) and you
>>>>>>>>>>>>>>>>>>>> might be able to gain some inspiration from it and help you with your
>>>>>>>>>>>>>>>>>>>> cause. For more comprehensive solution, PyDICOM (
>>>>>>>>>>>>>>>>>>>> https://pydicom.github.io/pydicom/stable/getting_started.html#) seems
>>>>>>>>>>>>>>>>>>>> like a descent python package to help out with a lot of DICOM data checks
>>>>>>>>>>>>>>>>>>>> (I was essentially just building customized wrapper calls to them). You can
>>>>>>>>>>>>>>>>>>>> see some example scripts here as part of our DICOM submodule. It is pretty
>>>>>>>>>>>>>>>>>>>> rough around the edges but hopefully point you in the right direcitons
>>>>>>>>>>>>>>>>>>>> https://github.com/CNBP/DICOMTransit/blob/Dev/DICOMTransit/DICOM/validate.py
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Cheers,
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Yang Ding, PhD.
>>>>>>>>>>>>>>>>>>>> Canadian Neonatal Brain Platform Architect
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> On Tue, Nov 12, 2019 at 8:29 AM <
>>>>>>>>>>>>>>>>>>>> loris-dev-request at bic.mni.mcgill.ca> wrote:
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> Send Loris-dev mailing list submissions to
>>>>>>>>>>>>>>>>>>>>> loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> To subscribe or unsubscribe via the World Wide Web,
>>>>>>>>>>>>>>>>>>>>> visit
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>> or, via email, send a message with subject or body
>>>>>>>>>>>>>>>>>>>>> 'help' to
>>>>>>>>>>>>>>>>>>>>> loris-dev-request at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> You can reach the person managing the list at
>>>>>>>>>>>>>>>>>>>>> loris-dev-owner at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> When replying, please edit your Subject line so it is
>>>>>>>>>>>>>>>>>>>>> more specific
>>>>>>>>>>>>>>>>>>>>> than "Re: Contents of Loris-dev digest..."
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> Today's Topics:
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> 1. Re: Import mri - scripts (Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos)
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> ----------------------------------------------------------------------
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> Message: 1
>>>>>>>>>>>>>>>>>>>>> Date: Tue, 12 Nov 2019 15:28:26 +0200
>>>>>>>>>>>>>>>>>>>>> From: Sotirios Nikoloutsopoulos <sotirisnik at gmail.com>
>>>>>>>>>>>>>>>>>>>>> To: Cecile Madjar <cecile.madjar at mcin.ca>
>>>>>>>>>>>>>>>>>>>>> Cc: loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>> Subject: Re: [Loris-dev] Import mri - scripts
>>>>>>>>>>>>>>>>>>>>> Message-ID:
>>>>>>>>>>>>>>>>>>>>> <CAKHj7uST=
>>>>>>>>>>>>>>>>>>>>> 92717of_4Npd6pt-gxnhoYAWMUnG8s8D2066kPsLQ at mail.gmail.com
>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>> Content-Type: text/plain; charset="utf-8"
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> Could we send you a link with 10 anonymized dicom
>>>>>>>>>>>>>>>>>>>>> files to diagnose the
>>>>>>>>>>>>>>>>>>>>> warnings we get?
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> ???? ???, 9 ??? 2019 ???? 12:38 ?.?., ?/? Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> > Hi Cecile,
>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>> > We were wondering whether Loris has a tool to check
>>>>>>>>>>>>>>>>>>>>> if there are problems
>>>>>>>>>>>>>>>>>>>>> > with the dcm files, before trying to upload them.
>>>>>>>>>>>>>>>>>>>>> Something that could
>>>>>>>>>>>>>>>>>>>>> > provide the same results provided in the
>>>>>>>>>>>>>>>>>>>>> warning_output, this is the
>>>>>>>>>>>>>>>>>>>>> > summary from the mri_upload at the front-page. Also
>>>>>>>>>>>>>>>>>>>>> which attributes of the
>>>>>>>>>>>>>>>>>>>>> > dcm header would trigger a warning? is there a dcm
>>>>>>>>>>>>>>>>>>>>> file header
>>>>>>>>>>>>>>>>>>>>> > specification for Loris?
>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>> > Thanks
>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>> > Sotirios
>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>> > ???? ???, 2 ??? 2019 ???? 12:07 ?.?., ?/? Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> > sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>> >> Hi,
>>>>>>>>>>>>>>>>>>>>> >>
>>>>>>>>>>>>>>>>>>>>> >> Yes, by parsing now() into unix_timestamp function
>>>>>>>>>>>>>>>>>>>>> it worked,but i
>>>>>>>>>>>>>>>>>>>>> >> thought that something else was causing the 2nd
>>>>>>>>>>>>>>>>>>>>> issue.
>>>>>>>>>>>>>>>>>>>>> >> Thanks
>>>>>>>>>>>>>>>>>>>>> >>
>>>>>>>>>>>>>>>>>>>>> >> On Tue, 1 Oct 2019, 18:36 Xavier Lecours Boucher,
>>>>>>>>>>>>>>>>>>>>> Mr, <
>>>>>>>>>>>>>>>>>>>>> >> xavier.lecoursboucher at mcgill.ca> wrote:
>>>>>>>>>>>>>>>>>>>>> >>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> The first error occurs because the
>>>>>>>>>>>>>>>>>>>>> QCFirstChangeTime and columns are of
>>>>>>>>>>>>>>>>>>>>> >>> type `unsigned integer` and not `datatime`. You
>>>>>>>>>>>>>>>>>>>>> should be using
>>>>>>>>>>>>>>>>>>>>> >>> UNIX_TIMESTAMP() instead of NOW().
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> The second error occurs because the trigger
>>>>>>>>>>>>>>>>>>>>> triggers a rollback of the
>>>>>>>>>>>>>>>>>>>>> >>> insert statement in the files table.
>>>>>>>>>>>>>>>>>>>>> >>> See mysql documentation for trigger error handling.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> An error during either a BEFORE or AFTER trigger
>>>>>>>>>>>>>>>>>>>>> results in failure of
>>>>>>>>>>>>>>>>>>>>> >>> the entire statement that caused trigger
>>>>>>>>>>>>>>>>>>>>> invocation.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thank you for sharing that. I hope it helps.
>>>>>>>>>>>>>>>>>>>>> >>> -- Xavier
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ------------------------------
>>>>>>>>>>>>>>>>>>>>> >>> *From:* loris-dev-bounces at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>>>> >>> loris-dev-bounces at bic.mni.mcgill.ca> on behalf of
>>>>>>>>>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>>>>>>>>> >>> Nikoloutsopoulos <sotirisnik at gmail.com>
>>>>>>>>>>>>>>>>>>>>> >>> *Sent:* October 1, 2019 8:33 AM
>>>>>>>>>>>>>>>>>>>>> >>> *To:* Cecile Madjar <cecile.madjar at mcin.ca>
>>>>>>>>>>>>>>>>>>>>> >>> *Cc:* loris-dev at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>>>> loris-dev at bic.mni.mcgill.ca>;
>>>>>>>>>>>>>>>>>>>>> >>> Christine Rogers, Ms. <christine.rogers at mcgill.ca>
>>>>>>>>>>>>>>>>>>>>> >>> *Subject:* Re: [Loris-dev] Import mri - scripts
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> When mincs are inserted their corresponding rows
>>>>>>>>>>>>>>>>>>>>> at the file table are
>>>>>>>>>>>>>>>>>>>>> >>> inserted too
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> i would like to insert their rows at file_qcstatus
>>>>>>>>>>>>>>>>>>>>> as well, because i
>>>>>>>>>>>>>>>>>>>>> >>> don't want manually to label them as passed
>>>>>>>>>>>>>>>>>>>>> throught the interface
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> That is the trigger i wrote
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> CREATE DEFINER = CURRENT_USER TRIGGER
>>>>>>>>>>>>>>>>>>>>> `LORIS`.`files_AFTER_INSERT` AFTER
>>>>>>>>>>>>>>>>>>>>> >>> INSERT ON `files` FOR EACH ROW
>>>>>>>>>>>>>>>>>>>>> >>> BEGIN
>>>>>>>>>>>>>>>>>>>>> >>> INSERT INTO files_qcstatus
>>>>>>>>>>>>>>>>>>>>> >>> SET FileID = NEW.FileID,
>>>>>>>>>>>>>>>>>>>>> >>> SeriesUID = NEW.SeriesUID,
>>>>>>>>>>>>>>>>>>>>> >>> EchoTime = NEW.EchoTime,
>>>>>>>>>>>>>>>>>>>>> >>> QCStatus = "Pass",
>>>>>>>>>>>>>>>>>>>>> >>> QCFirstChangeTime = NOW(),
>>>>>>>>>>>>>>>>>>>>> >>> QCLastChangeTime = NOW();
>>>>>>>>>>>>>>>>>>>>> >>> END
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> although it contains some errors
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> DBD::mysql::db do failed: Out of range value for
>>>>>>>>>>>>>>>>>>>>> column
>>>>>>>>>>>>>>>>>>>>> >>> 'QCFirstChangeTime' at row 1 at
>>>>>>>>>>>>>>>>>>>>> >>> /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRI.pm
>>>>>>>>>>>>>>>>>>>>> line 823.
>>>>>>>>>>>>>>>>>>>>> >>> DBD::mysql::db do failed: Cannot add or update a
>>>>>>>>>>>>>>>>>>>>> child row: a foreign
>>>>>>>>>>>>>>>>>>>>> >>> key constraint fails (`LORIS`.`parameter_file`,
>>>>>>>>>>>>>>>>>>>>> CONSTRAINT
>>>>>>>>>>>>>>>>>>>>> >>> `FK_parameter_file_1` FOREIGN KEY (`FileID`)
>>>>>>>>>>>>>>>>>>>>> REFERENCES `files` (`FileID`))
>>>>>>>>>>>>>>>>>>>>> >>> at
>>>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRI.pm line 848.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 1 ??? 2019 ???? 4:21 ?.?., ?/? Cecile
>>>>>>>>>>>>>>>>>>>>> Madjar <
>>>>>>>>>>>>>>>>>>>>> >>> cecile.madjar at mcin.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> In the mri_upload table, there is a TarchiveID
>>>>>>>>>>>>>>>>>>>>> column associated with
>>>>>>>>>>>>>>>>>>>>> >>> the MRI upload you inserted. When this value is
>>>>>>>>>>>>>>>>>>>>> NULL, it means no DICOMs
>>>>>>>>>>>>>>>>>>>>> >>> were inserted into the tarchive tables. At the end
>>>>>>>>>>>>>>>>>>>>> of the insertion of the
>>>>>>>>>>>>>>>>>>>>> >>> DICOMs in the tarchive tables, this value is
>>>>>>>>>>>>>>>>>>>>> updated with the correct
>>>>>>>>>>>>>>>>>>>>> >>> TarchiveID associated with the upload.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Could this correspond to what you want to do?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Regarding the files_qcstatus, this table is only
>>>>>>>>>>>>>>>>>>>>> linked to the files
>>>>>>>>>>>>>>>>>>>>> >>> table (hence, the MINC files). You could always
>>>>>>>>>>>>>>>>>>>>> create a new table for
>>>>>>>>>>>>>>>>>>>>> >>> dicom_qcstatus and link it to the tarchive table?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> C?cile
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> On Tue, Oct 1, 2019 at 6:56 AM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> i would like whenever a dicom is imported to mark
>>>>>>>>>>>>>>>>>>>>> all their
>>>>>>>>>>>>>>>>>>>>> >>> coressponding qc_status to "pass". I was thinking
>>>>>>>>>>>>>>>>>>>>> of creating a trigger for
>>>>>>>>>>>>>>>>>>>>> >>> that, but which tables do i need to add entries
>>>>>>>>>>>>>>>>>>>>> to? So far from what i see
>>>>>>>>>>>>>>>>>>>>> >>> i need to add entres at the table "files"
>>>>>>>>>>>>>>>>>>>>> whenever an insertion happens to
>>>>>>>>>>>>>>>>>>>>> >>> files_qcstatus.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 30 ??? 2019 ???? 4:04 ?.?., ?/? Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Oh, sorry i should have asked for StudyID, at the
>>>>>>>>>>>>>>>>>>>>> beginning of my email
>>>>>>>>>>>>>>>>>>>>> >>> i sent 3 hours ago (not StudyUID).
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 30 ??? 2019 ???? 3:55 ?.?., ?/? Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> that's the Study Instance UID, not the StudyID. So
>>>>>>>>>>>>>>>>>>>>> the StudyID i am
>>>>>>>>>>>>>>>>>>>>> >>> looking for is not stored in the database?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thanks.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 30 ??? 2019 ???? 3:38 ?.?., ?/? Cecile
>>>>>>>>>>>>>>>>>>>>> Madjar <
>>>>>>>>>>>>>>>>>>>>> >>> cecile.madjar at mcin.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> The StudyUID is stored in the DicomArchiveID field
>>>>>>>>>>>>>>>>>>>>> of the
>>>>>>>>>>>>>>>>>>>>> >>> tarchive table. It can also be found in the
>>>>>>>>>>>>>>>>>>>>> metadata field but it is mixed
>>>>>>>>>>>>>>>>>>>>> >>> with many other information.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hope this helps,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> C?cile
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> On Mon, Sep 30, 2019 at 6:00 AM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Is StudyUID stored somewhere at the tables? At the
>>>>>>>>>>>>>>>>>>>>> tarchive table,
>>>>>>>>>>>>>>>>>>>>> >>> specifically at the AcquisitonMetadata column i
>>>>>>>>>>>>>>>>>>>>> found something called
>>>>>>>>>>>>>>>>>>>>> >>> 'Unique Study ID" in its context, but that must be
>>>>>>>>>>>>>>>>>>>>> the Study Instance UID.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 27 ??? 2019 ???? 4:22 ?.?., ?/? Cecile
>>>>>>>>>>>>>>>>>>>>> Madjar <
>>>>>>>>>>>>>>>>>>>>> >>> cecile.madjar at mcin.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Your observation is correct. A little explanation
>>>>>>>>>>>>>>>>>>>>> below.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> MINC files get inserted into the MRI violation
>>>>>>>>>>>>>>>>>>>>> tables if:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> - the scan type could not be identified (not
>>>>>>>>>>>>>>>>>>>>> matching an entry in
>>>>>>>>>>>>>>>>>>>>> >>> the mri_protocol table)
>>>>>>>>>>>>>>>>>>>>> >>> - one parameter of the scan type is out of the
>>>>>>>>>>>>>>>>>>>>> expected range
>>>>>>>>>>>>>>>>>>>>> >>> present in the mri_protocol_checks (extra
>>>>>>>>>>>>>>>>>>>>> filtering in case you need to be
>>>>>>>>>>>>>>>>>>>>> >>> stricker on some parameters not present in the
>>>>>>>>>>>>>>>>>>>>> mri_protocol table)
>>>>>>>>>>>>>>>>>>>>> >>> - if the CandID and PSCID do not match
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> The following cases do not get in the MRI
>>>>>>>>>>>>>>>>>>>>> violation tables as it happens
>>>>>>>>>>>>>>>>>>>>> >>> before the conversion of the DICOM to MINC files
>>>>>>>>>>>>>>>>>>>>> and only MINC files
>>>>>>>>>>>>>>>>>>>>> >>> violations are logged there:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> - "No single DICOM" (since no valid DICOM could
>>>>>>>>>>>>>>>>>>>>> be found to convert
>>>>>>>>>>>>>>>>>>>>> >>> to MINC)
>>>>>>>>>>>>>>>>>>>>> >>> - "Study already inserted" (duplicate StudyUID)
>>>>>>>>>>>>>>>>>>>>> since this error
>>>>>>>>>>>>>>>>>>>>> >>> happens at the dicomTar.pl level (way before
>>>>>>>>>>>>>>>>>>>>> conversion into MINC files)
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Glad everything is working out!!
>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> C?cile
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> On Fri, Sep 27, 2019 at 6:17 AM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> the mri passed, for some reason it consumed 5.12GB
>>>>>>>>>>>>>>>>>>>>> of ram. Now about the
>>>>>>>>>>>>>>>>>>>>> >>> mri_violations, dicoms are triggered to be
>>>>>>>>>>>>>>>>>>>>> inserted there only if there is
>>>>>>>>>>>>>>>>>>>>> >>> a violation for Tr_min, Tr_max, in general for its
>>>>>>>>>>>>>>>>>>>>> header parameter?
>>>>>>>>>>>>>>>>>>>>> >>> Because i don't see the cases of 'No single dicom"
>>>>>>>>>>>>>>>>>>>>> or with the 2 studyiuid
>>>>>>>>>>>>>>>>>>>>> >>> to be there.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 26 ??? 2019 ???? 5:07 ?.?., ?/? Cecile
>>>>>>>>>>>>>>>>>>>>> Madjar <
>>>>>>>>>>>>>>>>>>>>> >>> cecile.madjar at mcin.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Sorry to hear you are having issues with the
>>>>>>>>>>>>>>>>>>>>> memory. I think most of our
>>>>>>>>>>>>>>>>>>>>> >>> VMs are set up with 4GB of RAM so with 4GB you
>>>>>>>>>>>>>>>>>>>>> should be fine.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hope this helps!
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> C?cile
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> On Thu, Sep 26, 2019 at 9:48 AM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> about that dicom that had that insertion error
>>>>>>>>>>>>>>>>>>>>> it's about 30mb and when
>>>>>>>>>>>>>>>>>>>>> >>> it is being processed the ram is being drastically
>>>>>>>>>>>>>>>>>>>>> increased from 2gb to
>>>>>>>>>>>>>>>>>>>>> >>> 3.28 and then the whole virtual machine is frozen.
>>>>>>>>>>>>>>>>>>>>> What is the recommended
>>>>>>>>>>>>>>>>>>>>> >>> size of ram for using Loris?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 24 ??? 2019 ???? 11:24 ?.?., ?/? Cecile
>>>>>>>>>>>>>>>>>>>>> Madjar <
>>>>>>>>>>>>>>>>>>>>> >>> cecile.madjar at mcin.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Glad to see that the StudyUID problem was fixed!
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> For the delete script issue, if you are absolutely
>>>>>>>>>>>>>>>>>>>>> certain that no
>>>>>>>>>>>>>>>>>>>>> >>> processes are run for that uploadID, you can
>>>>>>>>>>>>>>>>>>>>> update the mri_upload table
>>>>>>>>>>>>>>>>>>>>> >>> and set the column Inserting to 0 instead of 1 for
>>>>>>>>>>>>>>>>>>>>> that uploadID. It
>>>>>>>>>>>>>>>>>>>>> >>> looks like for some reason the scripts did not
>>>>>>>>>>>>>>>>>>>>> update this field when it
>>>>>>>>>>>>>>>>>>>>> >>> stopped the insertion. Not sure why that would be
>>>>>>>>>>>>>>>>>>>>> the case though.
>>>>>>>>>>>>>>>>>>>>> >>> Note: only do that update if you are certain that
>>>>>>>>>>>>>>>>>>>>> there is no processing
>>>>>>>>>>>>>>>>>>>>> >>> happening.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hope this helps!
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> On Tue, Sep 24, 2019 at 11:57 AM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> about the Dicoms i reported that didn't have a
>>>>>>>>>>>>>>>>>>>>> StudyID they actually do
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> I thought that this might be a permission because
>>>>>>>>>>>>>>>>>>>>> "w" was missing at the
>>>>>>>>>>>>>>>>>>>>> >>> group. After using chmod -R 775 only 102809579
>>>>>>>>>>>>>>>>>>>>> passed, but with no mnic
>>>>>>>>>>>>>>>>>>>>> >>> files. Also now i have this error
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> (loris-mri-python) lorisadmin at loris-VirtualBox
>>>>>>>>>>>>>>>>>>>>> :/data/loris/bin/mri/tools$
>>>>>>>>>>>>>>>>>>>>> >>> ./delete_imaging_upload.pl -uploadID 34 -ignore
>>>>>>>>>>>>>>>>>>>>> >>> Cannot delete upload 34: the MRI pipeline is
>>>>>>>>>>>>>>>>>>>>> currently processing it.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> How can solve this?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 24 ??? 2019 ???? 2:30 ?.?., ?/? Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Here is our auto dicom uploading python script:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://github.com/aueb-wim/DataQualityControlTool/blob/loris1/mipqctool/dicom_uploader.py
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> To give you a brief idea:
>>>>>>>>>>>>>>>>>>>>> >>> Per folder it will:
>>>>>>>>>>>>>>>>>>>>> >>> 1) Delete all the .bak files
>>>>>>>>>>>>>>>>>>>>> >>> 2) Locate .dcm files and update the Patient header
>>>>>>>>>>>>>>>>>>>>> >>> 3) Furthermore we are interesting in finding
>>>>>>>>>>>>>>>>>>>>> TR_min, TR_max, TE_min,
>>>>>>>>>>>>>>>>>>>>> >>> TE_max parameters of T1 protocol and do an update
>>>>>>>>>>>>>>>>>>>>> at the mri_protocol table
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://github.com/aueb-wim/DataQualityControlTool/blob/loris1/mipqctool/dicom_uploader.py#L205
>>>>>>>>>>>>>>>>>>>>> >>> For some reason some files are missing
>>>>>>>>>>>>>>>>>>>>> SeriesDescription/ProtocolName
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> In total i have 7 folders
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> 3/7 passed
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Also about the first patient with DC0000 had a
>>>>>>>>>>>>>>>>>>>>> violation "T1 AXIAL SE
>>>>>>>>>>>>>>>>>>>>> >>> GADO", but my script didn't output a TE of 17
>>>>>>>>>>>>>>>>>>>>> nowhere and i find that weird
>>>>>>>>>>>>>>>>>>>>> >>> since Loris detects the SeriesDescription.
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Now about the 4/7 that didn't passed
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> 102327840 and 102809579 outputs "The target
>>>>>>>>>>>>>>>>>>>>> directory does not contain a
>>>>>>>>>>>>>>>>>>>>> >>> single DICOM file.", therefore they are missing
>>>>>>>>>>>>>>>>>>>>> their StudyUID
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> 102506134 has 2 studyuid "You can't use it with
>>>>>>>>>>>>>>>>>>>>> data from multiple
>>>>>>>>>>>>>>>>>>>>> >>> studies."
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> and 102761034 "No data could be converted into
>>>>>>>>>>>>>>>>>>>>> valid MINC files.
>>>>>>>>>>>>>>>>>>>>> >>> localizer, scout will not be considered!" What is
>>>>>>>>>>>>>>>>>>>>> this?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> If i wanted to force the insertion of 102327840,
>>>>>>>>>>>>>>>>>>>>> 102809579 and 102506134
>>>>>>>>>>>>>>>>>>>>> >>> can i just pass a flag parameter to
>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl? or
>>>>>>>>>>>>>>>>>>>>> >>> modify imaging_upload_file.pl?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thank you,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Sotirios
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> PS
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> To diagnose a folder search the name of the folder
>>>>>>>>>>>>>>>>>>>>> at dicom_output.txt.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 20 ??? 2019 ???? 4:54 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>> >>> Glad to hear about your progress.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Yes, the script you used to delete imaging data is
>>>>>>>>>>>>>>>>>>>>> fully documented here
>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/81bae73ea6e86c9498519dadf574468ee1d992ca/docs/scripts_md/delete_imaging_upload.md
>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>> >>> -- let us know if you didn't find the answers you
>>>>>>>>>>>>>>>>>>>>> were looking for there.
>>>>>>>>>>>>>>>>>>>>> >>> (Is it possible the null row in *mri_scanner* seen
>>>>>>>>>>>>>>>>>>>>> in your database
>>>>>>>>>>>>>>>>>>>>> >>> management software is a visual placeholder for
>>>>>>>>>>>>>>>>>>>>> you as the user? I'm not
>>>>>>>>>>>>>>>>>>>>> >>> sure why a scanner would ever be registered with
>>>>>>>>>>>>>>>>>>>>> ID='0' as your screenshot
>>>>>>>>>>>>>>>>>>>>> >>> showed.)
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> On Fri, Sep 20, 2019 at 9:45 AM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> I fixed it with this
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 20 ??? 2019 ???? 4:37 ?.?., ?/? Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> I tried to create a new candidate using the API,
>>>>>>>>>>>>>>>>>>>>> is there something
>>>>>>>>>>>>>>>>>>>>> >>> wrong with the structure? why did i receive a 500
>>>>>>>>>>>>>>>>>>>>> internal error? In the
>>>>>>>>>>>>>>>>>>>>> >>> loris-error log it state that there is something
>>>>>>>>>>>>>>>>>>>>> wrong with token, but i
>>>>>>>>>>>>>>>>>>>>> >>> verfied that the type of the token is a string.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [Fri Sep 20 16:35:26.874732 2019] [php7:error]
>>>>>>>>>>>>>>>>>>>>> [pid 4535] [client
>>>>>>>>>>>>>>>>>>>>> >>> 127.0.0.1:59674] PHP Fatal error: Uncaught
>>>>>>>>>>>>>>>>>>>>> TypeError: Argument 1
>>>>>>>>>>>>>>>>>>>>> >>> passed to SinglePointLogin::JWTAuthenticate() must
>>>>>>>>>>>>>>>>>>>>> be of the type string,
>>>>>>>>>>>>>>>>>>>>> >>> null given, called in
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc on line 169 and
>>>>>>>>>>>>>>>>>>>>> >>> defined in
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc:192\nStack
>>>>>>>>>>>>>>>>>>>>> >>> trace:\n#0
>>>>>>>>>>>>>>>>>>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc(169):
>>>>>>>>>>>>>>>>>>>>> >>> SinglePointLogin->JWTAuthenticate(NULL)\n#1
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> /var/www/loris/php/libraries/NDB_Client.class.inc(171):
>>>>>>>>>>>>>>>>>>>>> >>> SinglePointLogin->authenticate()\n#2
>>>>>>>>>>>>>>>>>>>>> >>> /var/www/loris/htdocs/api/v0.0.2/APIBase.php(73):
>>>>>>>>>>>>>>>>>>>>> >>> NDB_Client->initialize('/var/www/loris/...')\n#3
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> /var/www/loris/htdocs/api/v0.0.2/Candidates.php(44):
>>>>>>>>>>>>>>>>>>>>> >>> Loris\\API\\APIBase->__construct('POST')\n#4
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> /var/www/loris/htdocs/api/v0.0.2/Candidates.php(244):
>>>>>>>>>>>>>>>>>>>>> >>> Loris\\API\\Candidates->__construct('POST',
>>>>>>>>>>>>>>>>>>>>> Array)\n#5 {main}\n thrown in
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> /var/www/loris/php/libraries/SinglePointLogin.class.inc on line 192
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 20 ??? 2019 ???? 2:39 ?.?., ?/? Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Is there a way also to delete candidates? Just to
>>>>>>>>>>>>>>>>>>>>> let you know what i
>>>>>>>>>>>>>>>>>>>>> >>> did to clear candidates, because maybe i may have
>>>>>>>>>>>>>>>>>>>>> missed dependencies.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> First i deleted all their uploads
>>>>>>>>>>>>>>>>>>>>> >>> ./delete_imaging_upload.pl -uploadID 13 etc ( is
>>>>>>>>>>>>>>>>>>>>> there a way to omit
>>>>>>>>>>>>>>>>>>>>> >>> the backup file ? )
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Afterwards i had some scanner candidates, so i
>>>>>>>>>>>>>>>>>>>>> deleted all the entries
>>>>>>>>>>>>>>>>>>>>> >>> from mri_scanner except that i couldn't delete
>>>>>>>>>>>>>>>>>>>>> this entry with the 0 ID.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Lastly i deleted the session and then the
>>>>>>>>>>>>>>>>>>>>> candidate table.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 19 ??? 2019 ???? 7:57 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> We recommend that you use our existing tools for
>>>>>>>>>>>>>>>>>>>>> creating new candidates
>>>>>>>>>>>>>>>>>>>>> >>> - either the LORIS API or if you are using a PHP
>>>>>>>>>>>>>>>>>>>>> script, by calling the Candidate
>>>>>>>>>>>>>>>>>>>>> >>> class's createNew()
>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/blob/master/php/libraries/Candidate.class.inc#L200
>>>>>>>>>>>>>>>>>>>>> >function.
>>>>>>>>>>>>>>>>>>>>> >>> These will create the necessary records for you.
>>>>>>>>>>>>>>>>>>>>> (It's not recommended to
>>>>>>>>>>>>>>>>>>>>> >>> make direct modifications to mysql database tables
>>>>>>>>>>>>>>>>>>>>> in your script, if I
>>>>>>>>>>>>>>>>>>>>> >>> understand you.)
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> The CandID should be a randomized 6 digit
>>>>>>>>>>>>>>>>>>>>> randomized ID, and there are
>>>>>>>>>>>>>>>>>>>>> >>> multiple reasons for this.
>>>>>>>>>>>>>>>>>>>>> >>> You can use the PSCID for project-specific IDs and
>>>>>>>>>>>>>>>>>>>>> the External ID field
>>>>>>>>>>>>>>>>>>>>> >>> in the candidate table can also be used for any
>>>>>>>>>>>>>>>>>>>>> values you like.
>>>>>>>>>>>>>>>>>>>>> >>> Additionally, any number of custom IDs can be
>>>>>>>>>>>>>>>>>>>>> added in parallel - these
>>>>>>>>>>>>>>>>>>>>> >>> are entered/visible in the Candidate Information
>>>>>>>>>>>>>>>>>>>>> module and added in the
>>>>>>>>>>>>>>>>>>>>> >>> back-end as candidate parameters.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> On Tue, Sep 17, 2019 at 7:31 PM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> We are building a script that will auto insert the
>>>>>>>>>>>>>>>>>>>>> candidates based on
>>>>>>>>>>>>>>>>>>>>> >>> their ExternalID. We would like to know whethere
>>>>>>>>>>>>>>>>>>>>> when we are creating a new
>>>>>>>>>>>>>>>>>>>>> >>> profile in the candidate table, if we also have to
>>>>>>>>>>>>>>>>>>>>> insert a new record at
>>>>>>>>>>>>>>>>>>>>> >>> another table? Furthermore is there a problem that
>>>>>>>>>>>>>>>>>>>>> in our case CandID won't
>>>>>>>>>>>>>>>>>>>>> >>> be a 6digit? ( should we start it from 100000?)
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 13 ??? 2019 ???? 5:38 ?.?., ?/? Melanie
>>>>>>>>>>>>>>>>>>>>> Legault, Mrs <
>>>>>>>>>>>>>>>>>>>>> >>> melanie.legault2 at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> That would normally be the case but the numeric
>>>>>>>>>>>>>>>>>>>>> part of the PSCID get
>>>>>>>>>>>>>>>>>>>>> >>> paded with 0 on the left.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Ex. for sequential ID made of center ID of `ABC`
>>>>>>>>>>>>>>>>>>>>> plus 4 numerical char
>>>>>>>>>>>>>>>>>>>>> >>> with a min value of 1, the sequence would be:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ABC0001
>>>>>>>>>>>>>>>>>>>>> >>> ABC0002
>>>>>>>>>>>>>>>>>>>>> >>> ...
>>>>>>>>>>>>>>>>>>>>> >>> ABC0010
>>>>>>>>>>>>>>>>>>>>> >>> ...
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> thus sorting them ascending will always get the
>>>>>>>>>>>>>>>>>>>>> latest value generated
>>>>>>>>>>>>>>>>>>>>> >>> as the max value.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> M?lanie
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ------------------------------
>>>>>>>>>>>>>>>>>>>>> >>> *From:* Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> sotirisnik at gmail.com>
>>>>>>>>>>>>>>>>>>>>> >>> *Sent:* September 13, 2019 10:15
>>>>>>>>>>>>>>>>>>>>> >>> *To:* Melanie Legault, Mrs <
>>>>>>>>>>>>>>>>>>>>> melanie.legault2 at mcgill.ca>
>>>>>>>>>>>>>>>>>>>>> >>> *Cc:* Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca>;
>>>>>>>>>>>>>>>>>>>>> >>> loris-dev at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>>>> loris-dev at bic.mni.mcgill.ca>
>>>>>>>>>>>>>>>>>>>>> >>> *Subject:* Re: [Loris-dev] Import mri - scripts
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> I see, although the PSCID value is varchar(255),
>>>>>>>>>>>>>>>>>>>>> it must be stored
>>>>>>>>>>>>>>>>>>>>> >>> within a specific length of characters. Otherwise
>>>>>>>>>>>>>>>>>>>>> if we were to sort
>>>>>>>>>>>>>>>>>>>>> >>> strings with different lengths the result would
>>>>>>>>>>>>>>>>>>>>> not be sorted correctly (
>>>>>>>>>>>>>>>>>>>>> >>> e.x. 1,2,10,11 as strings would result to 1, 10,
>>>>>>>>>>>>>>>>>>>>> 11, 2 ).
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 13 ??? 2019 ???? 4:52 ?.?., ?/? Melanie
>>>>>>>>>>>>>>>>>>>>> Legault, Mrs <
>>>>>>>>>>>>>>>>>>>>> >>> melanie.legault2 at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hello Sotirios,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> There is no `last value` stored anywhere.
>>>>>>>>>>>>>>>>>>>>> >>> The code simply look for the PSCID with the max
>>>>>>>>>>>>>>>>>>>>> value and increase that
>>>>>>>>>>>>>>>>>>>>> >>> value by 1 in order to generate the next PSCID.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hope this info help.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> M?lanie Legault | Software developer | Faculty of
>>>>>>>>>>>>>>>>>>>>> Medicine | McGill
>>>>>>>>>>>>>>>>>>>>> >>> University
>>>>>>>>>>>>>>>>>>>>> >>> 3801 University, Montr?al, QC H3A 2B4
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ------------------------------
>>>>>>>>>>>>>>>>>>>>> >>> *From:* loris-dev-bounces at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>>>> >>> loris-dev-bounces at bic.mni.mcgill.ca> on behalf of
>>>>>>>>>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>>>>>>>>> >>> Nikoloutsopoulos <sotirisnik at gmail.com>
>>>>>>>>>>>>>>>>>>>>> >>> *Sent:* September 13, 2019 9:43
>>>>>>>>>>>>>>>>>>>>> >>> *To:* Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca>
>>>>>>>>>>>>>>>>>>>>> >>> *Cc:* loris-dev at bic.mni.mcgill.ca <
>>>>>>>>>>>>>>>>>>>>> loris-dev at bic.mni.mcgill.ca>
>>>>>>>>>>>>>>>>>>>>> >>> *Subject:* Re: [Loris-dev] Import mri - scripts
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> how does Loris determine the next available PSCID
>>>>>>>>>>>>>>>>>>>>> value for a new
>>>>>>>>>>>>>>>>>>>>> >>> candidate?
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/wiki/Project-Customization
>>>>>>>>>>>>>>>>>>>>> >>> e.x in the default case the PSCID is sequential,
>>>>>>>>>>>>>>>>>>>>> but where do we store the
>>>>>>>>>>>>>>>>>>>>> >>> last value for the sequential sequence?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 10 ??? 2019 ???? 4:00 ?.?., ?/? Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> the parameters in the mri_protocol you have
>>>>>>>>>>>>>>>>>>>>> assigned are global
>>>>>>>>>>>>>>>>>>>>> >>> standard? or were assigned after trial and error?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 8 ??? 2019 ???? 10:11 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Given you have done the initial setup of your
>>>>>>>>>>>>>>>>>>>>> tables to match your
>>>>>>>>>>>>>>>>>>>>> >>> intended protocol/parameters according to
>>>>>>>>>>>>>>>>>>>>> instructions --
>>>>>>>>>>>>>>>>>>>>> >>> the Troubleshooting guide documentation recommends
>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/AppendixA-Troubleshooting_guideline.md#a4-insertion-script-troubleshooting-notes
>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>> >>> re-running the pipeline (and first deleting prior
>>>>>>>>>>>>>>>>>>>>> uploads).
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> On Sun, Sep 8, 2019 at 10:22 AM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> *if i were to change their status to resolve what
>>>>>>>>>>>>>>>>>>>>> would happen?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 8 ??? 2019 ???? 5:12 ?.?., ?/? Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> I noticed that i can view the mnics at the
>>>>>>>>>>>>>>>>>>>>> brainbrowser from the
>>>>>>>>>>>>>>>>>>>>> >>> mri_violations page ( those mnics are stored at
>>>>>>>>>>>>>>>>>>>>> /data/loris/data/trashbin/
>>>>>>>>>>>>>>>>>>>>> >>> if i were to click their issue to resolve what
>>>>>>>>>>>>>>>>>>>>> would happend? would they
>>>>>>>>>>>>>>>>>>>>> >>> appear in the dicom_archive view too? ).
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 8 ??? 2019 ???? 4:17 ?.?., ?/? Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> The defaut values of the schema exists in my local
>>>>>>>>>>>>>>>>>>>>> database. If i adjust
>>>>>>>>>>>>>>>>>>>>> >>> the default values of TR_min and TE_min the mincs
>>>>>>>>>>>>>>>>>>>>> will be uploaded?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 7 ??? 2019 ???? 5:48 ?.?., ?/? Christine
>>>>>>>>>>>>>>>>>>>>> Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Is it possible that you haven't set up your
>>>>>>>>>>>>>>>>>>>>> mri_protocol table ? (and
>>>>>>>>>>>>>>>>>>>>> >>> mri_scan_type table too, for additional types of
>>>>>>>>>>>>>>>>>>>>> scans)
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Like the psc table, this is a pre-requisite for
>>>>>>>>>>>>>>>>>>>>> the Imaging insertion
>>>>>>>>>>>>>>>>>>>>> >>> setup : See the install/setup documentation :
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/02-Install.md
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> To add new rows, just use MySQL insert
>>>>>>>>>>>>>>>>>>>>> statements. You can adapt the
>>>>>>>>>>>>>>>>>>>>> >>> insert statements which load the default table
>>>>>>>>>>>>>>>>>>>>> values --> e.g. Here on
>>>>>>>>>>>>>>>>>>>>> >>> GitHub :
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/blob/master/SQL/0000-00-00-schema.sql#L718
>>>>>>>>>>>>>>>>>>>>> >>> (see also the mri_scan_type table)
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> On Fri, Sep 6, 2019 at 8:32 PM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> I see that i can edit the values but not how to
>>>>>>>>>>>>>>>>>>>>> insert new rows.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> If i choose Inserted with flag then will the minc
>>>>>>>>>>>>>>>>>>>>> be inserted?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 7 ??? 2019 ???? 3:21 ?.?., ?/? Christine
>>>>>>>>>>>>>>>>>>>>> Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Glad to hear that *dcmodify* worked correctly.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> For the MRI Violations module, the screenshot is
>>>>>>>>>>>>>>>>>>>>> enough.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> It says "could not identify scan type", which we
>>>>>>>>>>>>>>>>>>>>> knew already. Did you
>>>>>>>>>>>>>>>>>>>>> >>> click on the link on those words?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> It will take you to the next page of the module,
>>>>>>>>>>>>>>>>>>>>> showing for each scan
>>>>>>>>>>>>>>>>>>>>> >>> what the scan parameters were, and will also show
>>>>>>>>>>>>>>>>>>>>> for comparison what's
>>>>>>>>>>>>>>>>>>>>> >>> stored in your *mri_protocol* table.
>>>>>>>>>>>>>>>>>>>>> >>> Compare these values to find which parameter was
>>>>>>>>>>>>>>>>>>>>> not correct according
>>>>>>>>>>>>>>>>>>>>> >>> to your *mri_protocol* table scan type definitions.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> You may end up broadening your mri_protocol value
>>>>>>>>>>>>>>>>>>>>> ranges (e.g. TR, TE)
>>>>>>>>>>>>>>>>>>>>> >>> for scans.
>>>>>>>>>>>>>>>>>>>>> >>> This can be done in the front-end, by editing the
>>>>>>>>>>>>>>>>>>>>> database table
>>>>>>>>>>>>>>>>>>>>> >>> directly in the same subpage of the MRI Violations
>>>>>>>>>>>>>>>>>>>>> module.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> The MRI Violations module features are explained
>>>>>>>>>>>>>>>>>>>>> in more detail in the
>>>>>>>>>>>>>>>>>>>>> >>> Help text for this module inside LORIS (click the
>>>>>>>>>>>>>>>>>>>>> ["?"] icon in the menu
>>>>>>>>>>>>>>>>>>>>> >>> bar.)
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> See also: Loris-MRI troubleshooting guide
>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/AppendixA-Troubleshooting_guideline.md
>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>> >>> : no MINCs inserted- violated scans
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> On Fri, Sep 6, 2019 at 8:11 PM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> looks like my previous email's attachment wasn't
>>>>>>>>>>>>>>>>>>>>> delivered due to
>>>>>>>>>>>>>>>>>>>>> >>> security reasons, i uploaded my file at google
>>>>>>>>>>>>>>>>>>>>> drive
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://drive.google.com/file/d/1U_TRbo_qGgfpQfs-SqeG9J3bMMqNfUU4/view?usp=sharing
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 7 ??? 2019 ???? 3:02 ?.?., ?/? Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> From Dicat's view seems that dcmodify worked in
>>>>>>>>>>>>>>>>>>>>> both cases
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> For the mri_violations i attached the .html output
>>>>>>>>>>>>>>>>>>>>> from webbrowser, so
>>>>>>>>>>>>>>>>>>>>> >>> that you can check the filelds easier.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 6 ??? 2019 ???? 7:49 ?.?., ?/? Christine
>>>>>>>>>>>>>>>>>>>>> Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios --
>>>>>>>>>>>>>>>>>>>>> >>> Great, sounds like more progress.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> About the dcmodify command -- I'm not sure why
>>>>>>>>>>>>>>>>>>>>> you're getting an Endian
>>>>>>>>>>>>>>>>>>>>> >>> warning. (it's a warning not an error, correct?)
>>>>>>>>>>>>>>>>>>>>> >>> To clarify -- Were the DICOM headers (PatientName)
>>>>>>>>>>>>>>>>>>>>> all successfully
>>>>>>>>>>>>>>>>>>>>> >>> relabelled, after the command ran?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> You can use also our DICAT tool (
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/DICAT) to
>>>>>>>>>>>>>>>>>>>>> >>> verify and/or update local DICOM headers -- though
>>>>>>>>>>>>>>>>>>>>> your dcmodify command is
>>>>>>>>>>>>>>>>>>>>> >>> a great and fast solution for bulk header updates.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> If you're concerned about fields being changed
>>>>>>>>>>>>>>>>>>>>> (e.g. "(2001,105f)" from
>>>>>>>>>>>>>>>>>>>>> >>> the warning message) - you can also dcmdump a
>>>>>>>>>>>>>>>>>>>>> DICOM slice before and look
>>>>>>>>>>>>>>>>>>>>> >>> at these fields specifically.
>>>>>>>>>>>>>>>>>>>>> >>> It's also not a bad "sanity check" to backup your
>>>>>>>>>>>>>>>>>>>>> DICOMS before/after
>>>>>>>>>>>>>>>>>>>>> >>> running dcmodify, and use dcmdump on each version
>>>>>>>>>>>>>>>>>>>>> to diff the outputs --
>>>>>>>>>>>>>>>>>>>>> >>> this will pinpoint what changed.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Re the protocol violation -- AcquisitionProtocol
>>>>>>>>>>>>>>>>>>>>> not recognized or
>>>>>>>>>>>>>>>>>>>>> >>> unknown : this means your scans did not match
>>>>>>>>>>>>>>>>>>>>> what is stored in your
>>>>>>>>>>>>>>>>>>>>> >>> mri_protocol table.
>>>>>>>>>>>>>>>>>>>>> >>> Check the MRI Violations front-end module -- can
>>>>>>>>>>>>>>>>>>>>> you see why they didn't
>>>>>>>>>>>>>>>>>>>>> >>> match?
>>>>>>>>>>>>>>>>>>>>> >>> Send us an example, in addition to the contents of
>>>>>>>>>>>>>>>>>>>>> the mri_protocol
>>>>>>>>>>>>>>>>>>>>> >>> table, if you can't find the source of the
>>>>>>>>>>>>>>>>>>>>> mismatch.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> On Fri, Sep 6, 2019 at 12:04 PM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Here is the psc table
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> I created 2 candidates profiles through the
>>>>>>>>>>>>>>>>>>>>> interface
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> then runned dcmodify command to a dicom file
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> dcmodify -ma PatientName="DCC0000_258024_V1"
>>>>>>>>>>>>>>>>>>>>> >>> /home/lorisadmin/DICOMS/000535670/501/*.dcm
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> and got those warning: is this okay?
>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2001,105f) with VR UN and
>>>>>>>>>>>>>>>>>>>>> undefined length, reading a
>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax LittleEndianImplicit
>>>>>>>>>>>>>>>>>>>>> (CP-246)
>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2005,1083) with VR UN and
>>>>>>>>>>>>>>>>>>>>> undefined length, reading a
>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax LittleEndianImplicit
>>>>>>>>>>>>>>>>>>>>> (CP-246)
>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2005,1402) with VR UN and
>>>>>>>>>>>>>>>>>>>>> undefined length, reading a
>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax LittleEndianImplicit
>>>>>>>>>>>>>>>>>>>>> (CP-246)
>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2005,140f) with VR UN and
>>>>>>>>>>>>>>>>>>>>> undefined length, reading a
>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax LittleEndianImplicit
>>>>>>>>>>>>>>>>>>>>> (CP-246)
>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2001,105f) with VR UN and
>>>>>>>>>>>>>>>>>>>>> undefined length, reading a
>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax LittleEndianImplicit
>>>>>>>>>>>>>>>>>>>>> (CP-246)
>>>>>>>>>>>>>>>>>>>>> >>> W: Found element (2005,1083) with VR UN and
>>>>>>>>>>>>>>>>>>>>> undefined length, reading a
>>>>>>>>>>>>>>>>>>>>> >>> sequence with transfer syntax LittleEndianImplicit
>>>>>>>>>>>>>>>>>>>>> (CP-246)
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> dcmodify at another Dicom didn't show warnings.
>>>>>>>>>>>>>>>>>>>>> Below you can see the
>>>>>>>>>>>>>>>>>>>>> >>> execution for the second dicom. Mnics could not be
>>>>>>>>>>>>>>>>>>>>> inserted due to
>>>>>>>>>>>>>>>>>>>>> >>> AcquisitionProtocol being unknown.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Running now the following command:
>>>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri//uploadNeuroDB/
>>>>>>>>>>>>>>>>>>>>> >>> imaging_upload_file.pl -profile prod -upload_id 12
>>>>>>>>>>>>>>>>>>>>> >>> /data/incoming/DCC0001_602102_V1.tar.gz -verbose
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> find -path \/tmp\/ImagingUpload\-18\-36\-mTrxXs
>>>>>>>>>>>>>>>>>>>>> -name '__MACOSX'
>>>>>>>>>>>>>>>>>>>>> >>> -delete
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> dicomTar.pl \/tmp\/ImagingUpload\-18\-36\-mTrxXs
>>>>>>>>>>>>>>>>>>>>> >>> \/data\/loris\/data\/tarchive\/ -database -profile
>>>>>>>>>>>>>>>>>>>>> prod -verbose
>>>>>>>>>>>>>>>>>>>>> >>> Source: /tmp/ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>>>> >>> Target: /data/loris/data/tarchive
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Testing for database connectivity.
>>>>>>>>>>>>>>>>>>>>> >>> Database is available.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> You will archive the dir :
>>>>>>>>>>>>>>>>>>>>> ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> You are creating a tar with the following command:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> tar -cf
>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>>> >>> ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> getting md5sums and gzipping!!
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> * Taken from dir :
>>>>>>>>>>>>>>>>>>>>> /tmp/ImagingUpload-18-36-mTrxXs
>>>>>>>>>>>>>>>>>>>>> >>> * Archive target location :
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>>> >>> * Name of creating host : 127.0.1.1
>>>>>>>>>>>>>>>>>>>>> >>> * Name of host OS : Linux
>>>>>>>>>>>>>>>>>>>>> >>> * Created by user : lorisadmin
>>>>>>>>>>>>>>>>>>>>> >>> * Archived on : 2019-09-06
>>>>>>>>>>>>>>>>>>>>> 18:36:50
>>>>>>>>>>>>>>>>>>>>> >>> * dicomSummary version : 1
>>>>>>>>>>>>>>>>>>>>> >>> * dicomTar version : 1
>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for DICOM tarball :
>>>>>>>>>>>>>>>>>>>>> b1dcdc8903dd2d9a5443227db2aa2814
>>>>>>>>>>>>>>>>>>>>> >>> ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for DICOM tarball gzipped :
>>>>>>>>>>>>>>>>>>>>> aeae87f20155a6805f7e0cfe5212ea5f
>>>>>>>>>>>>>>>>>>>>> >>> ImagingUpload-18-36-mTrxXs.tar.gz
>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for complete archive :
>>>>>>>>>>>>>>>>>>>>> 1d9258d1f077ebc49111ab7ba22a8d6e
>>>>>>>>>>>>>>>>>>>>> >>> DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Adding archive info into database
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Removing temporary files from target location
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Done adding archive info into database
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> \/data\/loris\/bin\/mri\//uploadNeuroDB/tarchiveLoader.pl -globLocation
>>>>>>>>>>>>>>>>>>>>> >>> -profile prod
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> \/data\/loris\/data\/tarchive\/\/DCM_2016\-08\-22_ImagingUpload\-18\-36\-mTrxXs\.tar
>>>>>>>>>>>>>>>>>>>>> >>> -uploadID 12 -verbose
>>>>>>>>>>>>>>>>>>>>> >>> md5sum
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/DCM_2016-08-22_ImagingUpload-18-36-mTrxXs.tar
>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>> >>> candidate id 602102
>>>>>>>>>>>>>>>>>>>>> >>> Set centerID = 1
>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Number of MINC files that will be considered for
>>>>>>>>>>>>>>>>>>>>> inserting into the
>>>>>>>>>>>>>>>>>>>>> >>> database: 2
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> log dir is /data/loris/data//logs and log file is
>>>>>>>>>>>>>>>>>>>>> >>> /data/loris/data//logs/TarLoad-18-37-31ajWx.log
>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>> >>> candidate id 602102
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> log dir is /data/loris/data//logs and log file is
>>>>>>>>>>>>>>>>>>>>> >>> /data/loris/data//logs/TarLoad-18-37-fanZFj.log
>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>> >>> PSCID is: DCC0001
>>>>>>>>>>>>>>>>>>>>> >>> CandID id: 602102
>>>>>>>>>>>>>>>>>>>>> >>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>> >>> candidate id 602102
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Cleaning up temp files: rm -rf
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> /tmp/TarLoad-18-37-to5pYZ/ImagingUpload-18-36-mTrxXs*
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri$
>>>>>>>>>>>>>>>>>>>>> cat
>>>>>>>>>>>>>>>>>>>>> >>> /data/loris/data/logs/TarLoad-18-37-fanZFj.log
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ==> Loading file from disk
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> /tmp/TarLoad-18-37-to5pYZ/dcc0001_602102_v1_20160822_072406_205e1d1_mri.mnc
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> --> mapping DICOM parameter for
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> /tmp/TarLoad-18-37-to5pYZ/dcc0001_602102_v1_20160822_072406_205e1d1_mri.mnc
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ==> computing md5 hash for MINC body.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> --> md5: 02022dda60d9de429340fec838f50cfe
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ==> verifying acquisition protocol
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Acquisition protocol is unknown
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> --> The minc file cannot be registered since the
>>>>>>>>>>>>>>>>>>>>> AcquisitionProtocol
>>>>>>>>>>>>>>>>>>>>> >>> is unknown
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 4 ??? 2019 ???? 10:46 ?.?., ?/?
>>>>>>>>>>>>>>>>>>>>> Christine Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Sure -- you can delete imaging datasets with the
>>>>>>>>>>>>>>>>>>>>> *delete_imaging_upload*
>>>>>>>>>>>>>>>>>>>>> >>> script --
>>>>>>>>>>>>>>>>>>>>> >>> details here:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/21.0-dev/docs/scripts_md/delete_imaging_upload.md
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> What's in your *psc* table? (Is it properly
>>>>>>>>>>>>>>>>>>>>> populated? This is a
>>>>>>>>>>>>>>>>>>>>> >>> pre-requisite to loading imaging data.
>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/21.0-dev/docs/02-Install.md#221-database
>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>> >>> )
>>>>>>>>>>>>>>>>>>>>> >>> The foreign key constraint error on the candidate
>>>>>>>>>>>>>>>>>>>>> record is curious.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> There are also a few options for creating
>>>>>>>>>>>>>>>>>>>>> candidates when inserting
>>>>>>>>>>>>>>>>>>>>> >>> imaging data:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> -- Method 1 : in 2 steps with the API then DICOM
>>>>>>>>>>>>>>>>>>>>> insertion pipeline
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> a. via the LORIS API -- Create the candidates (and
>>>>>>>>>>>>>>>>>>>>> visits, optionally I
>>>>>>>>>>>>>>>>>>>>> >>> think)
>>>>>>>>>>>>>>>>>>>>> >>> How to:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/blob/master/docs/API/LorisRESTAPI.md#30-candidate-api
>>>>>>>>>>>>>>>>>>>>> >>> Ensure you get the DCCID/CandID assigned by LORIS.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Then as a second step:
>>>>>>>>>>>>>>>>>>>>> >>> b. Use the imaging insertion pipeline
>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/minor/docs/05-PipelineLaunchOptions.md#51---pipeline-launch-options-for-dicom-datasets
>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>> >>> to load your DICOMs.
>>>>>>>>>>>>>>>>>>>>> >>> You will want to first ensure that the PatientName
>>>>>>>>>>>>>>>>>>>>> header in the DICOMs
>>>>>>>>>>>>>>>>>>>>> >>> as well as tar package are correctly labelled with
>>>>>>>>>>>>>>>>>>>>> PSCID_DCCID_VisitLabel
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> -- Method 2: for BIDS-format datasets:
>>>>>>>>>>>>>>>>>>>>> >>> How to :
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/master/docs/05-PipelineLaunchOptions.md#52---pipeline-launch-for-bids-datasets
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Be sure to use the *-c* and *-s* options when
>>>>>>>>>>>>>>>>>>>>> running the bids_import script,
>>>>>>>>>>>>>>>>>>>>> >>> to automatically create your candidates and
>>>>>>>>>>>>>>>>>>>>> sessions.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> On Wed, Sep 4, 2019 at 11:43 AM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> How do i delete a Study? And everytime do i have
>>>>>>>>>>>>>>>>>>>>> to create a new
>>>>>>>>>>>>>>>>>>>>> >>> candidate to get DCCID and a PSCID?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> *First execution:*
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri$
>>>>>>>>>>>>>>>>>>>>> ./
>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl -profile prod <
>>>>>>>>>>>>>>>>>>>>> ~/Desktop/input.txt >
>>>>>>>>>>>>>>>>>>>>> >>> log.txt
>>>>>>>>>>>>>>>>>>>>> >>> Use of uninitialized value $_ in pattern match
>>>>>>>>>>>>>>>>>>>>> (m//) at ./
>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl line 144.
>>>>>>>>>>>>>>>>>>>>> >>> DBD::mysql::db do failed: Cannot add or update a
>>>>>>>>>>>>>>>>>>>>> child row: a foreign
>>>>>>>>>>>>>>>>>>>>> >>> key constraint fails (`LORIS`.`candidate`,
>>>>>>>>>>>>>>>>>>>>> CONSTRAINT `FK_candidate_1`
>>>>>>>>>>>>>>>>>>>>> >>> FOREIGN KEY (`RegistrationCenterID`) REFERENCES
>>>>>>>>>>>>>>>>>>>>> `psc` (`CenterID`)) at
>>>>>>>>>>>>>>>>>>>>> >>> /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRI.pm
>>>>>>>>>>>>>>>>>>>>> line 1060.
>>>>>>>>>>>>>>>>>>>>> >>> ERROR: Failed to insert record in table
>>>>>>>>>>>>>>>>>>>>> mri_scanner:
>>>>>>>>>>>>>>>>>>>>> >>> The following database commands failed:
>>>>>>>>>>>>>>>>>>>>> >>> PREPARE s FROM 'INSERT INTO mri_scanner
>>>>>>>>>>>>>>>>>>>>> >>> (CandID,Model,Software,Serial_number,Manufacturer)
>>>>>>>>>>>>>>>>>>>>> VALUES (?,?,?,?,?)';
>>>>>>>>>>>>>>>>>>>>> >>> SET
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> @x1='242126', at x2='Achieva', at x3='3.2.2\3.2.2.0', at x4='34037', at x5='Philips
>>>>>>>>>>>>>>>>>>>>> >>> Medical Systems';
>>>>>>>>>>>>>>>>>>>>> >>> EXECUTE s USING @x1, at x2, at x3, at x4, at x5;
>>>>>>>>>>>>>>>>>>>>> >>> Error obtained:Cannot add or update a child row: a
>>>>>>>>>>>>>>>>>>>>> foreign key
>>>>>>>>>>>>>>>>>>>>> >>> constraint fails (`LORIS`.`mri_scanner`,
>>>>>>>>>>>>>>>>>>>>> CONSTRAINT `FK_mri_scanner_1`
>>>>>>>>>>>>>>>>>>>>> >>> FOREIGN KEY (`CandID`) REFERENCES `candidate`
>>>>>>>>>>>>>>>>>>>>> (`CandID`)) (error code 1452)
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ERROR: The validation has failed. Either re-run
>>>>>>>>>>>>>>>>>>>>> the validation again
>>>>>>>>>>>>>>>>>>>>> >>> and fix the problem. Or re-run tarchiveLoader.pl
>>>>>>>>>>>>>>>>>>>>> using -force to force the
>>>>>>>>>>>>>>>>>>>>> >>> execution.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> The tarchiveLoader.pl insertion script has failed.
>>>>>>>>>>>>>>>>>>>>> >>> Can't exec "mail": No such file or directory at ./
>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl line 249.
>>>>>>>>>>>>>>>>>>>>> >>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl
>>>>>>>>>>>>>>>>>>>>> >>> line 250.
>>>>>>>>>>>>>>>>>>>>> >>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl
>>>>>>>>>>>>>>>>>>>>> >>> line 251.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> *And second execution: *
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> (loris-mri-python) lorisadmin at loris-VirtualBox:/data/loris/bin/mri$
>>>>>>>>>>>>>>>>>>>>> ./
>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl -profile prod <
>>>>>>>>>>>>>>>>>>>>> ~/Desktop/input.txt >
>>>>>>>>>>>>>>>>>>>>> >>> log.txt
>>>>>>>>>>>>>>>>>>>>> >>> Use of uninitialized value $_ in pattern match
>>>>>>>>>>>>>>>>>>>>> (m//) at ./
>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl line 144.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> PROBLEM:
>>>>>>>>>>>>>>>>>>>>> >>> The user 'lorisadmin' has already inserted this
>>>>>>>>>>>>>>>>>>>>> study.
>>>>>>>>>>>>>>>>>>>>> >>> The unique study ID is
>>>>>>>>>>>>>>>>>>>>> '1.3.51.0.1.1.10.49.10.222.1422753.1420953'.
>>>>>>>>>>>>>>>>>>>>> >>> This is the information retained from the first
>>>>>>>>>>>>>>>>>>>>> time the study was
>>>>>>>>>>>>>>>>>>>>> >>> inserted:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> * Taken from dir :
>>>>>>>>>>>>>>>>>>>>> /tmp/ImagingUpload-18-33-Qq7HGy
>>>>>>>>>>>>>>>>>>>>> >>> * Archive target location :
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/DCM_2012-12-05_ImagingUpload-18-33-Qq7HGy.tar
>>>>>>>>>>>>>>>>>>>>> >>> * Name of creating host : 127.0.1.1
>>>>>>>>>>>>>>>>>>>>> >>> * Name of host OS : Linux
>>>>>>>>>>>>>>>>>>>>> >>> * Created by user : lorisadmin
>>>>>>>>>>>>>>>>>>>>> >>> * Archived on : 2019-09-04
>>>>>>>>>>>>>>>>>>>>> 18:33:05
>>>>>>>>>>>>>>>>>>>>> >>> * dicomSummary version : 1
>>>>>>>>>>>>>>>>>>>>> >>> * dicomTar version : 1
>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for DICOM tarball :
>>>>>>>>>>>>>>>>>>>>> 4a301b0318178b09b91e63544282364d
>>>>>>>>>>>>>>>>>>>>> >>> ImagingUpload-18-33-Qq7HGy.tar
>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for DICOM tarball gzipped :
>>>>>>>>>>>>>>>>>>>>> 9d95ea2b9111be236808bfd65d7e65ec
>>>>>>>>>>>>>>>>>>>>> >>> ImagingUpload-18-33-Qq7HGy.tar.gz
>>>>>>>>>>>>>>>>>>>>> >>> * md5sum for complete archive :
>>>>>>>>>>>>>>>>>>>>> ab19a86357f1d4053aa3b81c8a071053
>>>>>>>>>>>>>>>>>>>>> >>> DCM_2012-12-05_ImagingUpload-18-33-Qq7HGy.tar
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Last update of record:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> The dicomTar.pl execution has failed.
>>>>>>>>>>>>>>>>>>>>> >>> Can't exec "mail": No such file or directory at ./
>>>>>>>>>>>>>>>>>>>>> >>> batch_uploads_imageuploader.pl line 249.
>>>>>>>>>>>>>>>>>>>>> >>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl
>>>>>>>>>>>>>>>>>>>>> >>> line 250.
>>>>>>>>>>>>>>>>>>>>> >>> print() on closed filehandle MAIL at ./
>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader.pl
>>>>>>>>>>>>>>>>>>>>> >>> line 251.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 4 ??? 2019 ???? 5:35 ?.?., ?/? Christine
>>>>>>>>>>>>>>>>>>>>> Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Ok, this sounds like good progress. Let us know
>>>>>>>>>>>>>>>>>>>>> when you next encounter
>>>>>>>>>>>>>>>>>>>>> >>> issues as you progress through the Imaging
>>>>>>>>>>>>>>>>>>>>> Install/Setup docs
>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/minor/docs/02-Install.md
>>>>>>>>>>>>>>>>>>>>> >.
>>>>>>>>>>>>>>>>>>>>> >>> I'll look into how we can better handle the
>>>>>>>>>>>>>>>>>>>>> incoming/ directory next
>>>>>>>>>>>>>>>>>>>>> >>> time.
>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> On Wed, Sep 4, 2019 at 10:23 AM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> /data/loris/bin/mri/dicom-archive/.loris_mri/database_config.py is
>>>>>>>>>>>>>>>>>>>>> >>> populated correctly except its port is 'port'
>>>>>>>>>>>>>>>>>>>>> : ''. Also i have tested
>>>>>>>>>>>>>>>>>>>>> >>> that i can connect to MySQL with lorisuser.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> I executed the script again, because the only
>>>>>>>>>>>>>>>>>>>>> error i had previously was
>>>>>>>>>>>>>>>>>>>>> >>> that the /data/incoming folder didn't exist and
>>>>>>>>>>>>>>>>>>>>> there are no errors
>>>>>>>>>>>>>>>>>>>>> >>> reported back except of warnings <<mysql:
>>>>>>>>>>>>>>>>>>>>> [Warning] Using a password on the
>>>>>>>>>>>>>>>>>>>>> >>> command line interface can be insecure>>.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 4 ??? 2019 ???? 4:53 ?.?., ?/? Christine
>>>>>>>>>>>>>>>>>>>>> Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> It's possible -- if the script was unable to
>>>>>>>>>>>>>>>>>>>>> connect to the database
>>>>>>>>>>>>>>>>>>>>> >>> during its execution (e.g. typo in the password),
>>>>>>>>>>>>>>>>>>>>> that would explain the
>>>>>>>>>>>>>>>>>>>>> >>> underpopulated Image path and Loris-MRI code path
>>>>>>>>>>>>>>>>>>>>> you saw in the Config
>>>>>>>>>>>>>>>>>>>>> >>> module.
>>>>>>>>>>>>>>>>>>>>> >>> It's hard to tell without seeing the output from
>>>>>>>>>>>>>>>>>>>>> your script run -- Did
>>>>>>>>>>>>>>>>>>>>> >>> you see a sign of any such error?
>>>>>>>>>>>>>>>>>>>>> >>> The Config fields are populated by the
>>>>>>>>>>>>>>>>>>>>> imaging_install.sh script (starting
>>>>>>>>>>>>>>>>>>>>> >>> at line 222
>>>>>>>>>>>>>>>>>>>>> >>> <
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/21.0-dev/imaging_install.sh#L222
>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>> >>> )
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> For example, check if the database connection
>>>>>>>>>>>>>>>>>>>>> information was populated
>>>>>>>>>>>>>>>>>>>>> >>> accurately in
>>>>>>>>>>>>>>>>>>>>> $mridir/dicom-archive/.loris_mri/database_config.py
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> On Wed, Sep 4, 2019 at 9:34 AM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Christine,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> If you are referring to the imaging_install.sh
>>>>>>>>>>>>>>>>>>>>> here is an image with the
>>>>>>>>>>>>>>>>>>>>> >>> configurations i typed. Maybe the problem is
>>>>>>>>>>>>>>>>>>>>> somewhere at the last part
>>>>>>>>>>>>>>>>>>>>> >>> which asks to configure as much as possible
>>>>>>>>>>>>>>>>>>>>> automatically?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 4 ??? 2019 ???? 4:16 ?.?., ?/? Christine
>>>>>>>>>>>>>>>>>>>>> Rogers, Ms. <
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Glad to hear your LORIS core install is up and
>>>>>>>>>>>>>>>>>>>>> working and all the
>>>>>>>>>>>>>>>>>>>>> >>> front-end pages are loading.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> > lorisadmin at loris-VirtualBox:/var/www/loris$
>>>>>>>>>>>>>>>>>>>>> chmod 775 project
>>>>>>>>>>>>>>>>>>>>> >>> > and the web interface worked.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Yes, it's important that project/ have 775
>>>>>>>>>>>>>>>>>>>>> permissions and that
>>>>>>>>>>>>>>>>>>>>> >>> lorisadmin be part of the sudoers group, per step
>>>>>>>>>>>>>>>>>>>>> 1 in the install
>>>>>>>>>>>>>>>>>>>>> >>> Readme <
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris#install-steps>.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> > As for the Paths, LORIS-MRI code and Image
>>>>>>>>>>>>>>>>>>>>> should change LORIS to
>>>>>>>>>>>>>>>>>>>>> >>> loris, right?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> These imaging paths will be updated during your
>>>>>>>>>>>>>>>>>>>>> imaging installation
>>>>>>>>>>>>>>>>>>>>> >>> <https://github.com/aces/Loris/wiki/Setup> by an
>>>>>>>>>>>>>>>>>>>>> automated script --
>>>>>>>>>>>>>>>>>>>>> >>> you do not need to set them manually via the
>>>>>>>>>>>>>>>>>>>>> Config module.
>>>>>>>>>>>>>>>>>>>>> >>> Please continue to follow the Setup Guide
>>>>>>>>>>>>>>>>>>>>> >>> <https://github.com/aces/Loris/wiki/Setup> for
>>>>>>>>>>>>>>>>>>>>> detailed steps to follow.
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Best,
>>>>>>>>>>>>>>>>>>>>> >>> Christine
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> On Wed, Sep 4, 2019 at 8:05 AM Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> As for the Paths, LORIS-MRI code and Image should
>>>>>>>>>>>>>>>>>>>>> change LORIS to loris,
>>>>>>>>>>>>>>>>>>>>> >>> right?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> [image: image.png]
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> ???? ???, 4 ??? 2019 ???? 2:28 ?.?., ?/? Sotirios
>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <
>>>>>>>>>>>>>>>>>>>>> >>> sotirisnik at gmail.com> ??????:
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Hi,
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> i used
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> curl -sL https://deb.nodesource.com/setup_8.x |
>>>>>>>>>>>>>>>>>>>>> sudo -E bash -
>>>>>>>>>>>>>>>>>>>>> >>> sudo apt-get install -y nodejs
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> you had suggested in the past, make worked and now
>>>>>>>>>>>>>>>>>>>>> i can see all the
>>>>>>>>>>>>>>>>>>>>> >>> contents in the web-interface, but i don't need
>>>>>>>>>>>>>>>>>>>>> make install?
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> Thanks
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> --
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>> McGill Centre for Integrative Neuroscience |
>>>>>>>>>>>>>>>>>>>>> MCIN.ca
>>>>>>>>>>>>>>>>>>>>> >>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>>>>> >>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>> >>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> >>>
>>>>>>>>>>>>>>>>>>>>> -------------- next part --------------
>>>>>>>>>>>>>>>>>>>>> An HTML attachment was scrubbed...
>>>>>>>>>>>>>>>>>>>>> URL: <
>>>>>>>>>>>>>>>>>>>>> http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191112/edc06953/attachment.html
>>>>>>>>>>>>>>>>>>>>> >
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> ------------------------------
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> End of Loris-dev Digest, Vol 64, Issue 16
>>>>>>>>>>>>>>>>>>>>> *****************************************
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> --
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>>>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>>>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191210/7b5c094d/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 37207 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191210/7b5c094d/attachment-0005.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 92124 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191210/7b5c094d/attachment-0006.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 62956 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191210/7b5c094d/attachment-0007.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 65585 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191210/7b5c094d/attachment-0008.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 13729 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20191210/7b5c094d/attachment-0009.png>
More information about the Loris-dev
mailing list
