[Loris-dev] Import mri - scripts
Sotirios Nikoloutsopoulos
sotirisnik at gmail.com
Tue Aug 27 19:30:46 EDT 2019
Also to mention that in the picture i opened the 000-default.conf which is
just a copy of loris.conf by using cp
Στις Τετ, 28 Αυγ 2019 στις 2:20 π.μ., ο/η Sotirios Nikoloutsopoulos <
sotirisnik at gmail.com> έγραψε:
> Ok that fixed the install.sh problem. Now it doesn't show loris to the
> browser, although everything seems right ( also
>
> /etc/apache2/sites-enabled/000-default.conf was replaced by loris.config ).
>
>
> And apache is running
> lorisadmin at loris-VirtualBox:/var/www/loris/htdocs$ sudo systemctl status
> apache2[sudo] password for lorisadmin:
> ● apache2.service - LSB: Apache2 web server
> Loaded: loaded (/etc/init.d/apache2; bad; vendor preset: enabled)
> Drop-In: /lib/systemd/system/apache2.service.d
> └─apache2-systemd.conf
> Active: active (running) since Τετ 2019-08-28 02:15:12 EEST; 3min 34s
> ago
>
> [image: image.png]
>
> Στις Τρί, 27 Αυγ 2019 στις 9:42 μ.μ., ο/η Shen Wang <
> wangshen.mcin at gmail.com> έγραψε:
>
>> Hi,
>> This is a bug for install.sh file, we will fix it later.
>> Thank for letting me know your Loris install situation.
>> regards
>> Shen
>>
>>
>> On Tue, 27 Aug 2019 at 14:28, Shen Wang <wangshen.mcin at gmail.com> wrote:
>>
>>> Hi,
>>> Please remove "set -euo pipefail" line 10 in the install.sh file.
>>> Then try again.
>>>
>>>
>>>
>>> On Tue, 27 Aug 2019 at 14:05, Sotirios Nikoloutsopoulos <
>>> sotirisnik at gmail.com> wrote:
>>>
>>>> Hi,
>>>>
>>>> i still haven't resolved the previous issue. Also i tried to install
>>>> Loris to a new virtual machine and when i execute install.sh i get the
>>>> following error
>>>>
>>>> lorisadmin at loris-VirtualBox:/var/www/loris/tools$ ./install.sh
>>>> LORIS Installation Script starting at 2019-08-27T21:00:42
>>>> The log for this session will be stored in file
>>>> /var/www/loris/tools/logs/install-2019-08-27T21:00:42.log
>>>> ---------------------------------------------------------------------
>>>> LORIS Installation Script
>>>> ---------------------------------------------------------------------
>>>>
>>>> PHP appears to be installed.
>>>>
>>>> PHP Composer appears to be installed.
>>>>
>>>> This install script will ask you to provide inputs for different steps.
>>>> Please ensure you have the following information ready (if applicable):
>>>>
>>>> 1) Your project directory name.
>>>> (Will be used to modify the paths for Imaging data in the generated
>>>> config.xml file for LORIS, and may also be used to automatically
>>>> create/install apache config files.) If unsure, a default like
>>>> "LORIS"
>>>> should be acceptable.
>>>>
>>>> Please also consult the Loris WIKI on GitHub for more information on
>>>> these
>>>> Install Script input parameters.
>>>>
>>>> Ready to continue? [yn] y
>>>>
>>>> ./install.sh: line 132: projectname: unbound variable
>>>>
>>>> Thanks
>>>>
>>>> Στις Τρί, 6 Αυγ 2019 στις 5:09 μ.μ., ο/η Christine Rogers, Ms. <
>>>> christine.rogers at mcgill.ca> έγραψε:
>>>>
>>>>> Hi Sotirios,
>>>>> Could you also let us know -- on which pages is content visible, and
>>>>> on which pages/modules is content not visible for you?
>>>>> Thanks,
>>>>> Christine
>>>>>
>>>>> On Tue, Aug 6, 2019 at 9:54 AM Christine Rogers, Ms. <
>>>>> christine.rogers at mcgill.ca> wrote:
>>>>>
>>>>>> Thanks Sotirios,
>>>>>> That's good to know. It sounds like you've checked that your
>>>>>> /var/www/loris/project/config.xml file get populated properly.
>>>>>>
>>>>>> Please send us the last few errors you're seeing in your apache error
>>>>>> log file, and your config paths and we can see what's happening with your
>>>>>> front end --
>>>>>> Run these Troubleshooting Queries
>>>>>> <https://github.com/aces/Loris/wiki/Project-Customization#troubleshooting-configuration-settings>
>>>>>> to get your config path settings, given your front end is not displaying
>>>>>> fully.
>>>>>>
>>>>>> The Loris-MRI repo
>>>>>> <https://github.com/aces/Loris-MRI/releases/tag/v21.0.0> 21
>>>>>> install/upgrade would then be your next steps.
>>>>>> Best,
>>>>>> Christine
>>>>>>
>>>>>> On Tue, Aug 6, 2019 at 7:53 AM Sotirios Nikoloutsopoulos <
>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>
>>>>>>> I am using a VM. What i did was:
>>>>>>> 1) Download the files from https://github.com/aces/Loris and
>>>>>>> replace them to my existing /vaw/www/loris folder.
>>>>>>> 2) Execute the composer install --no-dev and then composer
>>>>>>> dump-autoload as mentioned here
>>>>>>> https://github.com/aces/Loris/wiki/Updating-your-LORIS.
>>>>>>> 3) Execute install.sh from /var/www/loris/tools and because LORIS
>>>>>>> already existed i moved a .config file, then re-executed the install.sh
>>>>>>> successfully
>>>>>>> 4 ) As for the database, i dropped the schema and i executed the
>>>>>>> installdb.php
>>>>>>>
>>>>>>> Στις Δευ, 5 Αυγ 2019 στις 5:22 μ.μ., ο/η Christine Rogers, Ms. <
>>>>>>> christine.rogers at mcgill.ca> έγραψε:
>>>>>>>
>>>>>>>> Hi Sotorios,
>>>>>>>>
>>>>>>>> Thanks - when you re-installed did you start on a fresh root path /
>>>>>>>> VM or might some of your old system setting still apply?
>>>>>>>> (And if you did any steps similar to an upgrade, did you follow the
>>>>>>>> Upgrade steps in the Release Notes, from both repos?)
>>>>>>>>
>>>>>>>> About the TR_range column - it was recently split (MRI pr339
>>>>>>>> <https://github.com/aces/Loris-MRI/pull/339>) split into TR_min
>>>>>>>> and _max columns. Given the code was trying to query TR_range which does
>>>>>>>> not exist in your mri_protocol table, double-check which version of the
>>>>>>>> Loris repo (tables) and the Loris-MRI repo (code) you have installed to
>>>>>>>> ensure they match.
>>>>>>>>
>>>>>>>> Christine
>>>>>>>>
>>>>>>>>
>>>>>>>> On Mon, Aug 5, 2019 at 9:06 AM Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>

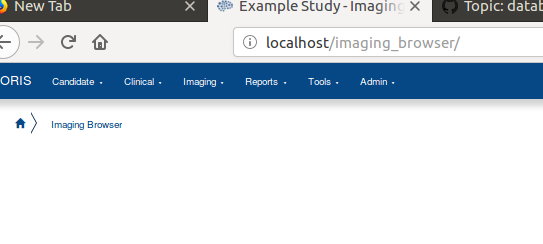

>>>>>>>>> I reinstalled LORIS to 21 version and now the content is not
>>>>>>>>> visible at all at most pages.
>>>>>>>>>
>>>>>>>>> [image: image.png]
>>>>>>>>>
>>>>>>>>> Στις Δευ, 5 Αυγ 2019 στις 3:19 μ.μ., ο/η Sotirios Nikoloutsopoulos
>>>>>>>>> <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>
>>>>>>>>>> Hi,
>>>>>>>>>>

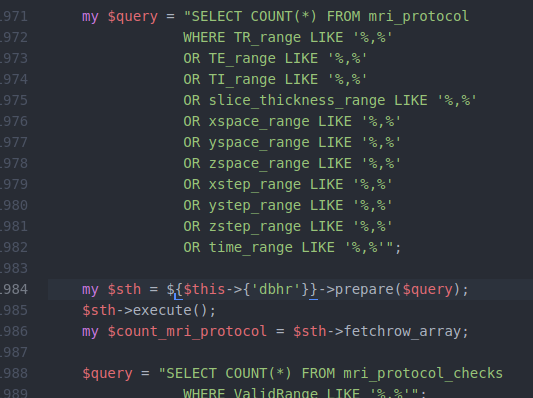

>>>>>>>>>> Is it easy to upgrade to Loris 21? Also the following fails
>>>>>>>>>> because the line 1985 of NeuroDB/MRIProcessingUtility.pm query mri_protocol
>>>>>>>>>> which doesn't have TR_range
>>>>>>>>>> https://github.com/aces/Loris/blob/21.0-release/SQL/0000-00-00-schema.sql#L556
>>>>>>>>>>
>>>>>>>>>> [image: image.png]
>>>>>>>>>>
>>>>>>>>>> lorisadmin at hbp:/data/loris/bin/mri$
>>>>>>>>>> ./batch_uploads_imageuploader -profile prod < ~/Desktop/input.txt > log.txt
>>>>>>>>>> Use of uninitialized value $_ in pattern match (m//) at
>>>>>>>>>> ./batch_uploads_imageuploader line 147.
>>>>>>>>>> base is DCC0000_258024_V1
>>>>>>>>>> path is /data/incoming/
>>>>>>>>>> type is .tar.gz
>>>>>>>>>> fullpath is /data/incoming/DCC0000_258024_V1.tar.gz
>>>>>>>>>> DBD::mysql::st execute failed: Unknown column 'TR_range' in
>>>>>>>>>> 'where clause' at
>>>>>>>>>> /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRIProcessingUtility.pm line 1985.
>>>>>>>>>> DBD::mysql::st fetchrow_array failed: fetch() without execute()
>>>>>>>>>> at /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRIProcessingUtility.pm line
>>>>>>>>>> 1986.
>>>>>>>>>> Use of uninitialized value $count_mri_protocol in numeric gt (>)
>>>>>>>>>> at /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRIProcessingUtility.pm line
>>>>>>>>>> 1995.
>>>>>>>>>> DBD::mysql::st execute failed: Unknown column 'TR_range' in
>>>>>>>>>> 'field list' at /data/loris/bin/mri/uploadNeuroDB/NeuroDB/MRI.pm line 562.
>>>>>>>>>> Can't exec "mail": No such file or directory at
>>>>>>>>>> /data/loris/bin/mri/uploadNeuroDB/tarchiveLoader line 721.
>>>>>>>>>> print() on closed filehandle MAIL at
>>>>>>>>>> /data/loris/bin/mri/uploadNeuroDB/tarchiveLoader line 722.
>>>>>>>>>> print() on closed filehandle MAIL at
>>>>>>>>>> /data/loris/bin/mri/uploadNeuroDB/tarchiveLoader line 723.
>>>>>>>>>> print() on closed filehandle MAIL at
>>>>>>>>>> /data/loris/bin/mri/uploadNeuroDB/tarchiveLoader line 724.
>>>>>>>>>> print() on closed filehandle MAIL at
>>>>>>>>>> /data/loris/bin/mri/uploadNeuroDB/tarchiveLoader line 725.
>>>>>>>>>>
>>>>>>>>>> No Mincs inserted
>>>>>>>>>>
>>>>>>>>>> Thanks,
>>>>>>>>>>
>>>>>>>>>> Sotirios
>>>>>>>>>>
>>>>>>>>>> Στις Σάβ, 3 Αυγ 2019 στις 1:08 π.μ., ο/η Christine Rogers, Ms. <
>>>>>>>>>> christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>>>
>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>
>>>>>>>>>>> First, just a note: we've released LORIS 21 this week with some
>>>>>>>>>>> major new features and cleanup -- especially if you are early in your setup
>>>>>>>>>>> phase, check out the Release notes for both the LORIS
>>>>>>>>>>> <https://github.com/aces/Loris/releases/tag/v21.0.0> and
>>>>>>>>>>> Loris-MRI
>>>>>>>>>>> <https://github.com/aces/Loris-MRI/releases/tag/v21.0.0> repos.
>>>>>>>>>>>
>>>>>>>>>>> Thanks for your screenshots -- your empty mri_protocol table
>>>>>>>>>>> should be at the root of these issues :
>>>>>>>>>>>
>>>>>>>>>>> The mri_protocol table must be populated
>>>>>>>>>>> <https://github.com/aces/Loris-MRI/blob/21.0-dev/docs/02-Install.md#221-database>
>>>>>>>>>>> in order for your scans to be registered in LORIS -- it serves as a
>>>>>>>>>>> whitelist for the insertion pipeline which filters out scans that aren't
>>>>>>>>>>> identified or matched to scan types in this table.
>>>>>>>>>>>
>>>>>>>>>>> By default, this table is populated with entries for t1, t2,
>>>>>>>>>>> fMRI and DTI (Insert statements for 21 release branch are here
>>>>>>>>>>> <https://github.com/aces/Loris/blob/21.0-release/SQL/0000-00-00-schema.sql#L591>
>>>>>>>>>>> )
>>>>>>>>>>> Feel free to restore our default records and broaden their
>>>>>>>>>>> parameters to match all your scan types.
>>>>>>>>>>>
>>>>>>>>>>> re Defaced, native, selected -- these filter the scans displayed
>>>>>>>>>>> as you move to the next page (View Session), instead of viewing "all types"
>>>>>>>>>>> of scans from a given session :
>>>>>>>>>>>
>>>>>>>>>>> - "defaced" means that a defacing script
>>>>>>>>>>> <https://github.com/aces/Loris-MRI/blob/master/docs/scripts_md/run_defacing_script.md>
>>>>>>>>>>> has masked the subject's face in the volume (for patient privacy)
>>>>>>>>>>> - "native" means that no pre-processing has been performed
>>>>>>>>>>> on the scan (it's raw data),
>>>>>>>>>>> - "selected" will show only volumes that have been QC'd and
>>>>>>>>>>> "selected" as the best of their type -- used to display only the best
>>>>>>>>>>> quality T1 image instead of all T1s acquired in a session, e.g.
>>>>>>>>>>>
>>>>>>>>>>> re QC Comments --
>>>>>>>>>>> Once you have successfully loaded scans (matched to the
>>>>>>>>>>> mri_protocol table), you'll be able to use the Imaging Browser's View
>>>>>>>>>>> Session subpage to enter/view QC comments on each volume, or for each
>>>>>>>>>>> visit.
>>>>>>>>>>> These are stored directly in the database, and linked to each
>>>>>>>>>>> scan. (Table name: feedback_mri_comments)
>>>>>>>>>>> (Visit-level QC comments are linked to the session.)
>>>>>>>>>>>
>>>>>>>>>>> For a walkthrough of the Imaging setup - please see the Imaging
>>>>>>>>>>> Setup guide
>>>>>>>>>>> <https://github.com/aces/Loris-MRI/blob/21.0-dev/docs/02-Install.md>
>>>>>>>>>>> -
>>>>>>>>>>>
>>>>>>>>>>> An old LORIS walkthrough video
>>>>>>>>>>> <https://www.youtube.com/watch?v=HDWC6RUbI6A> can also walk you
>>>>>>>>>>> through some of the Imaging front-end features, starting at 8:00
>>>>>>>>>>> LORIS' imaging modules have been updated many times since this
>>>>>>>>>>> video, but the functionality and workflow is similar.
>>>>>>>>>>>
>>>>>>>>>>> Let us know how it goes once you have entries in your
>>>>>>>>>>> mri_protocol table -
>>>>>>>>>>> Best,
>>>>>>>>>>> Christine
>>>>>>>>>>>
>>>>>>>>>>>
>>>>>>>>>>>
>>>>>>>>>>>
>>>>>>>>>>> On Fri, Aug 2, 2019 at 7:58 AM Sotirios Nikoloutsopoulos <
>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>
>>>>>>>>>>>> Hi Christine,
>>>>>>>>>>>>
>>>>>>>>>>>> In the candidate_list page i can see this patient
>>>>>>>>>>>>
>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>
>>>>>>>>>>>> If i press the link under PSCID i get to see
>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>
>>>>>>>>>>>> and if i press the link under Scan Done it redirects me to
>>>>>>>>>>>> imaging_browser
>>>>>>>>>>>>
>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>
>>>>>>>>>>>> At the mri_violations page i also see No results ( neither on
>>>>>>>>>>>> resolved / not resolved ).
>>>>>>>>>>>>
>>>>>>>>>>>> At the imaging_uploader i can see the record that failed.
>>>>>>>>>>>>
>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>
>>>>>>>>>>>> If i click on the tarchive info i get to see the Protocol Name
>>>>>>>>>>>> which i think is the acquisition we wanted?
>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>
>>>>>>>>>>>> Also my mri_protocol table is empty.
>>>>>>>>>>>>
>>>>>>>>>>>> Furthermore i would like to ask about the defaced, native,
>>>>>>>>>>>> selected. What exactly is native and selected? And where are the qc
>>>>>>>>>>>> comments stored?
>>>>>>>>>>>>
>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>
>>>>>>>>>>>> Finally a walkthrough would be helpful.
>>>>>>>>>>>>
>>>>>>>>>>>> Thanks,
>>>>>>>>>>>>
>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>
>>>>>>>>>>>> Στις Τρί, 30 Ιουλ 2019 στις 8:29 μ.μ., ο/η Christine Rogers,
>>>>>>>>>>>> Ms. <christine.rogers at mcgill.ca> έγραψε:
>>>>>>>>>>>>
>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>> Glad to hear you're making progress with the visit labels. To
>>>>>>>>>>>>> follow up on your last few emails:
>>>>>>>>>>>>>
>>>>>>>>>>>>> a- The Wiki's Setup Guide contains Sample insert statements
>>>>>>>>>>>>> for the Visit Windows table
>>>>>>>>>>>>> <https://github.com/aces/Loris/wiki/Project-Customization#iv-visit-windows>
>>>>>>>>>>>>> .
>>>>>>>>>>>>>
>>>>>>>>>>>>> As Cecile mentioned, the consistency of visit label format is
>>>>>>>>>>>>> important: V01, v01, V1, 01 -- whichever you select to use is fine; we use
>>>>>>>>>>>>> V01 by default across all documentation.
>>>>>>>>>>>>>
>>>>>>>>>>>>> b- For Password reset, there is a script in the tools/
>>>>>>>>>>>>> directory so that a back-end administrator can reset any front-end user
>>>>>>>>>>>>> password, including Admin. (See info on setting up / resetting User
>>>>>>>>>>>>> passwords in the Wiki's Setup Guide
>>>>>>>>>>>>> <https://github.com/aces/Loris/wiki/Project-Customization#2-create-front-end-users>
>>>>>>>>>>>>> )
>>>>>>>>>>>>>
>>>>>>>>>>>>> c- The minc file not being registered -- due to
>>>>>>>>>>>>> AcquisitionProtocol unknown.
>>>>>>>>>>>>> This means the SeriesDescription (Acquisition Protocol) in you
>>>>>>>>>>>>> Dicom header was not matched to any scan listed in the mri_protocol
>>>>>>>>>>>>> database table.
>>>>>>>>>>>>> (In the online Loris-MRI Troubleshooting Guide,
>>>>>>>>>>>>> <https://github.com/aces/Loris-MRI/blob/minor/docs/AppendixA-Troubleshooting_guideline.md> this
>>>>>>>>>>>>> is Table 3, 2nd-last item "no MINCs inserted").
>>>>>>>>>>>>>
>>>>>>>>>>>>> The MRI Violations module (Readme here)
>>>>>>>>>>>>> <https://github.com/aces/Loris/tree/minor/modules/mri_violations>will show
>>>>>>>>>>>>> you the details of this mismatch --
>>>>>>>>>>>>> Go to the module (under the Imaging menu), find your scan and
>>>>>>>>>>>>> click the link "Could not identify scan type" -- in the next subpage you
>>>>>>>>>>>>> can compare the scan's actual parameters against the mri_protocol table.
>>>>>>>>>>>>>
>>>>>>>>>>>>> To resolve this, adjust your mri_protocol table values or
>>>>>>>>>>>>> perhaps ensure your DICOMs are labelled consistently.
>>>>>>>>>>>>>
>>>>>>>>>>>>> Let us know if this works for you -- we can also walk you
>>>>>>>>>>>>> through an example of non-identified scans on Demo.loris.ca
>>>>>>>>>>>>> (MRI Violations module).
>>>>>>>>>>>>>
>>>>>>>>>>>>> Best,
>>>>>>>>>>>>> Christine
>>>>>>>>>>>>>
>>>>>>>>>>>>> The LORIS team
>>>>>>>>>>>>>
>>>>>>>>>>>>>
>>>>>>>>>>>>> On Tue, Jul 30, 2019 at 10:47 AM Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>
>>>>>>>>>>>>>> I hope this is sufficient as the error for the visit label
>>>>>>>>>>>>>> disappeared.
>>>>>>>>>>>>>> [image: image.png]
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Please see the attached file. Also something i found.
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> lorisadmin at hbp:/data/loris/bin/mri$ cat
>>>>>>>>>>>>>> /data/loris/data//logs/TarLoad-17-39-xubBdv.log
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> ==> Loading file from disk
>>>>>>>>>>>>>> /tmp/TarLoad-17-39-UyQcG2/dcc0000_258024_v1_20121205_102108_501e1_mri.mnc
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> --> mapping DICOM parameter for
>>>>>>>>>>>>>> /tmp/TarLoad-17-39-UyQcG2/dcc0000_258024_v1_20121205_102108_501e1_mri.mnc
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> ==> computing md5 hash for MINC body.
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> --> md5: 6b1202fd63e29de4c9be1cd9925888a5
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> ==> verifying acquisition protocol
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Acquisition protocol is unknown
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> --> The minc file cannot be registered since the
>>>>>>>>>>>>>> AcquisitionProtocol is unknown
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Στις Τρί, 30 Ιουλ 2019 στις 4:58 μ.μ., ο/η Sotirios
>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Ok I fixed the login problem by using a known hash and by
>>>>>>>>>>>>>>> deleting the rows from the login_history i was able to login.
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Στις Τρί, 30 Ιουλ 2019 στις 4:50 μ.μ., ο/η Sotirios
>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> there was no visit label 01 in the Visit_Windows table and
>>>>>>>>>>>>>>>> i don't know how to insert it because the record requires lots of
>>>>>>>>>>>>>>>> attributes. Also the system for a reason asked me to update my password and
>>>>>>>>>>>>>>>> now i don't remember it and my account got suspended. Is there a way to
>>>>>>>>>>>>>>>> reset it or set a simple password? I updated the password hash in the
>>>>>>>>>>>>>>>> users table by using the hash from another LORIS setup we had and i still
>>>>>>>>>>>>>>>> couldn't login ( also the attribute password is always NULL and the
>>>>>>>>>>>>>>>> expiration date is 1999-01-01 for some reason ).
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Thanks
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Στις Δευ, 29 Ιουλ 2019 στις 5:21 μ.μ., ο/η Cecile Madjar <
>>>>>>>>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Can you try adding the visit label v01 to the
>>>>>>>>>>>>>>>>> Visit_Windows table?
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> However, I noticed that in a previous dataset, the label
>>>>>>>>>>>>>>>>> was V1. Does that refer to the same visit? If so, you might want to
>>>>>>>>>>>>>>>>> harmonize the visit labels so they are all the same across datasets for a
>>>>>>>>>>>>>>>>> given timepoint, meaning you will need to relabel scans when the visit
>>>>>>>>>>>>>>>>> label is different but referring to the same visit label (v01 = V1 etc...).
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Hope this helps,
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> On Mon, Jul 29, 2019 at 10:15 AM Sotirios Nikoloutsopoulos
>>>>>>>>>>>>>>>>> <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Could you help me with the "Visit label does not exist"?
>>>>>>>>>>>>>>>>>> I had changed $subjectID{'createVisitLabel'} to 1 as you had suggested but
>>>>>>>>>>>>>>>>>> it appears that this problem hasn't been resolved yet.
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> lorisadmin at hbp:/data/loris/bin/mri$ cat
>>>>>>>>>>>>>>>>>> /data/loris/data//logs/TarLoad-14-58-9Xog7H.log
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> ==> Loading file from disk
>>>>>>>>>>>>>>>>>> /tmp/TarLoad-14-58-5Z4hYX/dcc0000_258024_v01_20121205_102108_501e1_mri.mnc
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> --> mapping DICOM parameter for
>>>>>>>>>>>>>>>>>> /tmp/TarLoad-14-58-5Z4hYX/dcc0000_258024_v01_20121205_102108_501e1_mri.mnc
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> --> using user-defined filterParameters for
>>>>>>>>>>>>>>>>>> /tmp/TarLoad-14-58-5Z4hYX/dcc0000_258024_v01_20121205_102108_501e1_mri.mnc
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Candidate Mismatch Error is Visit label does not exist
>>>>>>>>>>>>>>>>>> -> WARNING: This candidate was invalid. Logging to
>>>>>>>>>>>>>>>>>> MRICandidateErrors table with reason Visit
>>>>>>>>>>>>>>>>>> label does not exist
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Thank you,
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Στις Παρ, 26 Ιουλ 2019 στις 3:02 μ.μ., ο/η Sotirios
>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Hi Cecile,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> The Center error was fixed. Still the insertion of mincs
>>>>>>>>>>>>>>>>>>> fails. Please see the output.txt file i attached. Also is there something
>>>>>>>>>>>>>>>>>>> else i need to change at the paths configuration?
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Thank you,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Στις Πέμ, 25 Ιουλ 2019 στις 6:55 μ.μ., ο/η Cecile Madjar
>>>>>>>>>>>>>>>>>>> <cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> We are making progress!
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> I have a feeling this error comes from the fact that
>>>>>>>>>>>>>>>>>>>> your psc table does not have the MRI_alias populated for the DCC site.
>>>>>>>>>>>>>>>>>>>> Running the following query in the mysql database should fix this:
>>>>>>>>>>>>>>>>>>>> UPDATE psc SET MRI_alias="DCC", Alias="DCC" WHERE
>>>>>>>>>>>>>>>>>>>> Name="Data Coordinating Center";
>>>>>>>>>>>>>>>>>>>> Repeat the same with all your sites (make sure to
>>>>>>>>>>>>>>>>>>>> change the Aliases between sites, they should all be unique).
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Let me know how it goes!
>>>>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> On Thu, Jul 25, 2019 at 11:43 AM Sotirios
>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> Dear Cecile,
>>>>>>>>>>>>>>>>>>>>> You were right about your guesses. I did the
>>>>>>>>>>>>>>>>>>>>> modifications you suggested, i still get the "no mincs inserted" error, now
>>>>>>>>>>>>>>>>>>>>> i am getting the "No center found this candidate" error ( how do i fix
>>>>>>>>>>>>>>>>>>>>> that? from what i see the .dcm files contains a 'Institution Name', is that
>>>>>>>>>>>>>>>>>>>>> the center? ), so i guess that's why the validation fails, but i changed
>>>>>>>>>>>>>>>>>>>>> the force variable of tarchiveLoader to 1, shouldn't it have inserted the
>>>>>>>>>>>>>>>>>>>>> mincs then? Also it is optional to have a mail server, right? ( from what i
>>>>>>>>>>>>>>>>>>>>> see the mail error does not affect the $valid_study, so i assume we are
>>>>>>>>>>>>>>>>>>>>> okay with that )
>>>>>>>>>>>>>>>>>>>>> Thank you a lot,
>>>>>>>>>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> Στις Πέμ, 25 Ιουλ 2019 στις 5:48 μ.μ., ο/η Cecile
>>>>>>>>>>>>>>>>>>>>> Madjar <cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> From what I understand, I believe you just need to
>>>>>>>>>>>>>>>>>>>>>> update a few config settings from the frontend in the Config module (under
>>>>>>>>>>>>>>>>>>>>>> the Admin menu).
>>>>>>>>>>>>>>>>>>>>>> [image: Screen Shot 2019-07-25 at 10.31.35 AM.png]
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> Then go to the Paths section of the config module and
>>>>>>>>>>>>>>>>>>>>>> update the "LORIS-MRI code" config setting to /data/loris/bin/mri (my guess
>>>>>>>>>>>>>>>>>>>>>> is that currently, it is set to /data/LORIS/data) and click on the submit
>>>>>>>>>>>>>>>>>>>>>> button.
>>>>>>>>>>>>>>>>>>>>>> [image: Screen Shot 2019-07-25 at 10.32.50 AM.png]
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> Then, go to Imaging Pipeline section of the
>>>>>>>>>>>>>>>>>>>>>> Configuration module and update the "Loris-MRI Data Directory" to
>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/ (my guess is that it is empty at the moment in your
>>>>>>>>>>>>>>>>>>>>>> database which is why $data_dir is not defined when you run the
>>>>>>>>>>>>>>>>>>>>>> tarchiveLoader step of the insertion pipeline).
>>>>>>>>>>>>>>>>>>>>>> [image: Screen Shot 2019-07-25 at 10.40.52 AM.png]
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> Finally, I took a look at your environment file and
>>>>>>>>>>>>>>>>>>>>>> it might be a good idea to update your PERL5LIB variable to the following
>>>>>>>>>>>>>>>>>>>>>> (it has been added to the code a few releases ago as we realized this was
>>>>>>>>>>>>>>>>>>>>>> needed for the libraries. Not sure which version of LORIS-MRI you are using
>>>>>>>>>>>>>>>>>>>>>> but it does not hurt to update this variable to what I suggest below):
>>>>>>>>>>>>>>>>>>>>>> export
>>>>>>>>>>>>>>>>>>>>>> PERL5LIB=/data/loris/bin/mri/uploadNeuroDB:/data/loris/bin/mri/dicom-archive:$PERL5LIB
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> Hope this helps. Sorry you are experiencing so much
>>>>>>>>>>>>>>>>>>>>>> trouble setting things up. We probably need to update our WIKI.
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>> On Thu, Jul 25, 2019 at 9:48 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> The "Loris-MRI Data Directory" should be in the
>>>>>>>>>>>>>>>>>>>>>>> environment file?
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>> Στις Πέμ, 25 Ιουλ 2019 στις 12:59 π.μ., ο/η Sotirios
>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> The scripts are located in /data/loris/bin/mri/.
>>>>>>>>>>>>>>>>>>>>>>>> Somewhere I might have messed something up but i remember following the
>>>>>>>>>>>>>>>>>>>>>>>> instructions in the wiki.For example when i tried to execute the
>>>>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader perl script the line
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> my $command = "$bin_dir/uploadNeuroDB/
>>>>>>>>>>>>>>>>>>>>>>>> imaging_upload_file.pl "
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> was pointing to an invalid path, for example: it
>>>>>>>>>>>>>>>>>>>>>>>> was repeating a pattern and had LORIS instead of loris ( i think the
>>>>>>>>>>>>>>>>>>>>>>>> mistake was that in the wiki it suggested to use $PROJECT for the name of
>>>>>>>>>>>>>>>>>>>>>>>> the folder and i choosed 'loris'
>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris/wiki/Imaging-Database
>>>>>>>>>>>>>>>>>>>>>>>> ). See also the in image for the modification i did. Also i didn't find the
>>>>>>>>>>>>>>>>>>>>>>>> section to config the $data_dir variable.
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> Thank you,
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>> Στις Τετ, 24 Ιουλ 2019 στις 6:05 μ.μ., ο/η Cecile
>>>>>>>>>>>>>>>>>>>>>>>> Madjar <cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>> It looks like you have one Config setting not set
>>>>>>>>>>>>>>>>>>>>>>>>> (based on the first error message you got when running it the first time).
>>>>>>>>>>>>>>>>>>>>>>>>> You need to set a value for "Loris-MRI Data Directory" in the Config module
>>>>>>>>>>>>>>>>>>>>>>>>> under the Imaging pipeline section (from what I can see, it would be
>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/ for your setup).
>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>> The reason you got that error message the second
>>>>>>>>>>>>>>>>>>>>>>>>> time is that the pipeline checks if the DICOM study was already inserted in
>>>>>>>>>>>>>>>>>>>>>>>>> the tarchive table. Since you ran the study once already, the study is
>>>>>>>>>>>>>>>>>>>>>>>>> inserted into the tarchive, hence the message. However, the pipeline did
>>>>>>>>>>>>>>>>>>>>>>>>> not complete as the MINC files were not created and inserted into the
>>>>>>>>>>>>>>>>>>>>>>>>> files/parameter_file table. In order to continue the insertion, you will
>>>>>>>>>>>>>>>>>>>>>>>>> then need to run the tarchiveLoader command suggested in the terminal
>>>>>>>>>>>>>>>>>>>>>>>>> during the second run:
>>>>>>>>>>>>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader
>>>>>>>>>>>>>>>>>>>>>>>>> -globLocation -profile prod
>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive//2012/DCM_2012-12-05_ImagingUpload-17-43-ZUEFjb.tar
>>>>>>>>>>>>>>>>>>>>>>>>> -verbose
>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>> Finally, I am a bit confused by your setup. Where
>>>>>>>>>>>>>>>>>>>>>>>>> are the scripts located? In /data/loris/bin/mri or /data/loris/data? It
>>>>>>>>>>>>>>>>>>>>>>>>> feels like the Config setting "LORIS-MRI code" in the Paths section was set
>>>>>>>>>>>>>>>>>>>>>>>>> to "/data/LORIS/data" but it should have been set to the directory where
>>>>>>>>>>>>>>>>>>>>>>>>> the scripts are located (most probably /data/loris/bin/mri).
>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>> Hope this helps,
>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>> On Wed, Jul 24, 2019 at 10:55 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> Ok first i execute this command:
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> "lorisadmin at hbp:/data/loris/bin/mri$
>>>>>>>>>>>>>>>>>>>>>>>>>> ./batch_uploads_imageuploader -profile prod < ~/Desktop/input.txt > log.txt
>>>>>>>>>>>>>>>>>>>>>>>>>> Use of uninitialized value $data_dir in
>>>>>>>>>>>>>>>>>>>>>>>>>> concatenation (.) or string at ./batch_uploads_imageuploader line 143.
>>>>>>>>>>>>>>>>>>>>>>>>>> Use of uninitialized value $data_dir in
>>>>>>>>>>>>>>>>>>>>>>>>>> concatenation (.) or string at ./batch_uploads_imageuploader line 143.
>>>>>>>>>>>>>>>>>>>>>>>>>> Use of uninitialized value $_ in pattern match
>>>>>>>>>>>>>>>>>>>>>>>>>> (m//) at ./batch_uploads_imageuploader line 147.
>>>>>>>>>>>>>>>>>>>>>>>>>> base is DCC0000_258024_V01
>>>>>>>>>>>>>>>>>>>>>>>>>> path is /data/incoming/
>>>>>>>>>>>>>>>>>>>>>>>>>> type is .tar.gz
>>>>>>>>>>>>>>>>>>>>>>>>>> fullpath is
>>>>>>>>>>>>>>>>>>>>>>>>>> /data/incoming/DCC0000_258024_V01.tar.gz
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> source /tmp/ImagingUpload-17-43-ZUEFjb
>>>>>>>>>>>>>>>>>>>>>>>>>> targetlocation /data/loris/data/tarchive
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> Use of uninitialized value $data_dir in
>>>>>>>>>>>>>>>>>>>>>>>>>> concatenation (.) or string at
>>>>>>>>>>>>>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 256.
>>>>>>>>>>>>>>>>>>>>>>>>>> Use of uninitialized value $data_dir in
>>>>>>>>>>>>>>>>>>>>>>>>>> concatenation (.) or string at
>>>>>>>>>>>>>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 284.
>>>>>>>>>>>>>>>>>>>>>>>>>> Use of uninitialized value $data_dir in
>>>>>>>>>>>>>>>>>>>>>>>>>> concatenation (.) or string at /data/loris/bin/mri/uploadNeuroDB/
>>>>>>>>>>>>>>>>>>>>>>>>>> tarchive_validation.pl line 219.
>>>>>>>>>>>>>>>>>>>>>>>>>> Use of uninitialized value $data_dir in
>>>>>>>>>>>>>>>>>>>>>>>>>> concatenation (.) or string at /data/loris/bin/mri/uploadNeuroDB/
>>>>>>>>>>>>>>>>>>>>>>>>>> minc_insertion.pl line 270.
>>>>>>>>>>>>>>>>>>>>>>>>>> Use of uninitialized value $data_dir in
>>>>>>>>>>>>>>>>>>>>>>>>>> concatenation (.) or string at
>>>>>>>>>>>>>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 711.
>>>>>>>>>>>>>>>>>>>>>>>>>> Can't exec "mail": No such file or directory at
>>>>>>>>>>>>>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 721.
>>>>>>>>>>>>>>>>>>>>>>>>>> print() on closed filehandle MAIL at
>>>>>>>>>>>>>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 722.
>>>>>>>>>>>>>>>>>>>>>>>>>> print() on closed filehandle MAIL at
>>>>>>>>>>>>>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 723.
>>>>>>>>>>>>>>>>>>>>>>>>>> Use of uninitialized value $data_dir in
>>>>>>>>>>>>>>>>>>>>>>>>>> concatenation (.) or string at
>>>>>>>>>>>>>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 724.
>>>>>>>>>>>>>>>>>>>>>>>>>> print() on closed filehandle MAIL at
>>>>>>>>>>>>>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 724.
>>>>>>>>>>>>>>>>>>>>>>>>>> print() on closed filehandle MAIL at
>>>>>>>>>>>>>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 725.
>>>>>>>>>>>>>>>>>>>>>>>>>> Use of uninitialized value $data_dir in
>>>>>>>>>>>>>>>>>>>>>>>>>> concatenation (.) or string at
>>>>>>>>>>>>>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 735.
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> No Mincs inserted
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> The tarchiveLoader insertion script has failed.
>>>>>>>>>>>>>>>>>>>>>>>>>> Running now the following command:
>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/uploadNeuroDB/
>>>>>>>>>>>>>>>>>>>>>>>>>> imaging_upload_file.pl -profile prod -upload_id
>>>>>>>>>>>>>>>>>>>>>>>>>> 3 /data/incoming/DCC0000_258024_V01.tar.gz -verbose"
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> I inserted the VisitLabel, but still the Mincs
>>>>>>>>>>>>>>>>>>>>>>>>>> are not inserted and i am getting this error
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> "lorisadmin at hbp:/data/loris/bin/mri$
>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/uploadNeuroDB/
>>>>>>>>>>>>>>>>>>>>>>>>>> imaging_upload_file.pl -profile prod -upload_id
>>>>>>>>>>>>>>>>>>>>>>>>>> 3 /data/incoming/DCC0000_258024_V01.tar.gz -verbose
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> find -path \/tmp\/ImagingUpload\-17\-45\-5MsWEd
>>>>>>>>>>>>>>>>>>>>>>>>>> -name '__MACOSX' -delete
>>>>>>>>>>>>>>>>>>>>>>>>>> Spool message is:
>>>>>>>>>>>>>>>>>>>>>>>>>> The Scan for the uploadID 3 has already been run
>>>>>>>>>>>>>>>>>>>>>>>>>> with tarchiveID: 7.
>>>>>>>>>>>>>>>>>>>>>>>>>> To continue with the rest of the insertion
>>>>>>>>>>>>>>>>>>>>>>>>>> pipeline, please run tarchiveLoader from a terminal as follows:
>>>>>>>>>>>>>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader -globLocation -profile prod
>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive//2012/DCM_2012-12-05_ImagingUpload-17-43-ZUEFjb.tar
>>>>>>>>>>>>>>>>>>>>>>>>>> -verbose"
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> Which files should i delete? I thought that
>>>>>>>>>>>>>>>>>>>>>>>>>> deleting the files from the tarchive was enough. And i executed the last
>>>>>>>>>>>>>>>>>>>>>>>>>> proposed command to continue to rest of the insertion pipeline ( check the
>>>>>>>>>>>>>>>>>>>>>>>>>> image ).
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> Thank you
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>> Στις Τετ, 24 Ιουλ 2019 στις 5:05 μ.μ., ο/η Cecile
>>>>>>>>>>>>>>>>>>>>>>>>>> Madjar <cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>> Sorry I was not clear before. Every visits of
>>>>>>>>>>>>>>>>>>>>>>>>>>> candidates are created in the session table with one entry per
>>>>>>>>>>>>>>>>>>>>>>>>>>> CandID/VisitLabel. So if the imaging pipeline created visits in the session
>>>>>>>>>>>>>>>>>>>>>>>>>>> table (that are not attached to instruments) and you want to clean your
>>>>>>>>>>>>>>>>>>>>>>>>>>> database completely, you can delete entries in that table as well.
>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>> Regarding your point 2, the imaging pipeline can
>>>>>>>>>>>>>>>>>>>>>>>>>>> create the visit in the session table as long as the visit label is present
>>>>>>>>>>>>>>>>>>>>>>>>>>> in the Visit_Windows table (which means the visit label stored in the
>>>>>>>>>>>>>>>>>>>>>>>>>>> PatientName is a valid visit label).
>>>>>>>>>>>>>>>>>>>>>>>>>>> However, in your prod file, if the
>>>>>>>>>>>>>>>>>>>>>>>>>>> variable $subjectID{'createVisitLabel'} is set to 1 for candidates, the
>>>>>>>>>>>>>>>>>>>>>>>>>>> visit label should be created in the Visit_Windows table I believe. Here
>>>>>>>>>>>>>>>>>>>>>>>>>>> is the line of the prod file you would need to change
>>>>>>>>>>>>>>>>>>>>>>>>>>> <https://github.com/aces/Loris-MRI/blob/81bae73ea6e86c9498519dadf574468ee1d992ca/dicom-archive/profileTemplate.pl#L59>
>>>>>>>>>>>>>>>>>>>>>>>>>>> .
>>>>>>>>>>>>>>>>>>>>>>>>>>> In general, we prefer populating the
>>>>>>>>>>>>>>>>>>>>>>>>>>> Visit_Windows table and set the $subjectID{'createVisitLabel'} to 0 for
>>>>>>>>>>>>>>>>>>>>>>>>>>> candidate data to avoid insertion of badly labelled MRI data that are
>>>>>>>>>>>>>>>>>>>>>>>>>>> complex to relabel.
>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>> Finally, regarding the candidate creation, if
>>>>>>>>>>>>>>>>>>>>>>>>>>> you execute the following steps, the pipeline should be able to create
>>>>>>>>>>>>>>>>>>>>>>>>>>> candidates:
>>>>>>>>>>>>>>>>>>>>>>>>>>> - set in the Imaging Pipeline section of the
>>>>>>>>>>>>>>>>>>>>>>>>>>> config module the config setting "Upload creation of candidates" to Yes
>>>>>>>>>>>>>>>>>>>>>>>>>>> - manually transfer the scans to the LORIS
>>>>>>>>>>>>>>>>>>>>>>>>>>> server instead of uploading it via the imaging browser
>>>>>>>>>>>>>>>>>>>>>>>>>>> - run batch_imaging_upload.pl as you did until
>>>>>>>>>>>>>>>>>>>>>>>>>>> now.
>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>> Hope this helps!
>>>>>>>>>>>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>> On Wed, Jul 24, 2019 at 8:47 AM Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> About my second question i replaced the name of
>>>>>>>>>>>>>>>>>>>>>>>>>>>> the patient in the .dcm files and now i am getting an error that the visit
>>>>>>>>>>>>>>>>>>>>>>>>>>>> label does not exist.
>>>>>>>>>>>>>>>>>>>>>>>>>>>> I thought it was supposed to be automatically
>>>>>>>>>>>>>>>>>>>>>>>>>>>> created.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> "Done adding archive info into database
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader
>>>>>>>>>>>>>>>>>>>>>>>>>>>> -globLocation -profile prod
>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive//DCM_2012-12-05_ImagingUpload-15-42-yUwQQV.tar
>>>>>>>>>>>>>>>>>>>>>>>>>>>> -verbose
>>>>>>>>>>>>>>>>>>>>>>>>>>>> md5sum
>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/tarchive/DCM_2012-12-05_ImagingUpload-15-42-yUwQQV.tar
>>>>>>>>>>>>>>>>>>>>>>>>>>>> PSCID is: DCC0000
>>>>>>>>>>>>>>>>>>>>>>>>>>>> CandID id: 258024
>>>>>>>>>>>>>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>>>>>> PSCID is: DCC0000
>>>>>>>>>>>>>>>>>>>>>>>>>>>> CandID id: 258024
>>>>>>>>>>>>>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>>>>>> candidate id 258024
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> => No Visit labelVisit label does not exist
>>>>>>>>>>>>>>>>>>>>>>>>>>>> Set centerID = 1
>>>>>>>>>>>>>>>>>>>>>>>>>>>> PSCID is: DCC0000
>>>>>>>>>>>>>>>>>>>>>>>>>>>> CandID id: 258024
>>>>>>>>>>>>>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>>>>>> PSCID is: DCC0000
>>>>>>>>>>>>>>>>>>>>>>>>>>>> CandID id: 258024
>>>>>>>>>>>>>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> Number of MINC files that will be considered
>>>>>>>>>>>>>>>>>>>>>>>>>>>> for inserting into the database: 1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> log dir is /logs and log file is
>>>>>>>>>>>>>>>>>>>>>>>>>>>> /logs/TarLoad-15-42-L6pocU.log
>>>>>>>>>>>>>>>>>>>>>>>>>>>> PSCID is: DCC0000
>>>>>>>>>>>>>>>>>>>>>>>>>>>> CandID id: 258024
>>>>>>>>>>>>>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>>>>>> PSCID is: DCC0000
>>>>>>>>>>>>>>>>>>>>>>>>>>>> CandID id: 258024
>>>>>>>>>>>>>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>>>>>>>>>>>>>> candidate id 258024
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> => No Visit label
>>>>>>>>>>>>>>>>>>>>>>>>>>>> Cleaning up temp files: rm -rf
>>>>>>>>>>>>>>>>>>>>>>>>>>>> /tmp/TarLoad-15-42-J2rQms/ImagingUpload-15-42-yUwQQV*"
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> Στις Τετ, 24 Ιουλ 2019 στις 3:38 μ.μ., ο/η
>>>>>>>>>>>>>>>>>>>>>>>>>>>> Sotirios Nikoloutsopoulos <sotirisnik at gmail.com>
>>>>>>>>>>>>>>>>>>>>>>>>>>>> έγραψε:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 1) What are the records in the session table?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 2) I tried to upload a non-phantom file like
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> this
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> input_file.txt:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/incoming/DCC0000_258024_V1.tar.gz N
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> DCC0000_258024_V1
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Terminal:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> ./batch_uploads_imageuploader -profile prod <
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> ~/Desktop/input.txt > log.txt
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> and i get the following error in the log.txt
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> file
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> "Running now the following command:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> /data/loris/data/uploadNeuroDB/
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> imaging_upload_file.pl -profile prod
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> -upload_id 7 /data/incoming/DCC0000_258024_V1.tar.gz -verbose
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> find -path
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> \/tmp\/ImagingUpload\-14\-56\-FeLCB4 -name '__MACOSX' -delete
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Spool message is:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> The PatientName read from the DICOM header
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> does not start with DCC0000_258024_V1 from the mri_upload table
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> "
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> and the spool message is repeated for each
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> .dcm file. Should i preprocess every .dcm file and change the PatientName
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> to "DCC0000_258024_V1"?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 3) As far as it concerns the candidate profile
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> i have to create a new one each time before i try to upload a file? Is
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> there already a way to create a candidate profile and get the DCCID and
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> PSCID without the user interface?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Thank you,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Στις Πέμ, 18 Ιουλ 2019 στις 5:00 μ.μ., ο/η
>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Cecile Madjar <cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> See answers to your questions below.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> About the 1st case we had a dicom with a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> blank studyUID, maybe someone accidentally removed it.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> That is strange. Something must have been
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> done to the DICOM files. I have never seen a study with no StudyUID out of
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> the scanner. Usually, you need to manually erase it with some tool.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> However, DICOMs never cease to surprise me...
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Some other questions:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 1) What are the steps to remove all of my
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> patients and uploads?: because i want to try to reupload all the testing
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> dicoms we had with a clean database.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Release 21.0 of LORIS-MRI will offer a script
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> to remove all the entries and files specific to an upload. However, this
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> release is not yet out. Hopefully in the next few weeks.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> In the meantime, since your case is
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> particular and that you just want to start with a clean database, the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> following deletes should work (hopefully I won't forget any tables):
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> delete from mri_violations_log;
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> delete from mri_protocol_violated_scans;
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> delete from MRICandidateErrors;
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> delete from parameter_file;
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> delete from files_qcstatus; # (if you played
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> with the QC part of the imaging browser for testing)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> delete from feedback_mri_comments; # (if you
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> played with the QC part of the imaging browser for testing)
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> delete from tarchive_series;
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> delete from tarchive_files;
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> delete from mri_upload;
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> delete from tarchive;
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> delete from mri_scanner;
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> delete from candidate where PSCID="scanner";
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> I don't know if you want to also delete
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> entries in the session and candidate table too?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 2) We do not need to create the profile of a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> patient ( are the patients stored in the candidate table? because i can't
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> see the ghosts ), because will it automatically be created when importing a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> dicom?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> I am not sure I understand fully this
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> question. All candidates are stored in the candidate table. The phantom
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> scans however are attached to a scanner candidate depending on where the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> scan happened. It is a bit of a weird concept that we have to redesign
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> eventually but never got a chance to get to it.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Hopefully this answered your question,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> otherwise, don't hesitate to let me know.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 3) What is the difference between uploading a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> dicom as phantom instead of importing as PSCCID_DCCID_VisitLabel?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> When you upload the scan as
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> PSCID_DCCID_VisitLabel, there is a check that makes sure the candidate IDs
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> and visit label are valid at the time of upload.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> When you upload a scan as phantom, it expects
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> that the DICOM field PatientName and uploaded filename contains the string
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> "phantom". We enforced this behaviour on the imaging uploader side in
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> recent releases but I can't remember which one. Probably the upcoming 21.0
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> release.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> All those verifications might seem cumbersome
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> but they are here to ensure that the files inserted are all valid and
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> labelled properly as it is a bit messy to have to delete files that were
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> wrongly labelled. At least, the delete script present in release 21.0 will
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> make this process easier but it is still good practice to verify those
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> things.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Thank you,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> With pleasure. Hopefully the answers to your
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> questions will be helpful.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> PS: loris-dev mailing list: you will find the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> initial answer I gave Sotirios below. I forgot to cc the loris-dev in my
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> earlier reply...
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Στις Τρί, 16 Ιουλ 2019 στις 12:02 π.μ., ο/η
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Cecile Madjar <cecile.madjar at mcin.ca>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> έγραψε:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Dear Sotirios,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Thank you for reaching out. Since your
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> email was already organized in points, I will reply directly below your
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> questions below.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 1) What do we do when the StudyUID is blank
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> on the header?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/minor/docs/AppendixA-Troubleshooting_guideline.md
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> There solution provided at the table 3 does not guide us how to find the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> information ( is possible ).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> The StudyUID is the field used in our
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> pipeline at the moment to check whether a DICOM study was already inserted
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> into LORIS with that same StudyUID since it is supposed to be unique for
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> every single study. Currently, we do not support insertion of DICOM studies
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> if they do not have a StudyUID associated with them.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Is there a specific reason why the StudyUID
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> is blank in the DICOM headers in your DICOM files? Did they go through some
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> processes before upload to LORIS?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 2) When i am about to upload a non-phanton
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> case i need a 'Visit Label'. Is there already a script that can create a
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> new visit label for a specific Candidate, so i can provide it as input
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> afterwards to the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader ( See option 5.1.3 https://github.com/aces/Loris-MRI/blob/minor/docs/05-PipelineLaunchOptions.md )
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> I am not sure if the front-end allows for
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> it but if you use batch_uploads_imageuploader, the insertion scripts could
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> create the visit label for you. However, it does need to be included in the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> patient name in order for the script to know which label it should use.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> For example: you upload V02 for MTL0123
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> (DCCID: 456789) but V02 was not yet created for MTL0123; the insertion
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> scripts will create a V02 visit for MTL0123 if the PatientName field for
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> the dataset is MTL0123_456789_V02 with Stage marked as "Not Started".
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> However, *note that for the script to
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> create the visit for the candidate, you have to make sure that all the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> visit label of your projects were inserted in the Visit_Windows table*
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> (otherwise, the visit will never be created as they were not specified as
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> being part of the list of visit label to expect). So in the example above,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> you should have one row in Visit_Windows with Visit_label="V02" set.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 3) Section 4.3
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/minor/docs/04-Scripts.md
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> What do we do when the folder contains multiple mnc files?
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> This is a case by case. Most of the time,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> the MINC files that failed insertion into the imaging browser end up in the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> MRI violation module where you can see what went wrong with the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> acquisitions not inserted. If you notice that the MINC file should be
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> inserted as a specific protocol, you can force the insertion as explained
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> in section 4.3.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> In your case, I have a feeling that you
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> want to be able to insert MINC files that did not go through the whole
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> pipeline insertion (DICOM archival, then dcm2mnc, then protocol
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> identification, then insertion...). In theory, you could call
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> minc_insertion.pl on any MINC file,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> provided you have at least the following information:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> - path to the MINC file
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> - uploadID associated with the MINC files
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> or DICOM archive path from which those MINC files were created from
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Then the minc_insertion.pl script will do
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> the subject information and protocol validation etc...
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> If all the MINC files come from the same
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> uploadID or TarchiveID, then you could run a loop in bash calling the
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> minc_insertion.pl script like this for
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> files deriving from uploadID=1:
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> ls /path/to/mnc/folder/* | while read f; do
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> minc_insertion.pl -profile prod -uploadID
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 1 -mincPath $f; done
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Thank you,
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> Hope this helped!
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>> _______________________________________________
>>>>>>>>>>>>>> Loris-dev mailing list
>>>>>>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>>>>>>
>>>>>>>>>>>>>
>>>>>>>>>>>>>
>>>>>>>>>>>>> --
>>>>>>>>>>>>>
>>>>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>>>>
>>>>>>>>>>>>
>>>>>>>>>>>
>>>>>>>>>>> --
>>>>>>>>>>>
>>>>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>>>>> Montreal Neurological Institute
>>>>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>>>>
>>>>>>>>>> _______________________________________________
>>>>>>>>> Loris-dev mailing list
>>>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> --
>>>>>>>>
>>>>>>>> christine.rogers at mcgill.ca
>>>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>>>> Montreal Neurological Institute
>>>>>>>> McGill University | Montreal | Canada
>>>>>>>>
>>>>>>> _______________________________________________
>>>>>>> Loris-dev mailing list
>>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>>
>>>>>>
>>>>>>
>>>>>> --
>>>>>>
>>>>>> christine.rogers at mcgill.ca
>>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>>> Montreal Neurological Institute
>>>>>> McGill University | Montreal | Canada
>>>>>> _______________________________________________
>>>>>> Loris-dev mailing list
>>>>>> Loris-dev at bic.mni.mcgill.ca
>>>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>>>
>>>>>
>>>>>
>>>>> --
>>>>>
>>>>> christine.rogers at mcgill.ca
>>>>> McGill Centre for Integrative Neuroscience | MCIN.ca
>>>>> Montreal Neurological Institute
>>>>> McGill University | Montreal | Canada
>>>>>
>>>> _______________________________________________
>>>> Loris-dev mailing list
>>>> Loris-dev at bic.mni.mcgill.ca
>>>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>>>
>>>
>>>
>>> --
>>> Shen Wang
>>> Loris <https://github.com/aces/Loris> Developer
>>> Montreal Neurological Institute
>>> McGill University
>>>
>>>
>>
>> --
>> Shen Wang
>> Loris <https://github.com/aces/Loris> Developer
>> Montreal Neurological Institute
>> McGill University
>>
>>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190828/7072508e/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 78176 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190828/7072508e/attachment-0003.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 20518 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190828/7072508e/attachment-0004.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 354645 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190828/7072508e/attachment-0005.png>
More information about the Loris-dev
mailing list
