[Loris-dev] Import mri - scripts
Sotirios Nikoloutsopoulos
sotirisnik at gmail.com
Fri Aug 2 07:57:42 EDT 2019
Hi Christine,
In the candidate_list page i can see this patient
[image: image.png]
If i press the link under PSCID i get to see
[image: image.png]

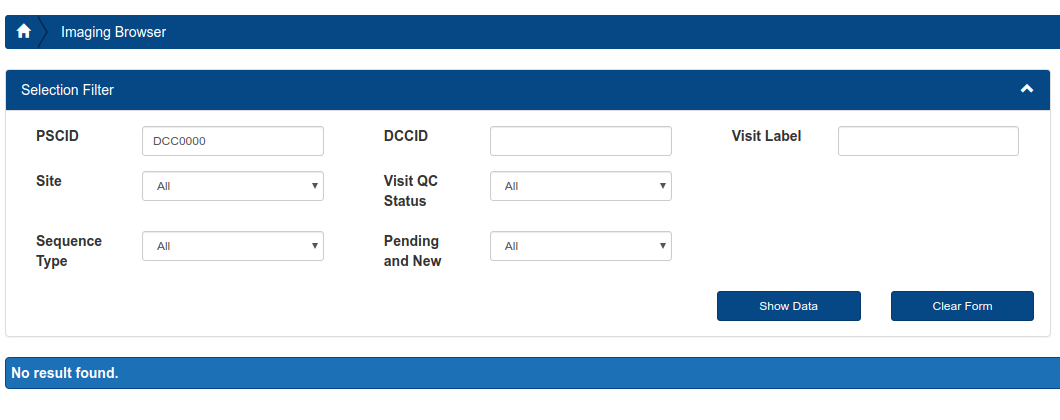

and if i press the link under Scan Done it redirects me to imaging_browser
[image: image.png]
At the mri_violations page i also see No results ( neither on resolved /
not resolved ).
At the imaging_uploader i can see the record that failed.
[image: image.png]
If i click on the tarchive info i get to see the Protocol Name which i
think is the acquisition we wanted?
[image: image.png]
Also my mri_protocol table is empty.
Furthermore i would like to ask about the defaced, native, selected. What
exactly is native and selected? And where are the qc comments stored?
[image: image.png]
Finally a walkthrough would be helpful.
Thanks,
Sotirios
Στις Τρί, 30 Ιουλ 2019 στις 8:29 μ.μ., ο/η Christine Rogers, Ms. <
christine.rogers at mcgill.ca> έγραψε:
> Hi Sotirios,
> Glad to hear you're making progress with the visit labels. To follow up
> on your last few emails:
>
> a- The Wiki's Setup Guide contains Sample insert statements for the Visit
> Windows table
> <https://github.com/aces/Loris/wiki/Project-Customization#iv-visit-windows>
> .
>
> As Cecile mentioned, the consistency of visit label format is important:
> V01, v01, V1, 01 -- whichever you select to use is fine; we use V01 by
> default across all documentation.
>
> b- For Password reset, there is a script in the tools/ directory so that a
> back-end administrator can reset any front-end user password, including
> Admin. (See info on setting up / resetting User passwords in the Wiki's
> Setup Guide
> <https://github.com/aces/Loris/wiki/Project-Customization#2-create-front-end-users>
> )
>
> c- The minc file not being registered -- due to AcquisitionProtocol
> unknown.
> This means the SeriesDescription (Acquisition Protocol) in you Dicom
> header was not matched to any scan listed in the mri_protocol database
> table.
> (In the online Loris-MRI Troubleshooting Guide,
> <https://github.com/aces/Loris-MRI/blob/minor/docs/AppendixA-Troubleshooting_guideline.md> this
> is Table 3, 2nd-last item "no MINCs inserted").
>
> The MRI Violations module (Readme here)
> <https://github.com/aces/Loris/tree/minor/modules/mri_violations>will show
> you the details of this mismatch --
> Go to the module (under the Imaging menu), find your scan and click the
> link "Could not identify scan type" -- in the next subpage you can compare
> the scan's actual parameters against the mri_protocol table.
>
> To resolve this, adjust your mri_protocol table values or perhaps ensure
> your DICOMs are labelled consistently.
>
> Let us know if this works for you -- we can also walk you through an
> example of non-identified scans on Demo.loris.ca (MRI Violations module).
>
> Best,
> Christine
>
> The LORIS team
>
>
> On Tue, Jul 30, 2019 at 10:47 AM Sotirios Nikoloutsopoulos <
> sotirisnik at gmail.com> wrote:
>
>> I hope this is sufficient as the error for the visit label disappeared.
>> [image: image.png]
>>
>> Please see the attached file. Also something i found.
>>
>> lorisadmin at hbp:/data/loris/bin/mri$ cat
>> /data/loris/data//logs/TarLoad-17-39-xubBdv.log
>>
>> ==> Loading file from disk
>> /tmp/TarLoad-17-39-UyQcG2/dcc0000_258024_v1_20121205_102108_501e1_mri.mnc
>>
>> --> mapping DICOM parameter for
>> /tmp/TarLoad-17-39-UyQcG2/dcc0000_258024_v1_20121205_102108_501e1_mri.mnc
>>
>> ==> computing md5 hash for MINC body.
>>
>> --> md5: 6b1202fd63e29de4c9be1cd9925888a5
>>
>> ==> verifying acquisition protocol
>>
>> Acquisition protocol is unknown
>>
>> --> The minc file cannot be registered since the AcquisitionProtocol is
>> unknown
>>
>> Στις Τρί, 30 Ιουλ 2019 στις 4:58 μ.μ., ο/η Sotirios Nikoloutsopoulos <
>> sotirisnik at gmail.com> έγραψε:
>>
>>> Ok I fixed the login problem by using a known hash and by deleting the
>>> rows from the login_history i was able to login.
>>>
>>> Στις Τρί, 30 Ιουλ 2019 στις 4:50 μ.μ., ο/η Sotirios Nikoloutsopoulos <
>>> sotirisnik at gmail.com> έγραψε:
>>>
>>>> Hi,
>>>>

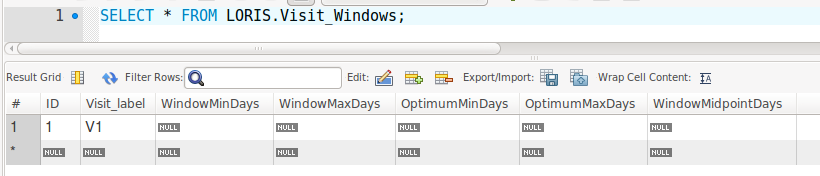

>>>> there was no visit label 01 in the Visit_Windows table and i don't know
>>>> how to insert it because the record requires lots of attributes. Also the
>>>> system for a reason asked me to update my password and now i don't remember
>>>> it and my account got suspended. Is there a way to reset it or set a simple
>>>> password? I updated the password hash in the users table by using the hash
>>>> from another LORIS setup we had and i still couldn't login ( also the
>>>> attribute password is always NULL and the expiration date is 1999-01-01 for
>>>> some reason ).
>>>>
>>>> Thanks
>>>>
>>>>
>>>>
>>>> Στις Δευ, 29 Ιουλ 2019 στις 5:21 μ.μ., ο/η Cecile Madjar <
>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>
>>>>> Hi Sotirios,
>>>>>
>>>>> Can you try adding the visit label v01 to the Visit_Windows table?
>>>>>
>>>>> However, I noticed that in a previous dataset, the label was V1. Does
>>>>> that refer to the same visit? If so, you might want to harmonize the visit
>>>>> labels so they are all the same across datasets for a given timepoint,
>>>>> meaning you will need to relabel scans when the visit label is different
>>>>> but referring to the same visit label (v01 = V1 etc...).
>>>>>
>>>>> Hope this helps,
>>>>>
>>>>> Cécile
>>>>>
>>>>> On Mon, Jul 29, 2019 at 10:15 AM Sotirios Nikoloutsopoulos <
>>>>> sotirisnik at gmail.com> wrote:
>>>>>
>>>>>> Hi,
>>>>>>
>>>>>> Could you help me with the "Visit label does not exist"? I had
>>>>>> changed $subjectID{'createVisitLabel'} to 1 as you had suggested but it
>>>>>> appears that this problem hasn't been resolved yet.
>>>>>>
>>>>>> lorisadmin at hbp:/data/loris/bin/mri$ cat
>>>>>> /data/loris/data//logs/TarLoad-14-58-9Xog7H.log
>>>>>>
>>>>>> ==> Loading file from disk
>>>>>> /tmp/TarLoad-14-58-5Z4hYX/dcc0000_258024_v01_20121205_102108_501e1_mri.mnc
>>>>>>
>>>>>> --> mapping DICOM parameter for
>>>>>> /tmp/TarLoad-14-58-5Z4hYX/dcc0000_258024_v01_20121205_102108_501e1_mri.mnc
>>>>>>
>>>>>> --> using user-defined filterParameters for
>>>>>> /tmp/TarLoad-14-58-5Z4hYX/dcc0000_258024_v01_20121205_102108_501e1_mri.mnc
>>>>>>
>>>>>> Candidate Mismatch Error is Visit label does not exist
>>>>>> -> WARNING: This candidate was invalid. Logging to
>>>>>> MRICandidateErrors table with reason Visit label does
>>>>>> not exist
>>>>>>
>>>>>> Thank you,
>>>>>>
>>>>>> Sotirios
>>>>>>
>>>>>> Στις Παρ, 26 Ιουλ 2019 στις 3:02 μ.μ., ο/η Sotirios Nikoloutsopoulos <
>>>>>> sotirisnik at gmail.com> έγραψε:
>>>>>>
>>>>>>> Hi Cecile,
>>>>>>>
>>>>>>> The Center error was fixed. Still the insertion of mincs fails.
>>>>>>> Please see the output.txt file i attached. Also is there something else i
>>>>>>> need to change at the paths configuration?
>>>>>>>
>>>>>>> Thank you,
>>>>>>>
>>>>>>> Sotirios
>>>>>>>
>>>>>>> Στις Πέμ, 25 Ιουλ 2019 στις 6:55 μ.μ., ο/η Cecile Madjar <
>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>
>>>>>>>> Hi Sotirios,
>>>>>>>>
>>>>>>>> We are making progress!
>>>>>>>>
>>>>>>>> I have a feeling this error comes from the fact that your psc table
>>>>>>>> does not have the MRI_alias populated for the DCC site. Running the
>>>>>>>> following query in the mysql database should fix this:
>>>>>>>> UPDATE psc SET MRI_alias="DCC", Alias="DCC" WHERE Name="Data
>>>>>>>> Coordinating Center";
>>>>>>>> Repeat the same with all your sites (make sure to change the
>>>>>>>> Aliases between sites, they should all be unique).
>>>>>>>>
>>>>>>>> Let me know how it goes!
>>>>>>>> Best,
>>>>>>>>
>>>>>>>> Cécile
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>>
>>>>>>>> On Thu, Jul 25, 2019 at 11:43 AM Sotirios Nikoloutsopoulos <
>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>
>>>>>>>>> Dear Cecile,
>>>>>>>>> You were right about your guesses. I did the modifications you
>>>>>>>>> suggested, i still get the "no mincs inserted" error, now i am getting the
>>>>>>>>> "No center found this candidate" error ( how do i fix that? from what i see
>>>>>>>>> the .dcm files contains a 'Institution Name', is that the center? ), so i
>>>>>>>>> guess that's why the validation fails, but i changed the force variable of
>>>>>>>>> tarchiveLoader to 1, shouldn't it have inserted the mincs then? Also it is
>>>>>>>>> optional to have a mail server, right? ( from what i see the mail error
>>>>>>>>> does not affect the $valid_study, so i assume we are okay with that )
>>>>>>>>> Thank you a lot,
>>>>>>>>> Sotirios
>>>>>>>>>
>>>>>>>>> Στις Πέμ, 25 Ιουλ 2019 στις 5:48 μ.μ., ο/η Cecile Madjar <
>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>
>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>
>>>>>>>>>> From what I understand, I believe you just need to update a few
>>>>>>>>>> config settings from the frontend in the Config module (under the Admin
>>>>>>>>>> menu).
>>>>>>>>>> [image: Screen Shot 2019-07-25 at 10.31.35 AM.png]
>>>>>>>>>>

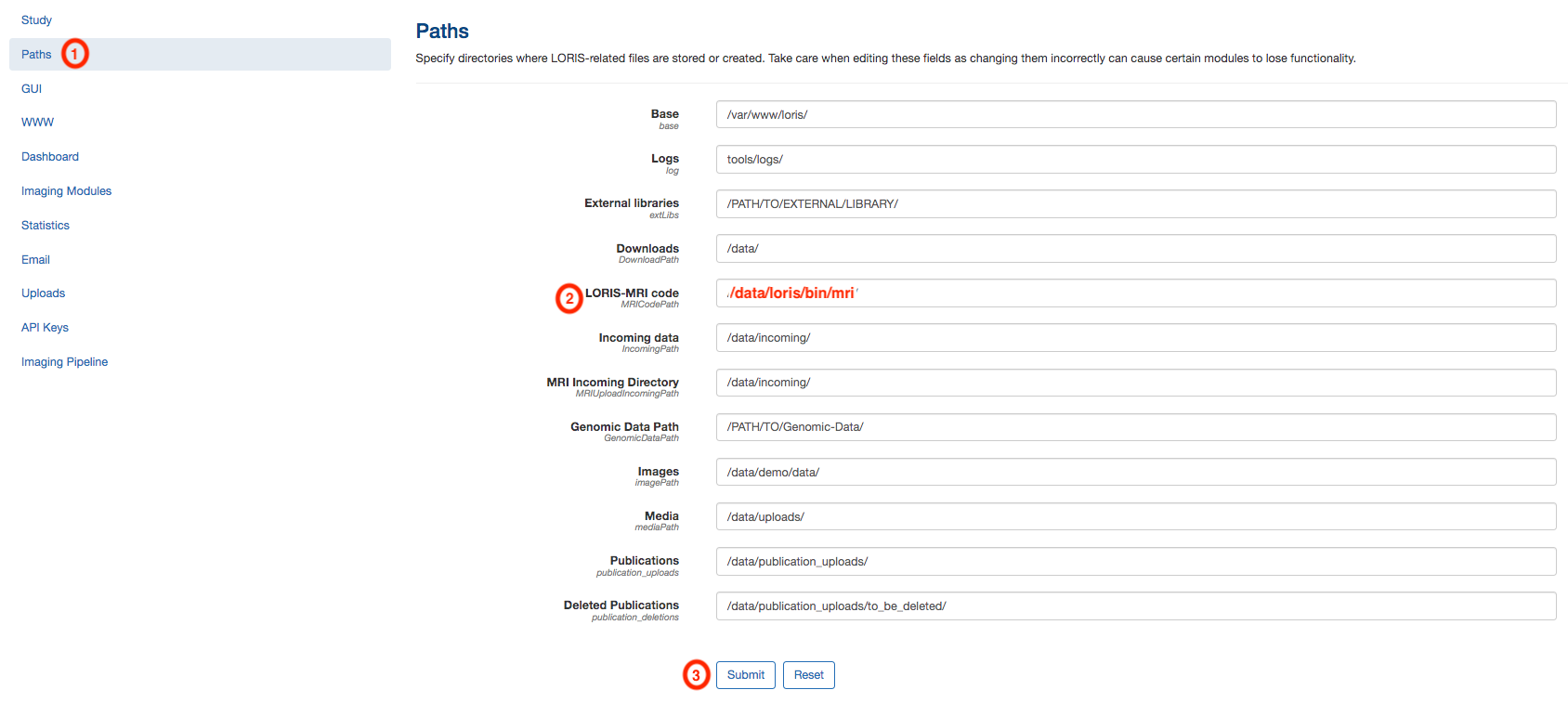

>>>>>>>>>> Then go to the Paths section of the config module and update the
>>>>>>>>>> "LORIS-MRI code" config setting to /data/loris/bin/mri (my guess is that
>>>>>>>>>> currently, it is set to /data/LORIS/data) and click on the submit button.
>>>>>>>>>> [image: Screen Shot 2019-07-25 at 10.32.50 AM.png]
>>>>>>>>>>
>>>>>>>>>> Then, go to Imaging Pipeline section of the Configuration module
>>>>>>>>>> and update the "Loris-MRI Data Directory" to /data/loris/data/ (my guess is
>>>>>>>>>> that it is empty at the moment in your database which is why $data_dir is
>>>>>>>>>> not defined when you run the tarchiveLoader step of the insertion pipeline).
>>>>>>>>>> [image: Screen Shot 2019-07-25 at 10.40.52 AM.png]
>>>>>>>>>>
>>>>>>>>>> Finally, I took a look at your environment file and it might be a
>>>>>>>>>> good idea to update your PERL5LIB variable to the following (it has been
>>>>>>>>>> added to the code a few releases ago as we realized this was needed for the
>>>>>>>>>> libraries. Not sure which version of LORIS-MRI you are using but it does
>>>>>>>>>> not hurt to update this variable to what I suggest below):
>>>>>>>>>> export
>>>>>>>>>> PERL5LIB=/data/loris/bin/mri/uploadNeuroDB:/data/loris/bin/mri/dicom-archive:$PERL5LIB
>>>>>>>>>>
>>>>>>>>>> Hope this helps. Sorry you are experiencing so much trouble
>>>>>>>>>> setting things up. We probably need to update our WIKI.
>>>>>>>>>>
>>>>>>>>>> Best,
>>>>>>>>>>
>>>>>>>>>> Cécile
>>>>>>>>>>
>>>>>>>>>> On Thu, Jul 25, 2019 at 9:48 AM Sotirios Nikoloutsopoulos <
>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>
>>>>>>>>>>> The "Loris-MRI Data Directory" should be in the environment
>>>>>>>>>>> file?
>>>>>>>>>>>
>>>>>>>>>>> Στις Πέμ, 25 Ιουλ 2019 στις 12:59 π.μ., ο/η Sotirios
>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>>>
>>>>>>>>>>>> The scripts are located in /data/loris/bin/mri/. Somewhere I
>>>>>>>>>>>> might have messed something up but i remember following the instructions in
>>>>>>>>>>>> the wiki.For example when i tried to execute the
>>>>>>>>>>>> batch_uploads_imageuploader perl script the line
>>>>>>>>>>>>
>>>>>>>>>>>> my $command = "$bin_dir/uploadNeuroDB/imaging_upload_file.pl "
>>>>>>>>>>>>
>>>>>>>>>>>> was pointing to an invalid path, for example: it was repeating
>>>>>>>>>>>> a pattern and had LORIS instead of loris ( i think the mistake was that in
>>>>>>>>>>>> the wiki it suggested to use $PROJECT for the name of the folder and i
>>>>>>>>>>>> choosed 'loris'
>>>>>>>>>>>> https://github.com/aces/Loris/wiki/Imaging-Database ). See
>>>>>>>>>>>> also the in image for the modification i did. Also i didn't find the
>>>>>>>>>>>> section to config the $data_dir variable.
>>>>>>>>>>>>
>>>>>>>>>>>> Thank you,
>>>>>>>>>>>>
>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>
>>>>>>>>>>>>
>>>>>>>>>>>>
>>>>>>>>>>>> Στις Τετ, 24 Ιουλ 2019 στις 6:05 μ.μ., ο/η Cecile Madjar <
>>>>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>
>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>
>>>>>>>>>>>>> It looks like you have one Config setting not set (based on
>>>>>>>>>>>>> the first error message you got when running it the first time). You need
>>>>>>>>>>>>> to set a value for "Loris-MRI Data Directory" in the Config module under
>>>>>>>>>>>>> the Imaging pipeline section (from what I can see, it would be
>>>>>>>>>>>>> /data/loris/data/ for your setup).
>>>>>>>>>>>>>
>>>>>>>>>>>>> The reason you got that error message the second time is that
>>>>>>>>>>>>> the pipeline checks if the DICOM study was already inserted in the tarchive
>>>>>>>>>>>>> table. Since you ran the study once already, the study is inserted into the
>>>>>>>>>>>>> tarchive, hence the message. However, the pipeline did not complete as the
>>>>>>>>>>>>> MINC files were not created and inserted into the files/parameter_file
>>>>>>>>>>>>> table. In order to continue the insertion, you will then need to run the
>>>>>>>>>>>>> tarchiveLoader command suggested in the terminal during the second run:
>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader -globLocation
>>>>>>>>>>>>> -profile prod
>>>>>>>>>>>>> /data/loris/data/tarchive//2012/DCM_2012-12-05_ImagingUpload-17-43-ZUEFjb.tar
>>>>>>>>>>>>> -verbose
>>>>>>>>>>>>>
>>>>>>>>>>>>> Finally, I am a bit confused by your setup. Where are the
>>>>>>>>>>>>> scripts located? In /data/loris/bin/mri or /data/loris/data? It feels like
>>>>>>>>>>>>> the Config setting "LORIS-MRI code" in the Paths section was set to
>>>>>>>>>>>>> "/data/LORIS/data" but it should have been set to the directory where the
>>>>>>>>>>>>> scripts are located (most probably /data/loris/bin/mri).
>>>>>>>>>>>>>
>>>>>>>>>>>>> Hope this helps,
>>>>>>>>>>>>>
>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>
>>>>>>>>>>>>>
>>>>>>>>>>>>> On Wed, Jul 24, 2019 at 10:55 AM Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>
>>>>>>>>>>>>>> Ok first i execute this command:
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> "lorisadmin at hbp:/data/loris/bin/mri$
>>>>>>>>>>>>>> ./batch_uploads_imageuploader -profile prod < ~/Desktop/input.txt > log.txt
>>>>>>>>>>>>>> Use of uninitialized value $data_dir in concatenation (.) or
>>>>>>>>>>>>>> string at ./batch_uploads_imageuploader line 143.
>>>>>>>>>>>>>> Use of uninitialized value $data_dir in concatenation (.) or
>>>>>>>>>>>>>> string at ./batch_uploads_imageuploader line 143.
>>>>>>>>>>>>>> Use of uninitialized value $_ in pattern match (m//) at
>>>>>>>>>>>>>> ./batch_uploads_imageuploader line 147.
>>>>>>>>>>>>>> base is DCC0000_258024_V01
>>>>>>>>>>>>>> path is /data/incoming/
>>>>>>>>>>>>>> type is .tar.gz
>>>>>>>>>>>>>> fullpath is /data/incoming/DCC0000_258024_V01.tar.gz
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> source /tmp/ImagingUpload-17-43-ZUEFjb
>>>>>>>>>>>>>> targetlocation /data/loris/data/tarchive
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Use of uninitialized value $data_dir in concatenation (.) or
>>>>>>>>>>>>>> string at /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 256.
>>>>>>>>>>>>>> Use of uninitialized value $data_dir in concatenation (.) or
>>>>>>>>>>>>>> string at /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 284.
>>>>>>>>>>>>>> Use of uninitialized value $data_dir in concatenation (.) or
>>>>>>>>>>>>>> string at /data/loris/bin/mri/uploadNeuroDB/
>>>>>>>>>>>>>> tarchive_validation.pl line 219.
>>>>>>>>>>>>>> Use of uninitialized value $data_dir in concatenation (.) or
>>>>>>>>>>>>>> string at /data/loris/bin/mri/uploadNeuroDB/minc_insertion.pl
>>>>>>>>>>>>>> line 270.
>>>>>>>>>>>>>> Use of uninitialized value $data_dir in concatenation (.) or
>>>>>>>>>>>>>> string at /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 711.
>>>>>>>>>>>>>> Can't exec "mail": No such file or directory at
>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 721.
>>>>>>>>>>>>>> print() on closed filehandle MAIL at
>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 722.
>>>>>>>>>>>>>> print() on closed filehandle MAIL at
>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 723.
>>>>>>>>>>>>>> Use of uninitialized value $data_dir in concatenation (.) or
>>>>>>>>>>>>>> string at /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 724.
>>>>>>>>>>>>>> print() on closed filehandle MAIL at
>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 724.
>>>>>>>>>>>>>> print() on closed filehandle MAIL at
>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 725.
>>>>>>>>>>>>>> Use of uninitialized value $data_dir in concatenation (.) or
>>>>>>>>>>>>>> string at /data/LORIS/data//uploadNeuroDB/tarchiveLoader line 735.
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> No Mincs inserted
>>>>>>>>>>>>>>
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> The tarchiveLoader insertion script has failed.
>>>>>>>>>>>>>> Running now the following command:
>>>>>>>>>>>>>> /data/loris/data/uploadNeuroDB/imaging_upload_file.pl
>>>>>>>>>>>>>> -profile prod -upload_id 3 /data/incoming/DCC0000_258024_V01.tar.gz
>>>>>>>>>>>>>> -verbose"
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> I inserted the VisitLabel, but still the Mincs are not
>>>>>>>>>>>>>> inserted and i am getting this error
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> "lorisadmin at hbp:/data/loris/bin/mri$
>>>>>>>>>>>>>> /data/loris/data/uploadNeuroDB/imaging_upload_file.pl
>>>>>>>>>>>>>> -profile prod -upload_id 3 /data/incoming/DCC0000_258024_V01.tar.gz -verbose
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> find -path \/tmp\/ImagingUpload\-17\-45\-5MsWEd -name
>>>>>>>>>>>>>> '__MACOSX' -delete
>>>>>>>>>>>>>> Spool message is:
>>>>>>>>>>>>>> The Scan for the uploadID 3 has already been run with
>>>>>>>>>>>>>> tarchiveID: 7.
>>>>>>>>>>>>>> To continue with the rest of the insertion pipeline, please
>>>>>>>>>>>>>> run tarchiveLoader from a terminal as follows:
>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader -globLocation -profile prod
>>>>>>>>>>>>>> /data/loris/data/tarchive//2012/DCM_2012-12-05_ImagingUpload-17-43-ZUEFjb.tar
>>>>>>>>>>>>>> -verbose"
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Which files should i delete? I thought that deleting the
>>>>>>>>>>>>>> files from the tarchive was enough. And i executed the last proposed
>>>>>>>>>>>>>> command to continue to rest of the insertion pipeline ( check the image ).
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Thank you
>>>>>>>>>>>>>>
>>>>>>>>>>>>>> Στις Τετ, 24 Ιουλ 2019 στις 5:05 μ.μ., ο/η Cecile Madjar <
>>>>>>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Sorry I was not clear before. Every visits of candidates are
>>>>>>>>>>>>>>> created in the session table with one entry per CandID/VisitLabel. So if
>>>>>>>>>>>>>>> the imaging pipeline created visits in the session table (that are not
>>>>>>>>>>>>>>> attached to instruments) and you want to clean your database completely,
>>>>>>>>>>>>>>> you can delete entries in that table as well.
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Regarding your point 2, the imaging pipeline can create the
>>>>>>>>>>>>>>> visit in the session table as long as the visit label is present in the
>>>>>>>>>>>>>>> Visit_Windows table (which means the visit label stored in the PatientName
>>>>>>>>>>>>>>> is a valid visit label).
>>>>>>>>>>>>>>> However, in your prod file, if the
>>>>>>>>>>>>>>> variable $subjectID{'createVisitLabel'} is set to 1 for candidates, the
>>>>>>>>>>>>>>> visit label should be created in the Visit_Windows table I believe. Here
>>>>>>>>>>>>>>> is the line of the prod file you would need to change
>>>>>>>>>>>>>>> <https://github.com/aces/Loris-MRI/blob/81bae73ea6e86c9498519dadf574468ee1d992ca/dicom-archive/profileTemplate.pl#L59>
>>>>>>>>>>>>>>> .
>>>>>>>>>>>>>>> In general, we prefer populating the Visit_Windows table and
>>>>>>>>>>>>>>> set the $subjectID{'createVisitLabel'} to 0 for candidate data to avoid
>>>>>>>>>>>>>>> insertion of badly labelled MRI data that are complex to relabel.
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Finally, regarding the candidate creation, if you execute
>>>>>>>>>>>>>>> the following steps, the pipeline should be able to create candidates:
>>>>>>>>>>>>>>> - set in the Imaging Pipeline section of the config module
>>>>>>>>>>>>>>> the config setting "Upload creation of candidates" to Yes
>>>>>>>>>>>>>>> - manually transfer the scans to the LORIS server instead of
>>>>>>>>>>>>>>> uploading it via the imaging browser
>>>>>>>>>>>>>>> - run batch_imaging_upload.pl as you did until now.
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Hope this helps!
>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>> On Wed, Jul 24, 2019 at 8:47 AM Sotirios Nikoloutsopoulos <
>>>>>>>>>>>>>>> sotirisnik at gmail.com> wrote:
>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> About my second question i replaced the name of the patient
>>>>>>>>>>>>>>>> in the .dcm files and now i am getting an error that the visit label does
>>>>>>>>>>>>>>>> not exist.
>>>>>>>>>>>>>>>> I thought it was supposed to be automatically created.
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> "Done adding archive info into database
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> /data/LORIS/data//uploadNeuroDB/tarchiveLoader
>>>>>>>>>>>>>>>> -globLocation -profile prod
>>>>>>>>>>>>>>>> /data/loris/data/tarchive//DCM_2012-12-05_ImagingUpload-15-42-yUwQQV.tar
>>>>>>>>>>>>>>>> -verbose
>>>>>>>>>>>>>>>> md5sum
>>>>>>>>>>>>>>>> /data/loris/data/tarchive/DCM_2012-12-05_ImagingUpload-15-42-yUwQQV.tar
>>>>>>>>>>>>>>>> PSCID is: DCC0000
>>>>>>>>>>>>>>>> CandID id: 258024
>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>> PSCID is: DCC0000
>>>>>>>>>>>>>>>> CandID id: 258024
>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>> candidate id 258024
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> => No Visit labelVisit label does not exist
>>>>>>>>>>>>>>>> Set centerID = 1
>>>>>>>>>>>>>>>> PSCID is: DCC0000
>>>>>>>>>>>>>>>> CandID id: 258024
>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>> PSCID is: DCC0000
>>>>>>>>>>>>>>>> CandID id: 258024
>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Number of MINC files that will be considered for inserting
>>>>>>>>>>>>>>>> into the database: 1
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> log dir is /logs and log file is
>>>>>>>>>>>>>>>> /logs/TarLoad-15-42-L6pocU.log
>>>>>>>>>>>>>>>> PSCID is: DCC0000
>>>>>>>>>>>>>>>> CandID id: 258024
>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>> PSCID is: DCC0000
>>>>>>>>>>>>>>>> CandID id: 258024
>>>>>>>>>>>>>>>> visit_label is: V1
>>>>>>>>>>>>>>>> candidate id 258024
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> => No Visit label
>>>>>>>>>>>>>>>> Cleaning up temp files: rm -rf
>>>>>>>>>>>>>>>> /tmp/TarLoad-15-42-J2rQms/ImagingUpload-15-42-yUwQQV*"
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>> Στις Τετ, 24 Ιουλ 2019 στις 3:38 μ.μ., ο/η Sotirios
>>>>>>>>>>>>>>>> Nikoloutsopoulos <sotirisnik at gmail.com> έγραψε:
>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Hi,
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> 1) What are the records in the session table?
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> 2) I tried to upload a non-phantom file like this
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> input_file.txt:
>>>>>>>>>>>>>>>>> /data/incoming/DCC0000_258024_V1.tar.gz N DCC0000_258024_V1
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Terminal:
>>>>>>>>>>>>>>>>> ./batch_uploads_imageuploader -profile prod <
>>>>>>>>>>>>>>>>> ~/Desktop/input.txt > log.txt
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> and i get the following error in the log.txt file
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> "Running now the following command:
>>>>>>>>>>>>>>>>> /data/loris/data/uploadNeuroDB/imaging_upload_file.pl
>>>>>>>>>>>>>>>>> -profile prod -upload_id 7 /data/incoming/DCC0000_258024_V1.tar.gz -verbose
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> find -path \/tmp\/ImagingUpload\-14\-56\-FeLCB4 -name
>>>>>>>>>>>>>>>>> '__MACOSX' -delete
>>>>>>>>>>>>>>>>> Spool message is:
>>>>>>>>>>>>>>>>> The PatientName read from the DICOM header does not start
>>>>>>>>>>>>>>>>> with DCC0000_258024_V1 from the mri_upload table
>>>>>>>>>>>>>>>>> "
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> and the spool message is repeated for each .dcm file.
>>>>>>>>>>>>>>>>> Should i preprocess every .dcm file and change the PatientName to
>>>>>>>>>>>>>>>>> "DCC0000_258024_V1"?
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> 3) As far as it concerns the candidate profile i have to
>>>>>>>>>>>>>>>>> create a new one each time before i try to upload a file? Is there already
>>>>>>>>>>>>>>>>> a way to create a candidate profile and get the DCCID and PSCID without the
>>>>>>>>>>>>>>>>> user interface?
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Thank you,
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Sotirios
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>> Στις Πέμ, 18 Ιουλ 2019 στις 5:00 μ.μ., ο/η Cecile Madjar <
>>>>>>>>>>>>>>>>> cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Hi Sotirios,
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> See answers to your questions below.
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> About the 1st case we had a dicom with a blank studyUID,
>>>>>>>>>>>>>>>>>>> maybe someone accidentally removed it.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> That is strange. Something must have been done to the
>>>>>>>>>>>>>>>>>> DICOM files. I have never seen a study with no StudyUID out of the scanner.
>>>>>>>>>>>>>>>>>> Usually, you need to manually erase it with some tool. However, DICOMs
>>>>>>>>>>>>>>>>>> never cease to surprise me...
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Some other questions:
>>>>>>>>>>>>>>>>>>> 1) What are the steps to remove all of my patients and
>>>>>>>>>>>>>>>>>>> uploads?: because i want to try to reupload all the testing dicoms we had
>>>>>>>>>>>>>>>>>>> with a clean database.
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Release 21.0 of LORIS-MRI will offer a script to remove
>>>>>>>>>>>>>>>>>> all the entries and files specific to an upload. However, this release is
>>>>>>>>>>>>>>>>>> not yet out. Hopefully in the next few weeks.
>>>>>>>>>>>>>>>>>> In the meantime, since your case is particular and that
>>>>>>>>>>>>>>>>>> you just want to start with a clean database, the following deletes should
>>>>>>>>>>>>>>>>>> work (hopefully I won't forget any tables):
>>>>>>>>>>>>>>>>>> delete from mri_violations_log;
>>>>>>>>>>>>>>>>>> delete from mri_protocol_violated_scans;
>>>>>>>>>>>>>>>>>> delete from MRICandidateErrors;
>>>>>>>>>>>>>>>>>> delete from parameter_file;
>>>>>>>>>>>>>>>>>> delete from files_qcstatus; # (if you played with the QC
>>>>>>>>>>>>>>>>>> part of the imaging browser for testing)
>>>>>>>>>>>>>>>>>> delete from feedback_mri_comments; # (if you played with
>>>>>>>>>>>>>>>>>> the QC part of the imaging browser for testing)
>>>>>>>>>>>>>>>>>> delete from tarchive_series;
>>>>>>>>>>>>>>>>>> delete from tarchive_files;
>>>>>>>>>>>>>>>>>> delete from mri_upload;
>>>>>>>>>>>>>>>>>> delete from tarchive;
>>>>>>>>>>>>>>>>>> delete from mri_scanner;
>>>>>>>>>>>>>>>>>> delete from candidate where PSCID="scanner";
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> I don't know if you want to also delete entries in the
>>>>>>>>>>>>>>>>>> session and candidate table too?
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> 2) We do not need to create the profile of a patient (
>>>>>>>>>>>>>>>>>>> are the patients stored in the candidate table? because i can't see the
>>>>>>>>>>>>>>>>>>> ghosts ), because will it automatically be created when importing a dicom?
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> I am not sure I understand fully this question. All
>>>>>>>>>>>>>>>>>> candidates are stored in the candidate table. The phantom scans however are
>>>>>>>>>>>>>>>>>> attached to a scanner candidate depending on where the scan happened. It is
>>>>>>>>>>>>>>>>>> a bit of a weird concept that we have to redesign eventually but never got
>>>>>>>>>>>>>>>>>> a chance to get to it.
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Hopefully this answered your question, otherwise, don't
>>>>>>>>>>>>>>>>>> hesitate to let me know.
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> 3) What is the difference between uploading a dicom as
>>>>>>>>>>>>>>>>>>> phantom instead of importing as PSCCID_DCCID_VisitLabel?
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> When you upload the scan as PSCID_DCCID_VisitLabel, there
>>>>>>>>>>>>>>>>>> is a check that makes sure the candidate IDs and visit label are valid at
>>>>>>>>>>>>>>>>>> the time of upload.
>>>>>>>>>>>>>>>>>> When you upload a scan as phantom, it expects that the
>>>>>>>>>>>>>>>>>> DICOM field PatientName and uploaded filename contains the string
>>>>>>>>>>>>>>>>>> "phantom". We enforced this behaviour on the imaging uploader side in
>>>>>>>>>>>>>>>>>> recent releases but I can't remember which one. Probably the upcoming 21.0
>>>>>>>>>>>>>>>>>> release.
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> All those verifications might seem cumbersome but they
>>>>>>>>>>>>>>>>>> are here to ensure that the files inserted are all valid and labelled
>>>>>>>>>>>>>>>>>> properly as it is a bit messy to have to delete files that were wrongly
>>>>>>>>>>>>>>>>>> labelled. At least, the delete script present in release 21.0 will make
>>>>>>>>>>>>>>>>>> this process easier but it is still good practice to verify those things.
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> Thank you,
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> With pleasure. Hopefully the answers to your questions
>>>>>>>>>>>>>>>>>> will be helpful.
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> PS: loris-dev mailing list: you will find the initial
>>>>>>>>>>>>>>>>>> answer I gave Sotirios below. I forgot to cc the loris-dev in my earlier
>>>>>>>>>>>>>>>>>> reply...
>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>> Στις Τρί, 16 Ιουλ 2019 στις 12:02 π.μ., ο/η Cecile Madjar
>>>>>>>>>>>>>>>>>>> <cecile.madjar at mcin.ca> έγραψε:
>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Dear Sotirios,
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Thank you for reaching out. Since your email was
>>>>>>>>>>>>>>>>>>>> already organized in points, I will reply directly below your questions
>>>>>>>>>>>>>>>>>>>> below.
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Best,
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Cécile
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> 1) What do we do when the StudyUID is blank on the
>>>>>>>>>>>>>>>>>>>>> header?
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/minor/docs/AppendixA-Troubleshooting_guideline.md
>>>>>>>>>>>>>>>>>>>>> There solution provided at the table 3 does not guide us how to find the
>>>>>>>>>>>>>>>>>>>>> information ( is possible ).
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> The StudyUID is the field used in our pipeline at the
>>>>>>>>>>>>>>>>>>>> moment to check whether a DICOM study was already inserted into LORIS with
>>>>>>>>>>>>>>>>>>>> that same StudyUID since it is supposed to be unique for every single
>>>>>>>>>>>>>>>>>>>> study. Currently, we do not support insertion of DICOM studies if they do
>>>>>>>>>>>>>>>>>>>> not have a StudyUID associated with them.
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Is there a specific reason why the StudyUID is blank in
>>>>>>>>>>>>>>>>>>>> the DICOM headers in your DICOM files? Did they go through some processes
>>>>>>>>>>>>>>>>>>>> before upload to LORIS?
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> 2) When i am about to upload a non-phanton case i need
>>>>>>>>>>>>>>>>>>>>> a 'Visit Label'. Is there already a script that can create a new visit
>>>>>>>>>>>>>>>>>>>>> label for a specific Candidate, so i can provide it as input afterwards to
>>>>>>>>>>>>>>>>>>>>> the
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> batch_uploads_imageuploader ( See option 5.1.3 https://github.com/aces/Loris-MRI/blob/minor/docs/05-PipelineLaunchOptions.md )
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> I am not sure if the front-end allows for it but if you
>>>>>>>>>>>>>>>>>>>> use batch_uploads_imageuploader, the insertion scripts could create the
>>>>>>>>>>>>>>>>>>>> visit label for you. However, it does need to be included in the patient
>>>>>>>>>>>>>>>>>>>> name in order for the script to know which label it should use.
>>>>>>>>>>>>>>>>>>>> For example: you upload V02 for MTL0123 (DCCID:
>>>>>>>>>>>>>>>>>>>> 456789) but V02 was not yet created for MTL0123; the insertion scripts
>>>>>>>>>>>>>>>>>>>> will create a V02 visit for MTL0123 if the PatientName field for the
>>>>>>>>>>>>>>>>>>>> dataset is MTL0123_456789_V02 with Stage marked as "Not Started".
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> However, *note that for the script to create the visit
>>>>>>>>>>>>>>>>>>>> for the candidate, you have to make sure that all the visit label of your
>>>>>>>>>>>>>>>>>>>> projects were inserted in the Visit_Windows table*
>>>>>>>>>>>>>>>>>>>> (otherwise, the visit will never be created as they were not specified as
>>>>>>>>>>>>>>>>>>>> being part of the list of visit label to expect). So in the example above,
>>>>>>>>>>>>>>>>>>>> you should have one row in Visit_Windows with Visit_label="V02" set.
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> 3) Section 4.3
>>>>>>>>>>>>>>>>>>>>> https://github.com/aces/Loris-MRI/blob/minor/docs/04-Scripts.md
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> What do we do when the folder contains multiple mnc files?
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> This is a case by case. Most of the time, the MINC
>>>>>>>>>>>>>>>>>>>> files that failed insertion into the imaging browser end up in the MRI
>>>>>>>>>>>>>>>>>>>> violation module where you can see what went wrong with the acquisitions
>>>>>>>>>>>>>>>>>>>> not inserted. If you notice that the MINC file should be inserted as a
>>>>>>>>>>>>>>>>>>>> specific protocol, you can force the insertion as explained in section 4.3.
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> In your case, I have a feeling that you want to be able
>>>>>>>>>>>>>>>>>>>> to insert MINC files that did not go through the whole pipeline insertion
>>>>>>>>>>>>>>>>>>>> (DICOM archival, then dcm2mnc, then protocol identification, then
>>>>>>>>>>>>>>>>>>>> insertion...). In theory, you could call
>>>>>>>>>>>>>>>>>>>> minc_insertion.pl on any MINC file, provided you have
>>>>>>>>>>>>>>>>>>>> at least the following information:
>>>>>>>>>>>>>>>>>>>> - path to the MINC file
>>>>>>>>>>>>>>>>>>>> - uploadID associated with the MINC files or DICOM
>>>>>>>>>>>>>>>>>>>> archive path from which those MINC files were created from
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Then the minc_insertion.pl script will do the subject
>>>>>>>>>>>>>>>>>>>> information and protocol validation etc...
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> If all the MINC files come from the same uploadID or
>>>>>>>>>>>>>>>>>>>> TarchiveID, then you could run a loop in bash calling the
>>>>>>>>>>>>>>>>>>>> minc_insertion.pl script like this for files deriving
>>>>>>>>>>>>>>>>>>>> from uploadID=1:
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> ls /path/to/mnc/folder/* | while read f; do
>>>>>>>>>>>>>>>>>>>> minc_insertion.pl -profile prod -uploadID 1 -mincPath
>>>>>>>>>>>>>>>>>>>> $f; done
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>> Thank you,
>>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>>> Hope this helped!
>>>>>>>>>>>>>>>>>>>>
>>>>>>>>>>>>>>>>>>> _______________________________________________
>> Loris-dev mailing list
>> Loris-dev at bic.mni.mcgill.ca
>> https://mailman.bic.mni.mcgill.ca/mailman/listinfo/loris-dev
>>
>
>
> --
>
> christine.rogers at mcgill.ca
> McGill Centre for Integrative Neuroscience | MCIN.ca
> Montreal Neurological Institute
> McGill University | Montreal | Canada
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190802/9d9922b6/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Screen Shot 2019-07-25 at 10.31.35 AM.png
Type: image/png
Size: 45707 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190802/9d9922b6/attachment-0010.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Screen Shot 2019-07-25 at 10.32.50 AM.png
Type: image/png
Size: 134887 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190802/9d9922b6/attachment-0011.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Screen Shot 2019-07-25 at 10.40.52 AM.png
Type: image/png
Size: 95814 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190802/9d9922b6/attachment-0012.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 27691 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190802/9d9922b6/attachment-0013.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 24845 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190802/9d9922b6/attachment-0014.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 26329 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190802/9d9922b6/attachment-0015.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 34143 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190802/9d9922b6/attachment-0016.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 24075 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190802/9d9922b6/attachment-0017.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 75316 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190802/9d9922b6/attachment-0018.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.png
Type: image/png
Size: 9670 bytes
Desc: not available
URL: <http://mailman.bic.mni.mcgill.ca/pipermail/loris-dev/attachments/20190802/9d9922b6/attachment-0019.png>
More information about the Loris-dev
mailing list
